1957 Gale made Sea King 5 hp, GG8960A

Home Forum Ask A Member 1957 Gale made Sea King 5 hp, GG8960A

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 5 posts - 1 through 5 (of 5 total)

  • Buccaneer

    US Member - 1 Year
    Replies: 5086
    Topics: 831
    #248037

    I pulled this more modern $40 jewel off the rack today for something
    different to do for a change. I’m “guessing” that I’m missing the
    carbon seal, spring, etc., for the lower main seal, seeing the same
    year Johnson had those, according to the M.E. parts diagrams.

    When I pulled the lower unit all that was there was a brass cup washer that sits
    on the driveshaft cross pin.
    Did the Gale made models use the carbon seal as well?

    Thanks.

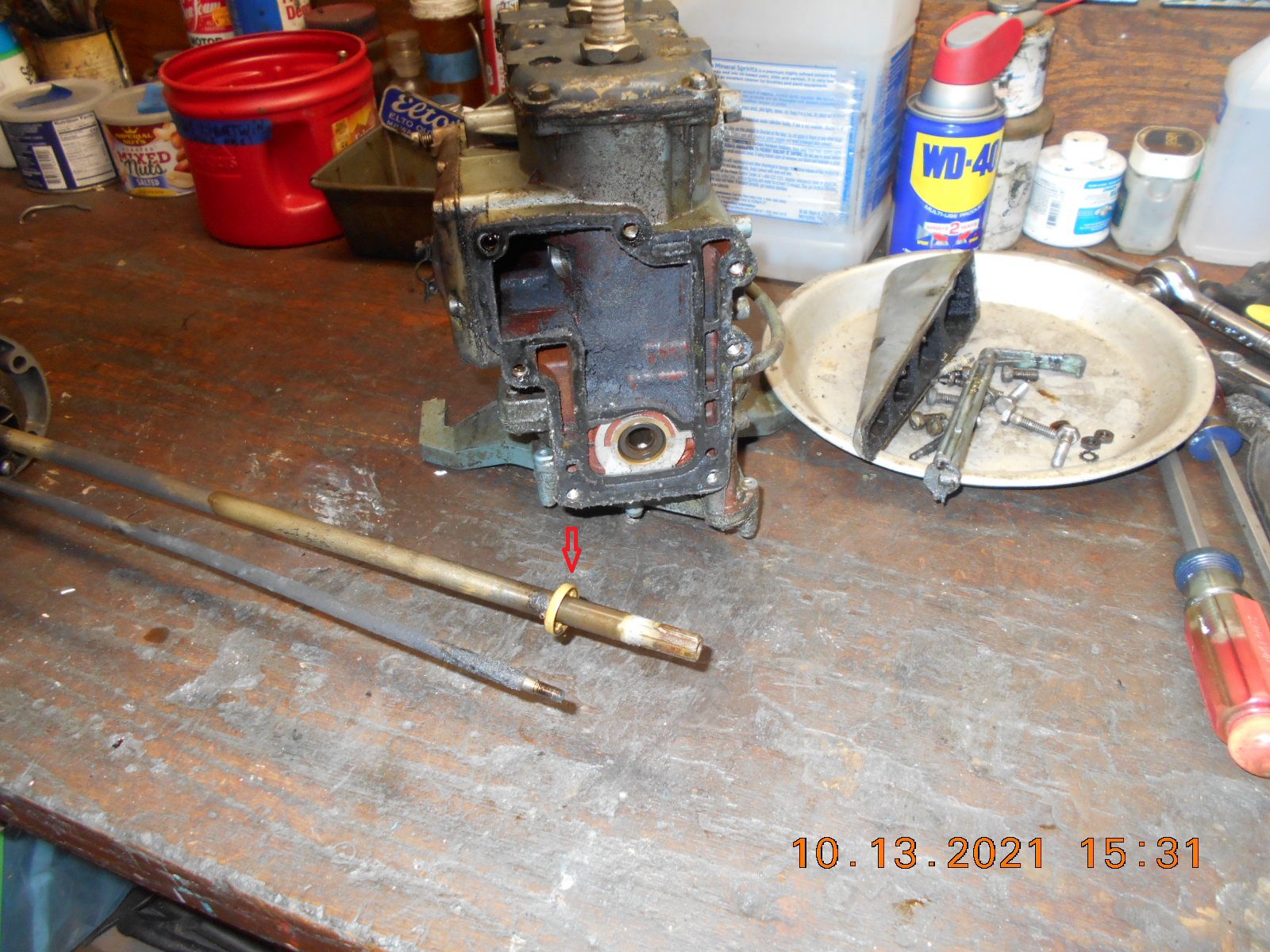

    DSCN1922

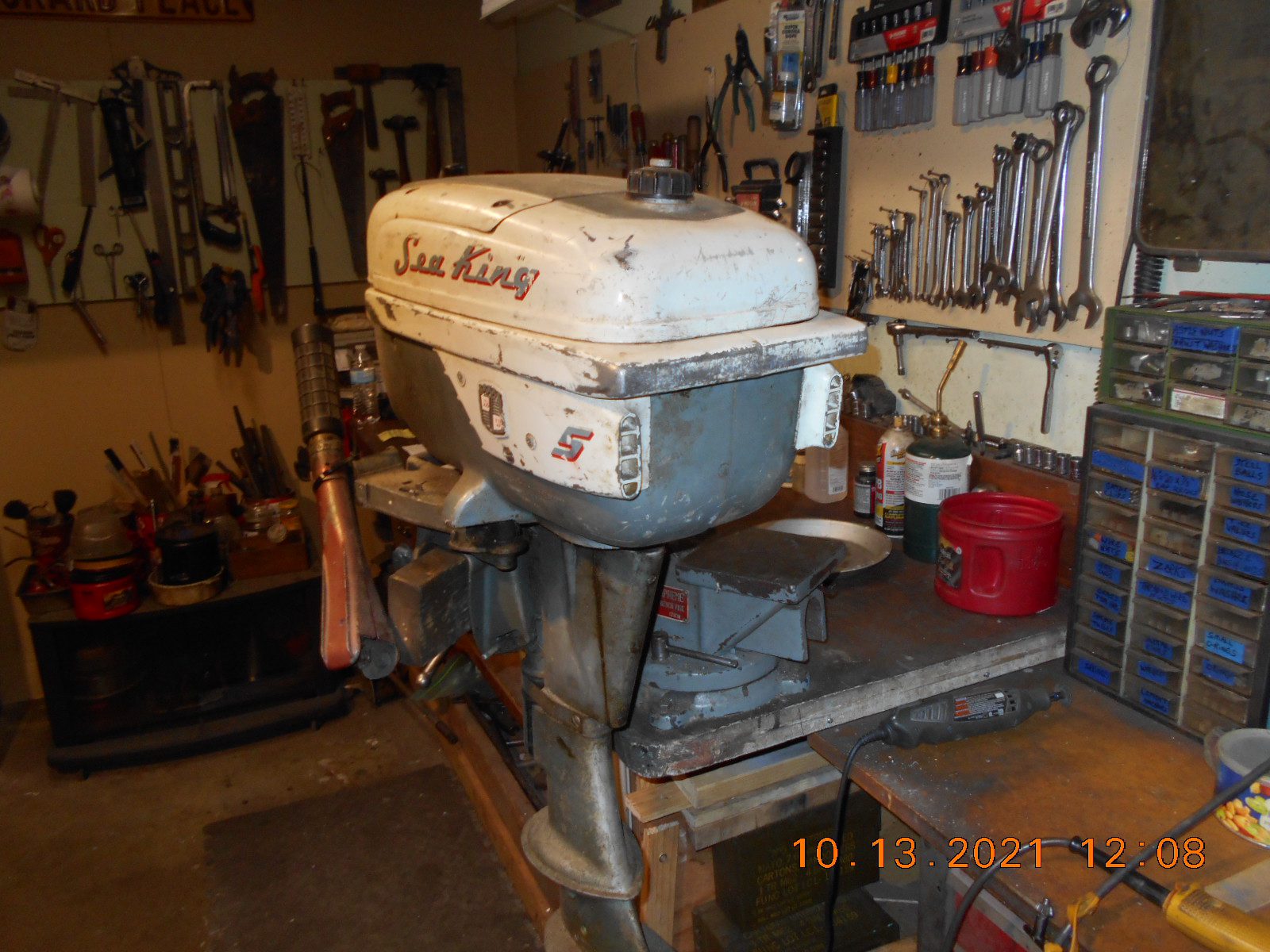

    DSCN1915

    Prepare to be boarded!

    Attachments:
    1 user thanked author for this post.

    dan-in-tn

    US Member - 2 Years
    Replies: 961
    Topics: 78
    #248055

    I have several of the Gale built 5hp models. They use the same setup as the 5.5 & 7.5hp motors you’re use to. You can look up all the parts that are missing on MarineEngune. You may even have some left over from scrap motors? Good luck!

    Dan in TN


    Buccaneer

    US Member - 1 Year
    Replies: 5086
    Topics: 831
    #248066

    I have several of the Gale built 5hp models. They use the same setup as the 5.5 & 7.5hp motors you’re use to. You can look up all the parts that are missing on MarineEngune. You may even have some left over from scrap motors? Good luck!

    Dan in TN

    Thanks Dan, I also came home from Tomahawk with two (to make one)
    1960 Sea King 5 hp models, and it appears that they may use
    the same carbon seal assembly……. I hope so, all those part new on M.E.
    are over $100.
    Compression is 62 & 63 psi, marginal at best, so whatever I do I’m
    just throwing money out the window……. but I’d like to hear it run
    at least once before it goes back to sleep!

    Prepare to be boarded!

    • This reply was modified 1 week, 1 day ago by Buccaneer.

    bobw

    US Member - 1 Year
    Replies: 1523
    Topics: 47
    #248069

    Buc – here’s a used seal assembly.

    https://www.ebay.com/itm/165086651633?hash=item266fee64f1:g:WjAAAOSwnxxgvi05

    Bob

    1954 Johnson CD-11
    1956 Johnson RD-18
    1958 Johnson QD-19
    1959 Johnson QD-20
    1957 Evinrude Fastwin 18

    "Every 20 minute job is only a broken bolt away from a 3-day project."


    Buccaneer

    US Member - 1 Year
    Replies: 5086
    Topics: 831
    #248075

    Buc – here’s a used seal assembly.

    https://www.ebay.com/itm/165086651633?hash=item266fee64f1:g:WjAAAOSwnxxgvi05

    Thanks Bob. If the frozen up, 1960 Sea King doesn’t have the
    needed parts, then I might go that route.

    Prepare to be boarded!
