1-piece to 2-piece gearcase conversion

This topic has 4 replies, 2 voices, and was last updated 9 years, 6 months ago by frankr.

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
February 20, 2016 at 9:32 pm #3671
johnyrude200
Participant

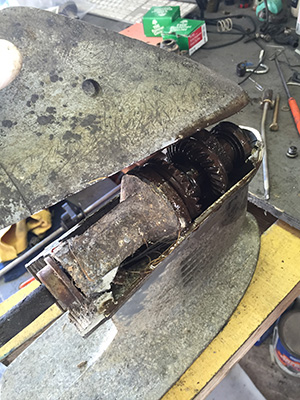

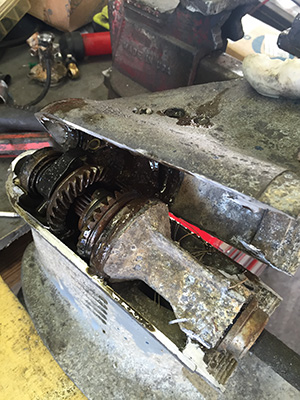

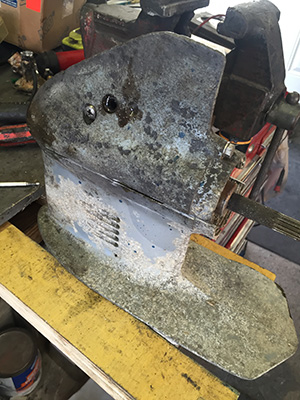

Well, I didn’t read this in a service manual, but the conversion worked to get at the internals on this salt gearcase (which was not salvageable).

Thought you all might get a chuckle out of this one.
February 20, 2016 at 9:32 pm #32212
johnyrude200
Participant
February 20, 2016 at 10:54 pm #32213
frankr
Participant
US MEMBER PAY BY CHECK
Well I’ll be…that is too cool. What did you use to cut it?
February 20, 2016 at 11:32 pm #32215
johnyrude200
Participant
Just a good ‘ol fashion skillsaw with a metal cutting blade, and a steady hand.

On a side note, it took me a solid 15 minutes to put the forward gear, cradle, and yoke back into one of these today. The service manuals call for a special tool which I surmise ‘snakes’ a threaded screw on a flexible wire down through the shifter bearing orifice, out the back of the gearcase housing, and then pulls the 3 pieces into place.

Does anyone have any self-made tools to recreate this handy gadget? (Or even one to sell)
February 21, 2016 at 12:35 am #32224
frankr
Participant
US MEMBER PAY BY CHECK
I don’t have one, but I used to have one when I was doing this stuff for a living. It worked well. Worth buying one if you are going to be doing these things.
