      My motor was missing quite a few things. I’ve been able to replace the cylinder, piston, but other than the points what is available to replace the missing coils and condenser?

      jwmcclure

      September 18, 2016 at 4:31 pm #44236
      RICHARD A. WHITE
      Participant

        Lifetime Member

        Well, one could attempt to find an original working coil and condenser, Might be challenging, OR you could run it off a Model T buzz box…..

        http://www.richardsoutboardtools.com
        classicomctools@gmail.com

        September 18, 2016 at 4:53 pm #44239
        fisherman6
        Participant

          US Member

          Buzz coils usually run better anyway since they provide multiple sparks for ignition. Only real disadvantage is needing a battery.
          -Ben

          OldJohnnyRude on YouTube

          September 18, 2016 at 5:03 pm #44243
          mcclurski
          Participant

            US Member

            I’ve been looking at the diagrams for buzz coil. I may have to do that. so it sounds like creative replacements are not likely?

            jwmcclure

            September 18, 2016 at 5:20 pm #44248
            RICHARD A. WHITE
            Participant

              Lifetime Member

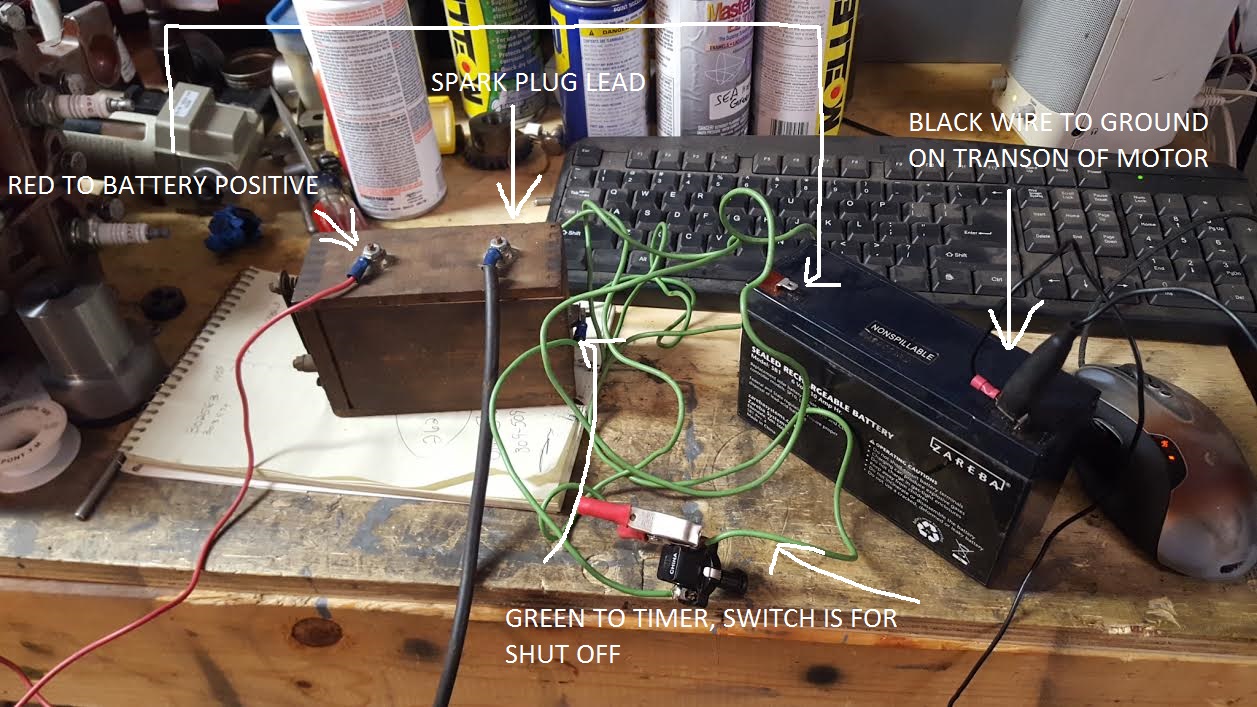

              Here ya go, this is what I use on my 1913 Evinrude RBM.

              http://www.richardsoutboardtools.com
              classicomctools@gmail.com

              September 18, 2016 at 6:24 pm #44254
              chris-p
              Participant

                Try Doug Penn?

                September 18, 2016 at 6:58 pm #44257
                mcclurski
                Participant

                  US Member

                  Yes, Doug is helpful. I have an actual model T coil but now I see the new versions have posts for attaching wires instead of just contact spots. Thanks for your pic, very helpful.

                  jwmcclure

                  September 18, 2016 at 8:14 pm #44259
                  RICHARD A. WHITE
                  Participant

                    Lifetime Member

                    Those are not "normal", it does not matter how it attaches, just that it attaches..

                    http://www.richardsoutboardtools.com
                    classicomctools@gmail.com

                    September 18, 2016 at 9:02 pm #44263
                    mcclurski
                    Participant

                      US Member

                      Thanks.. so no need for a condenser as well

                      jwmcclure

                      September 18, 2016 at 10:04 pm #44266
                      RICHARD A. WHITE
                      Participant

                        Lifetime Member

                        The condenser is inside the Ford coil box….
