      Working on a Folding “N,” does anyone know how common these are? I find the style a bit more appealing than the later design, but I can’t seem to get this one to stay running very long. Runs maybe 3-5 minutes at a time, I can’t get it to open up even after cleaning the carb. Always starts right up, though. Any ideas? Also looking for ideas of how to clean this one, I’d love to keep it original, just cleaner.

      Thanks!

      "Shells sink, dreams float. Life's good on our boat."
      1921 Elto Light Twin
      1923 Evinrude Model N Sportwin
      1930 Johnson F-50
      1956 Johnson JW-12R
      1956 Johnson CD-13A

      #299304
      RICHARD A. WHITE
      Participant

        Lifetime Member

        Plugged fuel tank vent?

        http://www.richardsoutboardtools.com
        classicomctools@gmail.com

        #299306
        Tom
        Participant

          US Member

          When running, does the float pin stay down? If not, there is a fuel flow issue to the carb.

          Does fuel leak out of the carb? If so, the float pin and/or seat need to be addressed.

          Have you checked the condenser with a real condenser tester?

          Do you hear any squeaking or hissing when it runs? (That is, are the crankcase gaskets intact?)

          T

          1 user thanked author for this post.
          #299309
          Aidan Smith
          Participant

            US Junior Member

            Tom,

            On this motor, you cannot see the float pin for some reason.

            There is a cap over the top of it, that appears to be bronze or brass.

            No hissing/squeaking, and the only time fuel leaks out of the carb is when the motor is laid down with the fuel on, or is tilted into the boat.

            Not sure how to test the condenser, I don’t have a condenser tester.

            When the motor runs, it just sputters and kind of “chugs” along, and I have checked my spark in both cylinders.

            It appears to be healthy spark, and I also cleaned the plugs, which looked fine as well.

            It was hard to start, but once running, would run at slow speed regardless of where the throttle and timing are.



            — Aidan

            "Shells sink, dreams float. Life's good on our boat."
            1921 Elto Light Twin
            1923 Evinrude Model N Sportwin
            1930 Johnson F-50
            1956 Johnson JW-12R
            1956 Johnson CD-13A

            #299310
            Aidan Smith
            Participant

              US Junior Member

              Richard,

              I cleaned out the tank, and tested fuel flow even before putting it on the boat.



              — Aidan

              "Shells sink, dreams float. Life's good on our boat."
              1921 Elto Light Twin
              1923 Evinrude Model N Sportwin
              1930 Johnson F-50
              1956 Johnson JW-12R
              1956 Johnson CD-13A

              #299312
              Tubs
              Participant

                Here is a link to a video I’ve done on the folding N. Should answer some of your questions. – https://youtu.be/i9NiPC126fY?si=zPQGp4LrEpOQPOIp

                A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

                1 user thanked author for this post.
                #299313
                Aidan Smith
                Participant

                  US Junior Member

                  Tubs,

                  That is quite the motor you have restored. I hope to do the same with mine.

                  I was surprised with the fact that its possible there’s less than 100 that remain functional.

                  What did you use to clean yours, and get to the copper plate? Mine is filthy.

                  I also have a Tillotson carb, #MS126A.



                  — Aidan

                  "Shells sink, dreams float. Life's good on our boat."
                  1921 Elto Light Twin
                  1923 Evinrude Model N Sportwin
                  1930 Johnson F-50
                  1956 Johnson JW-12R
                  1956 Johnson CD-13A

                  #299336
                  Tubs
                  Participant

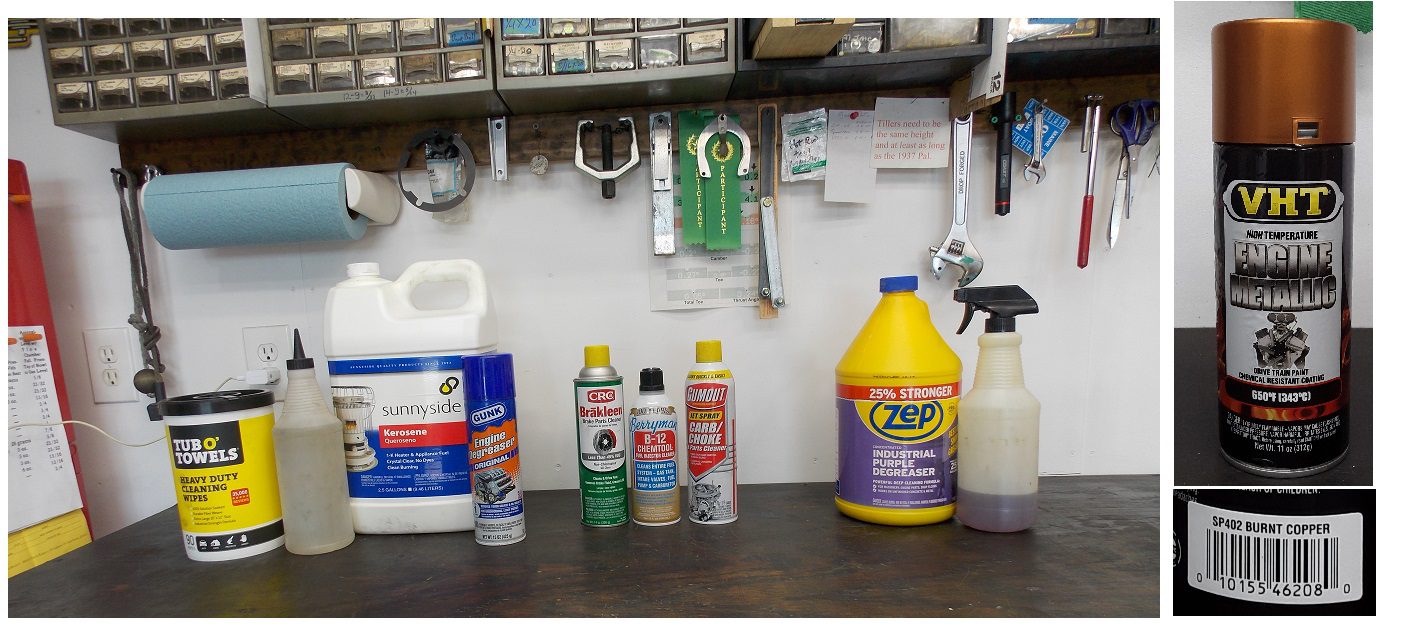

                    I have any number of things I use cleaning up motors. It depends on what your trying to remove. A guy I met, who is also into these, told me about the copper cylinder paint. Hard starting and no power may indicate low compression. Try it out of the water and see if it speeds up. Your carb number comes up as being for a homelite product from 1946-47. Take another look at the number. There is a video to mine running . Does your carb look like mine? I feel this carb is too big for the size of the power head IMO. This motor, while cool, is just a collection of parts used on other motors. Its a guesstimate on my part that there may only be 100 remaining, not a fact. Video Link. – https://youtu.be/XPXjFZcMOl8

                    NF
