November 2, 2021 at 1:33 pm #249079
Tom Cass
Participant
US Member

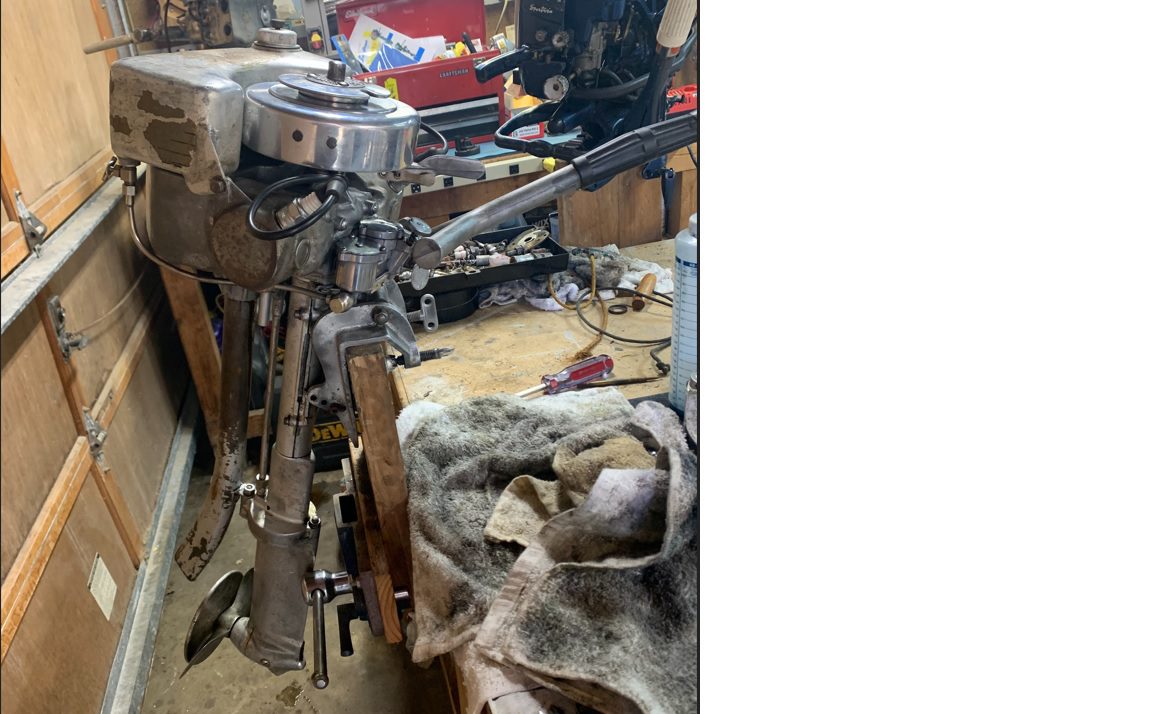

New to AOMCI and new to the addiction. I have been tinkering with a 1931 – 1932 Evinrude Fisherman. Couple of questions.

1) Is the round plate behind the propeller an aftermarket trolling plate?

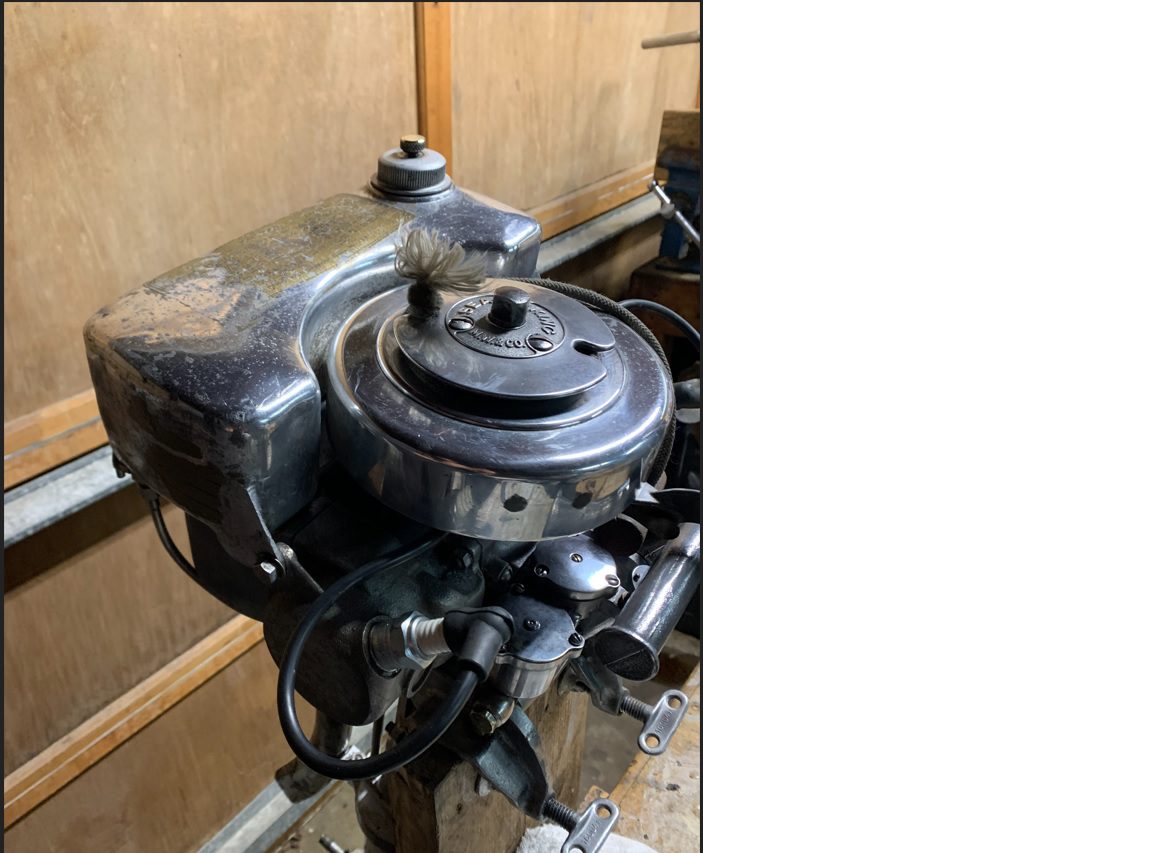

2) Is the plate on the top of the mag correct?
3) Any good leads on a lower unit that has a skeg still intact.

I picked up this in a few boxes and got it back together. Soldered new plug wires, cleaned the point, and soaked the carb for hours to loosen up some hard debris. After re-assembling it started on the second pull. I am going to be removing the rubber boots on the plug wire ends and using the older copper fittings to look a bit more correct.

Thank you for your help with these questions.
- This topic was modified 4 years, 2 months ago by Mumbles.
November 3, 2021 at 7:05 am #249094
PM T2
Participant
Canada Member
Good morning, and welcome to the club. I hope you have better luck fighting off the old iron addiction than I had!

To answer your questions – it is most likely a trolling attachment on the prop, there were a lot of different ways they used to reduce/impede the thrust generated by the propeller and that is one of them.

secondly, check with a guy named Matt Penn for lower unit parts, he and his father Doug have been supplying AOMCI club members with parts for vintage motors.

https://www.oldoutboard.com

The Penn’s Old Outboards

Hope it helps.

Best,
PM T2

He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...
November 3, 2021 at 1:16 pm #249099
Tom Cass
Participant
US Member
PM-T2 Thanks for your response. The addiction is real my friend. Looking forward to supporting and sharing with the group.
November 5, 2021 at 6:52 am #249164
PM T2
Participant
Canada Member
Couple things i noticed after a closer look at the pictures you posted.

That motor should have an above-water exhaust on it. Judging by the curve of the brass exhaust pipe, I’d say that the muffler and pipe were taken from a 1934 Evinrude Fisherman and retrofitted to this motor.

What is the model number on the ID plate that should be riveted to the transom bracket? Your motor looks like a model 401 Elto Lightweight to me, but knowing the model number would remove all doubt.

Best,
PM T2

He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...
November 5, 2021 at 7:02 am #249165
Tom
Participant
US Member
Doesn’t the lack of an anti-cav plate make it a SeaKing lower unit?

T
November 5, 2021 at 9:34 am #249167
Tubs
Participant
I believe the Model 401 is a battery ignition.
The Seaking Model 400 had a magneto as well
as not having the anti-cav plate that Tom has
pointed out. If it should be a Model 400 the
underwater exhaust would be from another
motor as pm-t2 has mentioned. Not sure if
the tiller is correct on this example pictured.
More pictures may be helpful in discovering
what you have.
Tubs

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.
November 5, 2021 at 12:51 pm #249172
Tom Cass
Participant
US Member
Tubs, Tom, and PM, thanks for all your feedback. I was scratching my head as well. I reached out to Matt @ theoldoutbaord for parts and we identified the model number stamped into the case is 4911643. This would make the motor a 1935 SeaKing with an Evinrude tank. The exhaust looks to be correct or maybe not?

I assume that OMC decided to market these units through MW and use up the old parts they had from the early 30’s?

Thanks for all your help and appreciate the transfer of knowledge/experience.

Tom
