Home Forum Ask A Member 1936 Evinrude 9017, 16.2 hp, Sportfour Imperial Electric Start

Viewing 10 posts - 1 through 10 (of 27 total)
  • Author
    Posts
  • #300218
    Buccaneer
    Participant

      US Member

      First time I’ve had this on in the water. Not sure what’s going on, but I can’t
      get this 16 hp to “wind up”. Throttle is opening all the way. I leaned out the
      high speed to the point it starts slowing down, but it never did “wind up”.
      While running, I shorted out each spark plug with a screw driver, and it’s
      hitting on all four cylinders. The spark advance needs to have more tension
      on it some how. The battery was “down” further than expected after I had a
      few starts on a Big Twin the prior two days. The Sportfour was slow cranking,
      but did start, but didn’t seem to charge the battery at all the first five minutes.
      Not sure if the engine was winding up fast enough to start charging, or an issue
      with the cut-out relay. Once it started charging, it stayed charging when I had
      |higher rpms. Hence, I think the new solid state voltage regulator is working okay.

      The motor seem to run better at slow speeds.
      Ignition issue of some weird nature?

      Not sure how to diagnose the “Not” winding up issue??

      VIDEO….
      https://youtu.be/gpwLlqmWFN4

      Prepare to be boarded!

      1 user thanked author for this post.
      #300222
      HARRY D. NICHOLSON
      Participant

        US MEMBER PAY BY CHECK

        Dirty gas tank screen by valve, screen at carb fitting, gas cap vent restricted, pistons in backwards (check through spark plug hole), boat too heavy, too much pitch on prop blades, …….?

        #300223
        Buccaneer
        Participant

          US Member

          Harry, gas tank and fuel system thoroughly cleaned, and it did not
          act like it was starving for gas.

          I did not have the powerhead apart, so if the pistons are in backwards,
          they been that way for 30 plus years? …… but worth a check.

          I thought about the prop, and eyed up the one on my 38 Sportfour,
          but not being in the same room, it was hard to tell, but I “think”
          the prop on the 36 is more aggressive.

          The Crestliner isn’t super heavy, and I’m used to running it with a 35 hp
          Big Twin, and never ran it with a comparable HP motor to the Sportfour.
          I did have my 38 Sportfour on my little Alumacraft, and that was
          on the scary side! That motor wound up nice.

          VIDEO……..
          https://youtu.be/FKA02V4t7QY

          Prepare to be boarded!

          #300224
          Tubs
          Participant

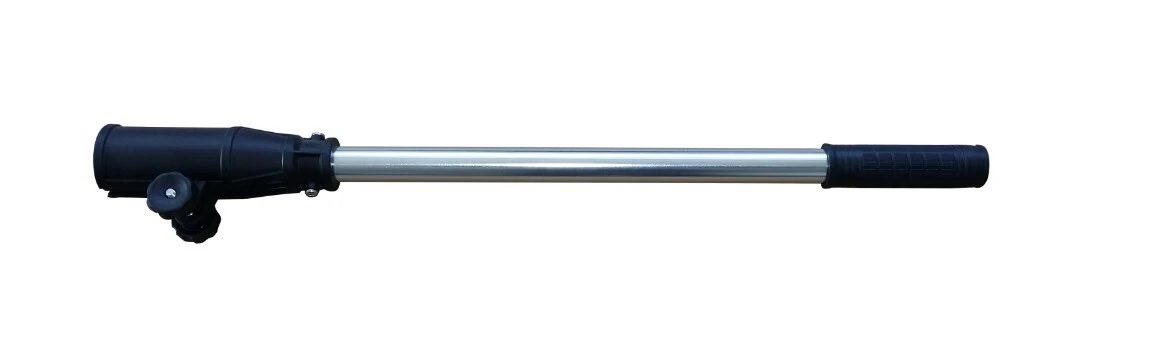

            I agree with Harry. Try it on your Alumacraft, or try (or make) a tiller extension so you can move up some in your Crestliner, if you don’t have a less aggressive prop.

            Tiller-Extention

            A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

            #300226
            Buccaneer
            Participant

              US Member

              Haven’t got to the props yet, but I did pull all four sparkplugs.
              They all appeared “tan-ish”, with some tiny chunks of carbon
              all over, the bottom cylinders being a little wet looking,
              but that’s probably the nature of the beast.

              All pistons appear oriented the same, and that is, they
              appear “flat”. Lighting, depth perception, and the angle
              of vision, doesn’t permit seeing the piston slope.
              I’m assuming the piston do have slopes, and hence, they’re
              on the exhaust side.

              Will compare props between the two Sportfours next.
              I’m very hesitant about putting this “Electric” version
              on my little Alumacraft, as it’s quite a bit heavier, and
              very “top heavy” with that DC motor atop.

              I need to figure out a way to make the spark advance lever stay where
              I want it. There’s no adjustable means to do so. I did install a spring
              washer on the shaft that the lever is attached to, but that didn’t do the trick.

              Prepare to be boarded!

              #300227
              RICHARD A. WHITE
              Participant

                Lifetime Member

                Acts like it needs more advancement of the timing…????

                http://www.richardsoutboardtools.com
                classicomctools@gmail.com

                #300228
                labrador-guy
                Participant

                  US MEMBER PAY BY CHECK

                  Buc you usually have things clean as a whistle.  Did you check the exhaust relief ports?  They might be clogged up with carbon.  That old timer probably got a bunch of 30w oil in it’s day.  The exhaust relief ports are in the muffler where the cooling water exits.

                  dale

                  #300229
                  PM T2
                  Participant

                    Canada Member

                    Try advancing the initial timing. You might need more advance to bring the RPM’s up. Sounds like its headed the right direction when you advance the timing lever, you might just have to tweak the initial point setting increase the amount of overall advance.

                    Best,
                    PM T2

                    He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

                    #300233
                    Buccaneer
                    Participant

                      US Member

                      Buc you usually have things clean as a whistle.  Did you check the exhaust relief ports?  They might be clogged up with carbon.  That old timer probably got a bunch of 30w oil in it’s day.  The exhaust relief ports are in the muffler where the cooling water exits.

                      dale

                      Yes, the exhaust housing was off, and the exhaust ports were wide
                      open, and rings free.

                      Prepare to be boarded!

                      #300234
                      Buccaneer
                      Participant

                        US Member

                        Try advancing the initial timing. You might need more advance to bring the RPM’s up. Sounds like its headed the right direction when you advance the timing lever, you might just have to tweak the initial point setting increase the amount of overall advance.

                        Best,
                        PM T2

                        I can try redoing the initial advance, but I need to figure out how
                        to keep the advance lever where I put it.
                        Not sure how one is suppose to put any tension / friction in the system.

                        Also, I think the prop on the newer Sportfour I have is less aggressive,
                        and I was just edumacating myself on how to measure pitch.
                        Thanks.

                        Prepare to be boarded!

                      Viewing 10 posts - 1 through 10 (of 27 total)
