1936 Handitwin grease

Home › Forum › Ask A Member › 1936 Handitwin grease

  • This topic has 3 replies, 3 voices, and was last updated 9 years ago by Tubs.
Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • March 11, 2017 at 7:12 pm #6516
    edgartc
    Participant

      I am restoring a 1936 Elto Handitwin when I got it in a box and have put it together. When I had the gear case apart I didn’t put grease in. I have been working on it for 3 years because of a health problem, now I am at the point where I need to do that . I can’t remember which screw would be the vent, I would like to get the right one first and not break the paint on anything that isn’t the one to take out.
      Thank in advance

      March 12, 2017 at 6:59 am #54180
      garry-in-michigan
      Participant

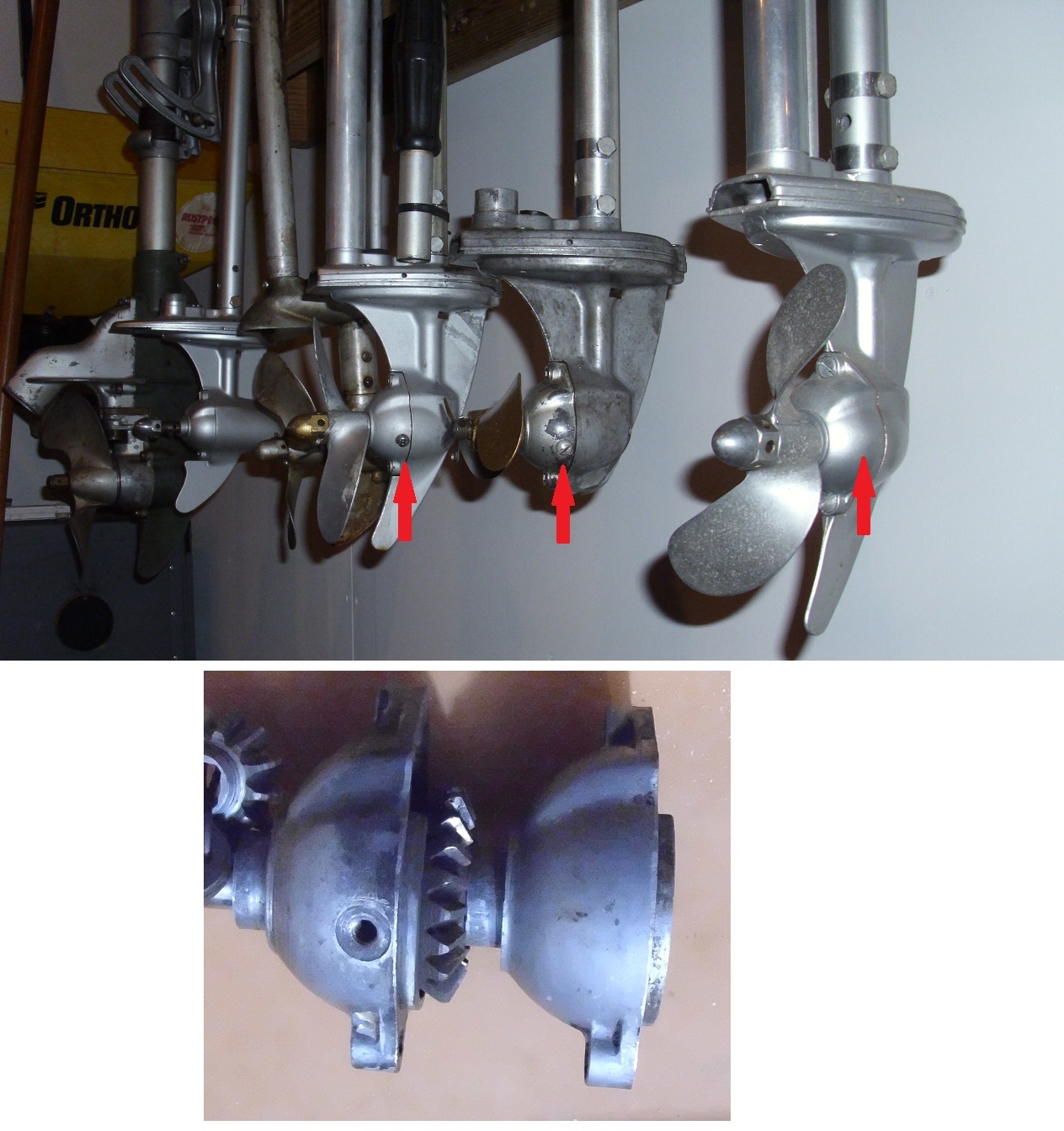

        I believe the slotted quarter inch pipe plug on the starboard side of the gear case is the fill hole, while the slotted screw on the port side is the vent. It is filled while laying on it’s side. . . 😉

        March 14, 2017 at 11:36 am #54302
        edgartc
        Participant

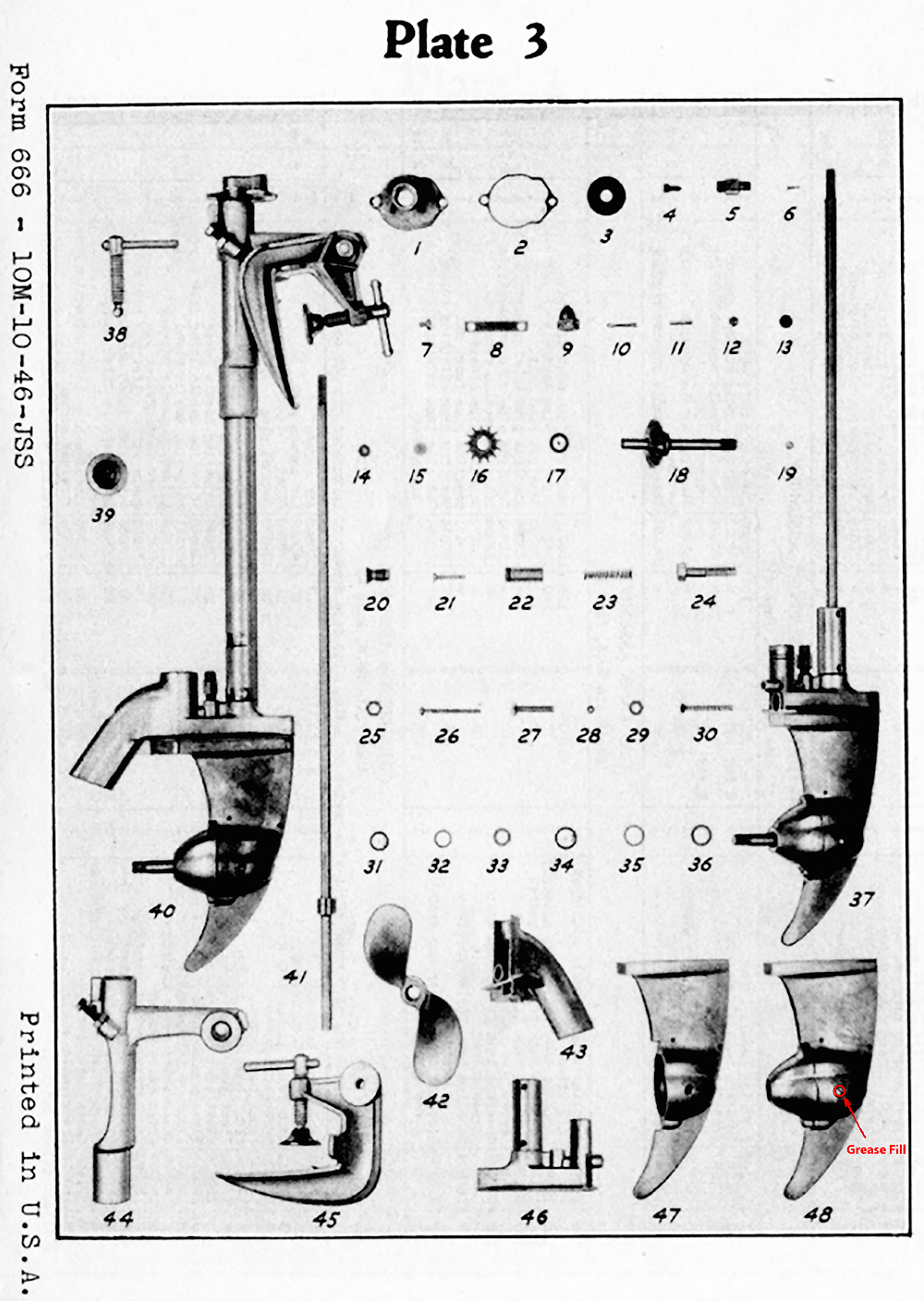

          The plug on the starboard side is there and marked Grease, but there is no plug on the port side? there must be a vent somewhere?

          March 14, 2017 at 1:12 pm #54308
          Tubs
          Participant

            The vent screw didn’t start to show up till
            1938. You could put a vent screw in yours.

            A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.
