November 4, 2015 at 3:03 pm #2910
Buccaneer
Participant
US Member
I came home with an opposed cylinder 1940 Champion Play Boy Lite Twin, 5.5 hp,
and was wondering if anyone had any literature, i.e., parts manual, ads, etc.
for one? Thanks!

Prepare to be boarded!
November 5, 2015 at 5:28 am #26571
hotrod
Participant
The only mag lever I’ve seen on the D2F is a round rod with rubber handle. Perhaps some had the illustrated lever.
November 5, 2015 at 2:28 pm #26583
Buccaneer
Participant
US Member
Hotrod, Awesome photo, Thanks!
Haven’t had a chance to photo my
outboard haul the other day, but
will try today, and see if my Champ has
the "knob" or "lever" you mention.
Not sure why that called it "Lite"…..
heaviest one I brought home!

Prepare to be boarded!
November 6, 2015 at 3:43 am #26626
hotrod
Participant
That photo is on the cover of early S2F-D2F parts manuals. Thats a good question on the Lite Twin name since the 1940 lineup already had another Lite Twin and no big twin. The other Lite Twin was smaller HP than the Playboy. Check the back center of your gas tank for a seldom-seen round green "CHAMPION" medallion. Some D1F & D2F motors had it.
November 6, 2015 at 3:49 am #26627
handyandy
Participant

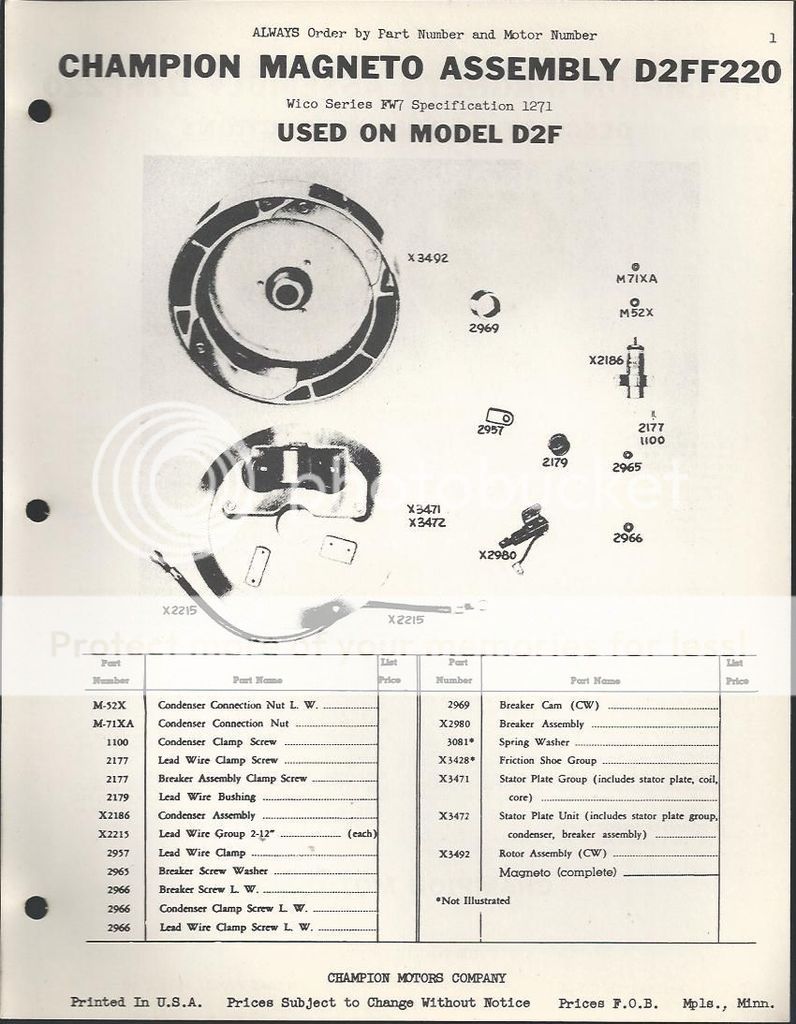

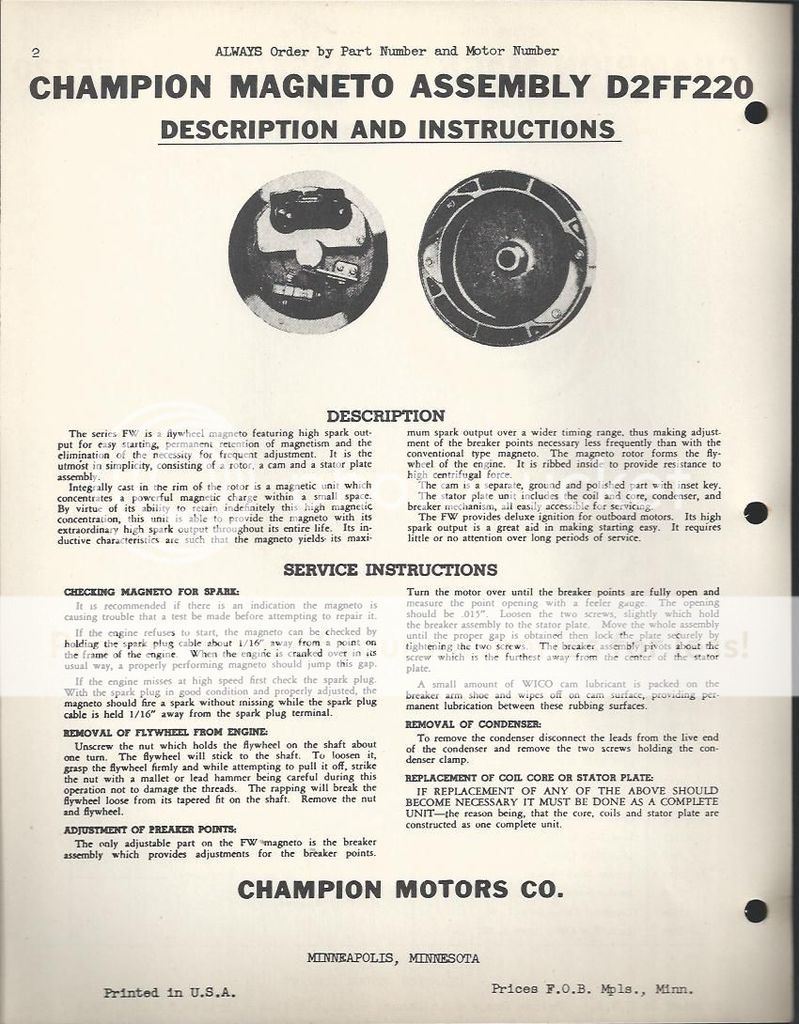

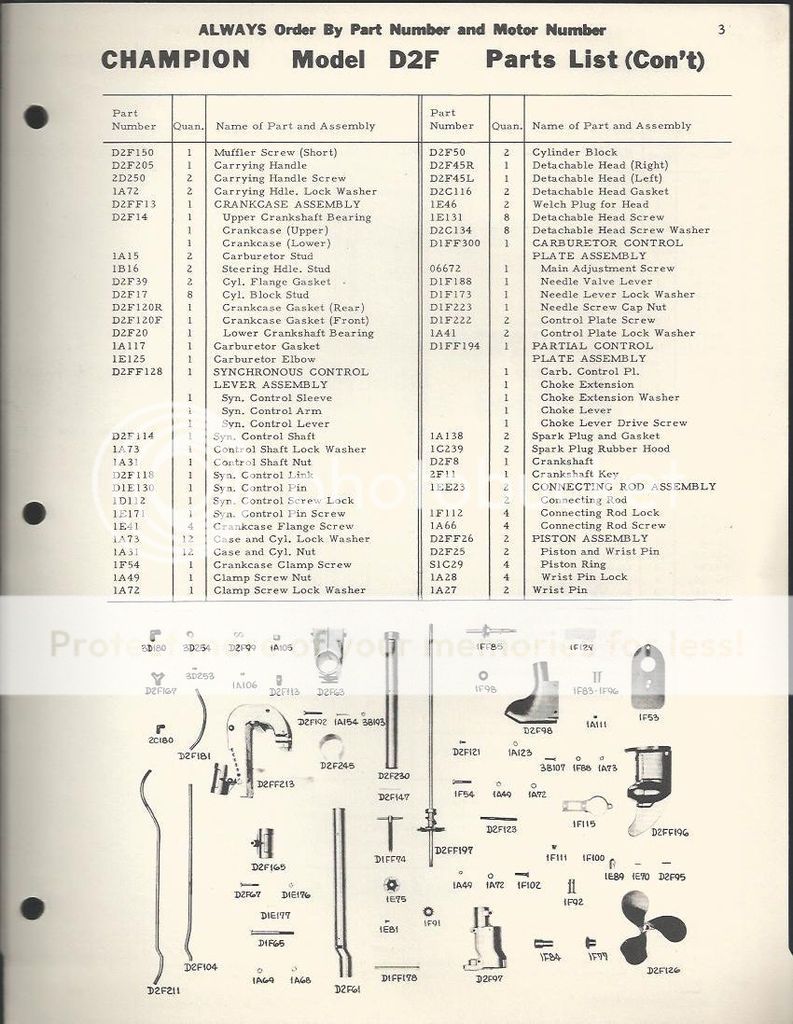

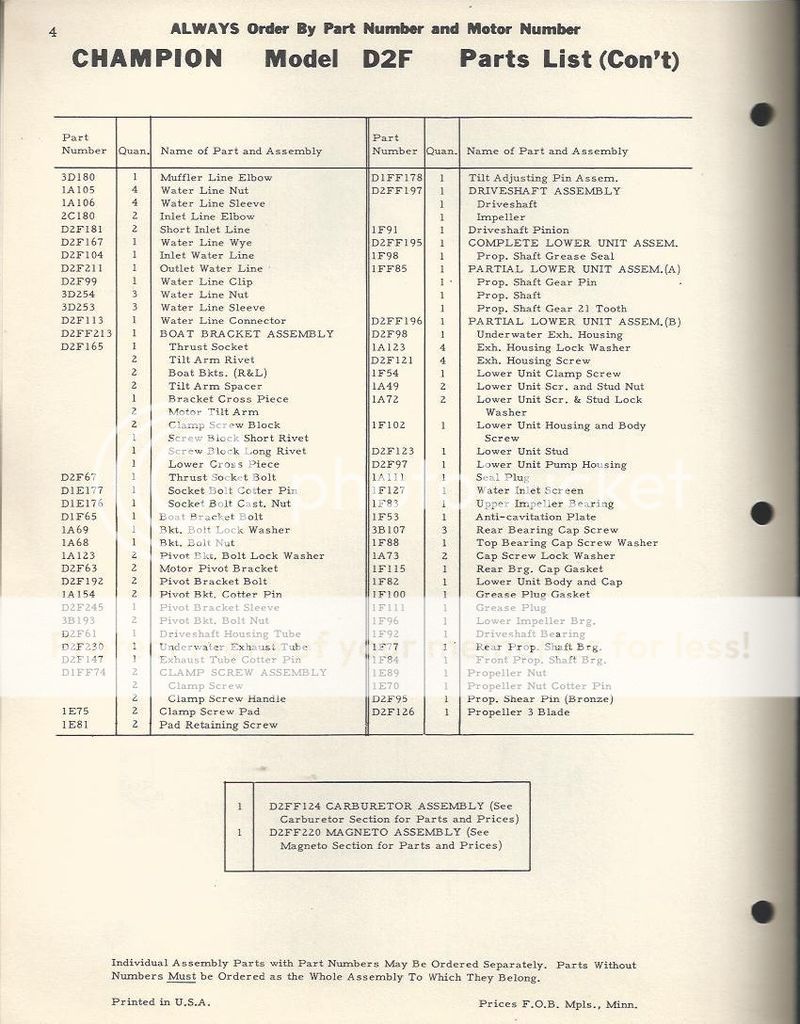

Scanned by one of our Texas members:
November 6, 2015 at 4:00 am #26629
handyandy
Participant

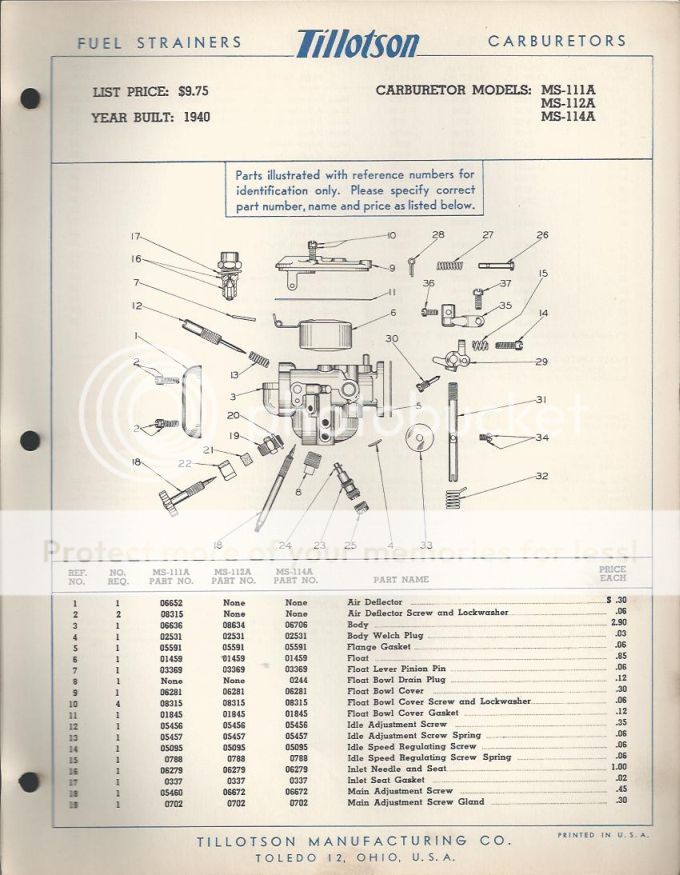

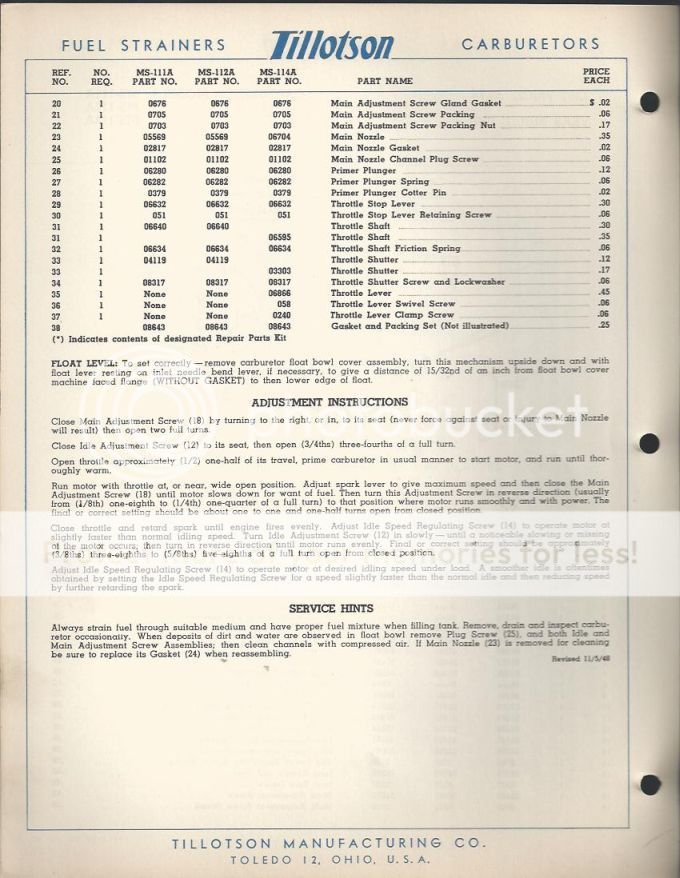

Carb is a Tillotson MS-114A, used on the DF2 (1940) and 2G (1941).
November 6, 2015 at 4:06 am #26630
handyandy
Participant
November 6, 2015 at 1:42 pm #26654
Buccaneer
Participant
US Member
Handy Andy, see how you got that nick name!
Thanks for the manual!
HotRod, will check for the medallion but don’t think so.
BTW, mine has the mag lever with the round rod
and rubber grip.
Thanks!

Prepare to be boarded!
November 6, 2015 at 10:32 pm #26679
Buccaneer
Participant
US Member

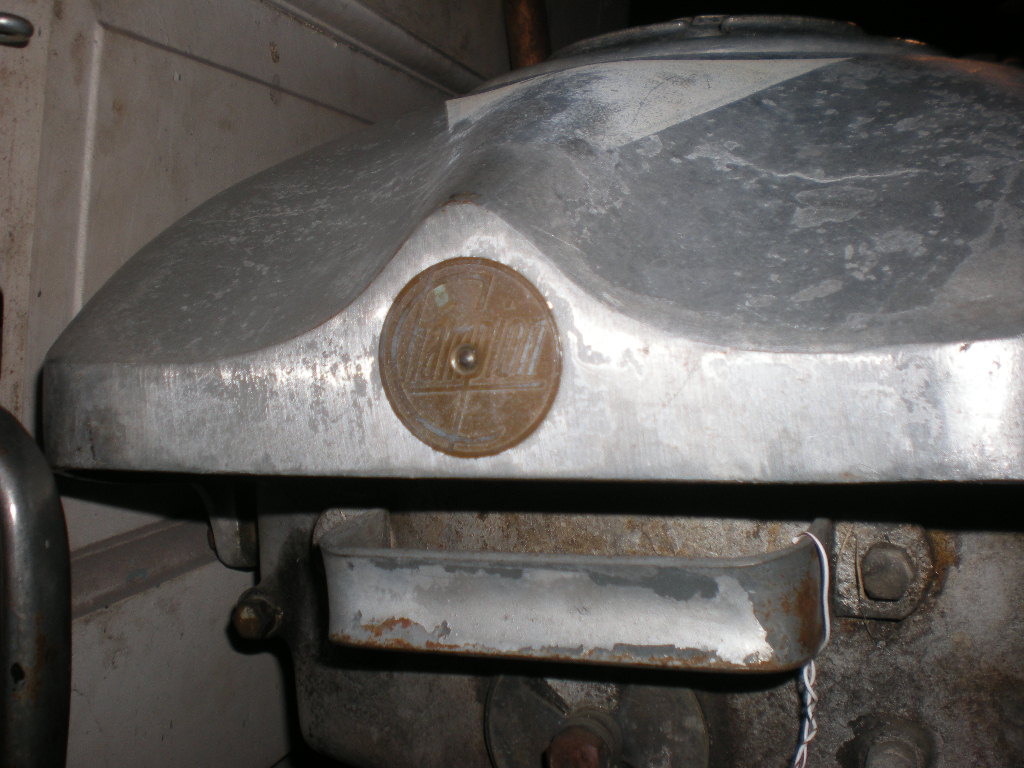

Feel like I won the treasure hunt, my Champion does have
the medallion on back!

Attachments:

Prepare to be boarded!
November 8, 2015 at 5:32 am #26758
hotrod
Participant
It looks like you need a cast aluminum tiller handle and carb knob for high speed adjustment. If your face plate is bent (common), it is best to unscrew the high speed needle completely before removing the face plate, since the plate will be caught on the entrapped needle. Plates are hard to get and should be straightened only enough as needed, in a controlled manner, not with a hammer or by hand. The carb knob (D1F188) is also found on the D1F model. It is a triangular shaped casting. Lucky to have the carb face plate and the rear medallion.
