1940 Johnson AT-10 Carb Kit 5HP

Home › Forum › Ask A Member › 1940 Johnson AT-10 Carb Kit 5HP

Viewing 10 posts - 1 through 10 (of 11 total)
1 2
  • Author
    Posts
  • May 9, 2025 at 6:37 pm #296303
    TerryFeldt

      Any one know where I can get a carb kit with a float?



      Terry

      May 10, 2025 at 11:00 am #296319
      Tubs
      Participant

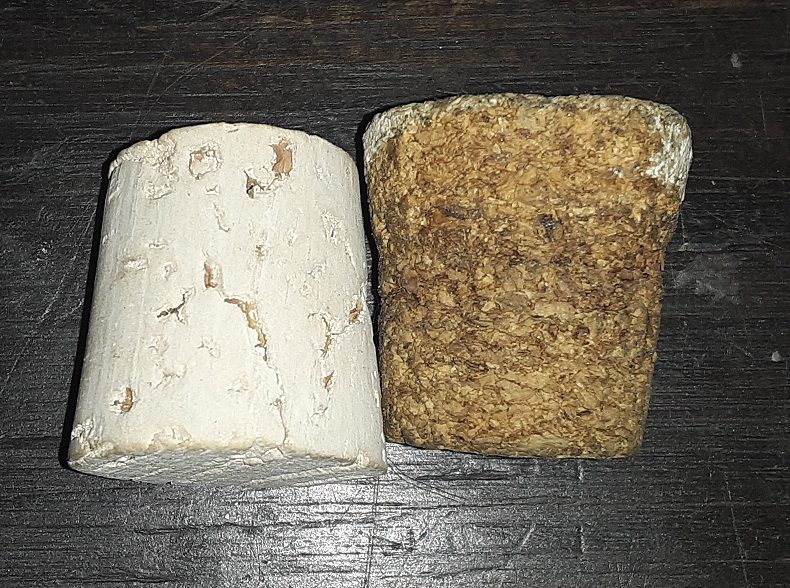

        You will have to make a float. Check home improvement and hardware stores. You want a cork in the natural form as apposed to compressed granules. Gasoline could dissolve the binder. Another option is the Mercury closed foam float (Mercury  number 1385-8983 – NAPA number 18-7208.). You will need to cut it down to fit as well.

        Cork

        A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

        1 user thanked author for this post.
        TerryFeldt
        May 10, 2025 at 1:19 pm #296322
        ede
        Participant

          US MEMBER PAY BY CHECK

          Terry,

          Do you have a parts list for that unit?   I do have some individual parts, to include a float, providing numbers match up.

          Ed Elliott, eddelliott@cox.net

          1 user thanked author for this post.
          Tubs
          May 14, 2025 at 2:17 pm #296427
          TerryFeldt

            Thanks to both of you!  I am restoring this unit for a young friend of my wife.  Looks like I will go with the NAPA part.  There was lots of “Crud” in the bowl.  Ed, is yours a NOS part?

            May 14, 2025 at 2:53 pm #296428
            lloyd
            Participant

              US MEMBER PAY BY CHECK

              You will also need new leather Primer Seals and instructions to install them. I am the guy that makes them. Send $10.00 sash and a self addressed Stamped Envelope to me; Lloyd Lautner 9289 North Long Lake Road, Traverse City Michigan 49685.

              May 14, 2025 at 4:22 pm #296430
              ede
              Participant

                US MEMBER PAY BY CHECK

                Parts are NOS, however not selling unless we have a part number match.  Give me your part numbers and I will sort and advise.

                Ed

                June 29, 2025 at 12:15 pm #297754
                TerryFeldt

                  Thanks Ed!

                  I will get you off a check ASAP.

                  This engine seems to run High RPM’s and Low RPMs without touching the speed lever. I am assuming it is leaking air past the seals.  The float seems to float when I tested it….

                  Terry





                  June 29, 2025 at 12:21 pm #297755
                  crosbyman
                  Participant

                    Canada Member

                    Basic Carburetor Servicing Johnson H and T Series



                    Joining AOMCI has priviledges 🙂

                    June 30, 2025 at 12:40 pm #297769
                    ede
                    Participant

                      US MEMBER PAY BY CHECK

                      Terry,

                      See my previous response.  I am not aware of a carb kit for that model.  Send me a list of part numbers you need and I will advise

                      Ed  Elliott,   eddelliott@cox.net

                      July 21, 2025 at 5:30 pm #298372
                      TerryFeldt

                        Thanks to all of you that responded!!!!  Got the leather seals from Lloyde yesterday.  Will put the in tomorrow.  Took the recommendation from crosbyman and will seal the float with the SIG Dope.

                        2 more questions:

                        1. What should be the initial setting be or the highspeed jet?
                        2. Where is the low speed jet?

                        Terry
