1941-1946 Sportwin 4368 07234 3.3 hp

Home › Forum › Ask A Member › 1941-1946 Sportwin 4368 07234 3.3 hp

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • July 21, 2016 at 7:04 pm #4809
    amuller
    Participant

      I ran into this today. It seems a bit beat up but basically tight. It is, of course, an opposed twin. No recoil but the tank seems to have provision for mounting one. The spark plugs look like "original" brass-screw-terminal types. Fuel shutoff stem looks broken off.

      I couldn’t immediately find any details on these online. Does anybody know what sort of water pump and magneto they use? Are they good runners?

      am

      July 22, 2016 at 1:34 am #40679
      PM T2
      Participant

        Canada Member

        Magneto was typical of all small Evinrudes of that era. Simple to service and maintain. If the coil is good now, it might be good for life as long as it doesn’t get physically damaged. Use a very small amount of light oil on the lubricating wick, otherwise the oil gets thrown around and oils up your points, which will stop you dead.

        Exhaust passages in that big muffler can plug up with carbon, so it’s useful to pull that off once in awhile and clean things out.

        I think those motors still used an aluminum impeller, so you should not have to be concerned with the impeller wearing out. Garry Spencer probably has something scanned from a parts book that will help you if he can post it.

        They are nice running motors, very smooth and quiet, but they are not speed demons by any means, I think a Johnson JW 3 HP or the later Evinrude Lightwin (also 3 HP) will run away from them.

        Hope this helps.

        Best,
        PM T2

        He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

        July 22, 2016 at 3:23 pm #40700
        amuller
        Participant

          They are asking $50. I offered $25. Is the mix 16-1 on these?

          July 22, 2016 at 3:35 pm #40701
          wyo307
          Participant

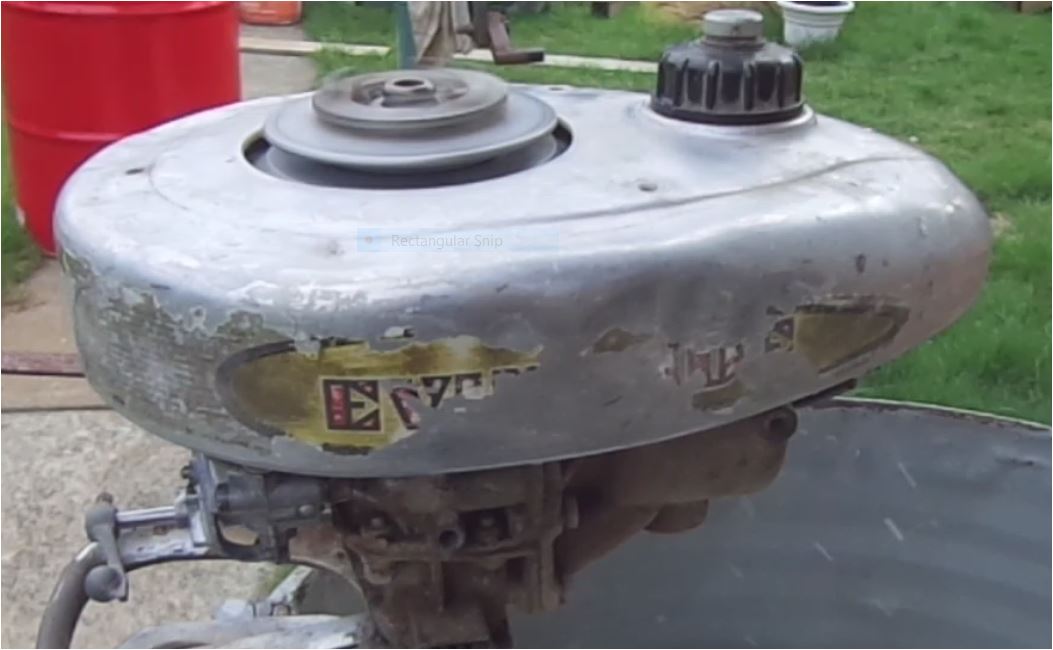

            Yes 16-1 on the mix. Very easy to work on. Yes it is a two stage aluminum impeller. I paid $10 for mine at an auction and it is a great running little motor! Send me a message with your email and I will send you the parts diagrams for it. I still need a few misc parts for mine so if you buy it and decide to part it out let me know.

            Attachments:

            July 23, 2016 at 6:10 am #40739
            Mumbles
            Participant

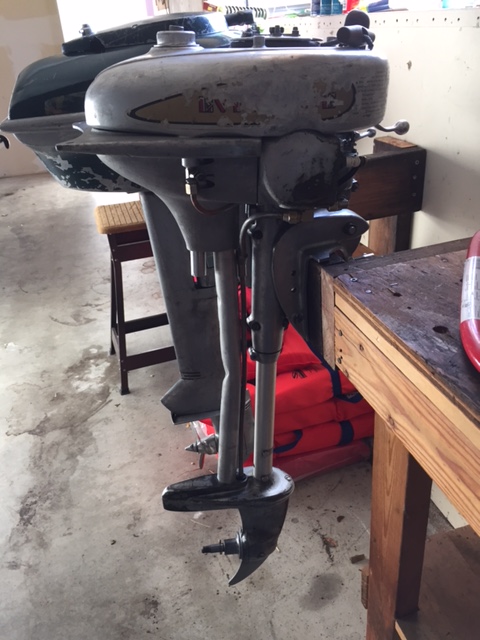

              Twenty bucks at my dealers back room, and it runs!

              Attachments:
