February 4, 2023 at 9:50 pm #272352
Buccaneer
Participant
US Member
Louis, what did the choke assembly 23224A2 look like?

Prepare to be boarded!
February 4, 2023 at 11:28 pm #272355
dave-bernard
Participant
US Member
if I rember it was a spring-loaded disc that you pushed with the choke button.
February 5, 2023 at 3:24 am #272356
fifty20ne
Participant
US MEMBER PAY BY CHECK
Imho the power head

is not from a 1941

Mercury KB-3

it May have been

Replaced with a

1940 Sea King or 1941

Sea King power head

and popet valve

style carb! The 1941

Mercury was a deluxe

model that did not use

a popet valve style

carb. The popet style

carb would not work

or fit under the lower

carb cover.
- This reply was modified 2 years, 11 months ago by fifty20ne.
February 5, 2023 at 10:01 am #272366
Buccaneer
Participant
US Member
fifty20ne wrote:

Imho the power head

is not from a 1941

Mercury KB-3

it May have been

Replaced with a

1940 Sea King or 1941

Sea King power head

and popet valve

style carb! The 1941

Mercury was a deluxe

model that did not use

a popet valve style

carb. The popet style

carb would not work

or fit under the lower

carb cover.
- This reply was modified 2 years, 11 months ago by fifty20ne.
You could very well be correct about my poppet valve carbed powerhead
being a cousin to a Mercury, but the only reason I question this,
is the Tillotson Carb data, showing the KB3 had the AJ carbs,
but not until 1946.

Prepare to be boarded!
February 5, 2023 at 11:08 pm #272399
green-thumbs
Participant
US MEMBER PAY BY CHECK
The basic powerhead for 1941 Kiekhaefer singles was the same whichever brand or mode it was incorporated. The difference is in the decals, cowl, carburetor or poppet valve , spark plug cover, rope plate or rewind starter.

How you choose to complete your KB-3 is your choice, If it please s you as is, so be it. KB-3 should be part of every PreWar Mercury collection as it is a Top of the Line Mercury.with all of the trimmings.

Louis
February 6, 2023 at 5:18 am #272402
billw
Participant
US Member
Regarding the method of fastening the flywheel and rope plate, I was doing something totally unrelated yesterday and happened to notice the parted-out carcass of a KB1A, with the flywheel and rope plate still there. The acorn nut was loose, so I took off the rope plate and found that the flywheel was attached securely with a thin nut. My guess is that this was probably the correct way to do it.

Long live American manufacturing!
February 6, 2023 at 11:26 am #272408
green-thumbs
Participant
US MEMBER PAY BY CHECK
My reprint of owner’s manual for 1941 Merdury KB-1A shows only ACON nut, The jam nut is NOT shown or listed, Probably a later field fix by clever native craftsmen, One caution, the manual had to be prepared before production began. It is possible that jam nut is as it left factory. A survey of known original motors might or might not resolve issue as production and field fixes might not apply to all motors.

For lack of data on observed original examples, I would go with the manual and say NOPE

Louis
February 6, 2023 at 1:41 pm #272410
fifty20ne
Participant
US MEMBER PAY BY CHECK
Bills picture for a post war single I believe to be correct. Remember parts get swapped around on 80 year old motors.

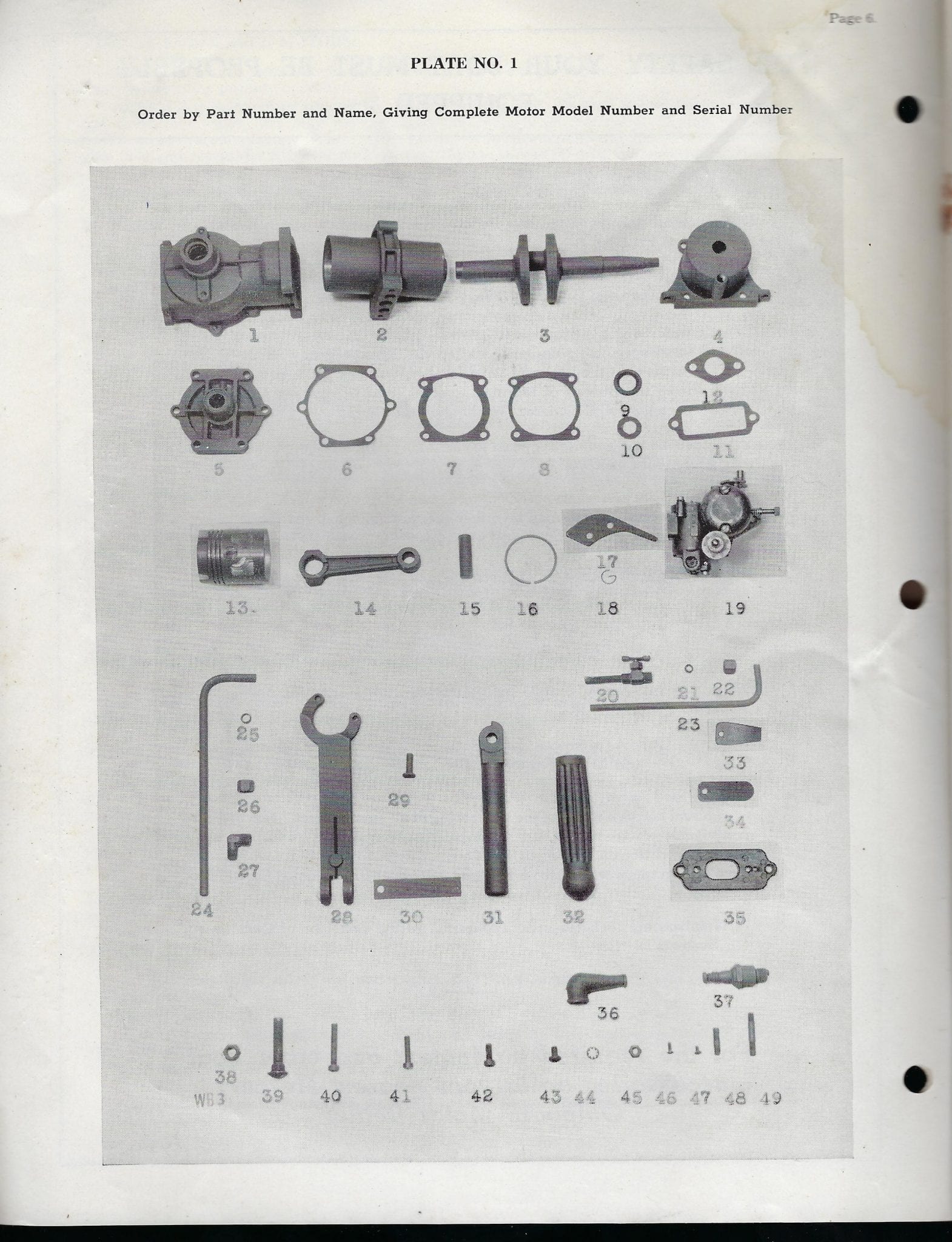

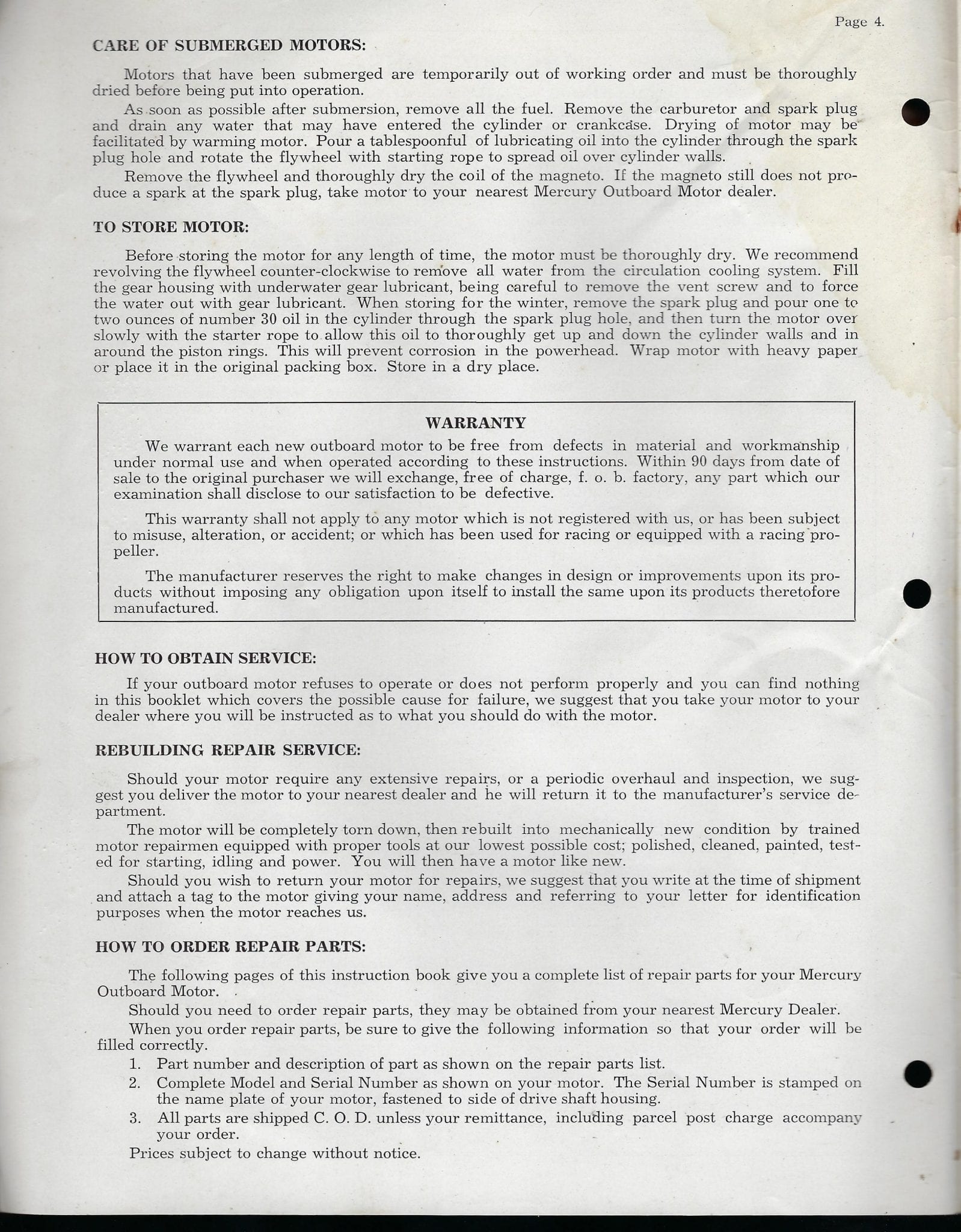

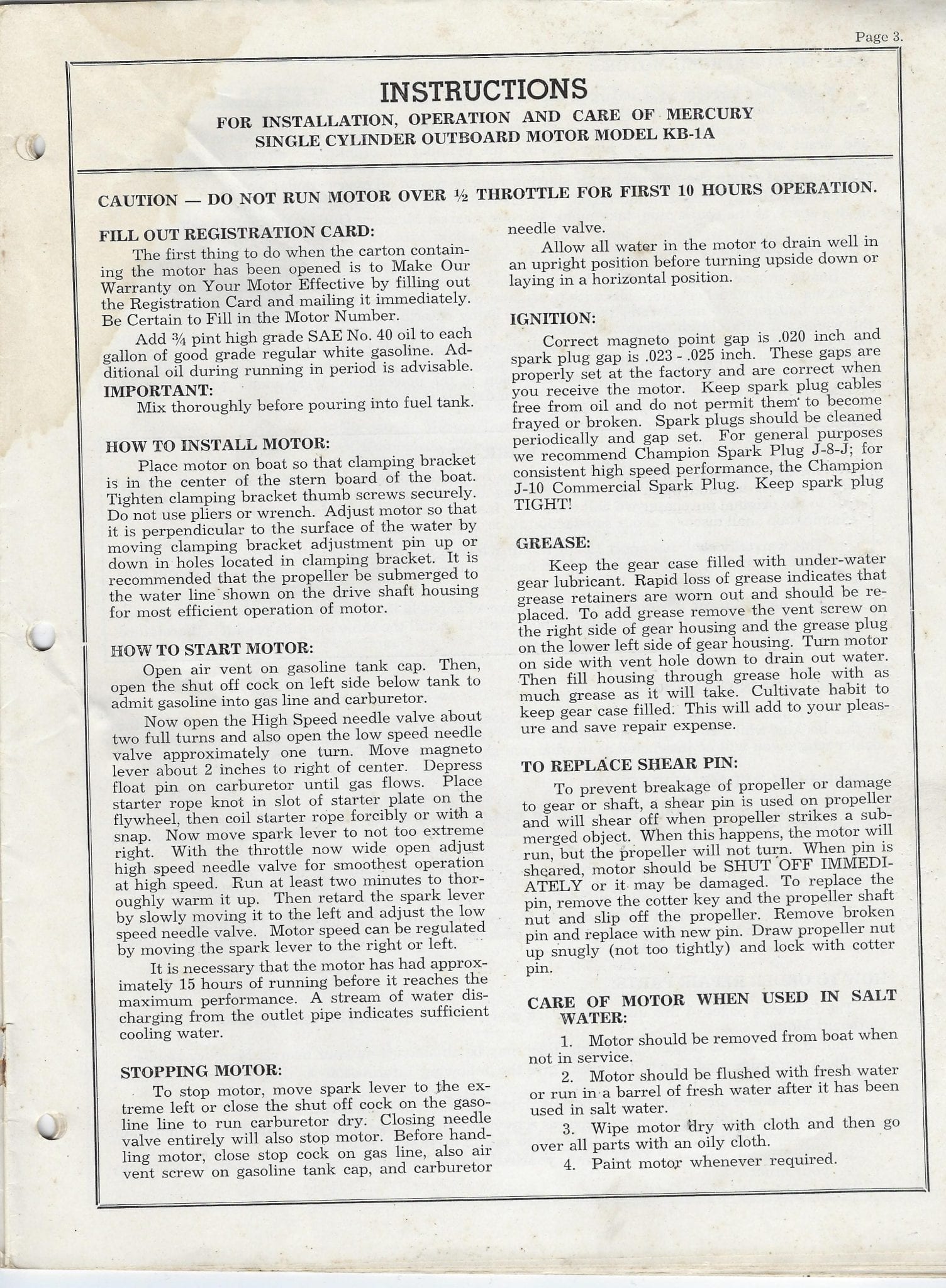

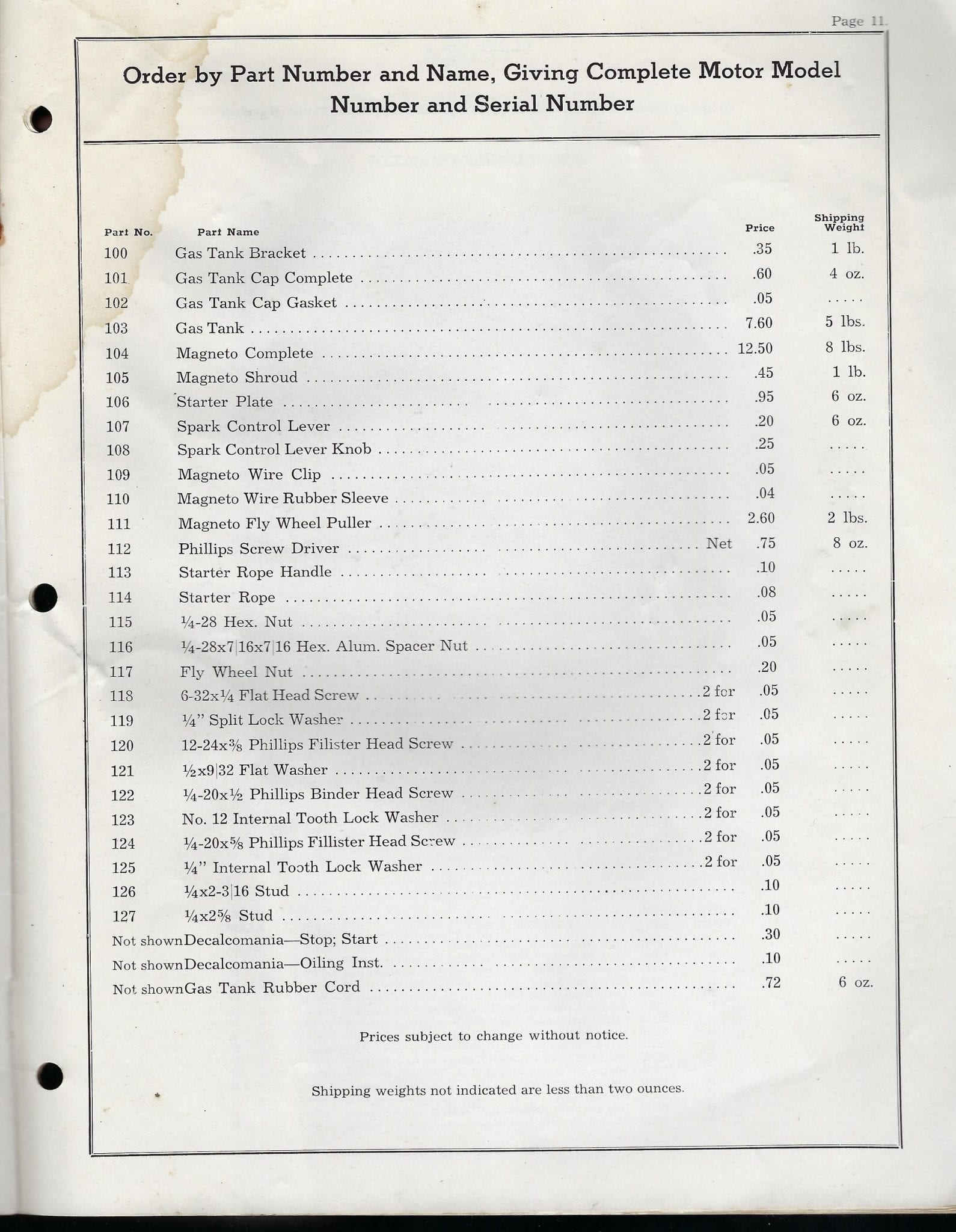

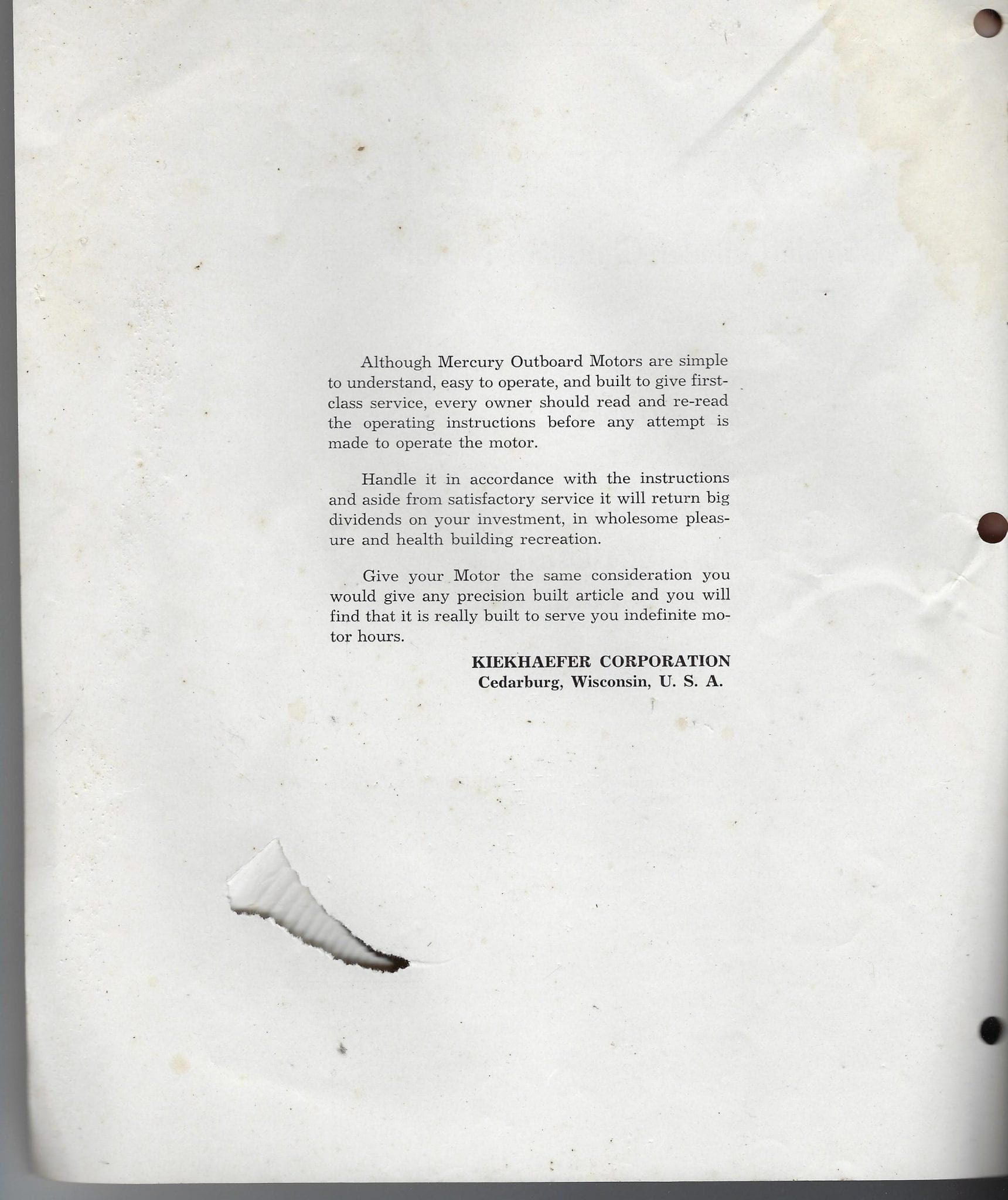

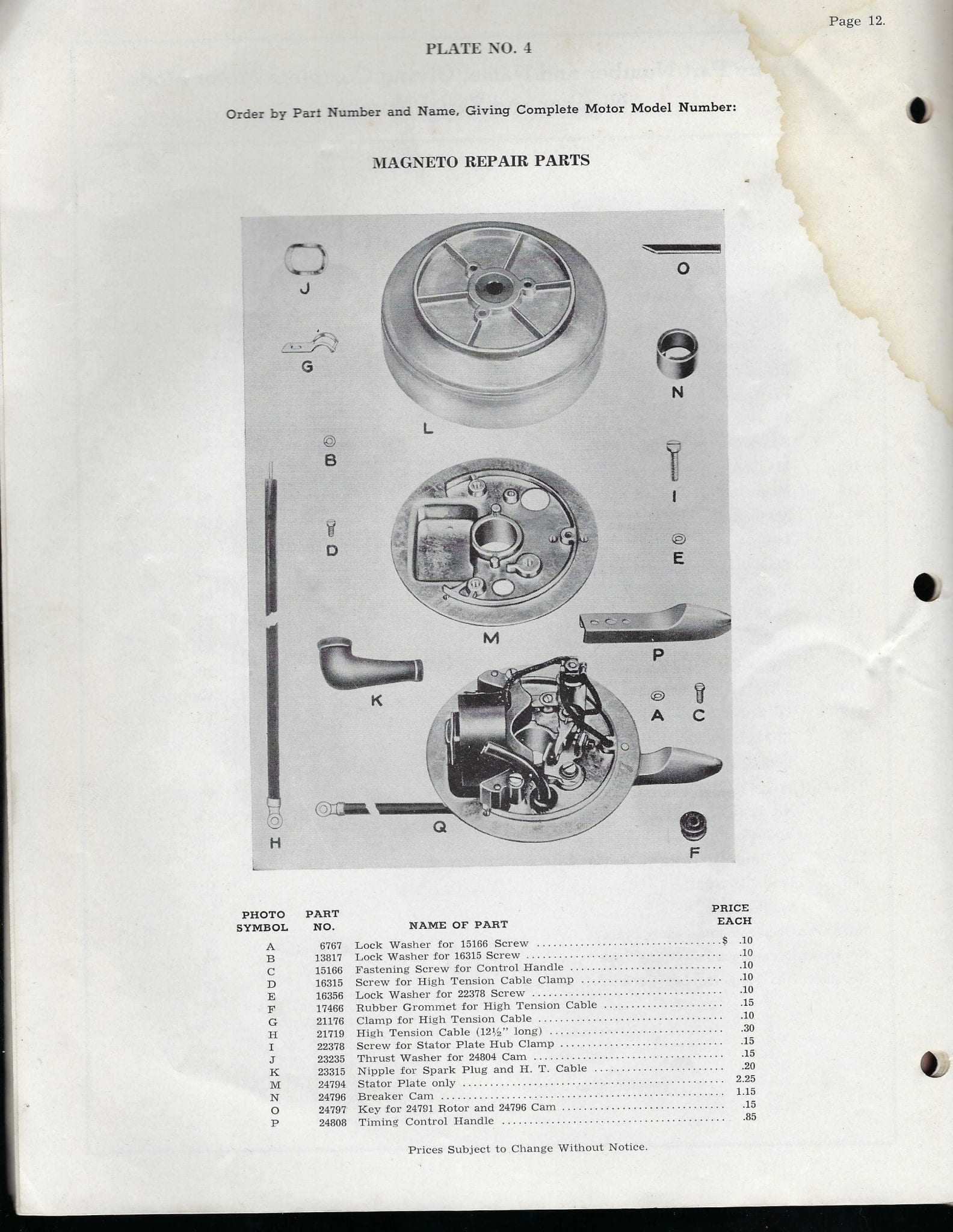

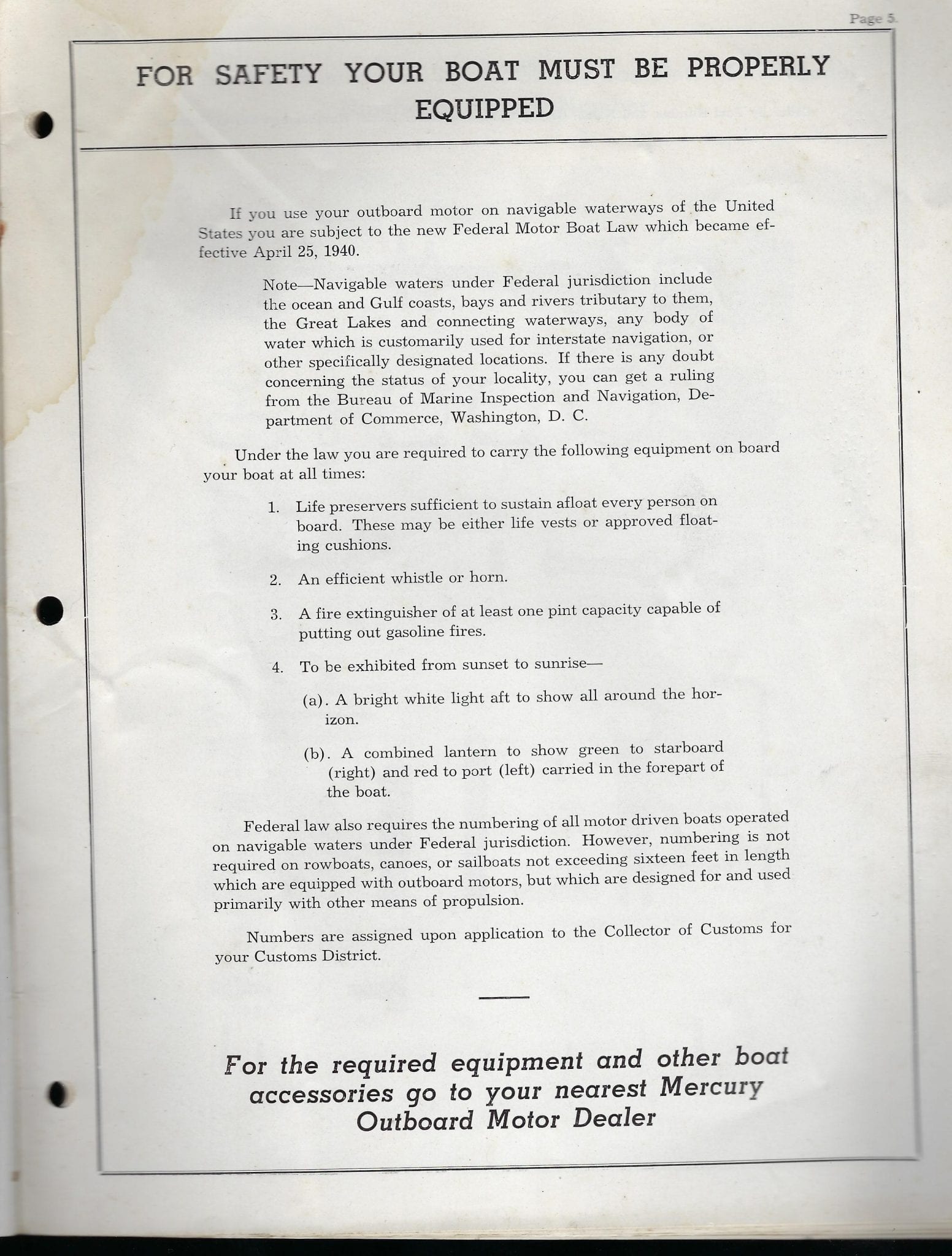

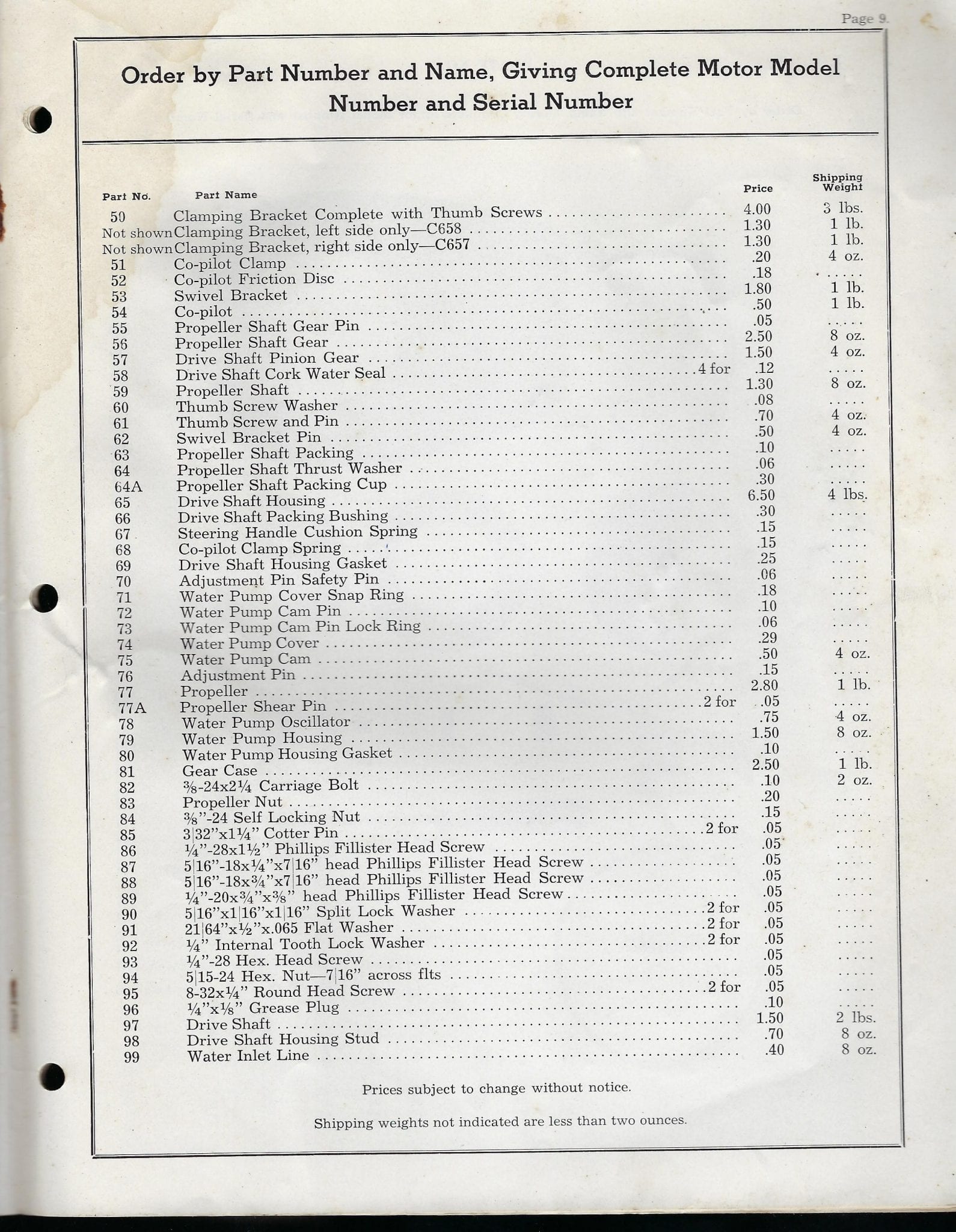

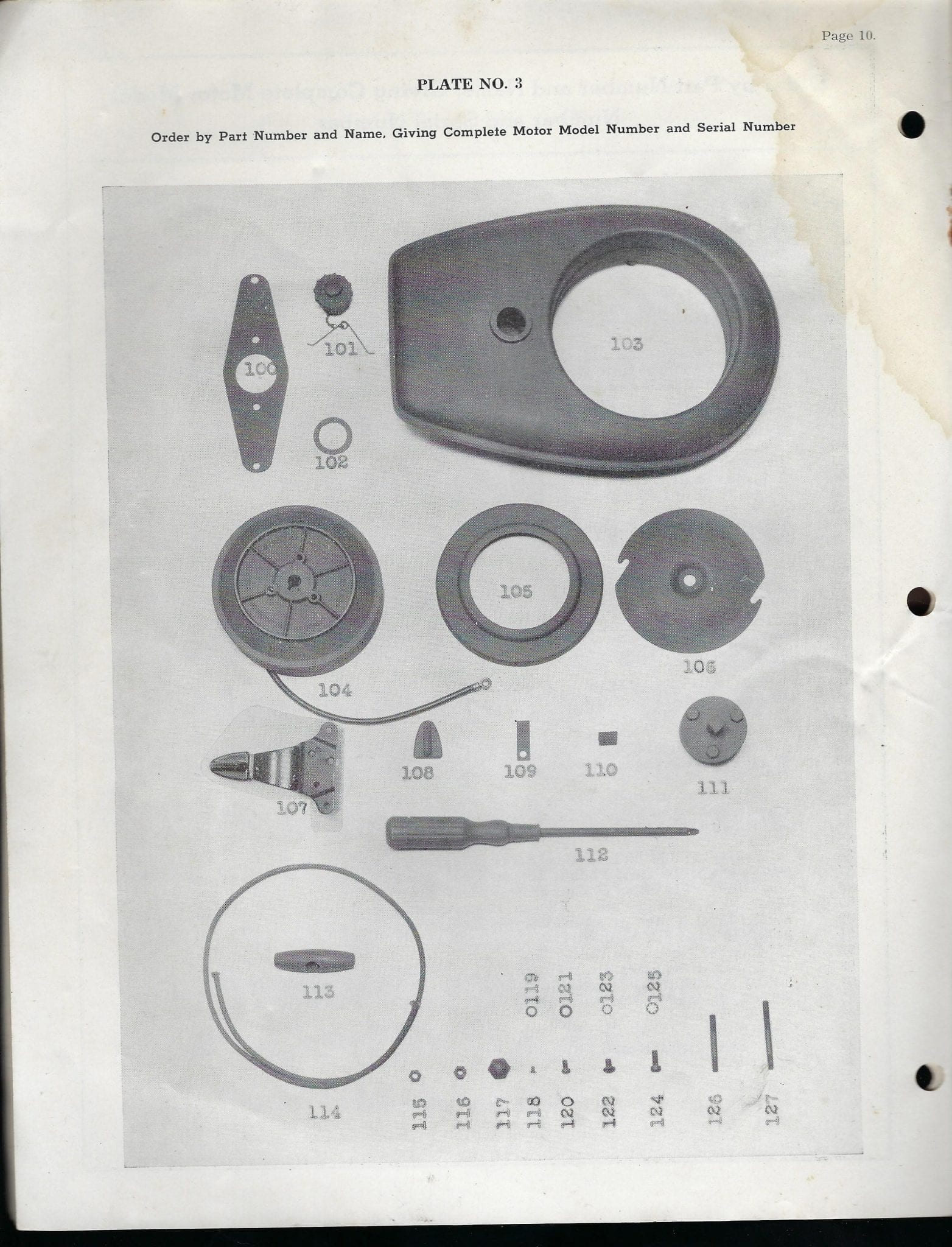

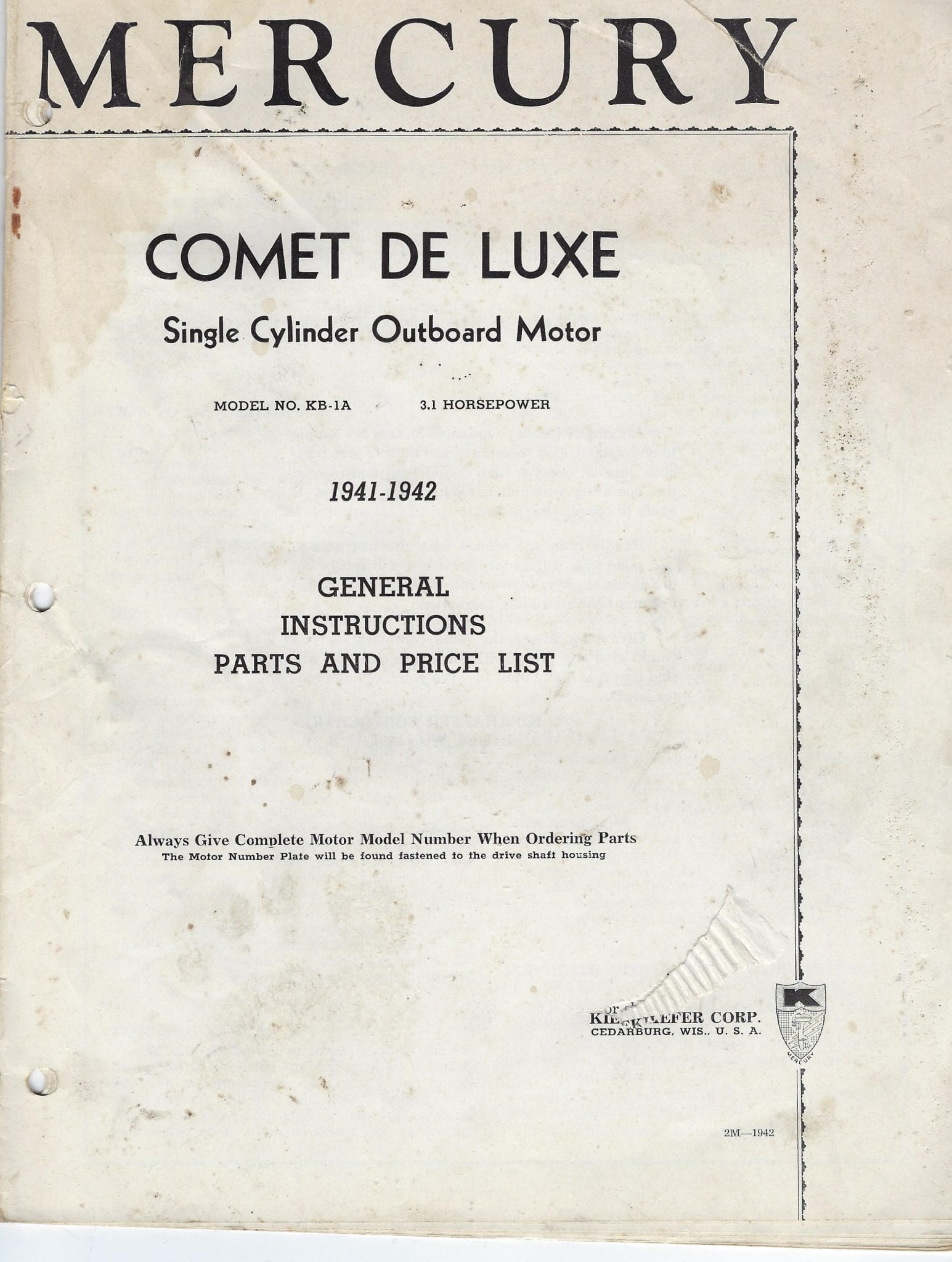

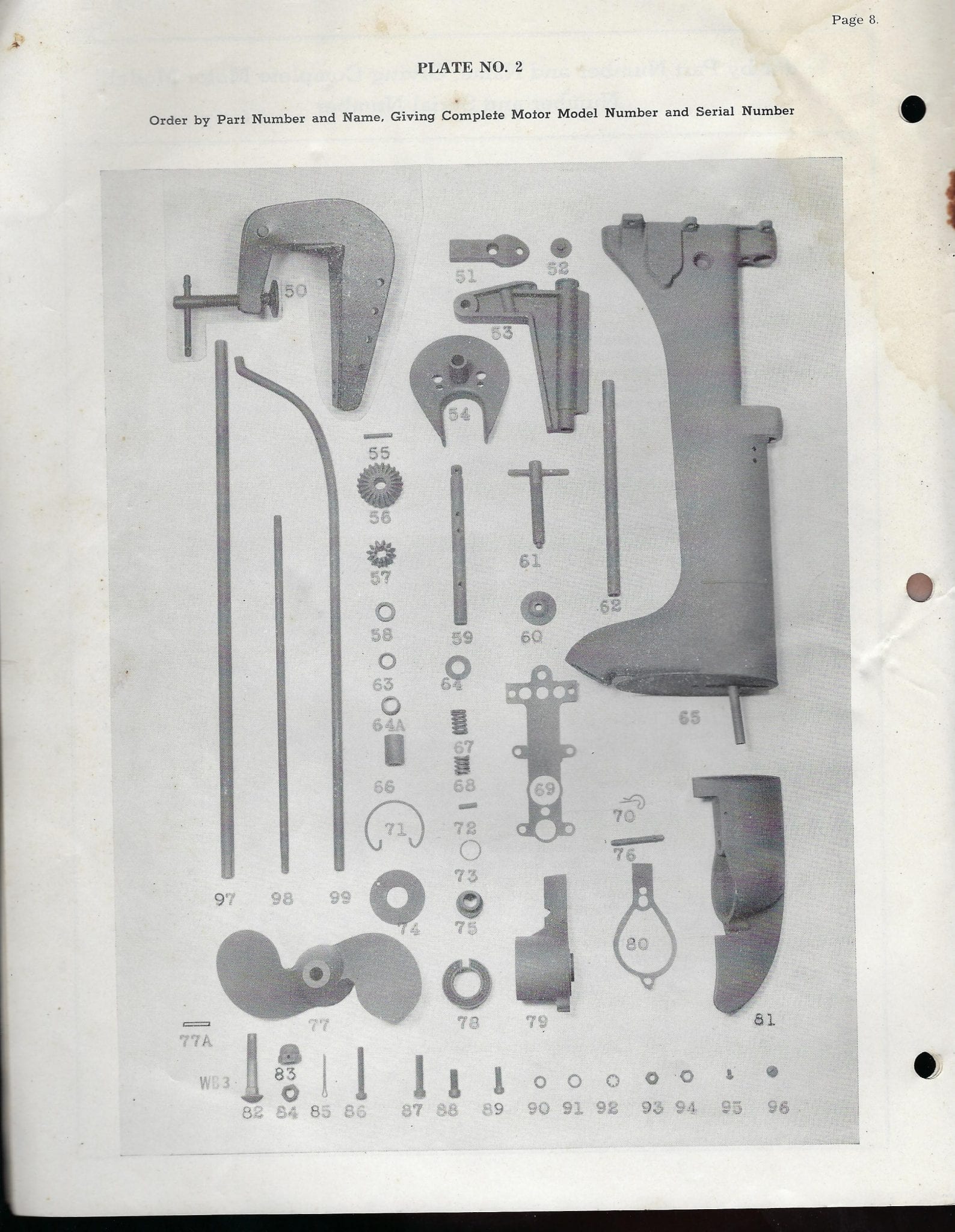

Im going to post Mercury manual for Mercury KB1-A Comet and some pictures from my 1941 KB1-A with steel tank.
February 6, 2023 at 1:45 pm #272415
fifty20ne
Participant
US MEMBER PAY BY CHECK
February 6, 2023 at 1:48 pm #272420
fifty20ne
Participant
US MEMBER PAY BY CHECK
