  • May 1, 2021 at 6:54 pm #237499
    NeptuneMadness
    Participant

      Hey Brian, thank you for all the tips and help! Very appreciated! I think for starters, my coil is weak, I put a new condenser in and payed a lot of attention the points which are the original 1941’s. I can put a screw into the spark plug boot, turn the flywheel, and hold onto the screw and its just a tiny tingle, so I really don’t think the coil has anything left. The Carb is actually very simple! I think I need to play with the reed plate, it doesnt have much flex to it.

      For the moment I think I’m gonna clean her up, research how to make a modern coil fit and then play with the reed plate again, Thank you for all of your suggestions!

      May 1, 2021 at 7:14 pm #237500
      garry-in-michigan
      Participant

        Lifetime Member

        Those soft iron flywheel magnets can lose magnetism if dropped without a “keeper”( iron strap or tool) across the magnetic poles. If they are weak, they may be re-charged. Many members have the Stevens Magnacharger used for this purpose.

        1 user thanked author for this post.
        NeptuneMadness
        May 1, 2021 at 10:37 pm #237508
        NeptuneMadness
        Participant

          Thank you Gary! The magnets appear strong. but possibly are weaker, its 80 years old! lol Would you have a picture or a link for the Stevens Magnacharger? I’ve started looking and keep finding super chargers for cars.. Thank you

          May 2, 2021 at 6:28 am #237519
          NeptuneMadness
          Participant

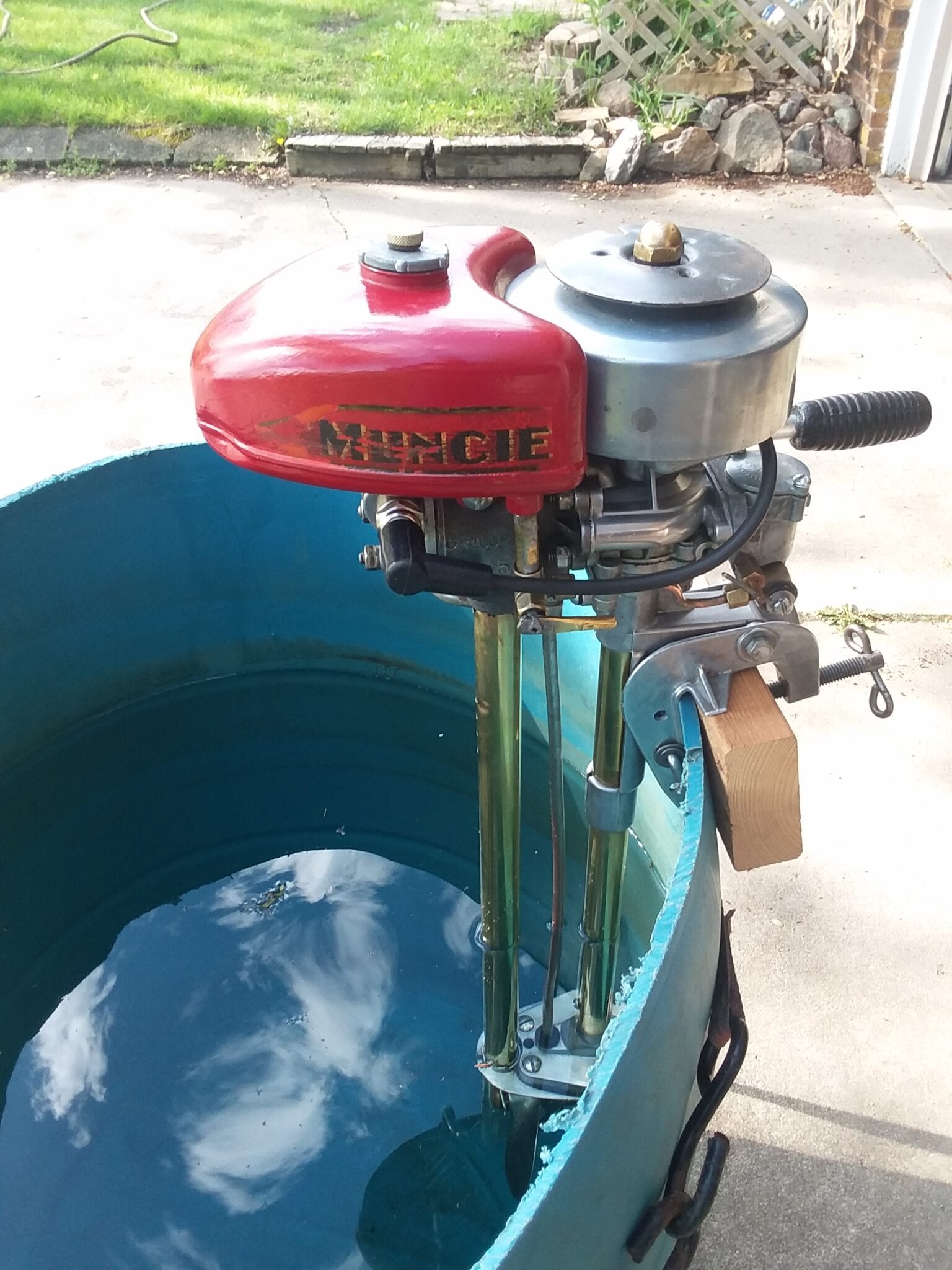

            Hey friends, here is my motor I keep talking about.

            Muncie

            1941 Neptune Muncie 1.5HP ‘The Mighty Might”

            May 2, 2021 at 6:38 am #237523
            NeptuneMadness
            Participant

              Hi Brian, I made a mistake, I have a “Tillotson AC-1C” Carb
