1947 Evinrude 4416 carb question

Home › Forum › Ask A Member › 1947 Evinrude 4416 carb question

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • August 21, 2018 at 2:14 am #10916
    huntleybill
    Participant

      US Member

      I’m putting back together an Evinrude 4416 and I noticed that when I adjust the carb needle to prime the motor, that arm depresses then slides past the valve stem. Because that valve is spring loaded, it pops back out and in doing so, blocks the arm from coming back.

      Is there something I forgot to put on that stops the arm from going to far? I don’t have a parts manual for the motor to see if I missed something. Can you tells me what is wrong and how to fix it?

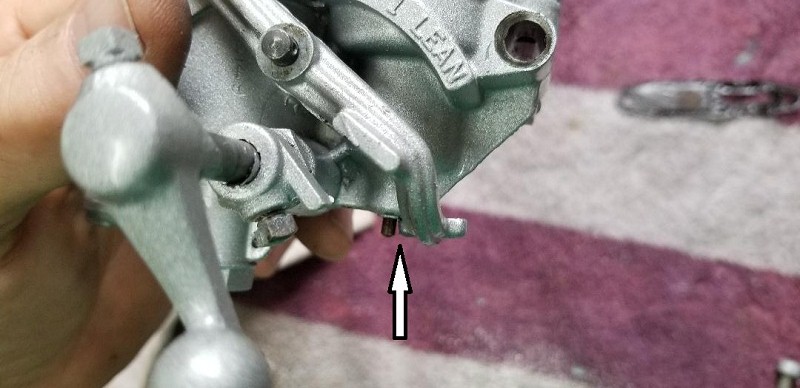

      I attached a picture with the arrow showing the arm.

      Your thoughts?

      August 21, 2018 at 3:04 am #81520
      Tubs
      Participant

        A "Boathouse Repair" is one that done without having tools or the skills to do it properly.

        • This reply was modified 6 years, 8 months ago by Tubs.
        • This reply was modified 4 years, 4 months ago by Tubs.
        August 21, 2018 at 3:35 am #81522
        huntleybill
        Participant

          US Member

          Thank you Mr. Tubs.

          August 21, 2018 at 12:25 pm #81525
          Buccaneer
          Participant

            US Member

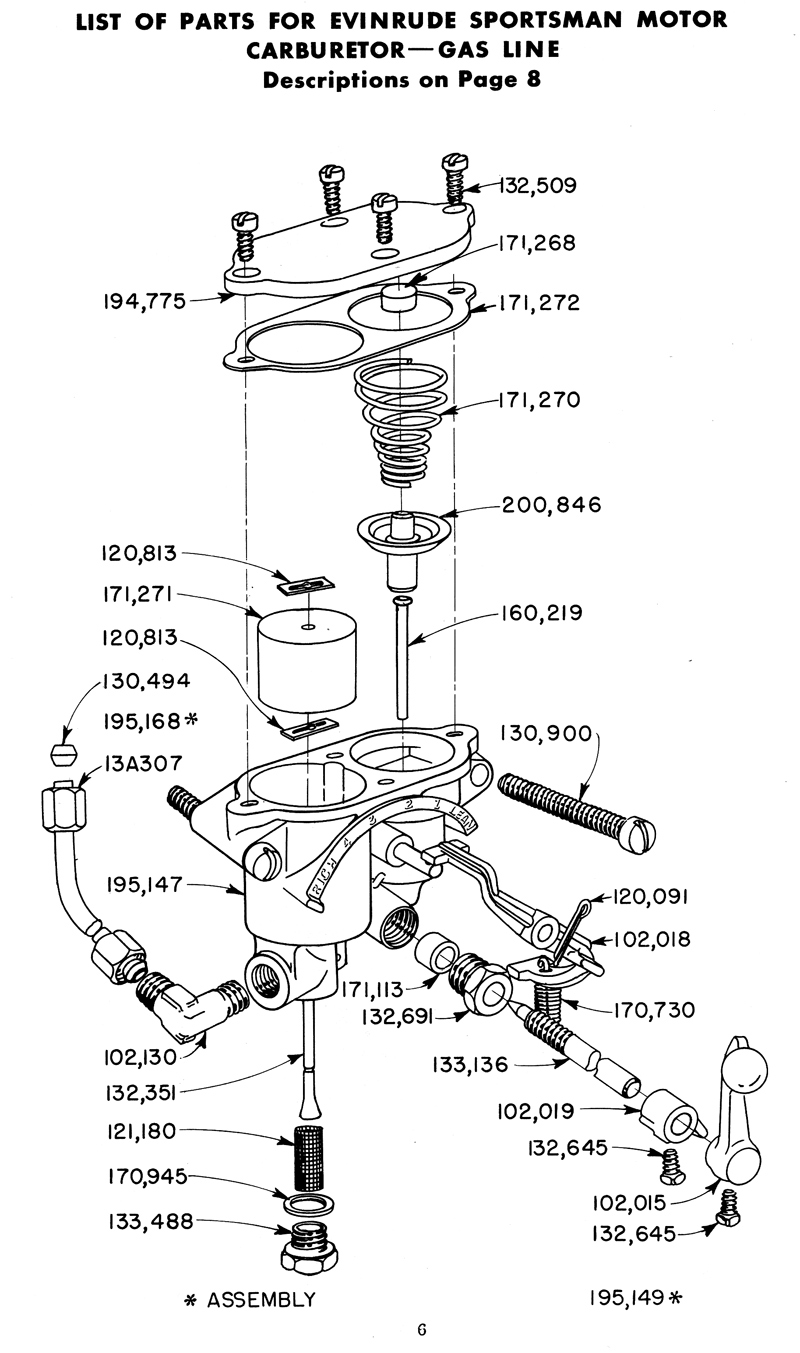

            Here’s a diagram, not sure it helps.

            Attachments:

            Prepare to be boarded!

            August 21, 2018 at 1:46 pm #81529
            huntleybill
            Participant

              US Member

              Thank you Buccaneer. With this I can make sure I put it together correctly. Looks like I did.

              August 21, 2018 at 10:05 pm #81553
              garry-in-michigan
              Participant

                Lifetime Member

                The arm is slightly misaligned, bending it a little will correct the problem. . . 😎

                August 21, 2018 at 10:08 pm #81554
                huntleybill
                Participant

                  US Member

                  OK Garry…will do. Thank you

                  August 22, 2018 at 3:22 pm #81595
                  Tubs
                  Participant

                    A "Boathouse Repair" is one that done without having tools or the skills to do it properly.

                    • This reply was modified 6 years, 8 months ago by Tubs.
                    • This reply was modified 4 years, 4 months ago by Tubs.
                    August 22, 2018 at 8:07 pm #81605
                    huntleybill
                    Participant

                      US Member

                      Thank you Mr. Tubs, I will check the valve.
