1948 Evinrude Light Four with no spark. Model #4389

Home › Forum › Ask A Member › 1948 Evinrude Light Four with no spark. Model #4389

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • January 19, 2016 at 8:41 pm #3446
    huntleybill
    Participant

      I need to put my stater plate back together and was wondering if anyone has a diagram or schematic or pictures of how the wiring should go on this bad boy! I want to make sure I get the points wired to the correct coil etc. I want to make sure I get this right before putting it back together.

      Thank you all
      Bill

      January 21, 2016 at 4:45 am #30460
      garry-in-michigan
      Participant

        Lifetime Member

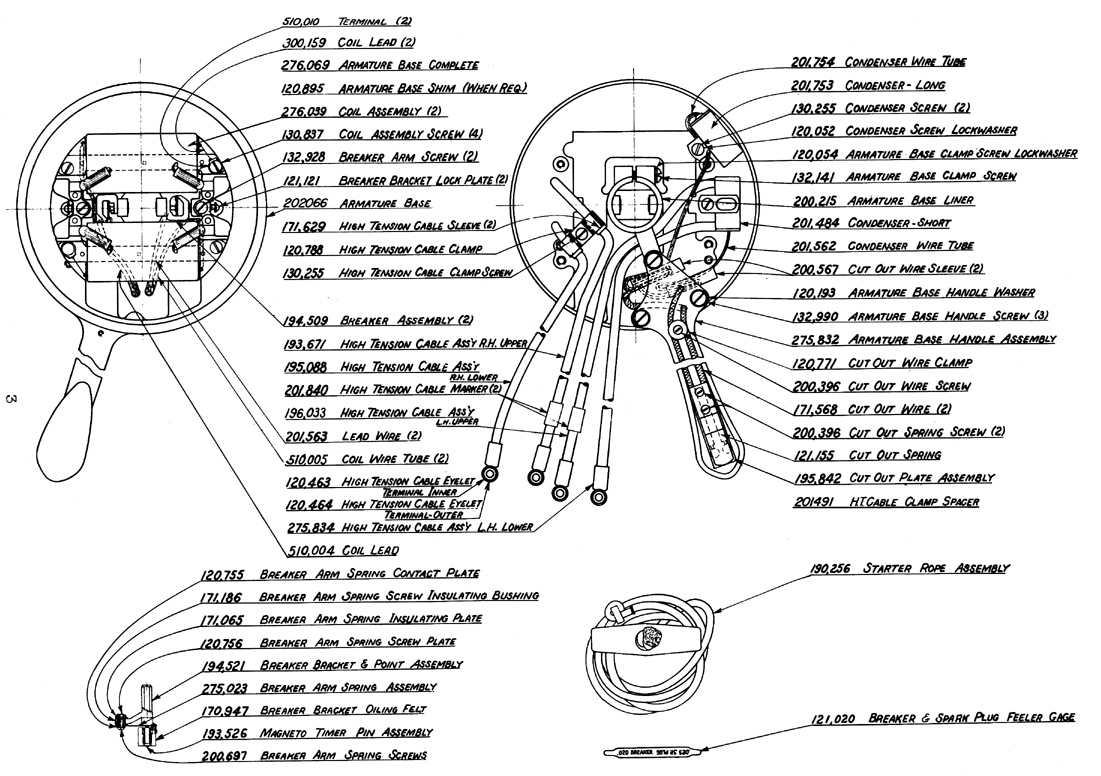

        From the parts book . . . 😉

        January 21, 2016 at 2:42 pm #30465
        huntleybill
        Participant

          Awesome!! Thank you!
