Topic: 1948 Evinrude LightFour – Antique Outboard Motor Club,Inc

This topic has 10 replies, 4 voices, and was last updated 3 years, 8 months ago by Anonymous.

Viewing 10 posts - 1 through 10 (of 11 total)

1 2 →

Author

Posts
May 2, 2022 at 7:03 pm #259326
Anonymous
Hello, I have a 1948 Evinrude Lightfour. However, one of the spark plug boots is missing, is there any way to fix this without replacing the points? If not, where can I find these parts?
May 2, 2022 at 8:15 pm #259344
Buccaneer
Participant
US Member
That motor never had spark plug boots originally, and I’m not sure of the connection between
the boot and replacing the points?

Post photos if you can.

Prepare to be boarded!
May 3, 2022 at 12:27 am #259352
Mumbles
Participant

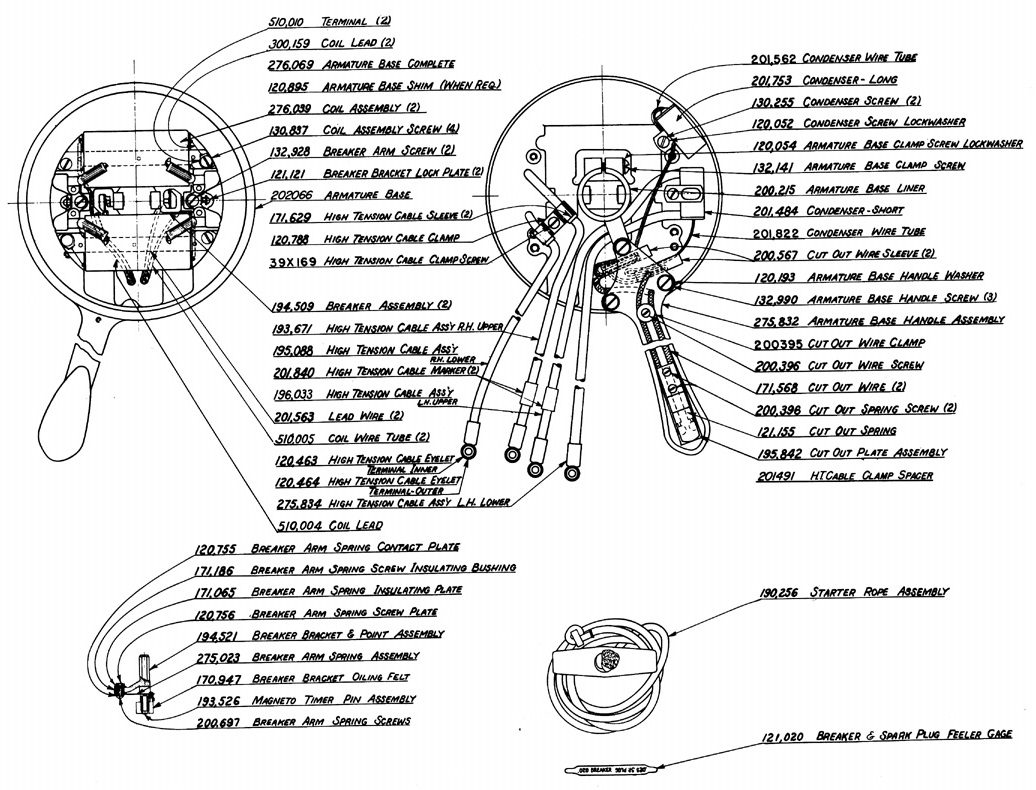

Lightfours and most other motors of this era used ‘Rajah’ style plug terminals.

Dang PC wont let me post photos here or anywhere else lately. File Explorer keeps crashing when I try. Time to burn the midnight oil and try and figure it out I guess.
May 3, 2022 at 9:40 am #259363
Anonymous
Is there a place I can buy these terminals?
May 3, 2022 at 11:17 am #259368
Tubs
Participant
A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

1 user thanked author for this post.
May 3, 2022 at 11:59 am #259369
Anonymous
On my motor, that Rajah connector seems to have broken off, is there any way to straighten the wire back out so it won’t fray?
May 3, 2022 at 12:09 pm #259370
Tubs
Participant
I use heat shrink tubing on mine.
Tubs.

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.
May 3, 2022 at 8:03 pm #259398
Anonymous
Thank you! Do you know what the spark plug type is as well? I can’t seem to find an identification on the remaining plugs.
May 4, 2022 at 8:52 am #259403
Tubs
Participant
The book I have list the Champion 5M-J superseded
by the D9-J which now crosses with several plugs
the Champion being D9. None of these plugs are
familiar to me nor is the motor your working on but
I suspect it needs a short plug. I don’t know if the D9
is a short plug. I’ve never seen any spark plugs that
didn’t have a part number on them somewhere.
Tubs.

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.
May 4, 2022 at 12:32 pm #259408
Mumbles
Participant
A readily available NGK AB6 gapped at .025″ will make a good replacement for the discontinued Champion 5M-J. One nice thing about NGK plugs is they have a screw on terminal for Rajahs while Champions don’t.

These plugs have 18mm threads instead of 14mm as found on the four cylinder Evinrude Zephyrs which thrive on shorty plugs to prevent arcing under the front cover. The Light Fours have a bit more room under the cover so a regular length plug should work OK even with exposed Rajah. The ignition systems in these motors are sensitive so the points must be clean and polished and gapped precisely to .020″ for them to work properly. The original condensers are rated at 0.20 uF and the motor requires 3/4 pint of oil per gallon of gas.

https://www.sparkplug-crossreference.com/convert/CHAMP_PN/D9
