      Hello Everyone,

      I have a 1948 Hiawatha 840MI 25-7972A that I acquired from my father. Turns out it originally belonged to my Great Grandfather. I’m hoping I can be the 4th generation in my family to use this outboard. Unfortunately I know nothing about it and it won’t start. I checked for spark and don’t seem to be getting any. I’m trying to pull the flywheel to get a look at the points, but the flywheel doesn’t seem to want to come off, and I don’t want to put too much pressure on it with my puller. Is there some trick to getting these off, or are they a straight up flywheel and it might just be rusted or corroded on. i.e. snap rings I don’t see, or have to pull the drive shaft off first or some other weird gotcha.

      Additionally, one of the plug wires is just hanging off the plug by a few strands. Any idea’s on where I might be able to get parts for this? Other than the plug wire, I’m sure there’s other things I might need. points, stater, etc….

      Thanks!
      Greg

      #263297
      frankr
      Participant

        US MEMBER PAY BY CHECK

        Shaft and flywheel are a taper fit.  Use a three bolt puller in the three center holes.  DO NOT use a puller on the outside rim.

        Take the points apart and degrease and polish each contact shiny bright.  Do one set at a time so you have a sample of how they go together, and don’t lose any of the little insulators.  Reassemble everything and set points to 0.020″.  I bet you will have spark.

        Get parts wherever Johnson/Evinrude parts are sold

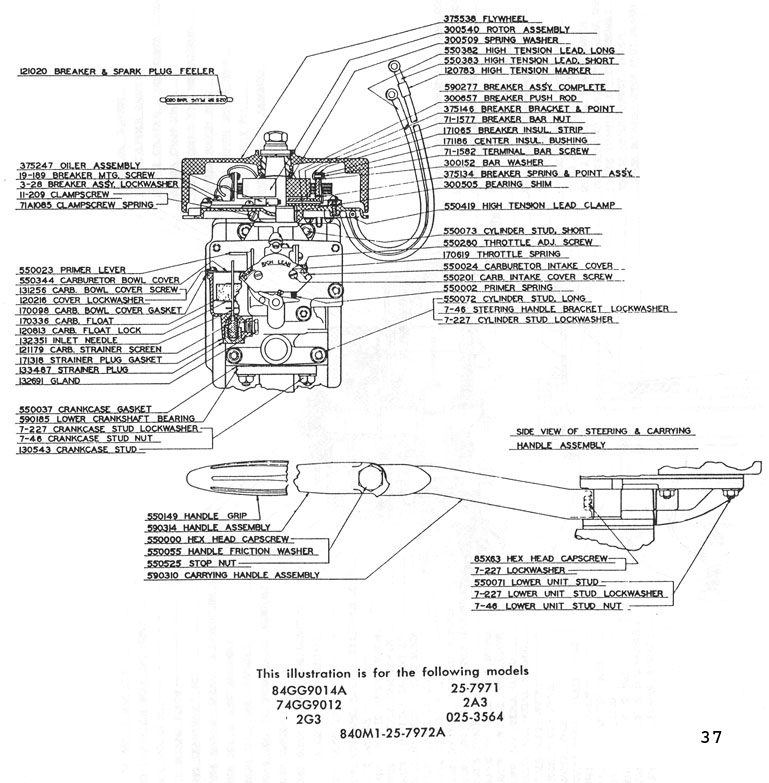

        Pg-37-Powerhead-Front-and-Tiller

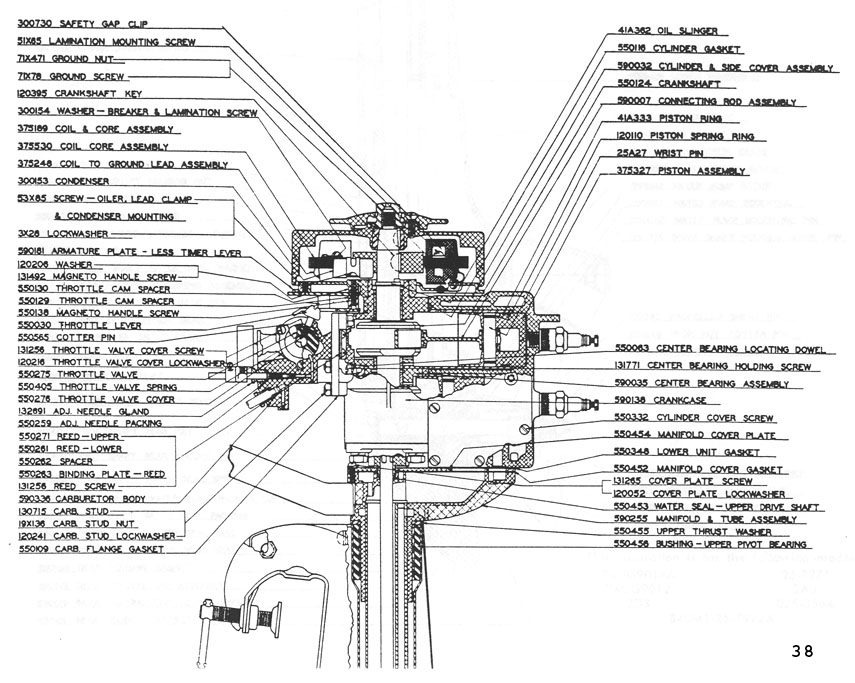

        Pg-38-Powerhead-Side

        Pg-39-Powerhead-Side

        Pg-45-Trim-Group
