1948 Neptune A1 Junior Single connecting rod question.

Home › Forum › Ask A Member › 1948 Neptune A1 Junior Single connecting rod question.

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • March 12, 2017 at 9:46 pm #6526
    huntleybill
    Participant

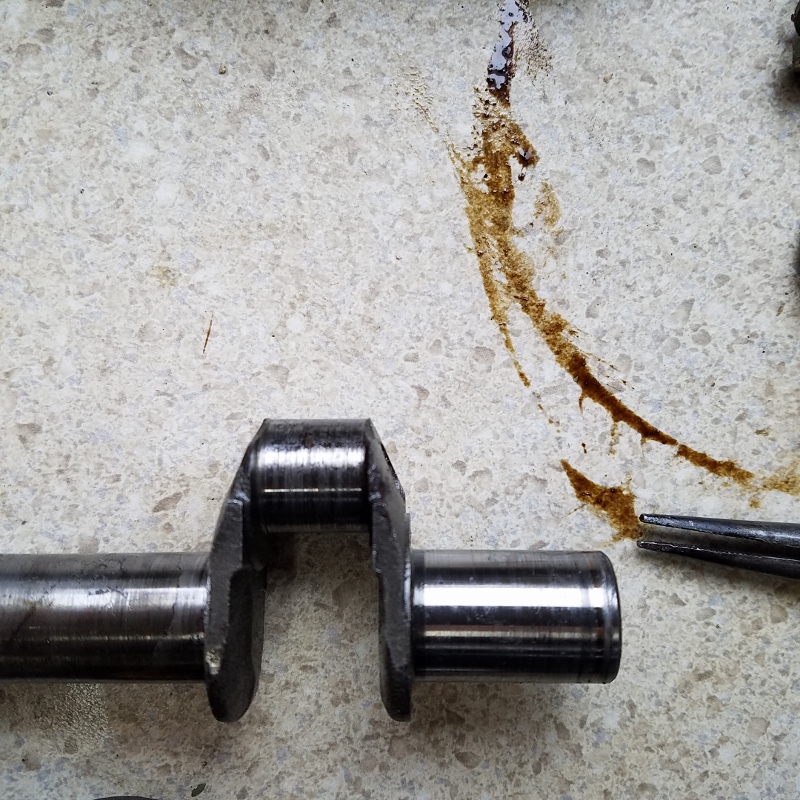

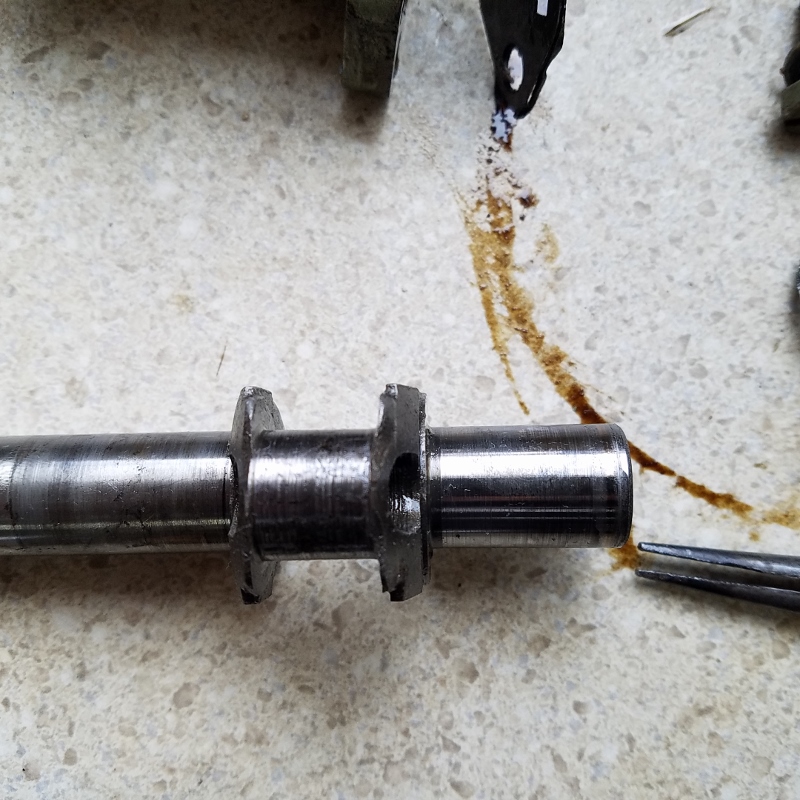

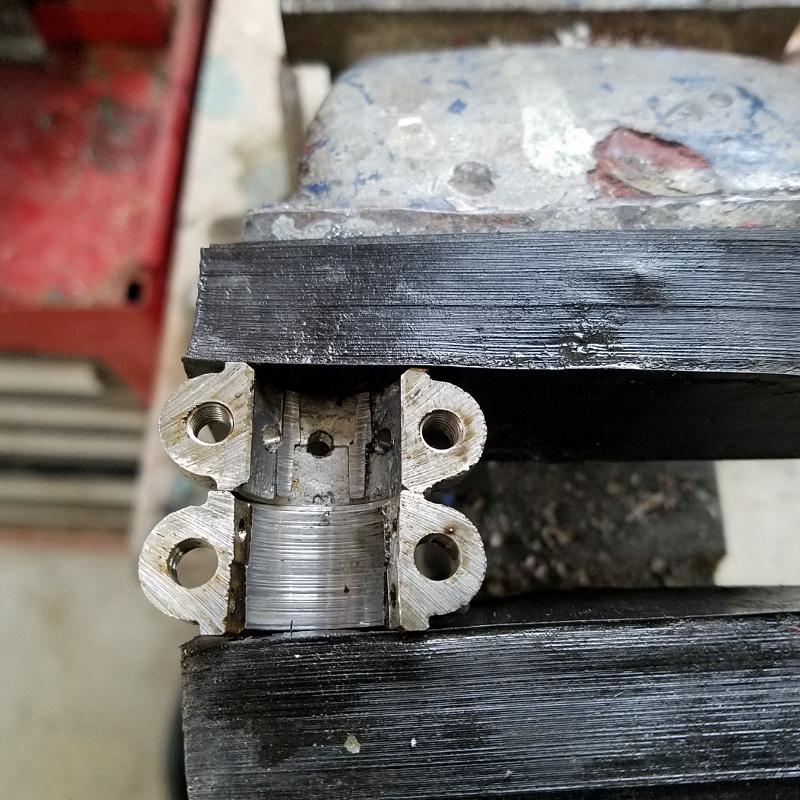

      I was working on this Neptune and discovered what I thought was an excessive amount of play in the connecting rod/crankshaft. After taking the connecting rod off the crankshaft end, I was surprised to see that there was no bushing. I took pictures of the connecting rod and crankshaft for you to see.
      Did these motors not use bushings?
      Do these parts look excessively warn to you?

      Attachments:

      March 13, 2017 at 3:27 am #54232
      garry-in-michigan
      Participant

        Lifetime Member

        believe here should be a bronze semi circular bushing cast into the aluminum connecting rod. The earlier models used all bronze connecting rods. The lighter aluminum rods increased RPM and power output. . . 😉

        March 15, 2017 at 9:21 pm #54386
        huntleybill
        Participant

          Thanks Gary
          So do you thing this rod and crank shaft are toast? If not, where can I get the bushings because that empty hole is the way it came off the crank?
