Topic: 1948 Sportwin initial carb setting – Antique Outboard Motor Club,Inc

This topic has 4 replies, 4 voices, and was last updated 3 years, 6 months ago by msmith.

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
June 30, 2022 at 4:37 pm #262238
lindy46
Participant
Does anybody know what the initial setting should be for the carb needle valve? 1.5 turns out doesn’t seem to be correct.
July 1, 2022 at 11:43 am #262271
benji41
Participant
US MEMBER PAY BY CHECK

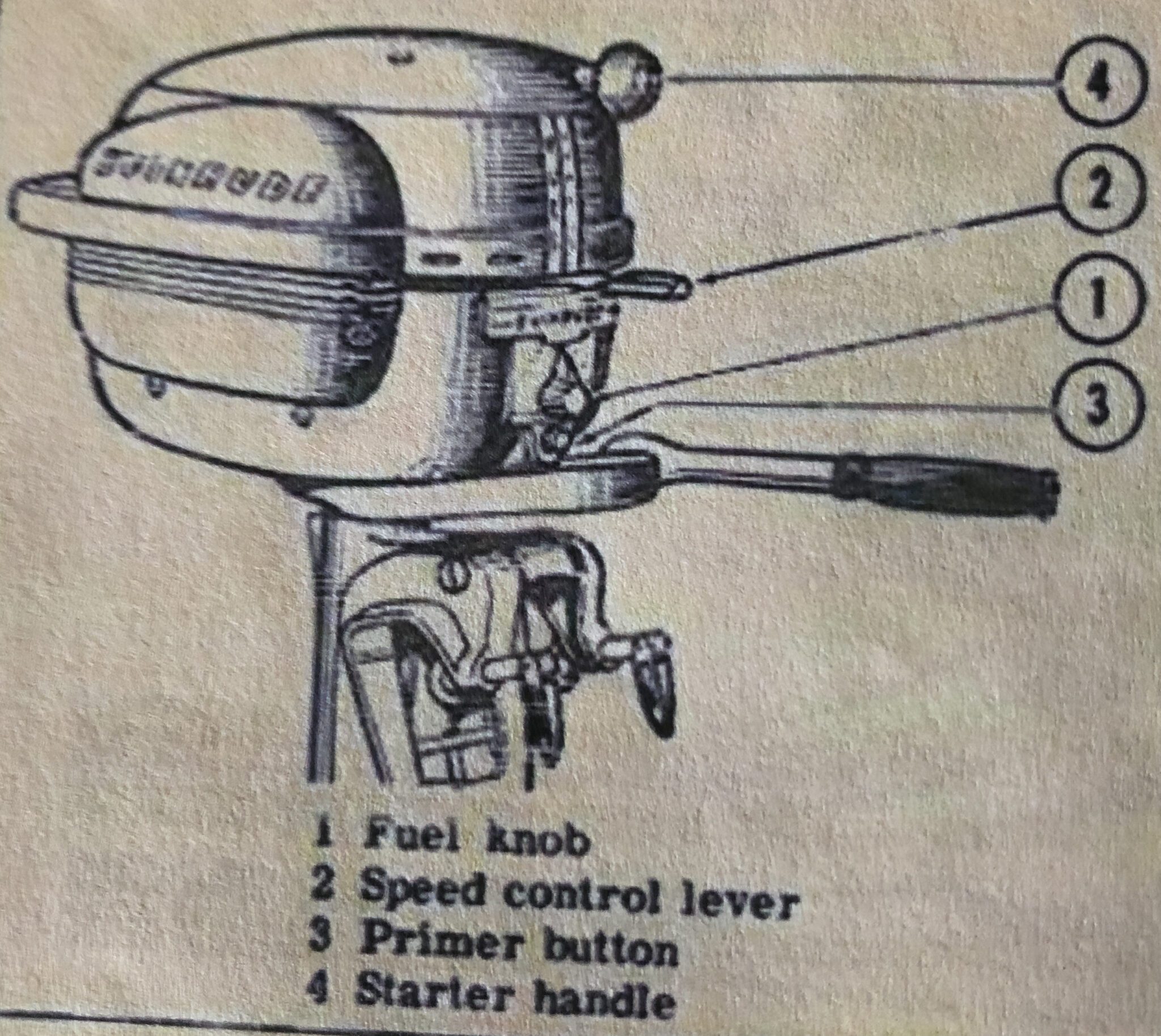

Reading my manual Open fuel valve completely 2 Place speed control in to start position. 3 Turn fuel knob to rich. 4 push primer button 3 or 4 times. 5 Pull starter rope.

Hope this helps

benji41

Jim Benjamin
July 1, 2022 at 2:45 pm #262286
lindy46
Participant
What I’m looking for is how many turns from fully seated should I open the fuel knob.
- This reply was modified 3 years, 6 months ago by lindy46.
July 3, 2022 at 9:37 am #262398
Tom
Participant
US Member
I’m going to stick my neck out and say that if it doesn’t start at 1 1/2 turns open, there is something else wrong. Good compression? Good fat blue spark at the plugs? Does the choke work? If you spray a little fuel into the carb, does it run for a few seconds? Does it turn over freely with the spark plugs out? Maybe a little more information will assist.
July 3, 2022 at 10:38 am #262401
msmith
Participant
After reviewing a bunch of past posts it seems that centering the fuel knob at 3/4 of a turn from closed is the answer with the low speed (air shutter screw) set at 4 turns open initially. A weird carb for sure and it leaks when shut off if the fuel knob is not in the off position.
- This reply was modified 3 years, 6 months ago by msmith.
- This reply was modified 3 years, 6 months ago by msmith.
