1950 Evinrude model 4434 (7.5hp) Fleetwin

Home › Forum › Ask A Member › 1950 Evinrude model 4434 (7.5hp) Fleetwin

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • October 24, 2020 at 9:00 am #219188
    drifter
    Participant

      I’m trying to find a copy of a parts manual for the 1950 Evinrude Fleetwin. Model 4434.
      Might someone have a PDF or soft copy?
      Thanks,
      Nick

      October 24, 2020 at 11:17 am #219198
      frankr
      Participant

        Here ya go—-

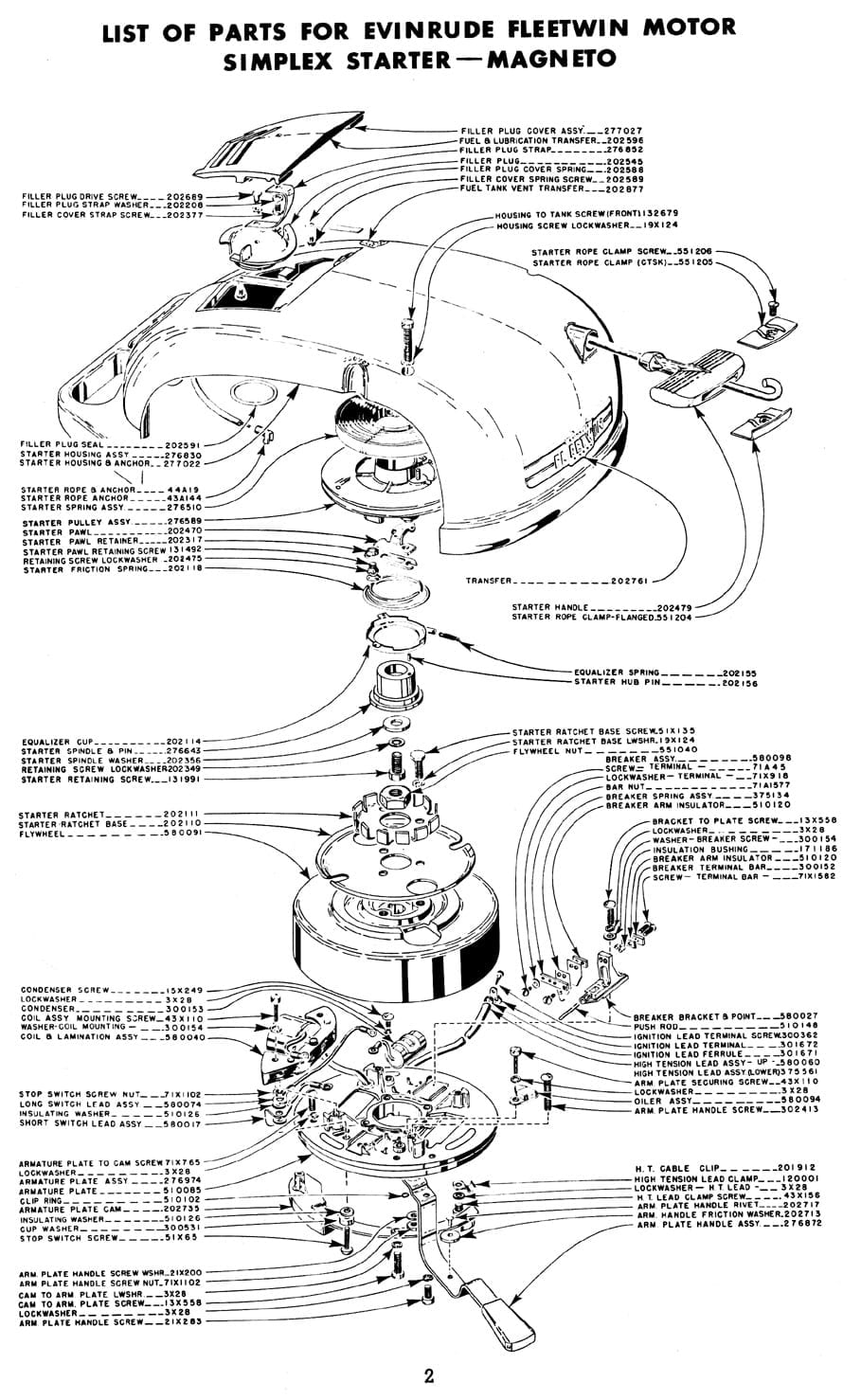

        1.-Cover

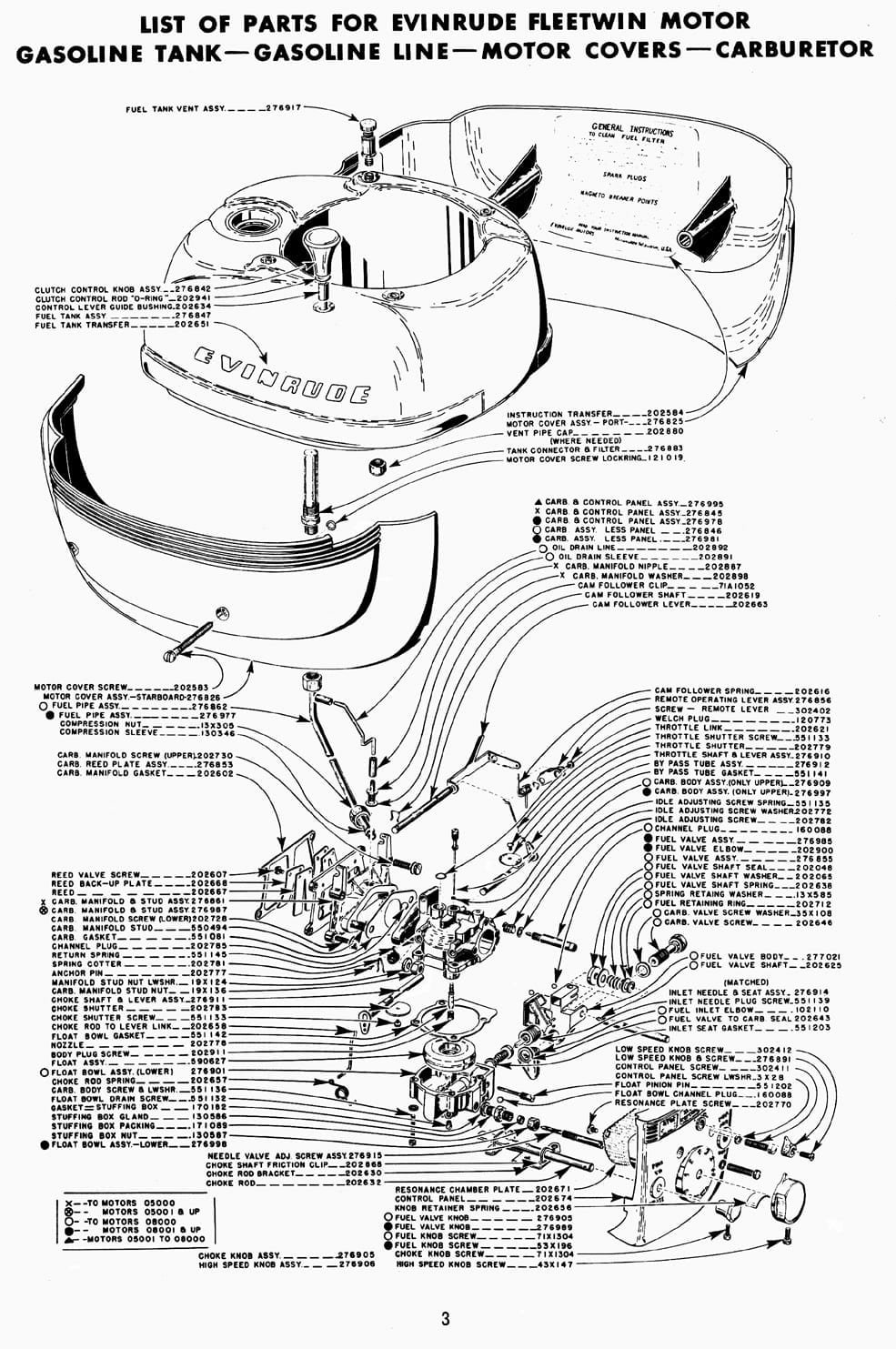

        2.-Recoil-Starter-and-Magneto

        3.-Fuel-Tank-Carburetor-and-Shrouds

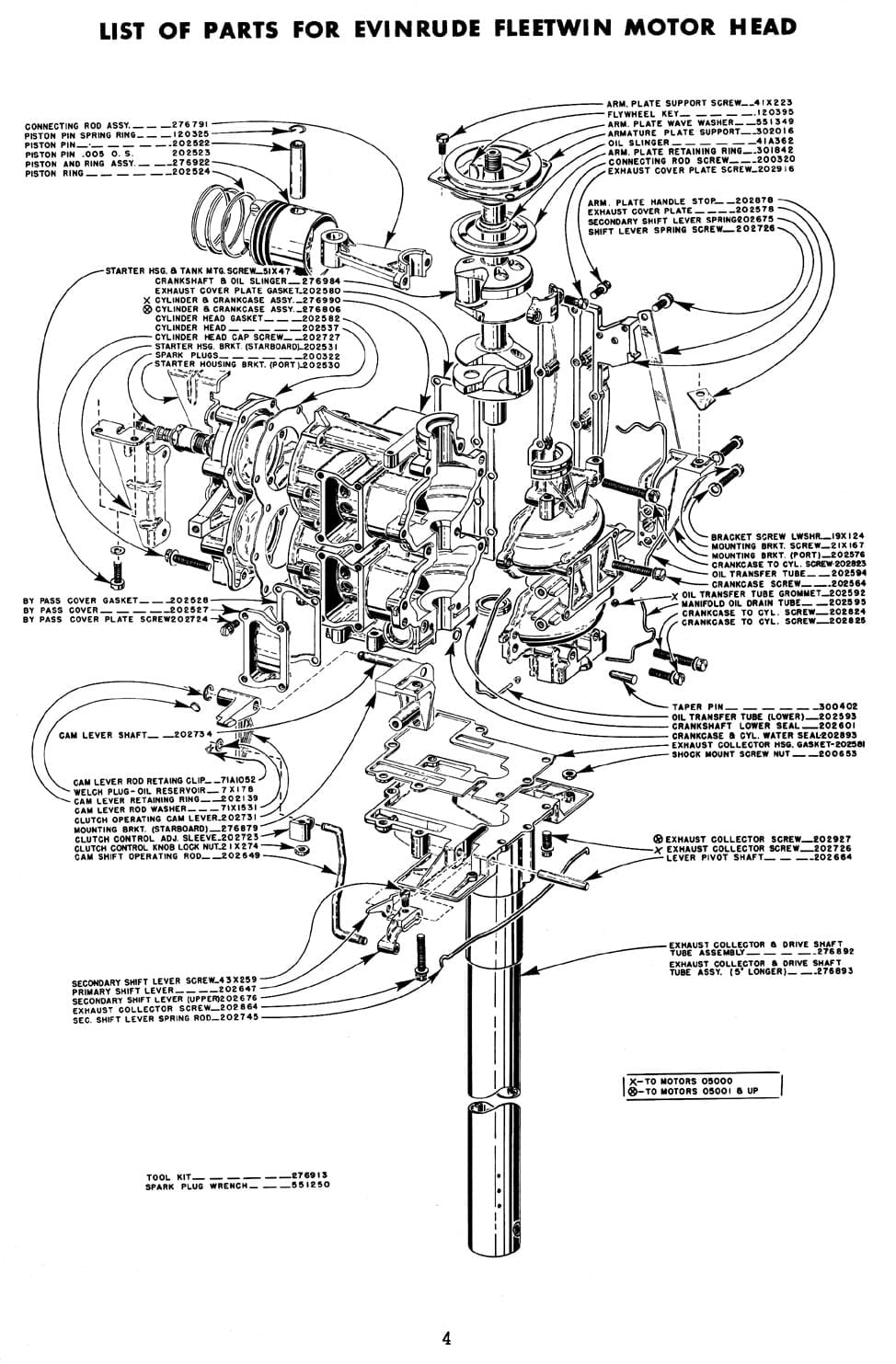

        4.-Powerhead

        October 24, 2020 at 11:19 am #219204
        frankr
        Participant

          The rest—-

          5.-Steering-Swivel-and-Brackets

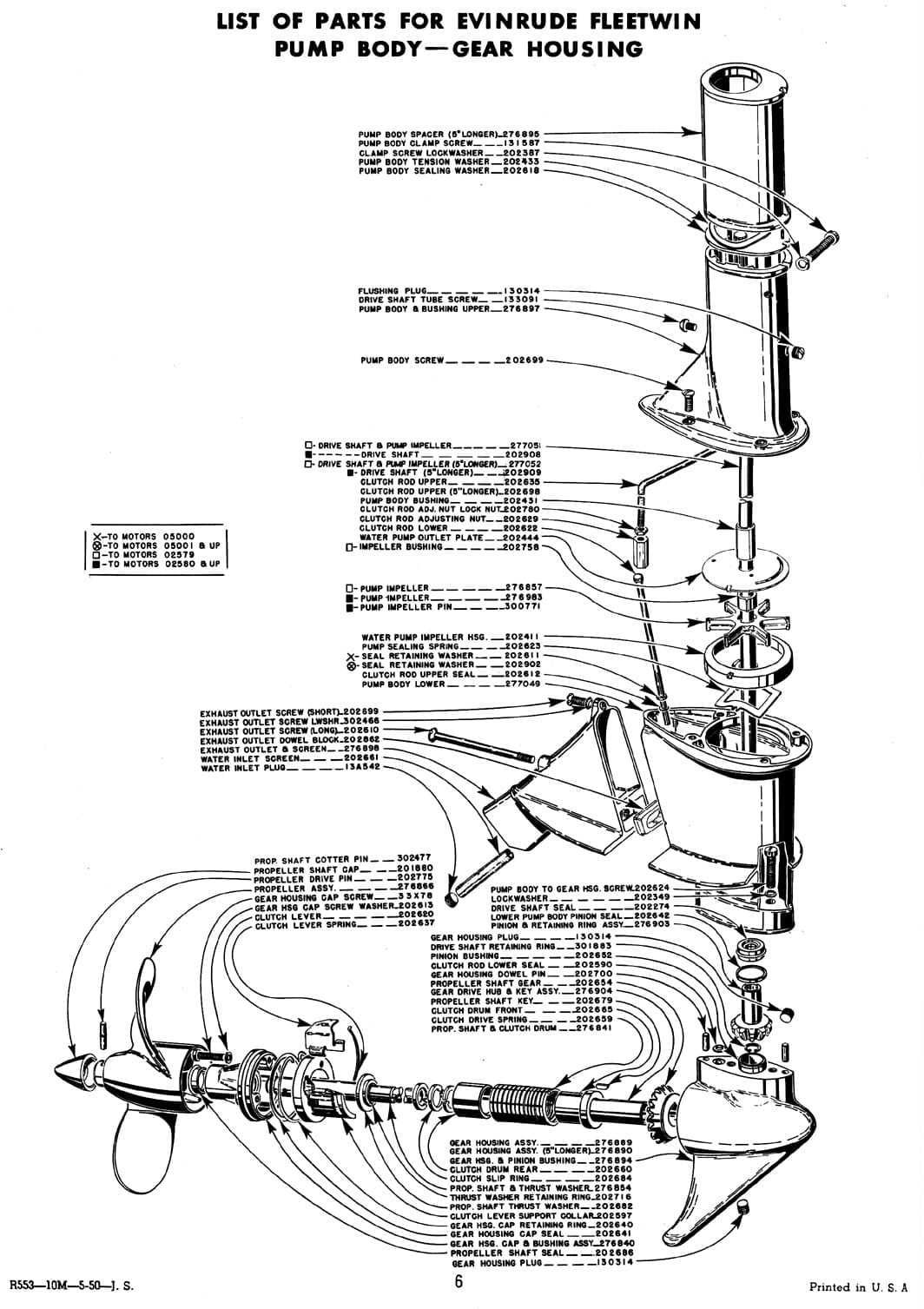

          6.-Gearcase

          October 24, 2020 at 6:00 pm #219244
          drifter
          Participant

            Once again, Frank, you have helped make this hobby that much more fun for me. I am very grateful.
            Thank you.
            Nick

          • Author
            Posts
          Viewing 4 posts - 1 through 4 (of 4 total)
          • You must be logged in to reply to this topic.
