Topic: 1950 Evinrude Speeditwin 6039 Carburetor – Antique Outboard Motor Club,Inc

This topic has 8 replies, 3 voices, and was last updated 5 years, 7 months ago by Buccaneer.

Viewing 9 posts - 1 through 9 (of 9 total)

Author

Posts
November 11, 2019 at 5:25 pm #186960
Buccaneer
Participant
US Member

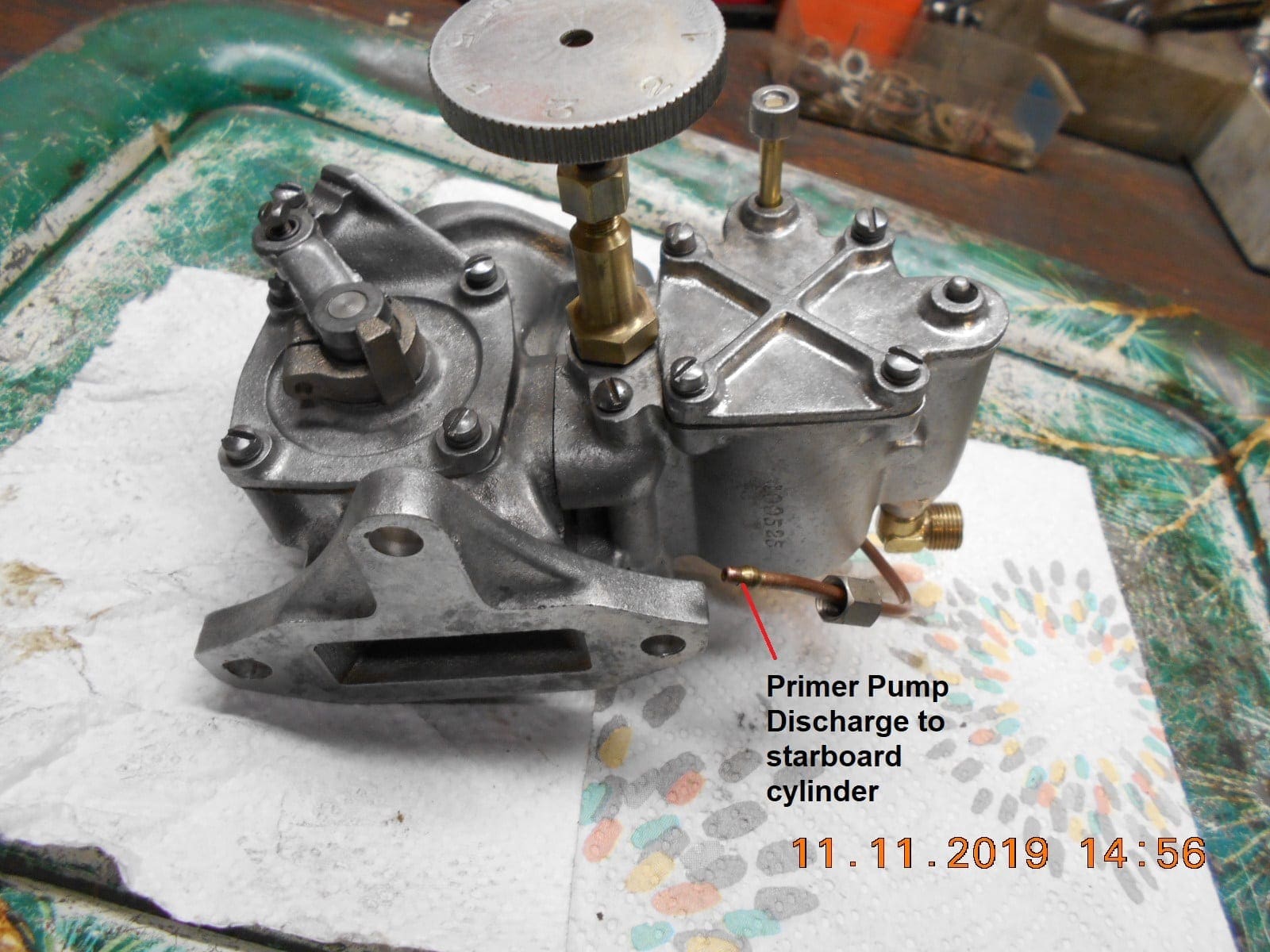

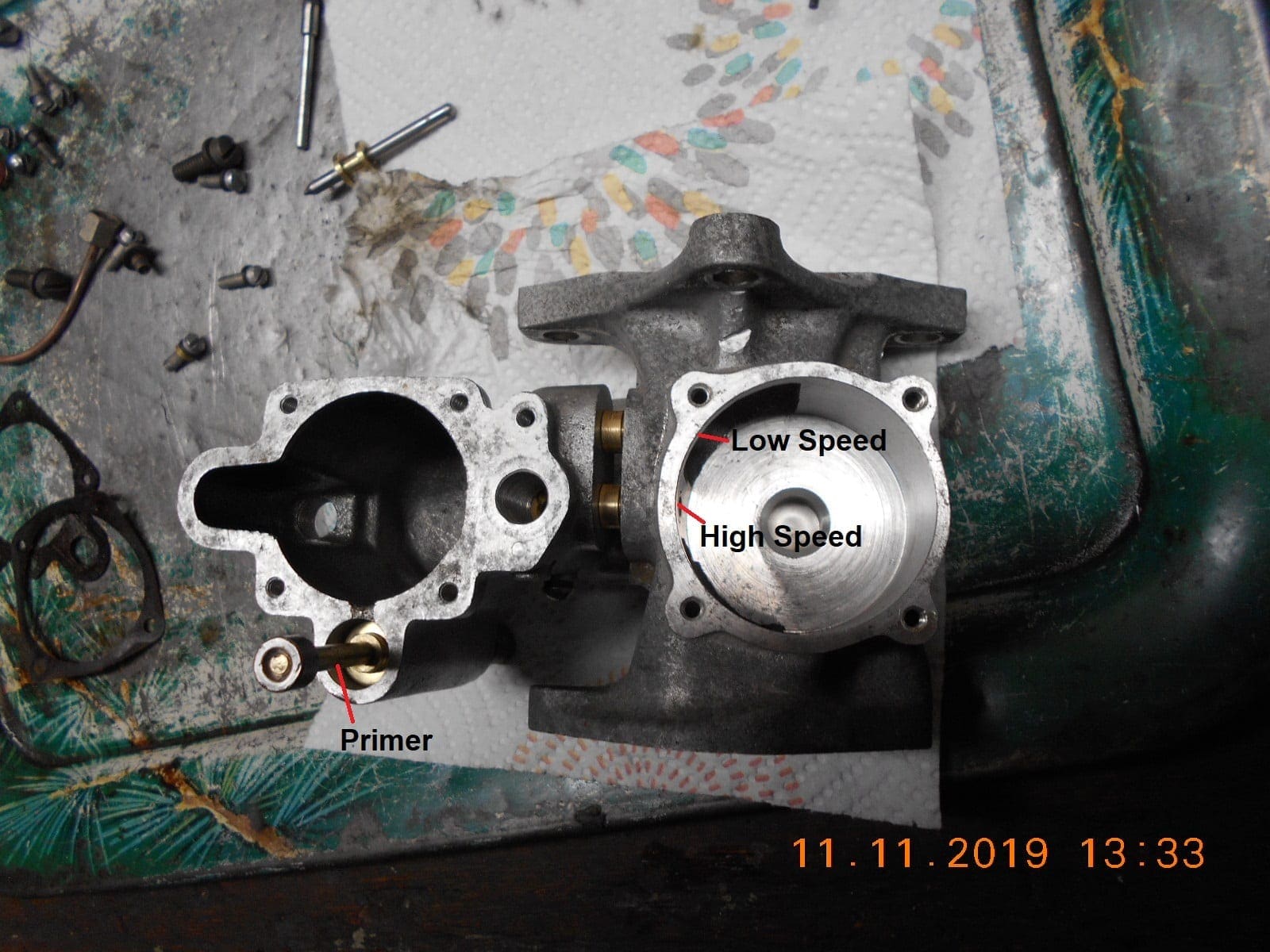

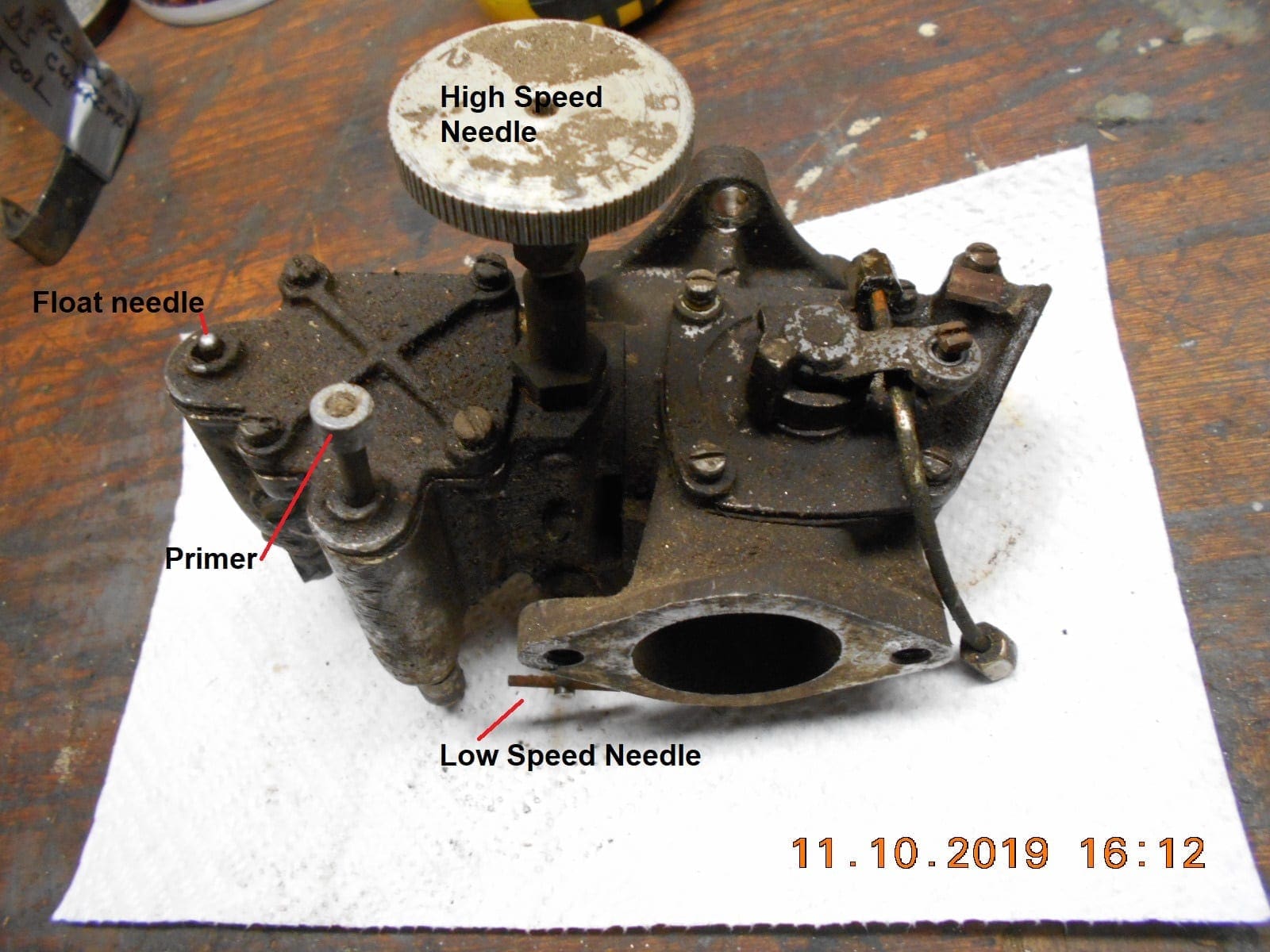

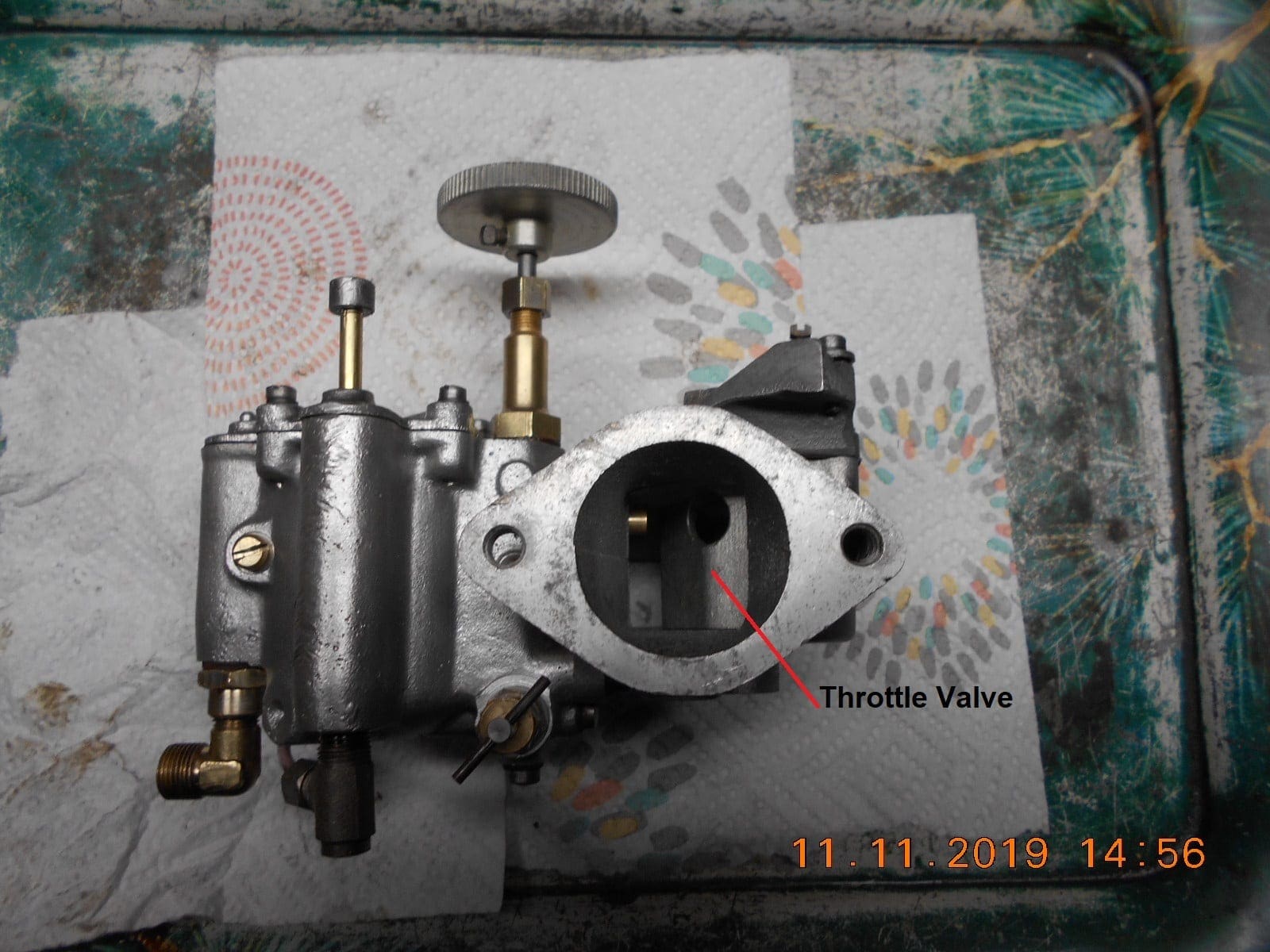

I could find no photos of the subject carb online, so I’m posting mine,
as long as I had a question or two.
The “very hard to read” digital parts diagram I have mentions a primer
“check valve”, but it doesn’t actually show it in the diagram that
I can tell. When I had it apart, there was no type of check valve
in mine. Anyone know if the later 6039’s had one, and if so,
what it consist of? Photos always helpful.

Was there ever an “operators” manual printed for the 1950 Speeditwins,
that might show initial carb needle settings, starting instructions, etc.,
and just be plain fun to see??
Thanks!

Prepare to be boarded!
November 11, 2019 at 10:40 pm #186987
Samuel Phelps
Participant
US Member
https://i0.wp.com/www.walagata.com/w/chapsboy/Service/Page_21.jpg?w=885&ssl=1
November 11, 2019 at 10:44 pm #186988
Samuel Phelps
Participant
US Member
https://i1.wp.com/www.walagata.com/w/chapsboy/Motors/Speeditwins.jpg?w=885&ssl=1
November 11, 2019 at 11:02 pm #186989
Samuel Phelps
Participant
US Member
I don’t remember a check valve on mine ..
I need that primer piston and button though .. LOL!
I’m using a. Long screw at the moment…
November 12, 2019 at 9:06 am #187001
Buccaneer
Participant
US Member
Samuel Phelps wrote:

https://i0.wp.com/www.walagata.com/w/chapsboy/Service/Page_21.jpg?w=885&ssl=1

The pages doesn’t say “Speeditwin” in the first paragraphs, as
the info is continued from a previous page, but it’s reads like
it is for a Speeditwin. Correct?
Thanks!

Prepare to be boarded!
November 12, 2019 at 10:01 am #187009
Tubs
Participant
A "Boathouse Repair" is one that done without having tools or the skills to do it properly.
- This reply was modified 5 years, 7 months ago by Tubs.
November 12, 2019 at 4:08 pm #187059
Buccaneer
Participant
US Member
Tubs, I’ didn’t think about that there might be a check valve at the cylinder end of the discharge line.
Will have to check that, and double check my elbow on the bottom of the carb.
Thanks.

Prepare to be boarded!
November 12, 2019 at 8:13 pm #187077
Samuel Phelps
Participant
US Member
Buc , I think Garry in Tampa posted that on my thread IIRC .. It’s strange on my tank decal instructions it says to turn the slow speed adjustment at the bottom of the carb 1-1/2 turns .
But on that literature it says to turn it 1/2 turn .. I’m not versed enough to know which is correct . Everything here is a learning process for me …
November 12, 2019 at 9:15 pm #187080
Buccaneer
Participant
US Member
Samuel Phelps wrote:

Buc , I think Garry in Tampa posted that on my thread IIRC .. It’s strange on my tank decal instructions it says to turn the slow speed adjustment at the bottom of the carb 1-1/2 turns .
But on that literature it says to turn it 1/2 turn .. I’m not versed enough to know which is correct . Everything here is a learning process for me …

Hopefully I’ll find the lower unit parts some day and have a reason
to adjust the carb. I’ve watched a few videos of Speeditwins
running. Look like a fun motor!

Prepare to be boarded!
