  • #298073
    Buccaneer
    Participant

      US Member

      Last week on it’s first test run on the lake since going through the motor,
      it ran great the first 15 minutes, then started cutting out on one cylinder,
      and I limped to the landing on one cylinder.

      Pulled the plugs later, and it
      appeared that the top spark plug was a little wet. Tore the flywheel off,
      and initial “look see” revealed nothing obvious. Then hooked up the coils
      to my Steven’s Coil Tester. Both coils fire on the tester at the same 1.1 amperage.

      However, when using the test probe, the top cylinder coil is showing leakage to
      the laminates, the other coil does not. Not sure if that’s some “stray” eddy current
      that’s not an issue, or if I have a bad coil?

      Thoughts?
      VIDEO……
      https://youtu.be/TswUfiUUiOw

      Prepare to be boarded!

      #298092
      Buccaneer
      Participant

        US Member

        Hey Buccaneer, did you fix the problem?

        Not sure, but it’s running on two cylinders again in the test barrel.
        I decided the top coil issue on the Stevens tester using the probe,
        getting small sparks off the laminates, probably wasn’t the issue.

        I installed another new plug wire on the top coil, as the one I removed
        had been touching the sharp edge of the laminates, leaving a little indentation
        in the plug wire. The test probe didn’t show the wire to be leaking though.
        The coil ground wire and primary wire to the points come out of the coil
        touching each other, and twisted around each other. The primary wire’s
        insulation looked to have a few cracks in it, so I dabbed some liquid rubber
        on it.
        The original, “cracked up”  coils were grounded at the condenser hold down
        bolt. I had the replacement coils ground wire grounded to the points
        hold down bolt. After I untwisted the ground and primary wire it was long
        enough so I could attach the ground wire where it was suppose to be.

        I don’t know if any of this made a difference, but I also replaced both
        new Champion plugs with two more Champion plugs. I’ve heard some
        grumbling on the Net about the quality of Champion plugs now days,
        so perhaps that was the problem?

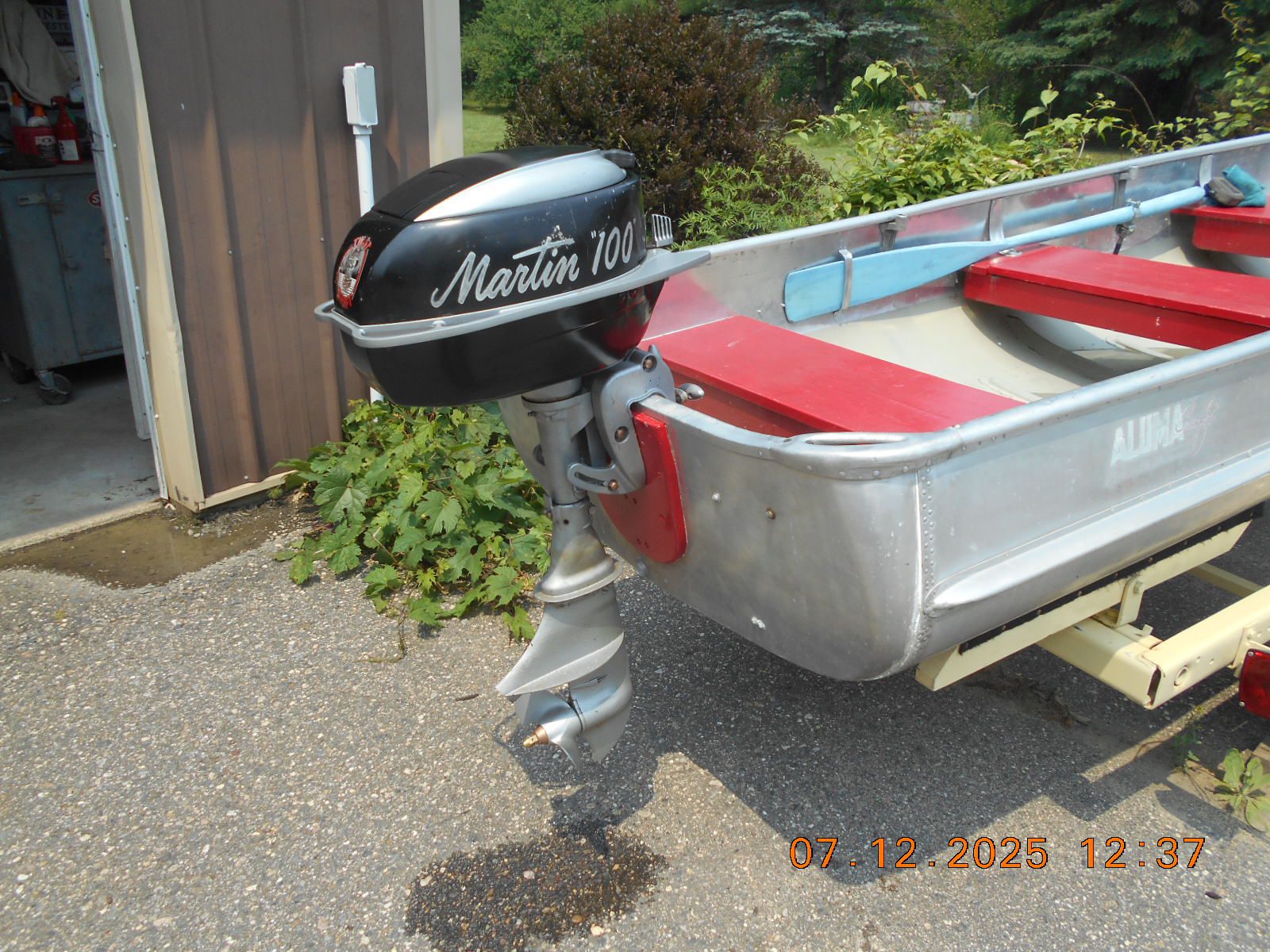

        Said Martin started in the test barrel on the third pull, and ran on
        two cylinders again. I could only run it slow, so I put it on the boat
        for another lake run, soon, I hope. I’m so confident, that I even
        put the cowlings back on! :-O

        DSCN2836

        Prepare to be boarded!

        #298101
        Tubs
        Participant



          Another nice job Buck. Motor looks Mint. Watched your video. One of them has been on my “I want one” list since I got a 75-TS.

          A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

          #298110
          Buccaneer
          Participant

            US Member

            Tubs, I’m hoping on the next Martin 100 boat test, oars will
            only be required to get the boat off shore for “start up”!



            Prepare to be boarded!

            #298145
            Tubs
            Participant

              That’s the life of an Antique Outboarder. I’m 1450 from home. When my stuff quits I don’t get to try it again till next year ( if it doesn’t end up on the bottom of the lake.) I had a 39 Fleetwin that wouldn’t run when I got it here. As you know test tanks don’t revel everything. Thought I had found the problem but to be sure I took the motor to Tomahawk and one of the guys let me use their boat to test it. Ran great. Lasted 3 days. A rod bolt came loose and punched a hole in the block. I sold it to a guy for $50.00 so he could hang it on the wall of his tavern. I’d had enough of that motor.

              A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

              #298146
              Buccaneer
              Participant

                US Member

                Tubs, Yikes! Win some, lose some, for sure.
                I never had that misfortune, but when I went to test run
                a Speeditwin on the boat years ago, after going all through
                it, after a short run something was rattling. At first, it
                sounded like a “spark knock” / pinging, but not likely
                on an outboard. Probably had rod issues as well.
                I never did open it back up…… maybe someday!

                Prepare to be boarded!
