Topic: 1954 Fleetwin 7516 Starting & Operating Instructions decal

This topic has 10 replies, 5 voices, and was last updated 8 years, 11 months ago by Anonymous.

Viewing 10 posts - 1 through 10 (of 11 total)

1 2 →

Author

Posts
February 19, 2017 at 4:17 am #6376
Buccaneer
Participant
US Member

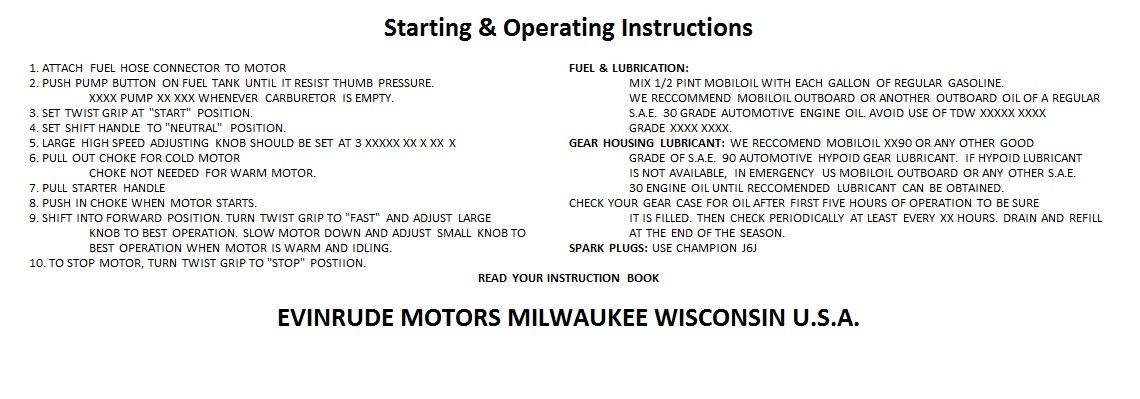

I destroyed the "Starting & Operating Instructions" decal
inside the cowl (stupid masking tape) but luckily I took
a photo of it first.
I tried blowing it up to read the photo, etc., and got "most"
of the text.
Does anyone have the "missing" words that are "x’ed" in the
text?
I’m going to try to make one on the ink jet printer with decal paper.
Thanks!

Attachments:

Prepare to be boarded!
February 19, 2017 at 4:24 am #53247
Mumbles
Participant

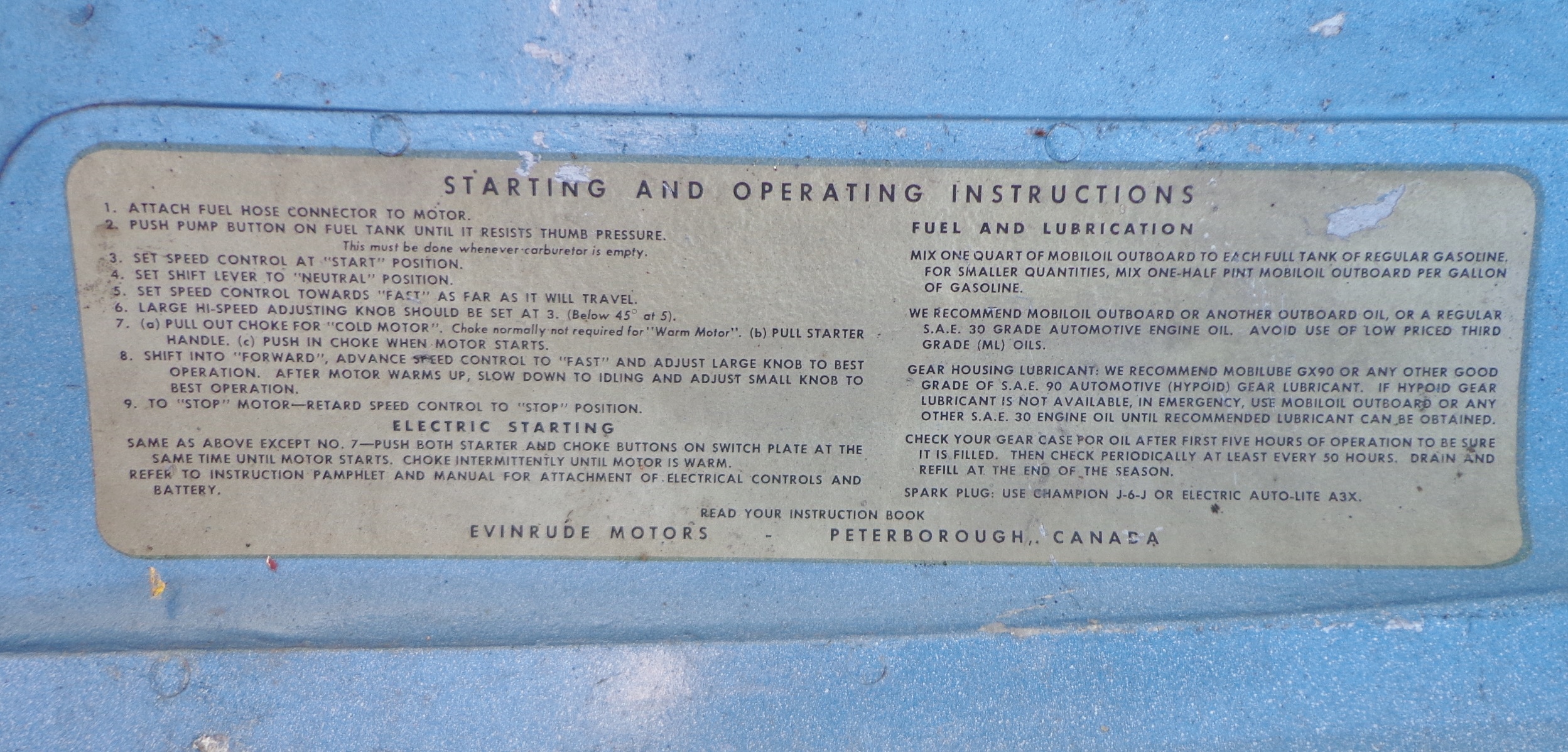

You got it all wrong. It’s supposed to say ‘Peterborough’ on the bottom, like this one! 😀

Attachments:
February 19, 2017 at 4:47 am #53249
PugetSoundBoater
Participant
Mumbles,A bit of Canadian pride showing there "eh" 😀

"Some people want to know how a watch works, others just want to know what time it is"
Robbie Robertson
February 19, 2017 at 2:25 pm #53258
Buccaneer
Participant
US Member
Thanks Mumbles! I think your decal is the same except the
mention of "OR ELECTRIC AUTO-LITE A3X", and of course
the mention of the "Far North" 🙂
And, I can actually "read" your decal !

Prepare to be boarded!
February 19, 2017 at 5:00 pm #53270
Mumbles
Participant
I can’t say for sure but I think the photo is of a ’56 Sportwin hood and I can truthfully say I have destroyed more of these decals than I have saved. They seem to be unobtainable.
February 19, 2017 at 7:24 pm #53287
Buccaneer
Participant
US Member
I found a few other variations in wording.
US version said "Twist Grip", Canadian said
"Speed Control", etc., Guess the differences
resulted when the Petersborough gang translated
it into Canadian. 🙂

Prepare to be boarded!
February 19, 2017 at 10:19 pm #53291
Buccaneer
Participant
US Member

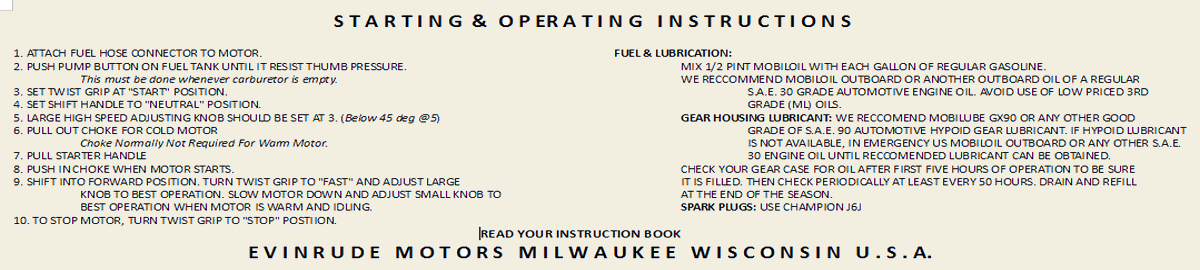

This is going to have to be good enough.
I have it sized to print 10" x 2-1/4",
which should fit inside my cowl like
originally. Thanks for the help!

Attachments:

Prepare to be boarded!
February 20, 2017 at 6:02 am #53318
Anonymous
If you think it would be of any help I can check my ’52 Fleetwin.
Kirk
February 20, 2017 at 2:06 pm #53324
Buccaneer
Participant
US Member
Kirk, I believe the 52 would have the fuel tank built on,
therefore instructions somewhat different??
I’m about 95% confident in the wording of my new decal.
The font will be different of course, and layout of text
a little off from original. Not going to be a show motor
(none of mine are, lol) so I’m not too worried about it.
Thanks.

Prepare to be boarded!
February 20, 2017 at 2:36 pm #53327
garry-in-michigan
Participant
Lifetime Member
Protect it with a good clear coat and in 50 years, yours will be the standard all others are judged by. . . 😆
