Call Standard Magneto sales. 1-773-235-2010. Maybe they can help. If they do not have a direct listing, they will need to know the measurements of: 1- the steel laminate square or rectangle protruding through the center of the coil (1/2” x 9/16” or 9/16” x 9/16” as examples.
2- diameter of coil.
3- length of square or rectangle part of coil the goes over steel laminate.
4- manufacturer of magneto assembly (Wico or Eismann or Phelan as examples. The magneto plate should have the name embossed on it somewhere. If there is also a service number stamped into the plate, write the number down.
you can also email or text a picture to them.
1 user thanked author for this post.

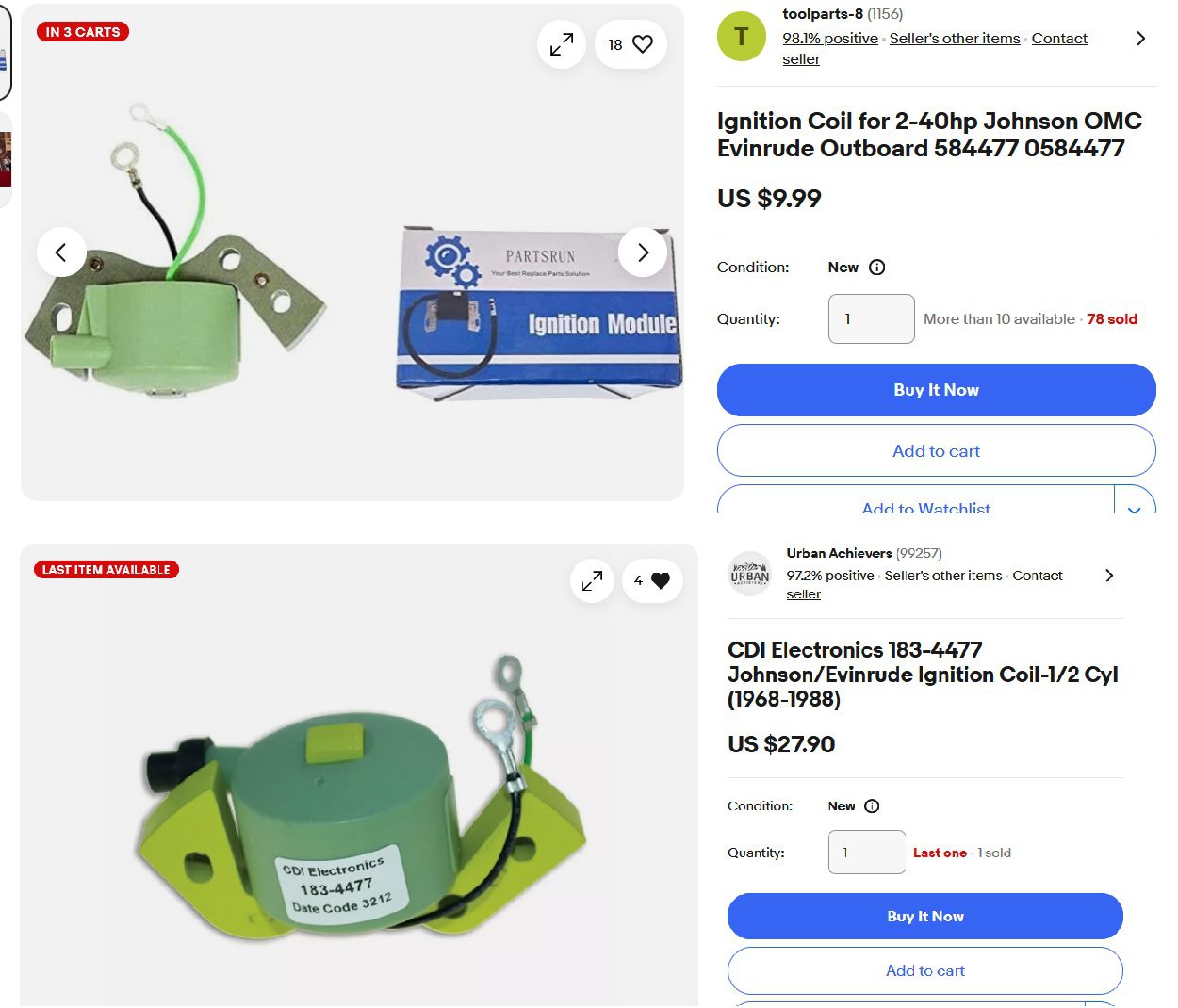

With some effort, you can replace it with the common, & inexpensive, OMC style coil.
A "Boathouse Repair" is one that done without having tools or the skills to do it properly.
1 user thanked author for this post.
The OMC coil swap may not work. You need to measure the depth of the coil. The OMC may be too deep. I tried it on a 1939 Neptune 1.5 hp and it did not work. The original coil was a Wico setup with a 1” depth tube and OMC was about 1-1/4” deep. I contacted Standard Magneto Sales with no luck but Doug Penn set me up with coils I could use for the 2 motors I have. I had to swap the coils from the new laminates to my old ones.
1 user thanked author for this post.

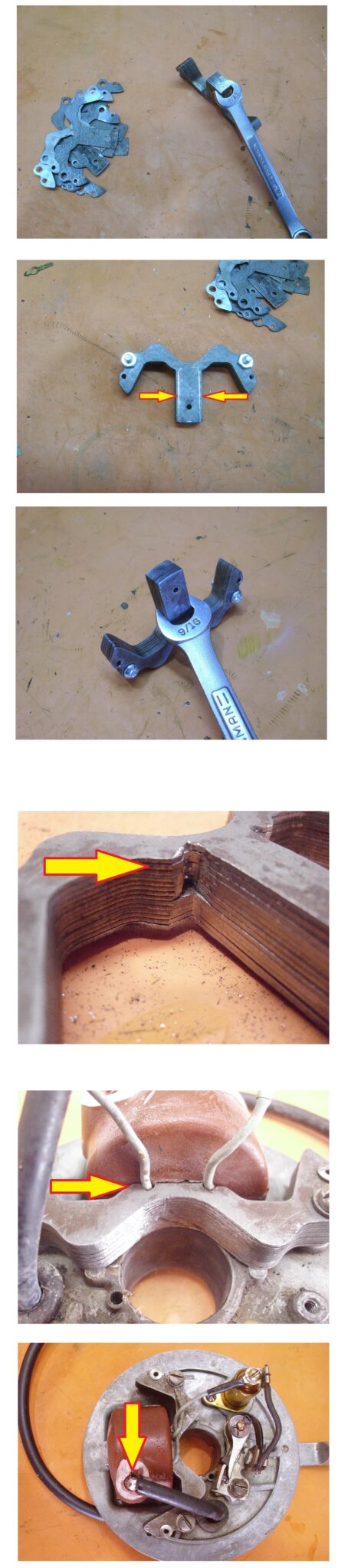

The coil I used in the early single cylinder magneto pictured, is what you have. Its found in the OMC universal magneto. I used an older brown one I had laying around. If you decide to try it, it should just fit notching out the laminates for the wires. You will also have to remove the part of the coil the plug wire slips into and solder the plug wire on. A couple coats of liquid tape is recommended. Without a picture of what you have its difficult to provide you with the best information so you will need to do some discovery on your own.
A "Boathouse Repair" is one that done without having tools or the skills to do it properly.
1 user thanked author for this post.
Deleated
