1955 Evinrude 15014 transom bracket

Home › Forum › Ask A Member › 1955 Evinrude 15014 transom bracket

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • August 7, 2018 at 4:03 pm #10781
    bob-d
    Participant

      US Member

      Will the transom brackets from a 1960 18HP Evinrude 15302 fit a 1955 15HP
      15014 ? Different part numbers, but look very similar?
      Thanks,
      Bob D

      August 8, 2018 at 11:48 am #80809
      Steve D
      Participant

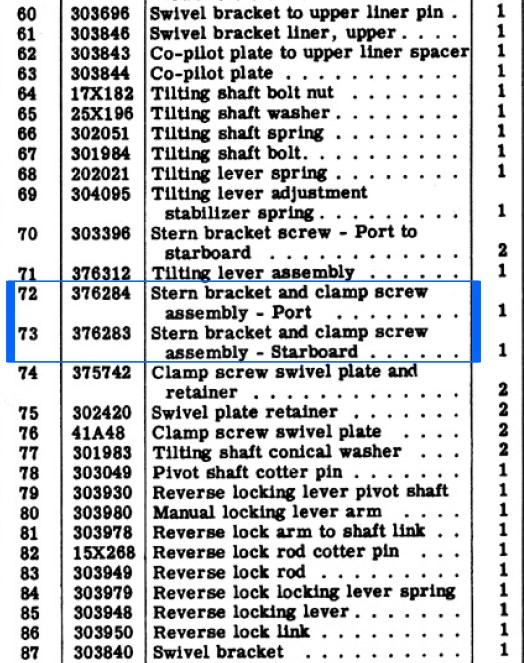

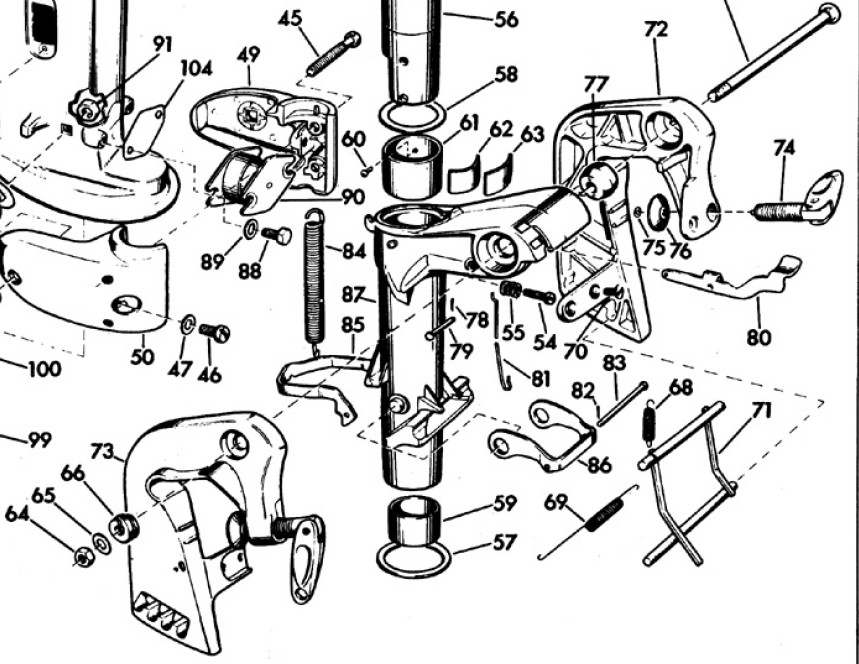

        Hey Bob, That should fit just fine. Unless I’m missing something and you’re seeing something I’m not, the parts appear to be the same when I compare numbers from the ’55 manual and numbers at MarineEngine for the ’60.

        Attachments:

        August 8, 2018 at 12:37 pm #80811
        RICHARD A. WHITE
        Participant

          Lifetime Member

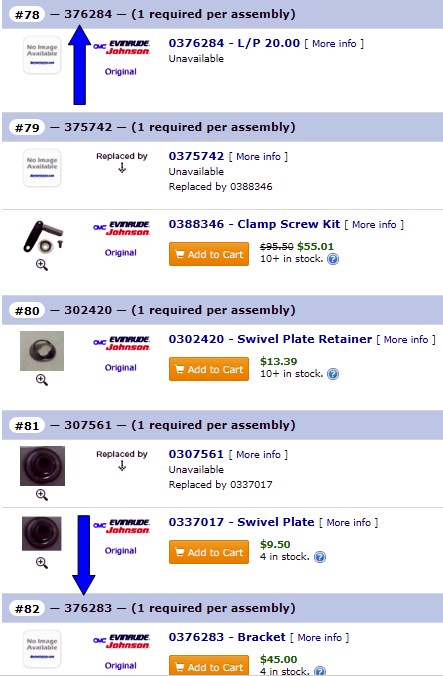

          I ask how they have 4 of one side in stock and none of the other? Interesting…

          http://www.richardsoutboardtools.com
          classicomctools@gmail.com

          August 8, 2018 at 1:01 pm #80814
          Steve D
          Participant

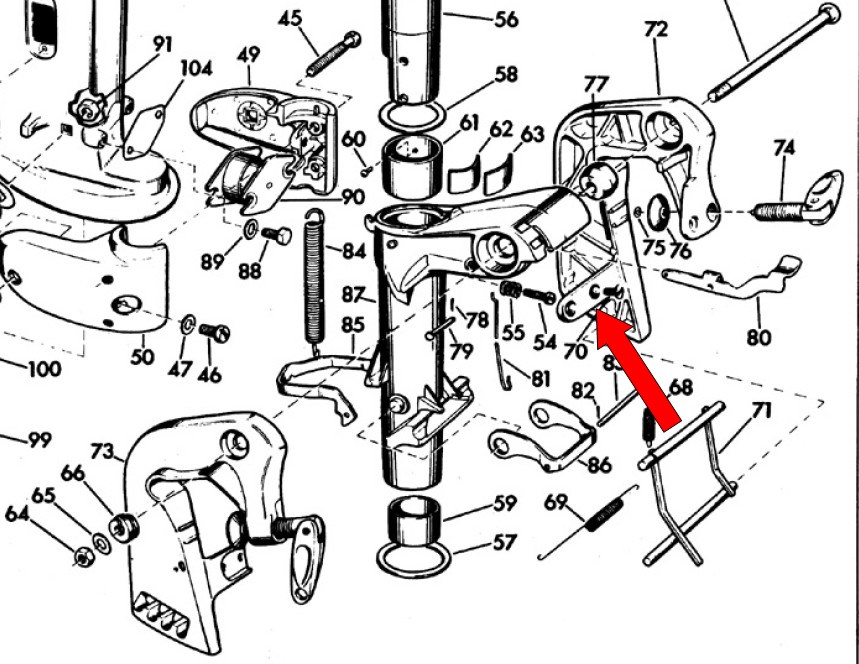

            Maybe more of a demand for the port side because of this part of the bracket. Over the years I’ve seen a few of them broken off right there.

            Attachments:

            August 8, 2018 at 4:53 pm #80826
            bob-d
            Participant

              US Member

              Thanks Steve, that’s the same method I used to check the part numbers.
              I used my parts book for the 55, and MarineEngine for the 1960. I guess I need new glasses. Thanks for helping out an old (65) man.

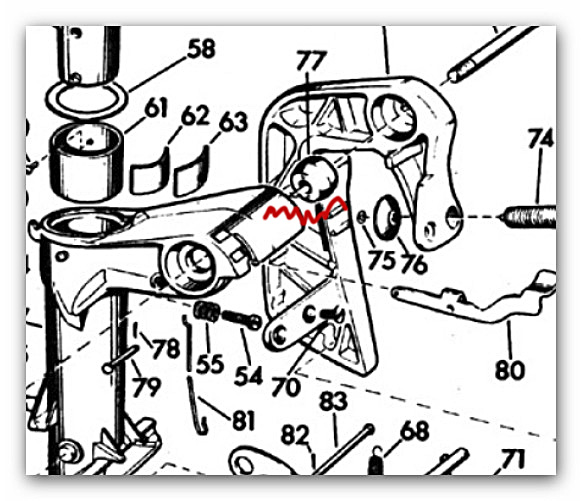

              Here is a diagram showing the crack on my mount. Not in the usual place. How in the heck did the previous owner crack that??? It’s unbelievable how banged up some of these old motors are. It’s almost as if they send them down a flight of stairs!
              Bob D

              Attachments:

              August 8, 2018 at 5:23 pm #80827
              Bob Wight
              Participant

                US Member

                Bob D,

                Unless you want to use the parts from a 1960 motor, here’s another source for a used complete stern bracket assembly from a 1957 Johnson 18hp that will also fit your 1955 15hp.

                http://thebrazilianconnection.com/57johnson18parts.html

                I’ve bought lots of used parts from this site and never got a bad piece – always quality used parts.

                Bob

                1937 Champion D2C Deluxe Lite Twin
                1954 Johnson CD-11
                1955 Johnson QD-16
                1957 Evinrude Fastwin 18
                1957 Evinrude 3022
                1958 Johnson QD-19
                1958 Johnson FD-12
                1959 Johnson QD-20

                “Every 20 minute job is only a broken bolt away from a 3-day project.”
                "Every time you remove a broken or seized bolt an angel gets his wings."

                August 8, 2018 at 5:36 pm #80828
                bob-d
                Participant

                  US Member

                  Thanks Bob, I had access to buying a 60 bracket.
                  I have also used Brazilian Connection, and can vouch for them as well. Good pricing, and quick delivery.
                  Bob D
