      Hi all new to the site and i appreciate any help anyways i have a mode 7518 evinrude i bought off Craigslist spent a day getting it running decent but i have noticed that it spits what looks like water and grease out from around the shaft where the shifter goes on . Any ideas from the professionals would be fantastic thanks in advance

      • This topic was modified 4 years ago by hondaatc.
      #242519
      Bob Wight
      Participant

        US Member

        There is an O-ring on the shift lever that could be worn out or missing, allowing leakage. The hole where the shift lever goes through sometimes also gets worn/wallowed out with age, allowing leakage. You are seeing exhaust water and unburned fuel/oil mix seeping out of the hole.

        Bob

        1937 Champion D2C Deluxe Lite Twin
        1954 Johnson CD-11
        1955 Johnson QD-16
        1957 Evinrude Fastwin 18
        1958 Johnson QD-19
        1958 Johnson FD-12
        1959 Johnson QD-20

        “Every 20 minute job is only a broken bolt away from a 3-day project.”
        "Every time you remove a broken or seized bolt an angel gets his wings."

        #242520
        hondaatc
        Participant

          Great thanks for the info any harm letting it leak for now I’d like to use it this season before having to take it down

          #242543
          frankr
          Participant

            US MEMBER PAY BY CHECK

            Over the long haul, it will wear faster because of the water “lubrication” instead of grease. Other than that, no problem. Keep it greased and run it. On the other hand, how about the water pump? Any plans to replace the impeller? The powerhead has to come off for either job, so you might as well fix both at the same time.

            #242588
            Mumbles
            Participant

              If you are pulling the powerhead to service the water pump, that would be the time to repair the leaking and worn shifter.

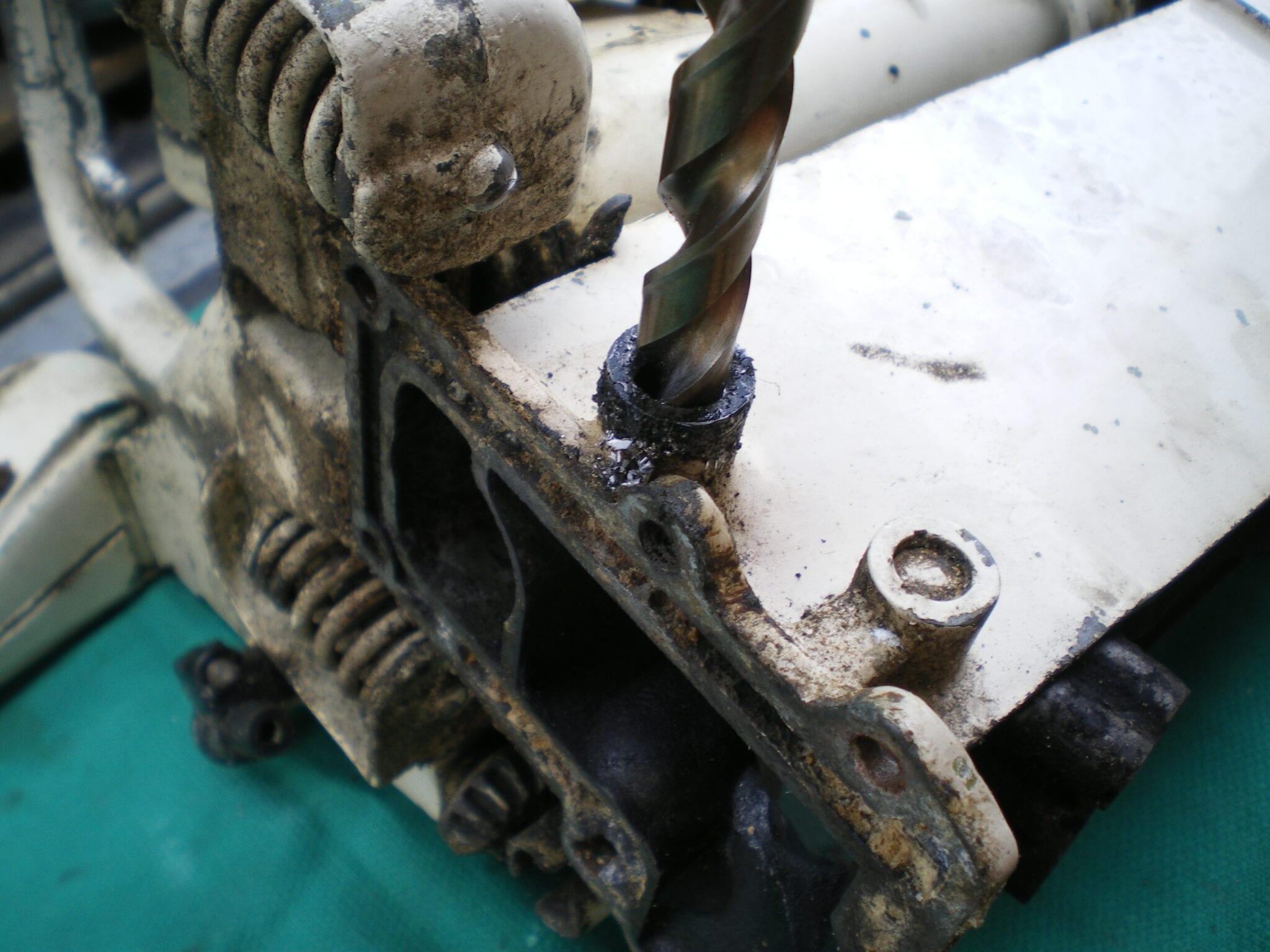

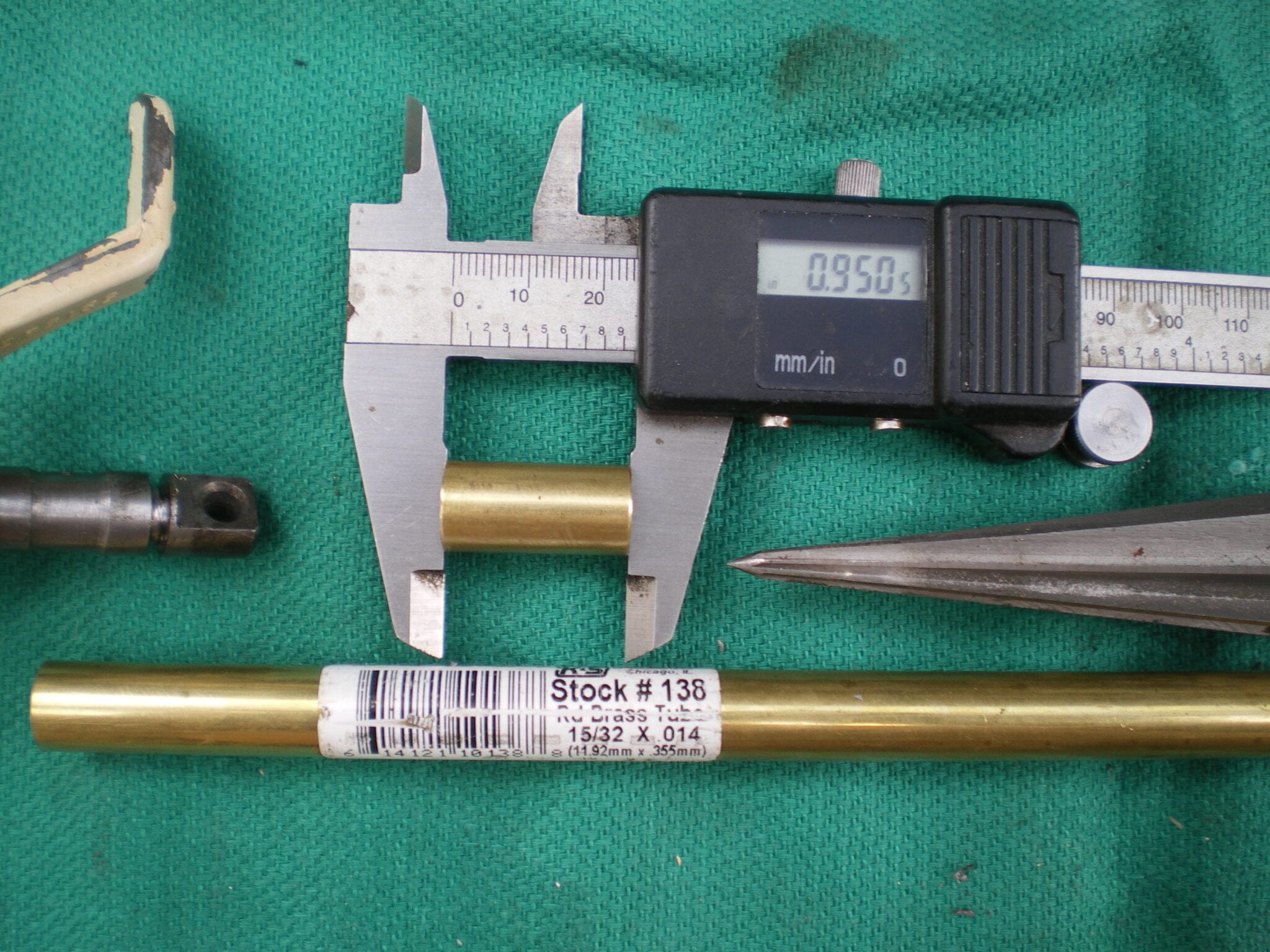

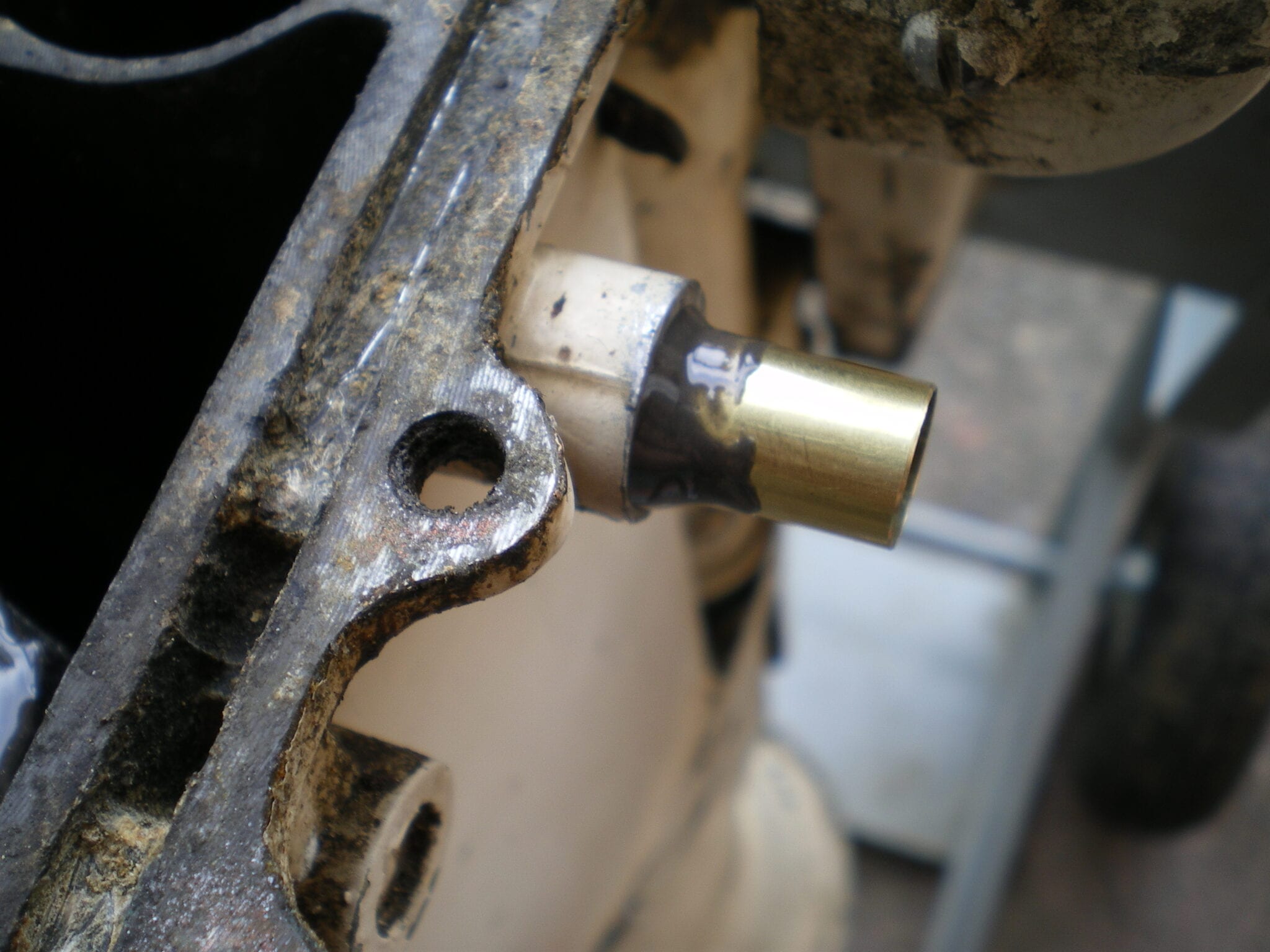

              To do it, I drill out the exhaust housing to accept a short piece of brass tubing which I get from a hobby store. The tube is then epoxied into the housing and a new O ring with some water proof grease solves the problem.

              IMGP1908

              IMGP1907

              IMGP1909

              #242608
              hondaatc
              Participant

                Thanks guys great info ! The impeller was ” supposedly ” replaced by the previous owner it does pump very well but it is on my winter to do list i picked up this 7518 and a rde 17 that i also got running pretty well both have correct tanks i gave $ 100 for the pair i am thinking about selling the rde17 its way to big for my boat

                #242633
                aquasonic
                Participant

                  US Member

                  Depending on the wear, sometimes the leak is just caused by an old shrunken shifter o-ring. The problem can be solved by just cleaning, greasing the chase, o-ring replacement, and a shot of grease in the shifter fitting.

                  If the shift handle has a lot of play, then Mumbles solution is the way to go.
