Topic: 1955 Gale GG 9016A parts help please – Antique Outboard Motor Club,Inc

This topic has 6 replies, 4 voices, and was last updated 6 years, 10 months ago by garry-in-michigan.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
August 22, 2018 at 1:56 am #10927
huntleybill
Participant
US Member
I am looking to rebuild the fuel pump for this 12HP Mont Ward motor. I don’t have a parts manual and was wondering if there is a kit for these or a whole pump? Do you have the part number? Also, are there any parts/service manuals for these motors?

Thank you
Bill
August 22, 2018 at 3:11 am #81574
cajuncook1
Participant
Bill check your PM. Sent you link to Gale Service Manual and it has parts diagrams as well.e

Cajun
August 22, 2018 at 3:18 am #81576
huntleybill
Participant
US Member
OMG!! Thank you!
August 22, 2018 at 12:26 pm #81587
frankr
Participant
US MEMBER PAY BY CHECK
Hunt, you do know that parts have not been made for that pump for over 50 years, don’t you?
August 22, 2018 at 1:49 pm #81591
huntleybill
Participant
US Member
No…didn’t know that. Like a lot of Johnson parts, since they were used for several years, I was hoping there were still parts/kits available. Maybe they didn’t use this pump a lot.

Then my next question would be, is there an aftermarket pump that will fit with little or no modifications?
August 22, 2018 at 3:21 pm #81594
frankr
Participant
US MEMBER PAY BY CHECK

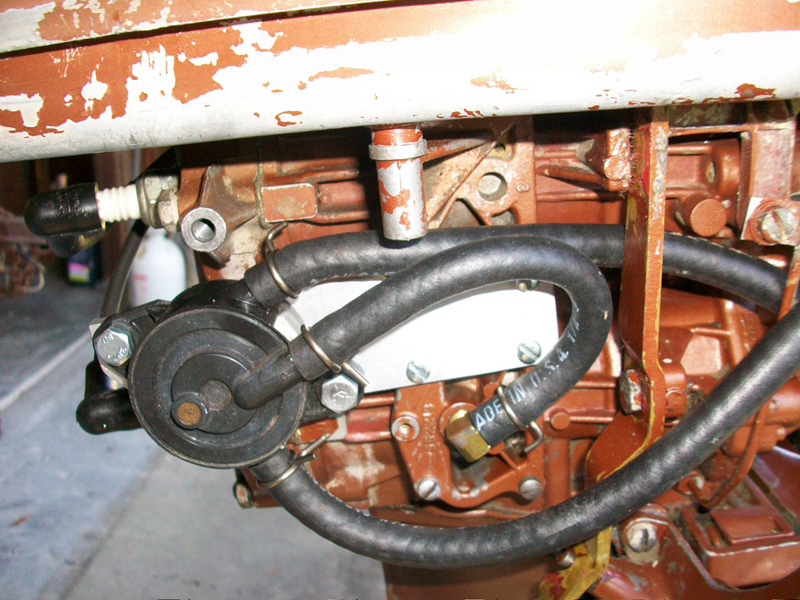

As far as I know, the Sierra 18-7350 "square" fuel pump will fit in there. Lots of other options too, if you want to get creative. Like the Mikuni pump, or Briggs & Stratton. Here’s a Briggs pump that I installed, but it was a bit more than a "little" creative by the time I fabricated a mounting bracket. And it was a bit tricky getting the shroud on when I got done.
August 22, 2018 at 7:03 pm #81600
garry-in-michigan
Participant
Lifetime Member
This was the pump they used back in the day . . . 🙄

They had so much trouble getting them back together they stopped listing the parts and recommended putting on a new pump . . . 😆
