1955 Mark 25 magneto illustrated parts breakdown ….

Home › Forum › Ask A Member › 1955 Mark 25 magneto illustrated parts breakdown ….

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • March 19, 2017 at 8:14 pm #6566
    huntleybill
    Participant

      I received this motor to restore in a cardboard box. Most of it taken apart. I am putting the coils, points etc back together but am having difficulty finding out how the underside of the stater goes back together. There is that brass gear piece that has two brass plates and 2 stamped steel plates that mount on the stater but I am not sure in which order. I was hoping an illustrated parts diagram might show the order of assembly.

      Anyone have one to show me? Or a picture?
      Thank you for your advice
      Bill

      March 19, 2017 at 8:21 pm #54558
      wedgie
      Participant

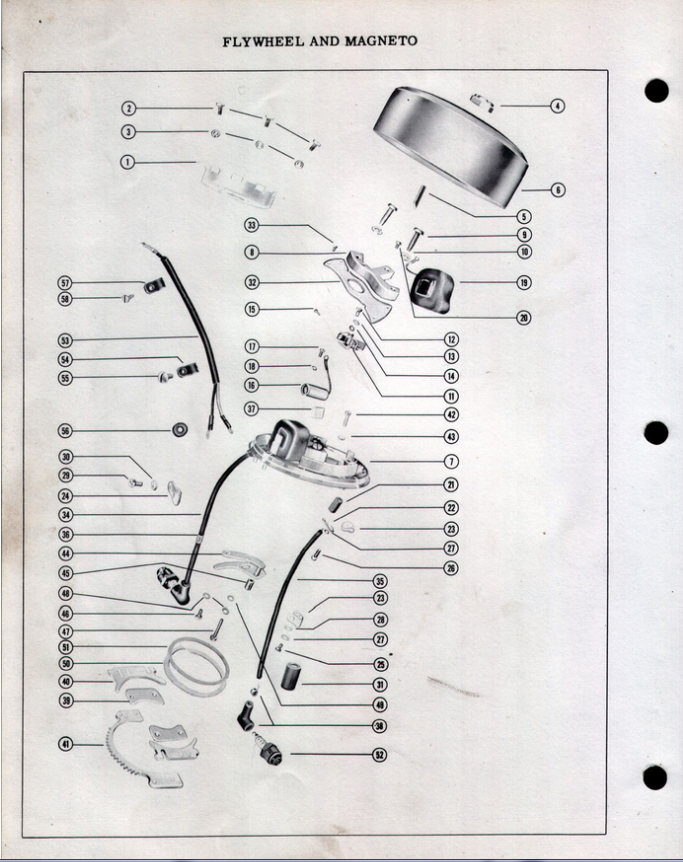

        There is this from wnyaomci website :

        http://pub9.bravenet.com/photocenter/al … 8/49514/1/

        March 20, 2017 at 1:21 am #54565
        20mercman
        Participant

          I need a couple of those #40 spring hold down clips. 24-20569 if anyone has some in their junk boxes.

          Steve

          March 20, 2017 at 1:20 pm #54591
          huntleybill
          Participant

            My issue is with parts 39,40,41. I kinda looks like 39 goes between 40 and 41. Is that right?

            March 20, 2017 at 2:45 pm #54595
            20mercman
            Participant

              Yes, the shim goes between the spring hold down clip and the gear.

              Steve

              March 20, 2017 at 7:41 pm #54611
              huntleybill
              Participant

                Perfect Steve. Thank you
