October 28, 2021 at 7:45 pm #248830
huntleybill
Participant
Does anyone have a copy of a service manual for the “title” motor? I am trying to get the gas tank off to clean the inside.
Please let me know brauscher@sbcglobal.net

Thank you
Bill
- This topic was modified 4 years, 2 months ago by huntleybill.
- This topic was modified 4 years, 2 months ago by huntleybill.
October 28, 2021 at 8:47 pm #248839
Mumbles
Participant

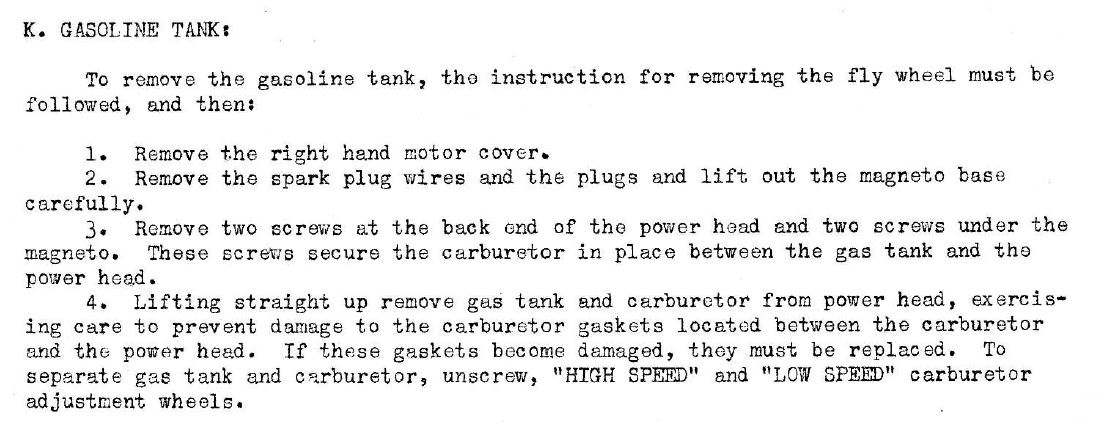

I found these instructions for tank removal in one of these two manuals.

Flambeau-Instructions-Early

Flambeau-Instructions-Late
October 28, 2021 at 11:43 pm #248847
huntleybill
Participant
Thank you Mumbles. What is confusing me is that the magneto base won’t “lift out” and I don’t see what is holding it in. I don’t want to pry on it and risk breaking it.
Any ideas?
October 29, 2021 at 5:22 am #248848
Mumbles
Participant
It might have old and dried out grease holding it on? Time for some heat?
October 29, 2021 at 9:56 am #248853
Buccaneer
Participant
US Member

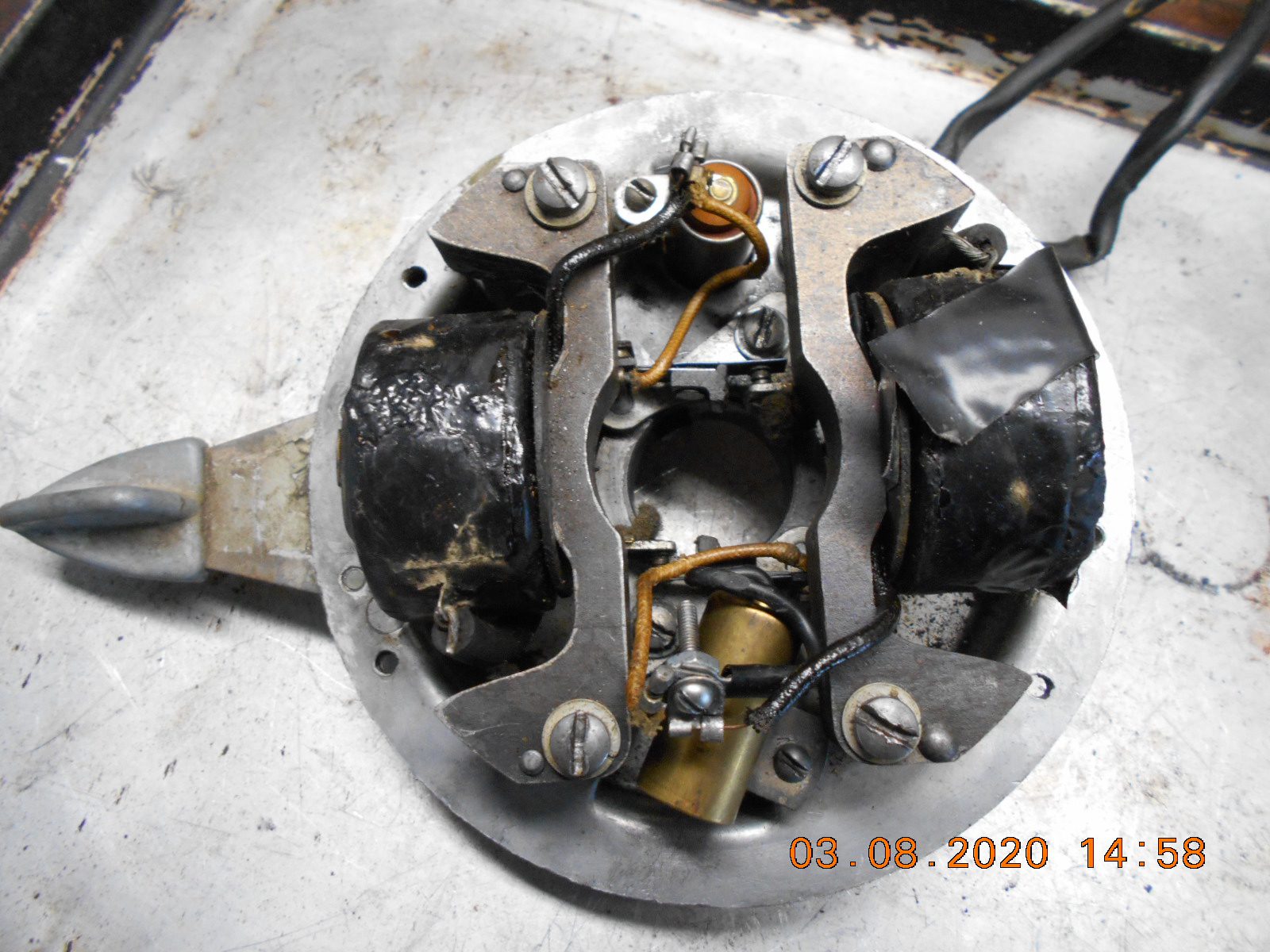

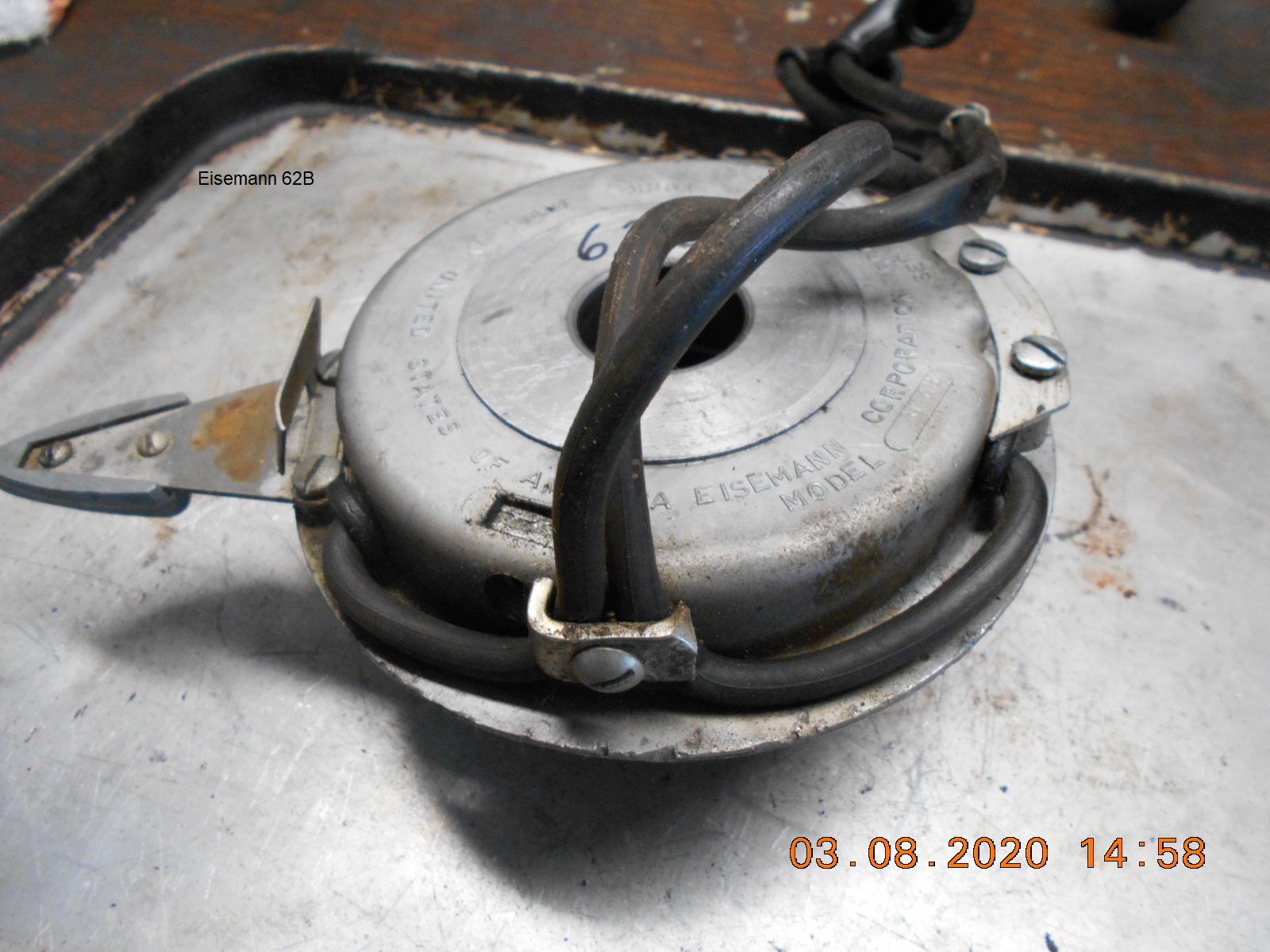

This is my 5 hp Flambeau. I don’t see anything obvious on the bottom side,
but presume it has a tension screw accessed from the hole shown in the
side of the mag plate. Not sure if that could be “holding up” your mag plate
or not.

Prepare to be boarded!
October 29, 2021 at 12:12 pm #248859
Mumbles
Participant
A tension screw. Exactly what crossed my mind at 4 AM this morning!
October 29, 2021 at 8:53 pm #248882
huntleybill
Participant
Now that I see that picture, I found the inconspicuous hole and sure enough, a tension screw!
Came right off after removing the screw.

Thank you for the info.
Bill
