Glass beading or sanding would be very difficult. The painted areas are VERY small! Glass beading will ruin your freshly chromed piece as well.

I think the last one I did, I chromed the item, cleaned in acetone, then used a tiny detail paint brush to first brush in the primer, then brush in the cream paint overtop. Use compatible paints, and follow wait times closely. Be patient.

Wish I knew how they did it originally in the factory?

If you are going to paint over plating then you will most likely need to etch it for proper adhesion. Was in a discussion around how they plated and then painted over portions of the flywheels on some of the older Rowboat Motors. I Googled it and there was a ton of stuff. Try Googling "Painting over chrome". I have also seen a special mastic putty used over parts where plating was not desirable on the entire piece……just portions. i do not know the name of the mastic though. I assume you are referring to the dots and insignia as the parts you want to paint. We also have a few members here in the club who specialize in paint supply. They can help you with colors and advise. They can be found in the member directory or in ads on the Outboarder Mag.

Cheers,

Skeg

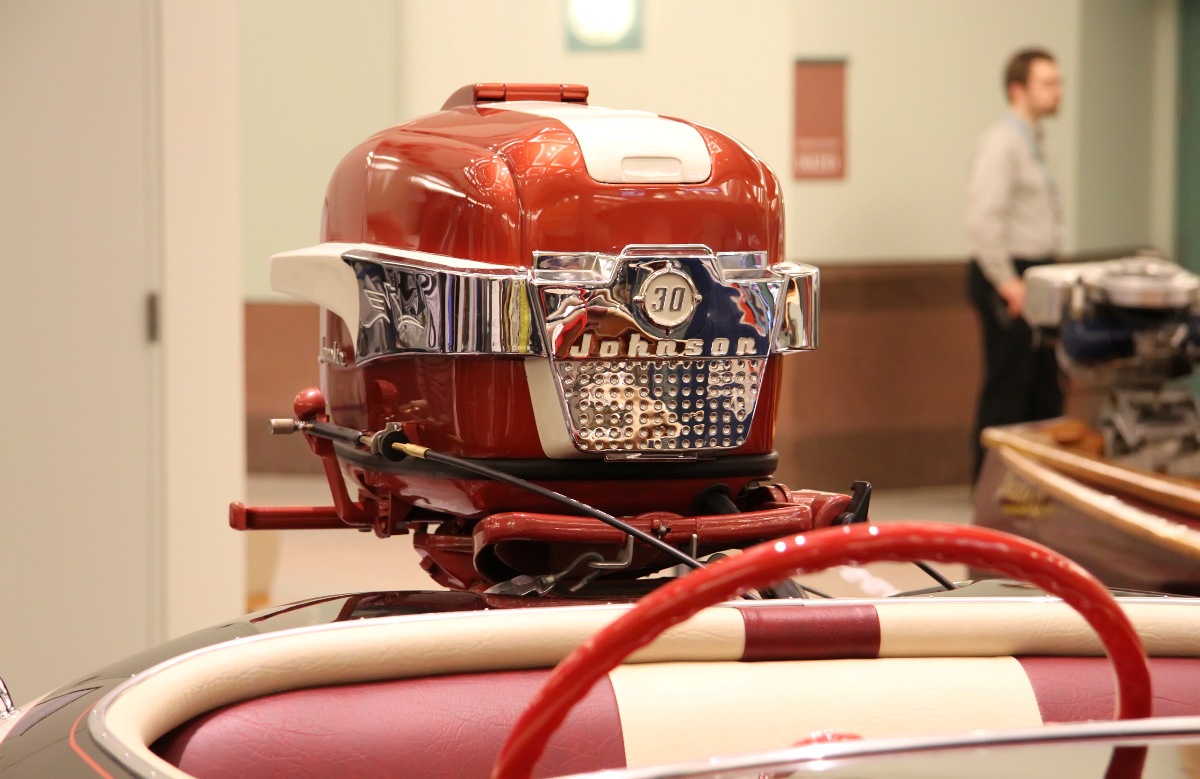

The steering is connected, it is a pull-pull cable setup. Look a little lower.
