1956 Sportwin Idle Screw

Home › Forum › Ask A Member › 1956 Sportwin Idle Screw

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • April 24, 2020 at 11:48 pm #200988
    slim60
    Participant

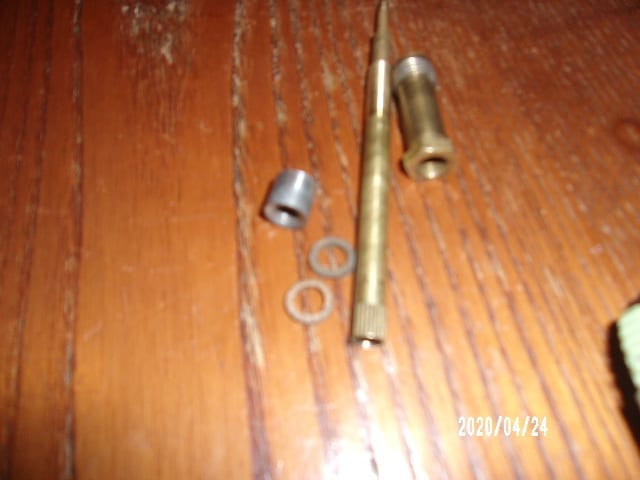

      This threaded sleeve on left came out with the idle adjustment screw when dialing in my 56 Evinrude 10. Can it be secured with Lock-Tite?

      103_0309

      • This topic was modified 5 years, 2 months ago by Mumbles.
      April 25, 2020 at 2:27 am #200992
      frankr
      Participant

        US MEMBER PAY BY CHECK

        It is supposed to be loose in there but I suppose it could be locktited in if you want to. Otherwise, the procedure is to pre-assemble the packing nut, packings and sleeve onto the needle, running the sleeve on only a few threads. Now push the whole assembly into the hole and tighten the packing nut only enough to keep the sleeve from spinning, Then screw the needle all the way in until lightly seated, then back it out 1-1/2 turns. Finally, tighten the packing nut some more to secure the needle from spinning from vibration.

        April 26, 2020 at 11:13 pm #201167
        slim60
        Participant

          Thanks frankr; It’s the first time one of these fell out during a tune up. She idles down to a putt now.
