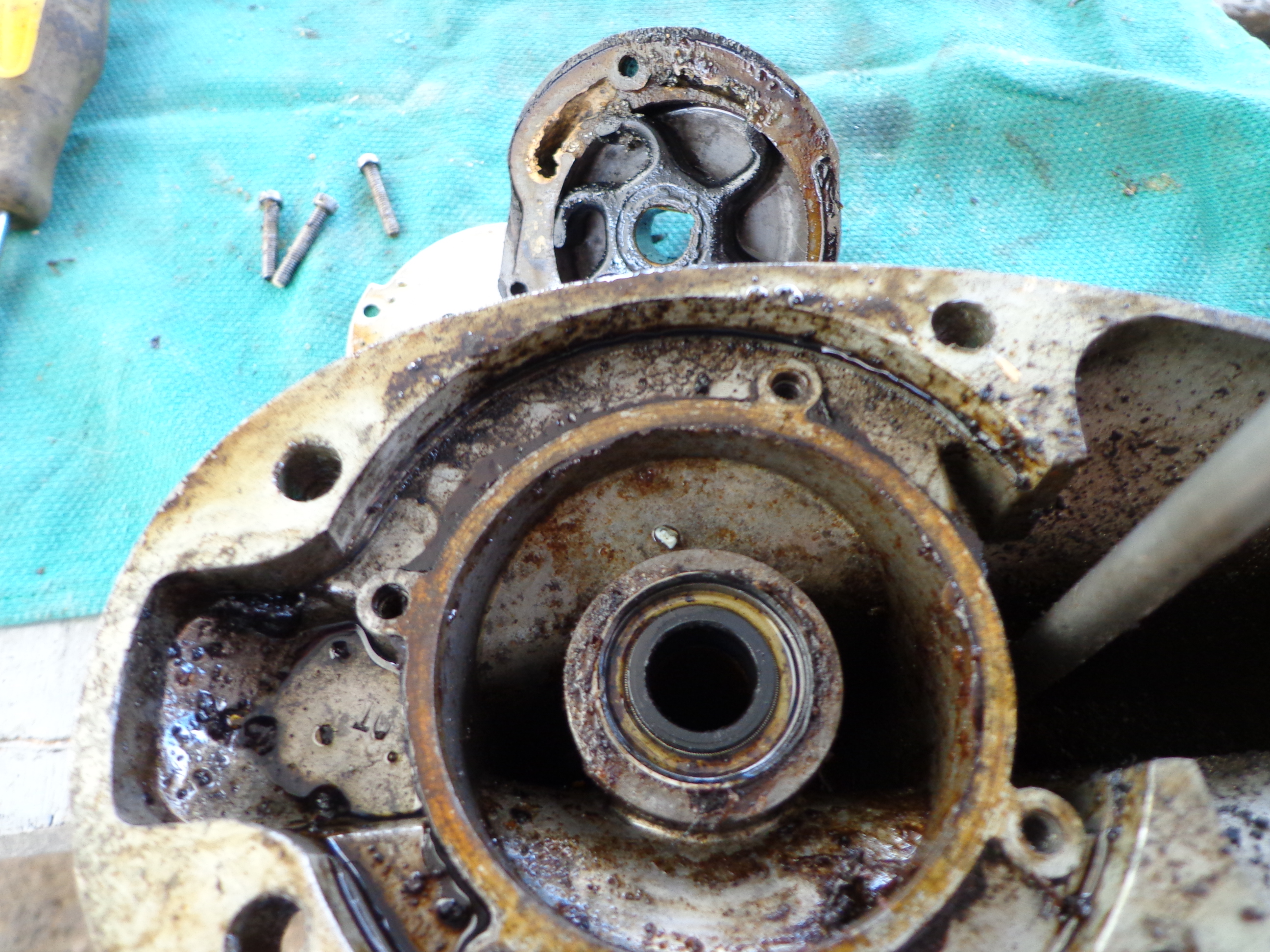

      While converting this motor to short shaft, I thought it would be a good time to service the water pump.

      Can you see what I see?

      Attachments:

      June 30, 2018 at 3:18 pm #78734
      hdted
      Participant

        Seal is upside down.

        June 30, 2018 at 3:31 pm #78737
        Mumbles
        Participant

          That’s what I thought to at first but it has two seals installed. Back to back. It’s something else.

          June 30, 2018 at 3:33 pm #78739
          Anonymous

            Impeller arms bent wrong direction.

            June 30, 2018 at 3:43 pm #78741
            Mumbles
            Participant

              Yup. All six of them. It must have been installed this way going by the wear on the tips of the vanes but at least it came with a new pump housing and grommet installed correctly.

              June 30, 2018 at 4:17 pm #78745
              Bob Wight
              Participant

                US Member

                That old pump housing had a good amount of scale buildup. Wonder what the powerhead water jackets look like?
