1958 Evinrude (10016) cover assembly.

Home › Forum › Ask A Member › 1958 Evinrude (10016) cover assembly.

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • July 28, 2019 at 11:47 am #180402
    benji41
    Participant

      US Member

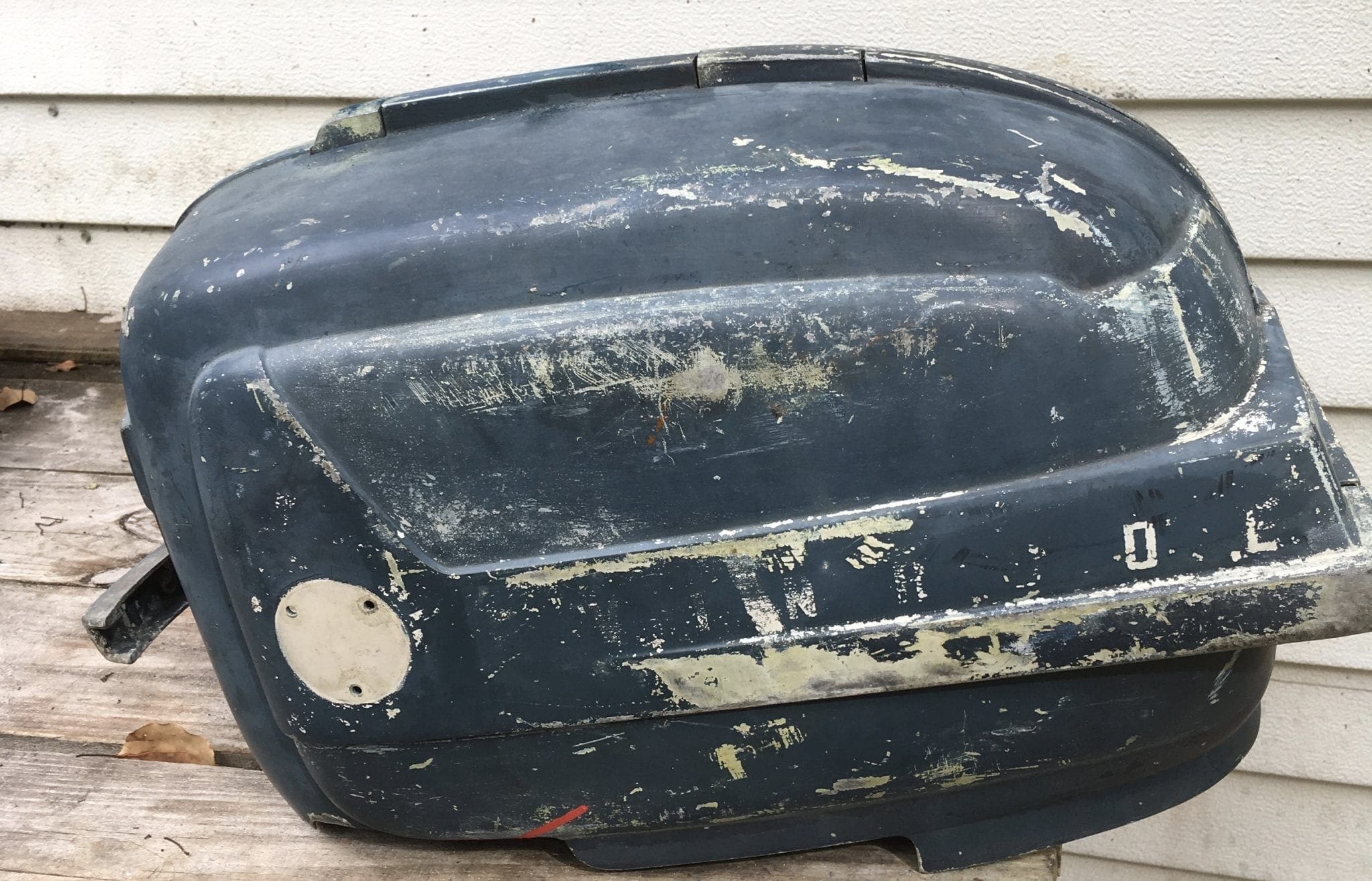

      Looking to find the length of the pivot pin for 10 hp evinrude model 10016.

      fullsizeoutput_5a6

      Jim Benjamin

      • This topic was modified 5 years, 11 months ago by Mumbles.
      July 29, 2019 at 10:31 am #180442
      Mumbles
      Participant

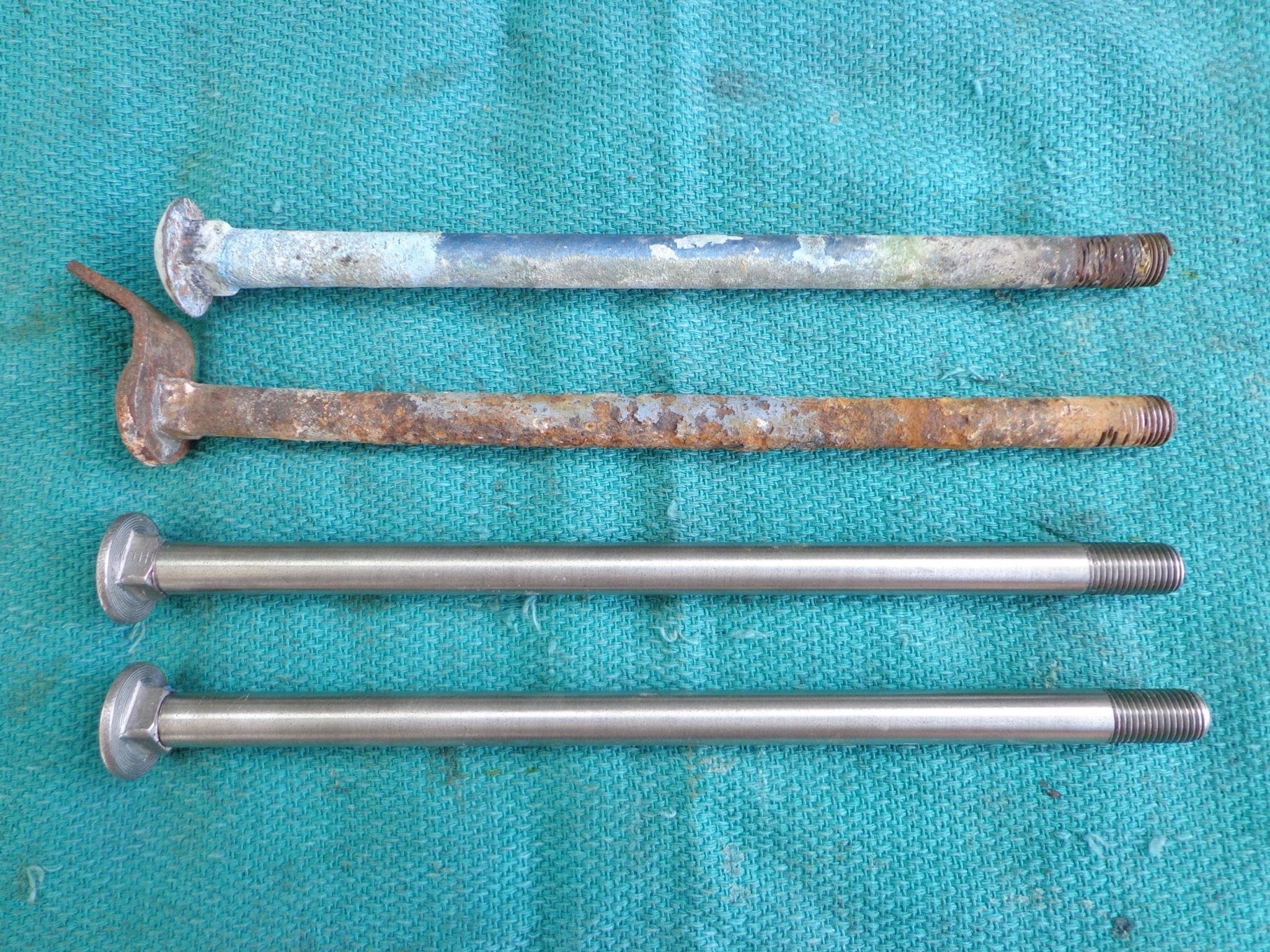

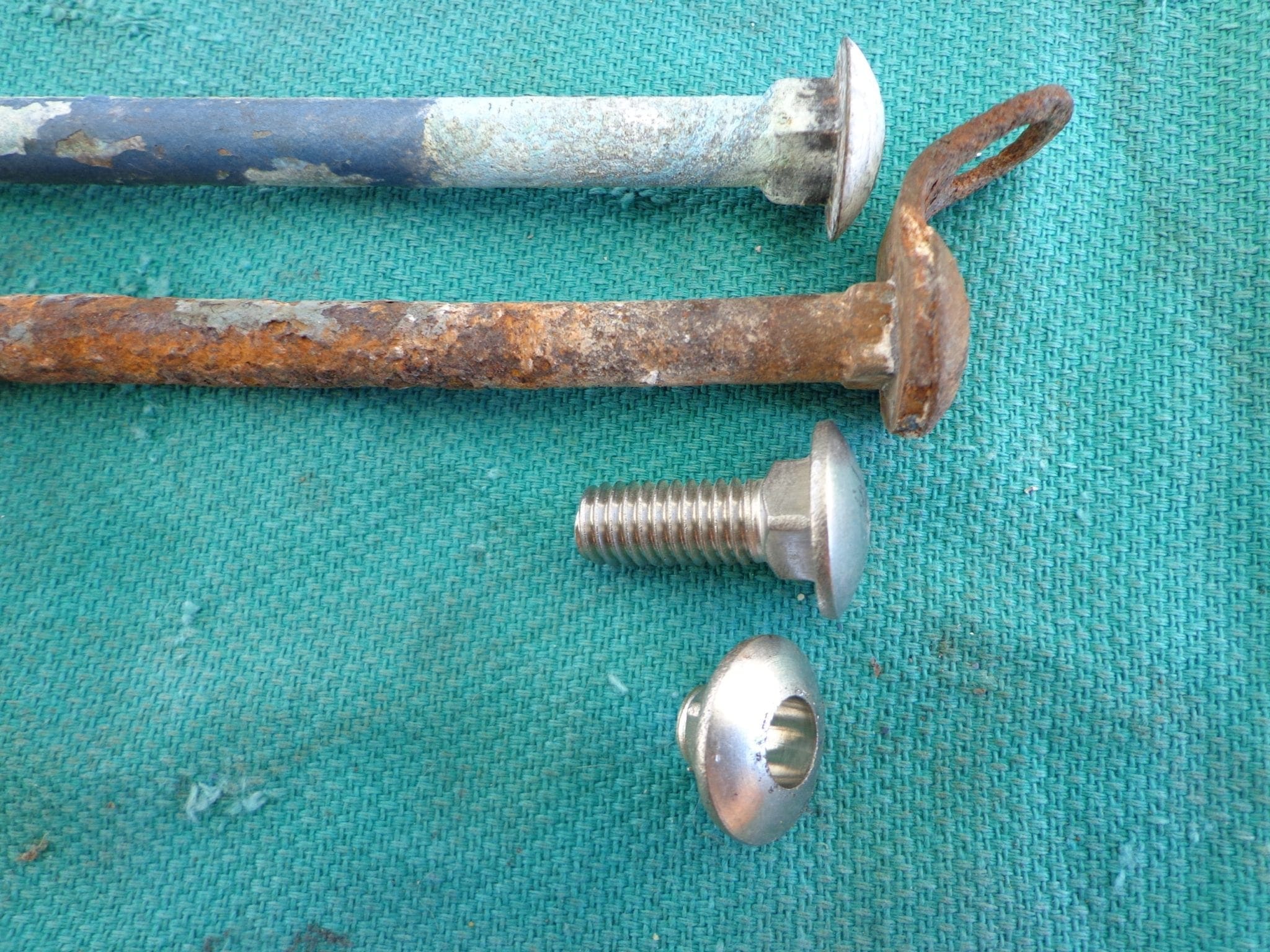

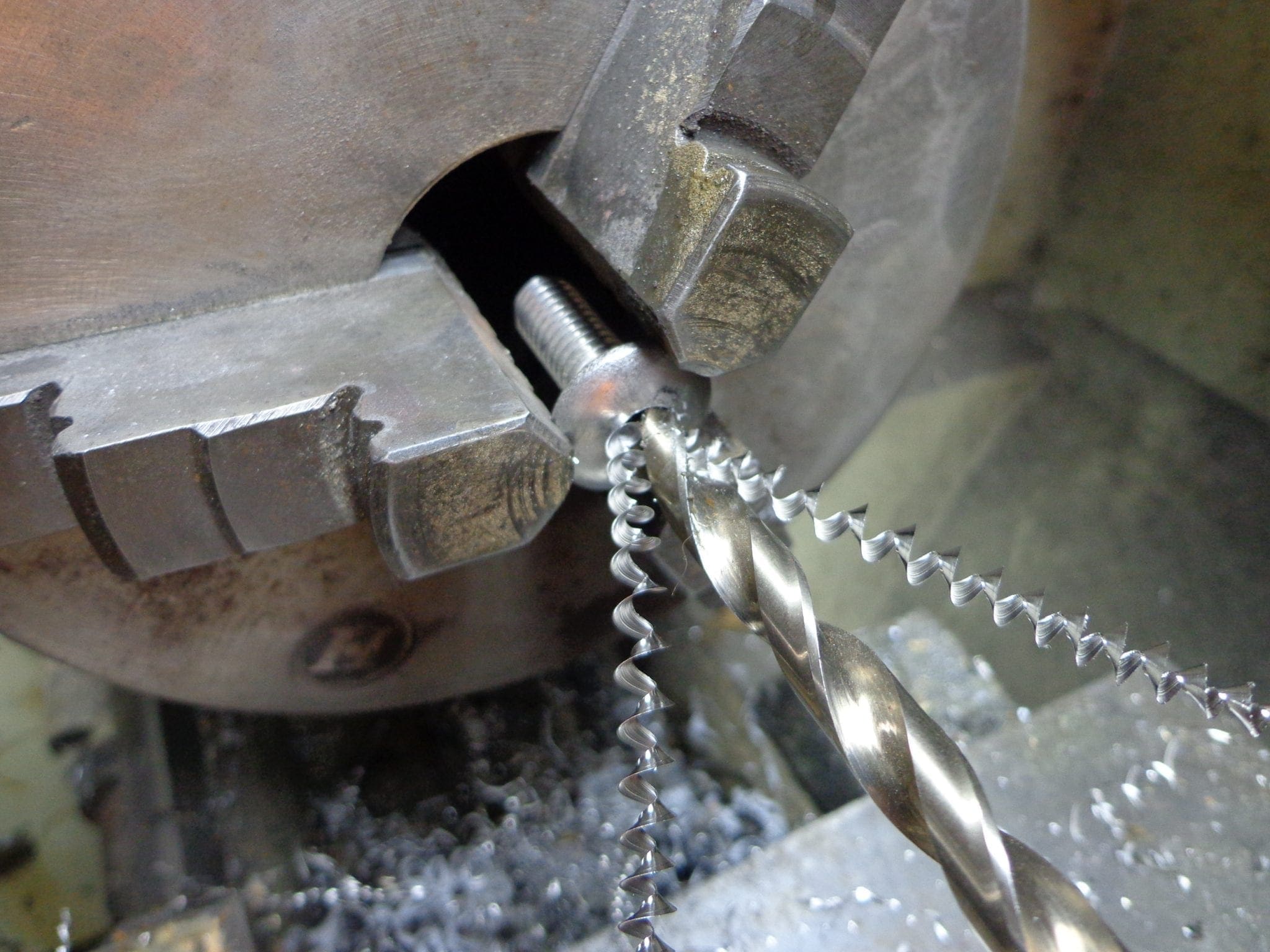

        I just finished making some tilt bolts out of stainless for the 18 horse motors and the overall length of them is 7 3/8″ The 5.5 and 10 horse motors share the same bolt which measure 6 3/8″ overall.

        You can always make them a bit longer and shorten them to suite as it’s easier than trying to lengthen them if you make them too short.

        DSC00087

        DSC00089

        DSC00091

        • This reply was modified 5 years, 11 months ago by Mumbles.
        • This reply was modified 5 years, 11 months ago by Mumbles.
        July 29, 2019 at 10:41 am #180448
        Mumbles
        Participant
          benji41 wrote:

          Looking to find the length of the pivot pin

          Or did you mean the pin/shaft which joins the two halves of the hood together?

          July 30, 2019 at 1:20 pm #180494
          benji41
          Participant

            US Member

            Yes—–The pin that holds the two halves of the hood together.

            Jim Benjamin
