1958 Evinrude 5.5hp Fisherman Cowl

Home › Forum › Ask A Member › 1958 Evinrude 5.5hp Fisherman Cowl

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • March 8, 2022 at 9:38 pm #255798
    Mike Nazarenko
    Participant

      Recently acquired a 1958 Evinrude 5.5 hp Fisherman.  I have finished the rebuild and awaiting warmer weather to barrel test.  Today I struggled with reattaching the cowl, a lot of twisting and maneuvering and in the process scratched the side of the cowl with the shift lever.  The spacing between the cowl and the shift level is very tight.  Any suggestions on how to get it back on.  I was going to repaint the cowl but with this issue the repainted cow will surely  get scratched.



      I do own a 1958 10 hp Sportwin that allows the shift lever to be inverted clearing the way to remove and install the cowl…



      Am I missing something on the Evinrude 5.5.



      Thank you.

      March 8, 2022 at 9:48 pm #255799
      Buccaneer
      Participant

        US Member

        Some of the shift levers “pull out” and you can rotate them upside down so you
        have clearance.

        Prepare to be boarded!

        March 8, 2022 at 10:58 pm #255801
        rpsiii
        Participant

          US MEMBER PAY BY CHECK

          Slip one of your old socks on over the shift lever to prevent scrathing the cowl. It helps the cowl slide right on past the shift lever too.

          Hope it helps!

          Respectfully,

          Bob

          March 9, 2022 at 8:14 am #255834
          frankr
          Participant

            US MEMBER PAY BY CHECK

            The special shift lever was used on Gale motors.  Can be retrofitted on your Evinrude if you so desire.

            Otherwise, remove the lower spark plug and put the shifter in reverse.  Put the front end of the cowl on first, then with everything positioned just so, the rear.  Yeah, I know, it’s a pain.  Johnson had it over us in that instance.

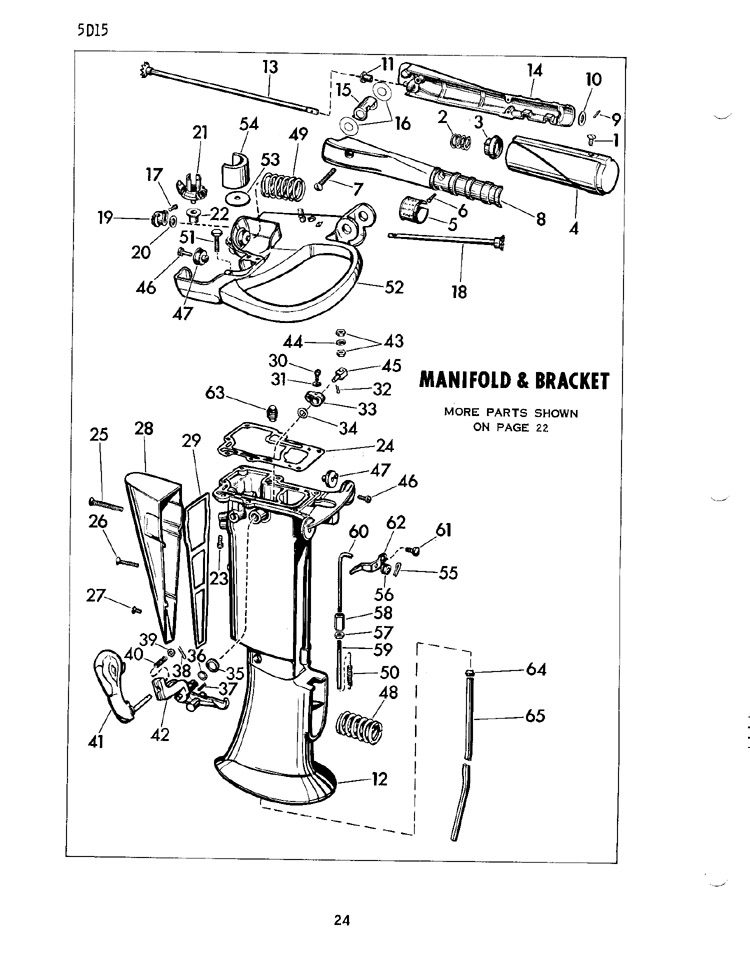

            Pg-24-Manifold-and-Bracket

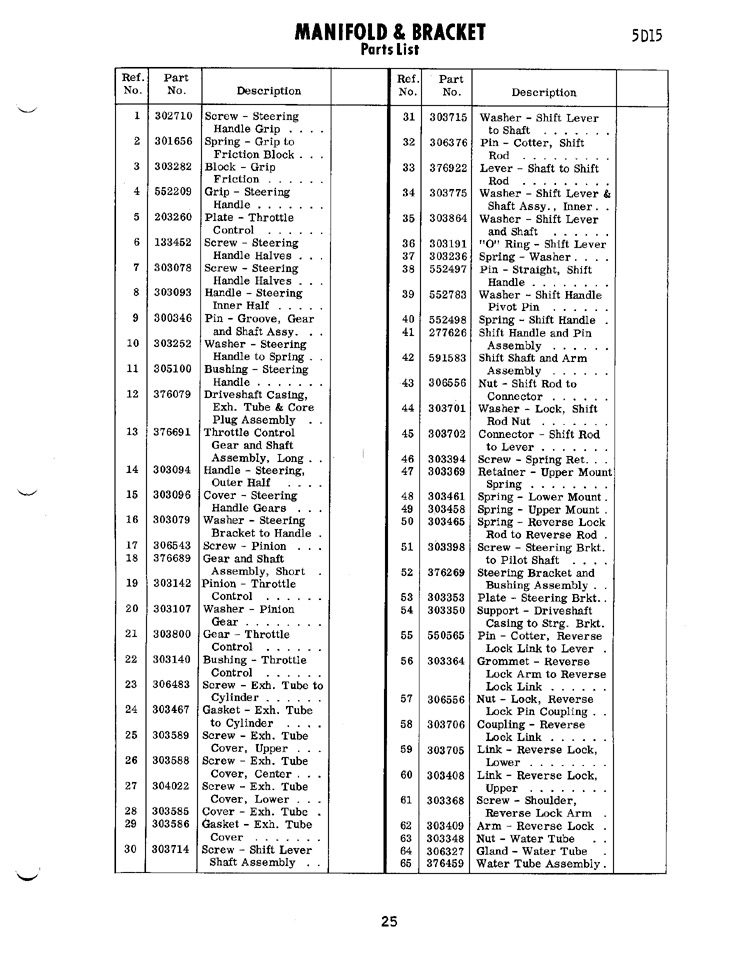

            Pg-25-Manifold-and-Bracket-Parts-List

            March 9, 2022 at 9:35 am #255838
            fleetwin
            Participant

              US Member
              rpsiii wrote:

              Slip one of your old socks on over the shift lever to prevent scrathing the cowl. It helps the cowl slide right on past the shift lever too.

              Hope it helps!

              Respectfully,

              Bob

              Yes, this seems to be the best method.  Sometimes, shifting into forward or reverse gear helps also.  You are not alone, this is a wrestling match at best.  But, the sock will protect your engine cover at least.

              March 9, 2022 at 10:06 am #255842
              seakaye12
              Participant

                US Member

                Like Frankr says…..removing the spark plug(s) at least the bottom one certainly seems to help.



                March 9, 2022 at 10:53 am #255847
                Mike Nazarenko
                Participant

                  Removing the spark plug and adding the sock, thank you.
