1958 Johnson 10 hp

Home › Forum › Ask A Member › 1958 Johnson 10 hp

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • May 12, 2020 at 10:35 am #202866
    Bc1972
    Participant

      Y’all have been such great help.
      Just a refresh – came across this QD 19, 1958 Johnson 10 hp
      I am a novice, retired and see this as a project to keep me out of wife’s hair.

      I checked compression best I could and seems like good enough to proceed.

      I dropped lower end to replace water pump. In doing so, turning the long Drive gear shaft – everything seems really smooth in rotation. Don’t think anything needs done there. Just replace pump pieces.

      I bought a tune up kit. Question 1. Can’t figure out where the felt piece goes. And what type of oil do you put on it?

      Question 2. Does this motor have a thermostat? If so, where is it located?

      Thanks

      May 12, 2020 at 10:54 am #202868
      dave-bernard
      Participant

        US Member

        no thermostat

        May 12, 2020 at 11:02 am #202869
        seakaye12
        Participant

          US Member

          You would have to loosen the front coil to replace the felt. It’s purpose is to supply on-going lubrication of the points rubbing block as the point cam spins. They come oiled most of the time; perhaps the later versions of the OMC kits do not have oiled felts. Just drop a drop or two of light oil on it; just a drop; it doesn’t need much.

          With the lower unit; at the least you should replace the gear oil. It is also good to pressure test the lower unit for leaks but most people are not set up to do that. Just refill the gearcase with marine lower unit oil and check it after the first outing. It should not look milky; if it does then you have water intrusion and one or all of the seals will need to be replaced. You can make a new post about all that when the time comes!

          May 12, 2020 at 3:46 pm #202909
          Buccaneer
          Participant

            US Member

            Here’s all the parts diagrams for this motor…….

            http://www.marineengine.com/parts/johnson-evinrude-parts.php?year=1958&hp=10&model=QD-19

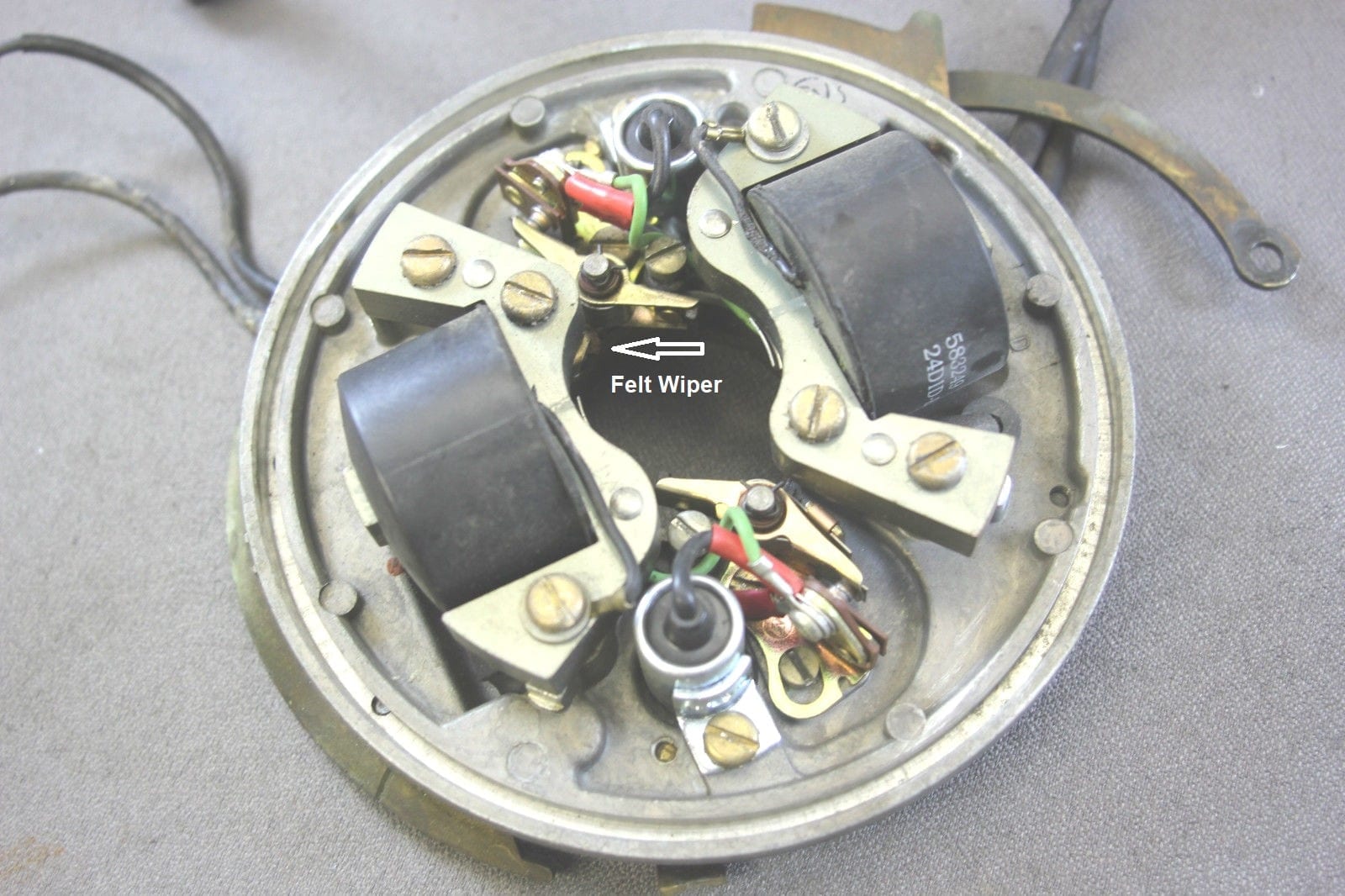

            1959-QD-20-Magneto-plate2

            Prepare to be boarded!

            May 12, 2020 at 5:38 pm #202918
            crosbyman
            Participant

              Canada Member

              felt clip known to go for 35$ U.S. don’t loose it

              Joining AOMCI has priviledges 🙂

              • This reply was modified 5 years, 1 month ago by crosbyman.
