1958 Johnson 35HP wiring help needed.

Home › Forum › Ask A Member › 1958 Johnson 35HP wiring help needed.

Viewing 5 posts - 31 through 35 (of 35 total)
1 2 3 4
  • Author
    Posts
  • January 28, 2017 at 3:09 am #51904
    vintin
    Participant
      January 28, 2017 at 3:20 am #51905
      garry-in-michigan
      Participant

        Lifetime Member

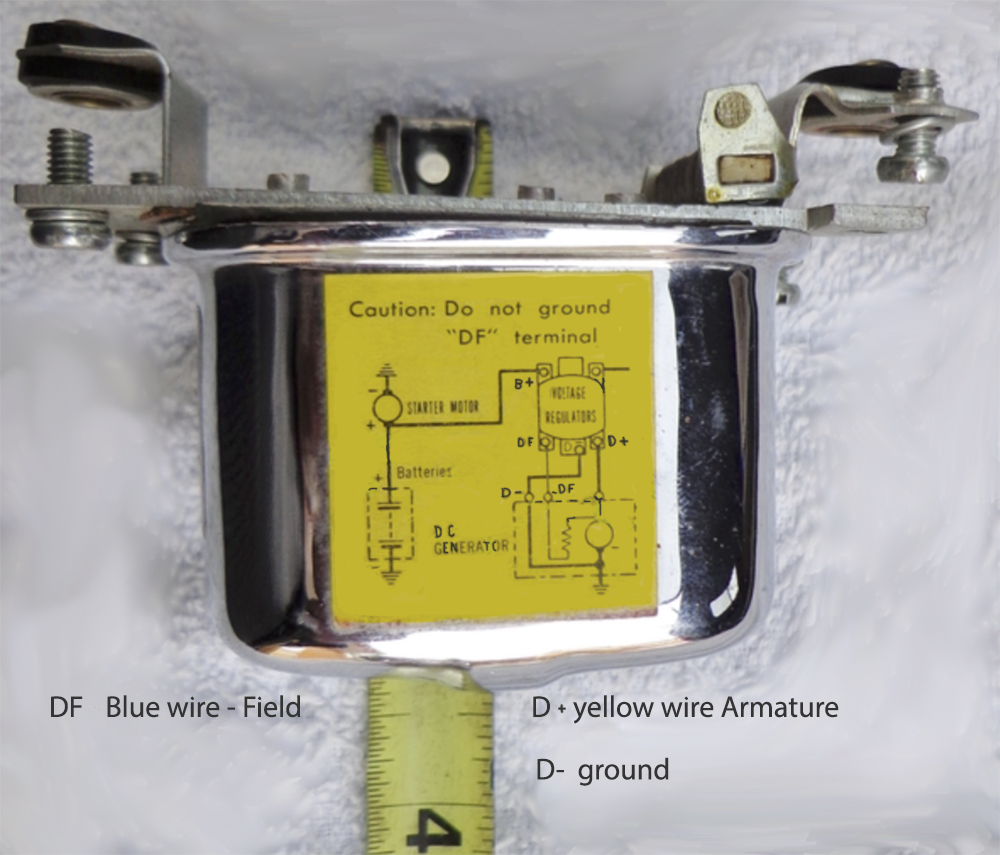

        Would this Help – ❓

        January 28, 2017 at 3:36 am #51907
        Mumbles
        Participant

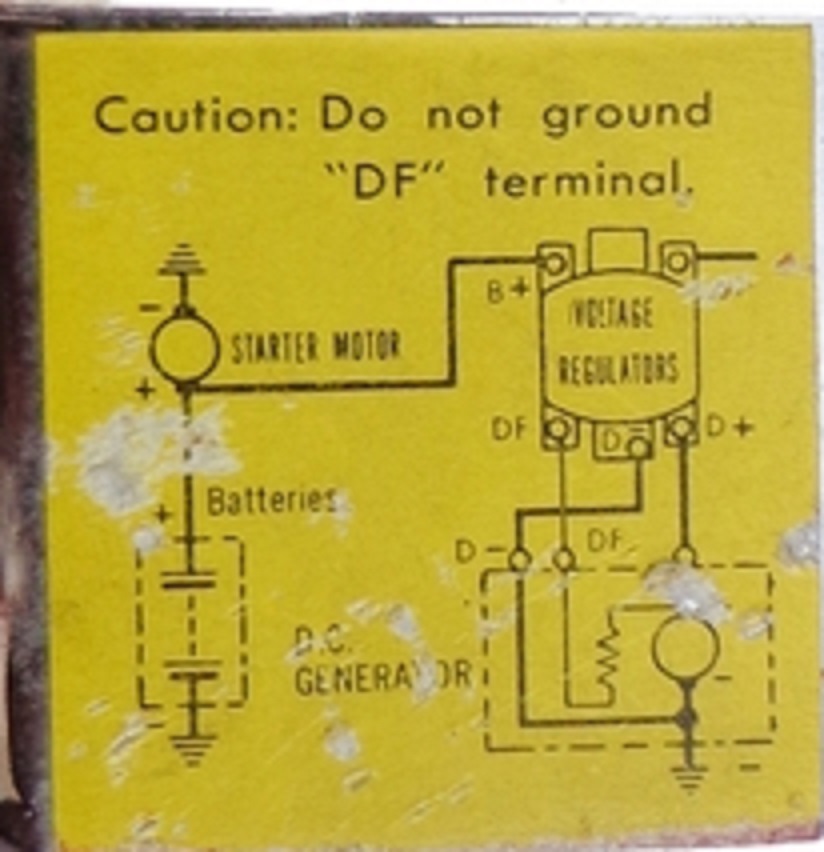

          I wouldn’t go by the diagram on that little yellow sticker. Something doesn’t look right on it. This one is more correct and doesn’t require any special skills to understand. ☺

          Attachments:

          January 28, 2017 at 2:47 pm #51927
          frankr
          Participant

            That makes more sense. I can understand Honk and Kick. The yellow decal shows no disconnect between the battery and starter, meaning the starter would run all the time.

            January 28, 2017 at 6:49 pm #51945
            Mumbles
            Participant
              quote FrankR:

              That makes more sense. I can understand Honk and Kick. The yellow decal shows no disconnect between the battery and starter, meaning the starter would run all the time.

              Exactly. I’m thinking the engineering students across the pond who printed the label weren’t at the top of their class.
