Topic: 1959 Elgin (Westbend) 7.5 hp manual starter spool

This topic has 7 replies, 6 voices, and was last updated 2 years ago by GravelyShoals.

Viewing 8 posts - 1 through 8 (of 8 total)

Author

Posts
August 24, 2023 at 4:14 pm #279676
Buccaneer
Participant
US Member

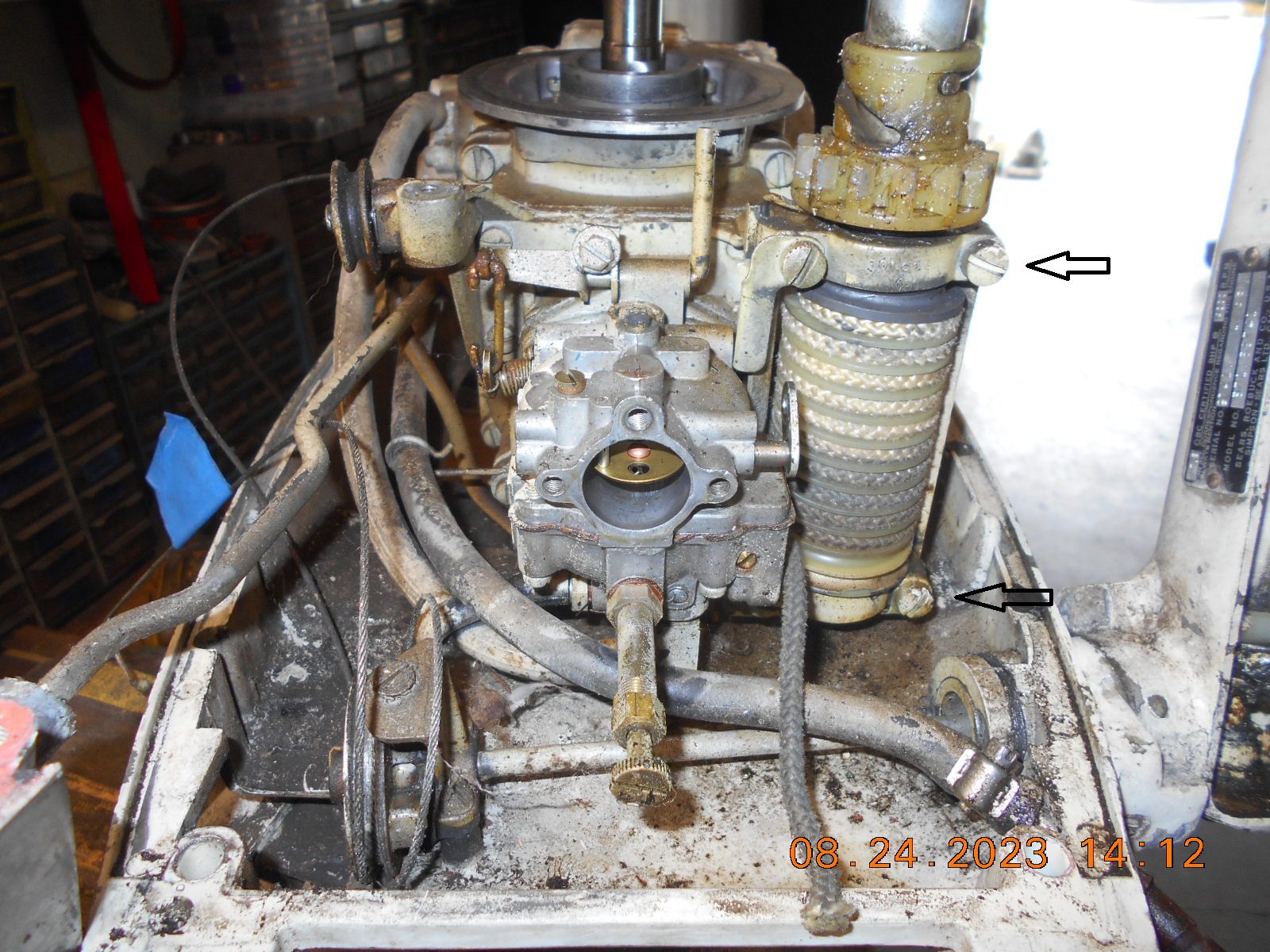

It looks like it’s necessary to remove the manual rewind starter spool assembly
to gain access to the one carb nut.

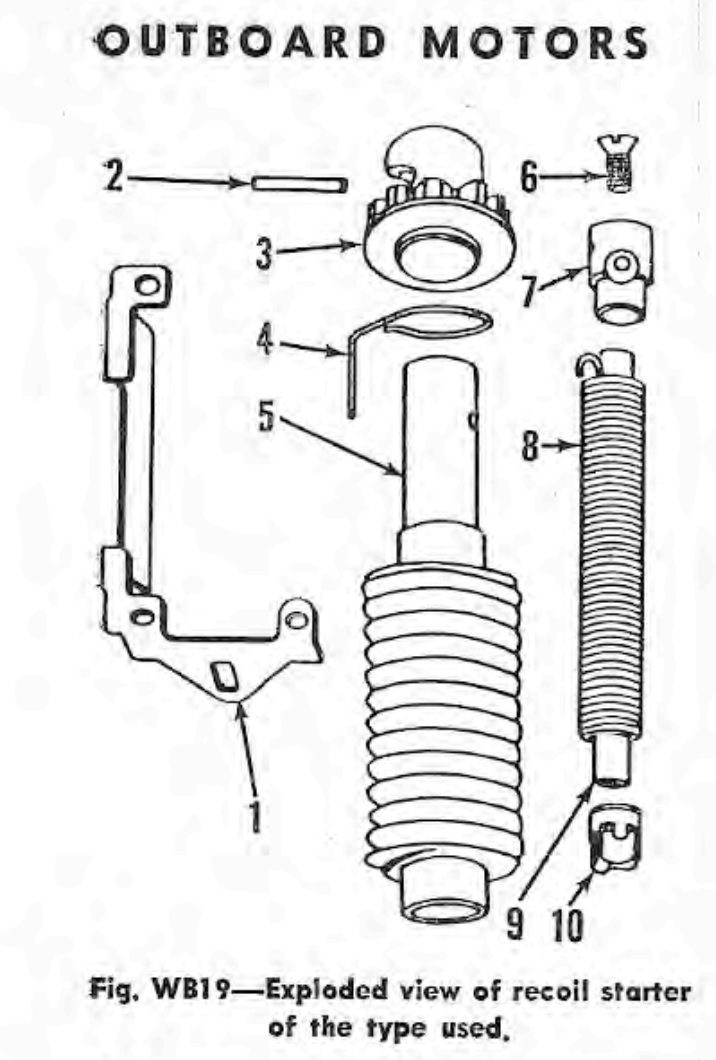

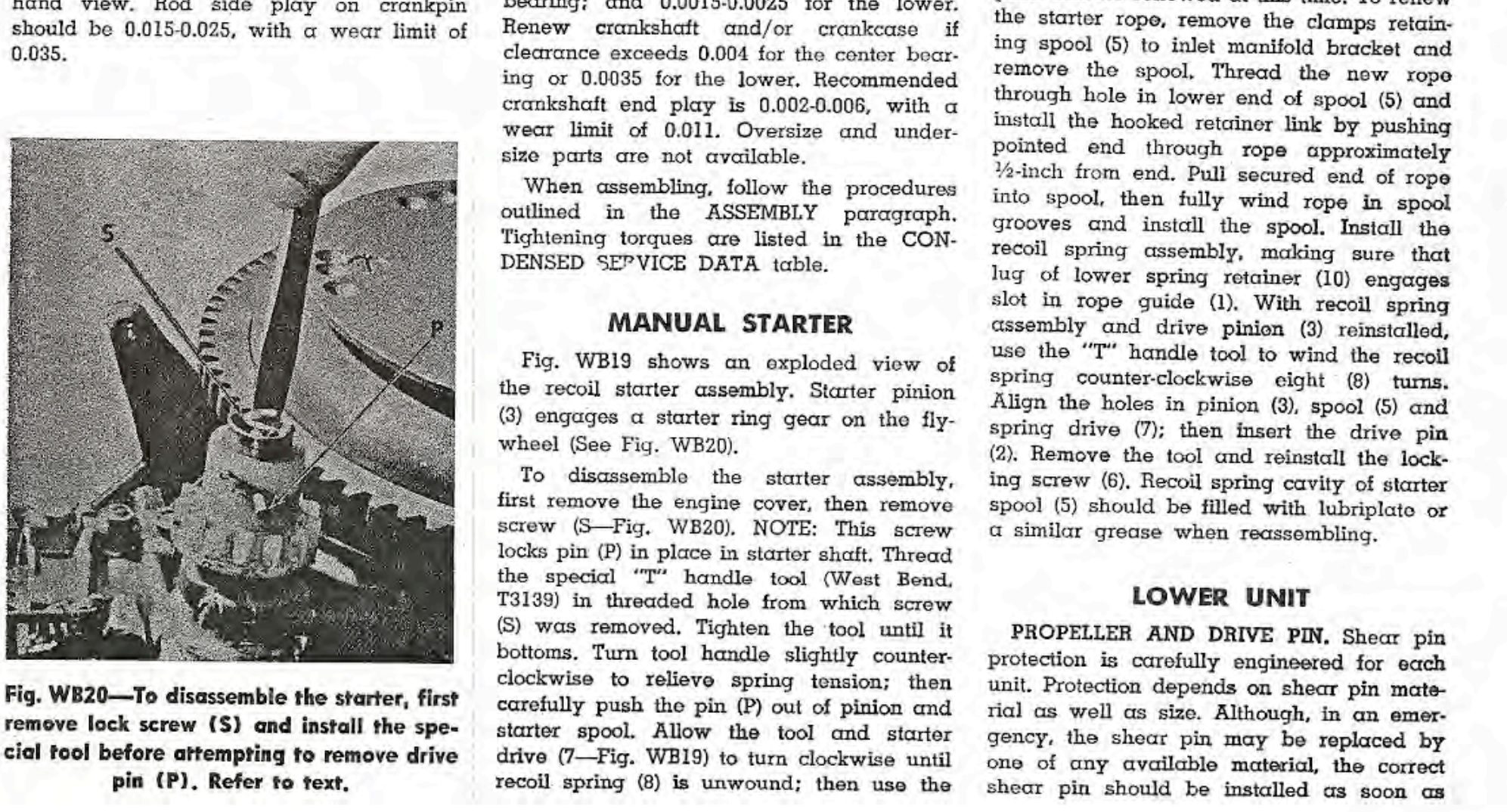

There’s a detailed procedure in the Westbend manual to dissemble the
whole works, but nothing about if one wants to simply remove the whole
assembly.
Can I just remove the two saddle clamps without the whole thing going “Poof”?
Thanks.

Prepare to be boarded!
November 8, 2023 at 1:48 pm #282344
Dave Morrison
Participant
Canada Member
Buccaneer

I have the same problem with a 1960 Elgin 7.5 ( same starter set up) and I’m afraid to touch it.

Maybe this reminder will spur someone on to comment on this. It looks temptingly simple, but still……
November 8, 2023 at 1:56 pm #282345
frankr
Participant
US MEMBER PAY BY CHECK
Just follow the instructions. It really isn’t as bad as it appears.
November 8, 2023 at 5:30 pm #282347
Buccaneer
Participant
US Member
I had mine apart at least three times.
I believe I wound the spring 8 times per instructions,
and that worked out good for rope retraction.
I did have some trouble getting the pin back in the
top, but I finally won.

Prepare to be boarded!
November 9, 2023 at 7:54 am #282355
fastjohn
Participant
US MEMBER PAY BY CHECK
The piece that the spool and carb are bolted to is broke on mine. Any body got one to sell?
November 9, 2023 at 3:20 pm #282367
geary
Participant
US Member
Bucc, I believe you can just take the four screws out of the two saddle clamps and it should release the whole recoil starter, but you’ll have to clamp the spool that the rope wraps around so it doesn’t try to recoil the rest of the rope and unwind the spring, I use one of those hand clamps directly on the rope spool ! Those little 7 1/2’s are great running engines and pretty powerful for their size ! Good luck with your project !

Geary
November 9, 2023 at 5:40 pm #282371
Buccaneer
Participant
US Member
My 1959 7-1/2 and 12 hp Elgins both turned out to be pretty
good runners. The reverse lock on the 12 hp is buggered up,
but I may tear into it this winter.

7.5 hp
https://youtu.be/Y5W3H9_fAOo

12 hp
I learned not to put the rewind on until I was sure I had the bugs
out of the carburetor!
https://youtu.be/Hp3owC6Gka4?si=C3u7yCssMFX-tv4K

Prepare to be boarded!
November 15, 2023 at 8:18 am #282515
GravelyShoals
Participant
I may have one. Send pictures of what you need to; parkerbuilders66@yahoo.com
