  • January 10, 2023 at 10:03 am #270981
    John Gengler
    Participant

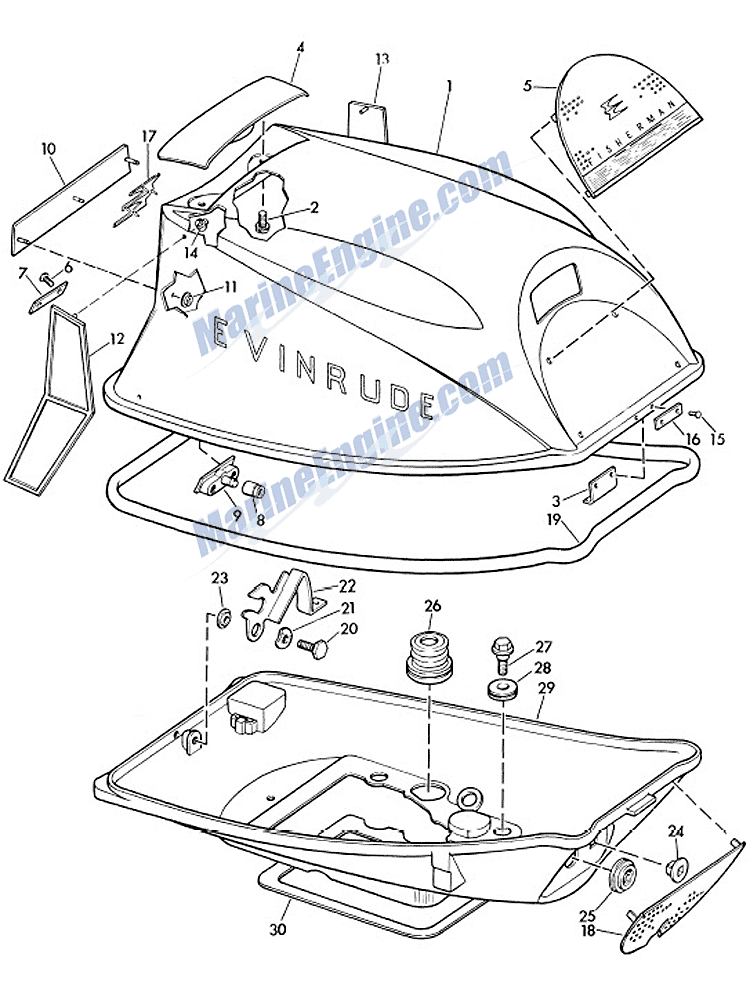

      The thick gasket under the lower cover cowling (#30 in the diagram) has disintegrated. It seems to be made from a soft foam rubber material about 3/16″ in thickness. The part is no longer available at MarineEngine.com, and my EBay searches have turned up nothing. I guess I could make a replacement but what material should I use?

      P.S. This is NOT the exhaust housing gasket. I have one of those.

      Engine section

      January 10, 2023 at 10:54 am #270983
      aquasonic
      Participant

        It will take some searching, but Grainger or McMaster-Carr should have something that will work.





        Improvise-Adapt-Overcome

        January 10, 2023 at 10:57 am #270984
        crosbyman
        Participant

          Canada Member

          #30   a base gasket  should be easy to  make yourself   no ??

          Joining AOMCI has priviledges 🙂

          • This reply was modified 3 years ago by crosbyman.
          January 10, 2023 at 11:42 am #270986
          frankr
          Participant

            It really won’t make much of a difference if you leave it out.

            January 10, 2023 at 12:02 pm #270987
            Mumbles
            Participant

              I believe  the only purpose of this foam is to help keep water spray out of the powerhead area and the motor will run just fine without it.  In all the years I’ve been working on these motors, I’ve yet to replace one and they don’t seem to mind.



              January 12, 2023 at 5:48 am #271073
              John Gengler
              Participant

                OK. Thank you.

                January 12, 2023 at 6:13 am #271074
                Fastwin18
                Participant

                  If you do decide to make a replacement then I think neoprene rubber would probably be a good replacement material

                  January 12, 2023 at 10:11 am #271077
                  Tubs
                  Participant

                    .

                    A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

                    January 16, 2023 at 2:50 pm #271248
                    Ironhorse2022
                    Participant

                      A “soft joint” is the enemy of a properly torqued joint.  A gasket material that will compress and take a set over time (like rubber) can lead to a loose joint as the bolts lose clamp load.  My thoughts would be to use a good quality gasket paper based material that you can buy in sheets and make your own.   Some of it is pretty thick yet still difficult to compress.  Im still a rookie on these old outboards so “grain of salt and all that”.  However, I have a lot of experience with torqued joints and gaskets in general.   Good luck.
