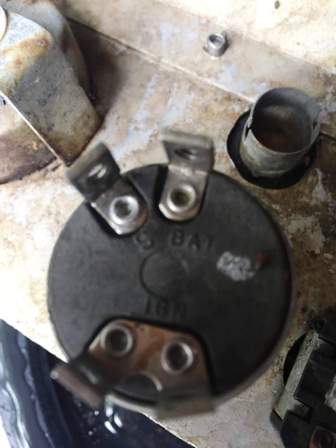

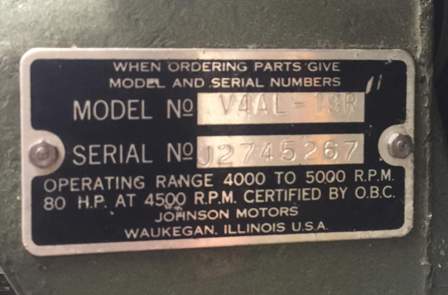

A buddy of mine has a 1967 80 hp Johnson- Model V4AL-19R
The question is –
What color wire goes to what terminal on the ignition switch?
Does it have an ammeter? Normally, green goes to Bat side of ammeter, brown goes to gen side of ammeter, with a brown jumper W/fuse between Gen side of ammeter and Bat terminal on ignition switch. White goes to Start terminal on ignition switch. Should b a stack of red wires on IGN terminal of ignition switch. If no ammeter, I guess the Green and Brown both go in BAT terminal of ignition switch.
EDIT: Um, yeah I see the ammeter in picture. The “stack” of red wires come from stuff like the hot light, etc, whatever.
