      I’m hoping someone here can explain or offer an assembly drawings on how to correctly hook up the shifter linkage, if you will, on a 1976 sea king 7.5 hp outboard. You have the drive shaft, a retaining ring, washer…i actually have 2, a spring, and the coupler that meshes with the power head to propel you. Somehow that coupler sits or rides in a U-shaped style bracket that engages and disengages that coupler from neutral to forward and vice a versa. I can’t figure out how to put it together so it works right. I can use all the help I can get, thanks, cweklund

      May 14, 2017 at 5:53 am #57690
      retiredoz
      Participant

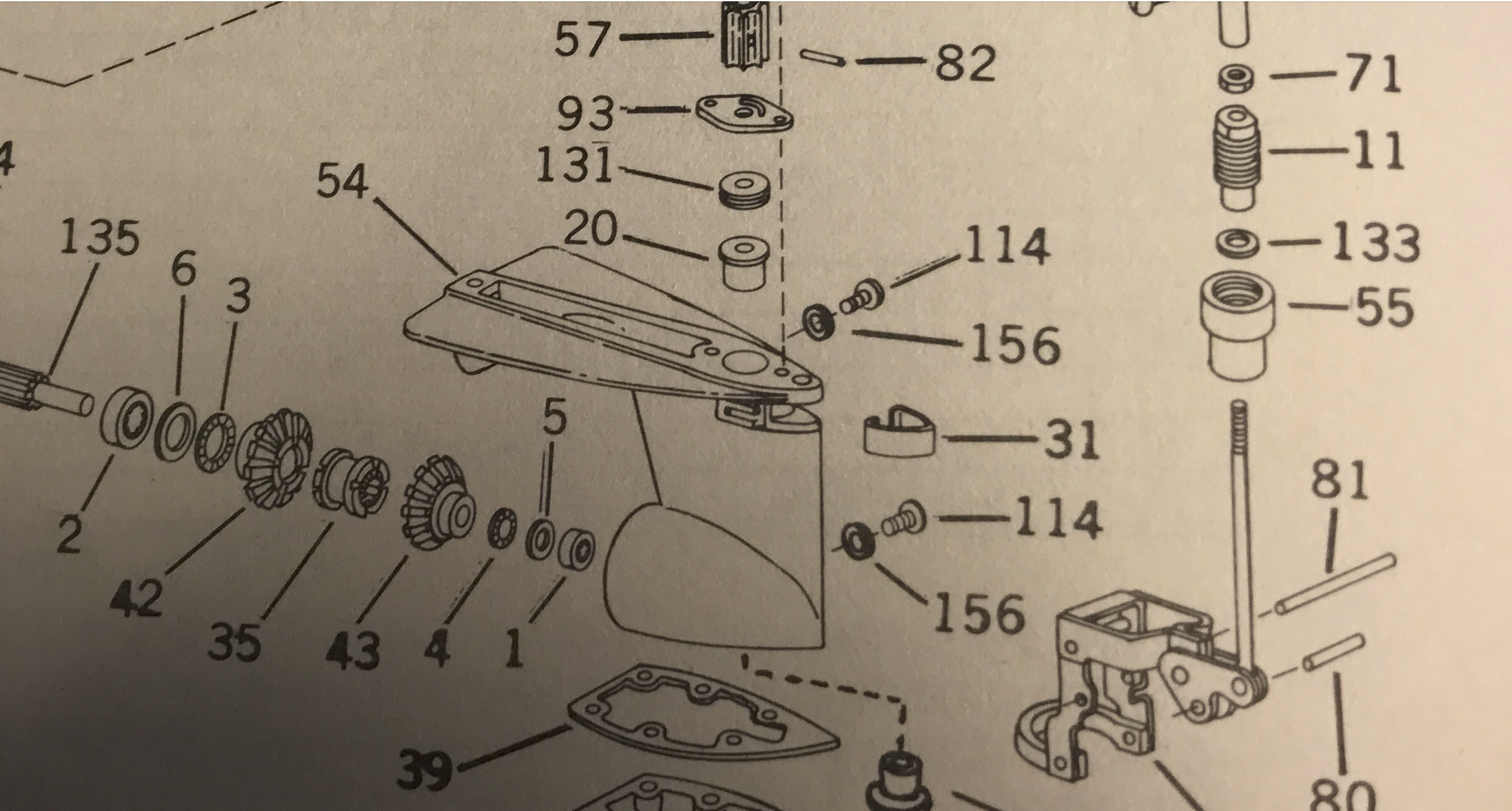

        Hope this sketch is useful.

        May 14, 2017 at 5:00 pm #57707
        garry-in-michigan
        Participant

          Lifetime Member

          That seems to come in two sizes – too big and too small – but still useful . . . 😕

          May 15, 2017 at 5:17 am #57734
          cweklund
          Participant

            Thanks retiredoz and Garry in Tampa, I really appreciate your guy’s response. I’m trying to figure out how to upload some pics now. I actually need the top of the lower end drawing and the lower end of the power head. If your drawings are of that assembly it doesn’t look like what mine has. Let me try to upload some pics. Thanks again, Cody

            May 15, 2017 at 5:59 am #57735
            retiredoz
            Participant

              Model # ? There should be a Ksomething number on the steering bracket somewhere. What I posted is for a full-shift 7.5-hp, which is way different.
              I should have a drawing of the forward/neutral setup, I think there was only one version.
              How sure are you it’s a ’76 ? My American motor bible doesn’t list any Sea KIngs between ’68 and ’78. Doesn’t exclude the possibility of some Canadian interloper..

              May 15, 2017 at 6:15 am #57737
              cweklund
              Participant

                Pretty sure 76′ i found it on a something library website. Model # K7514106 A, Type XTV50475A, Still trying to figure out uploading ​pics but it sounds like the latter part of your response; forward/neutral setup… that’s what it is. Thank you, cweklund

                May 15, 2017 at 6:16 am #57738
                cweklund
                Participant

                  Oh yeah, It’s a Montgomery Ward made by Clinton…sorry for any confusion.

                  May 15, 2017 at 6:18 am #57739
                  cweklund
                  Participant

                    Some pics hopefully…

                    May 15, 2017 at 6:20 am #57740
                    cweklund
                    Participant

                      I keep getting a HTTP error when trying to upload pics…dang it, hope to figure it out soon, thanks, cweklund

                      May 15, 2017 at 5:43 pm #57767
                      retiredoz
                      Participant

                        The K751 was produced ’76-80. I have a sketch, pm me your email, and I can send it.
