1983 Johnson 4hp J4BRHCTA shift rod disconnect

This topic has 4 replies, 4 voices, and was last updated 7 years, 11 months ago by donsmarine.

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
April 26, 2018 at 9:03 pm #9751
jerryswiss
Participant
I need to inspect the impeller on this 83 Johnson 4hp and not sure how to disconnect the shift rod, but I knew someone out there would know.
April 26, 2018 at 10:51 pm #74831
garry-in-michigan
Participant

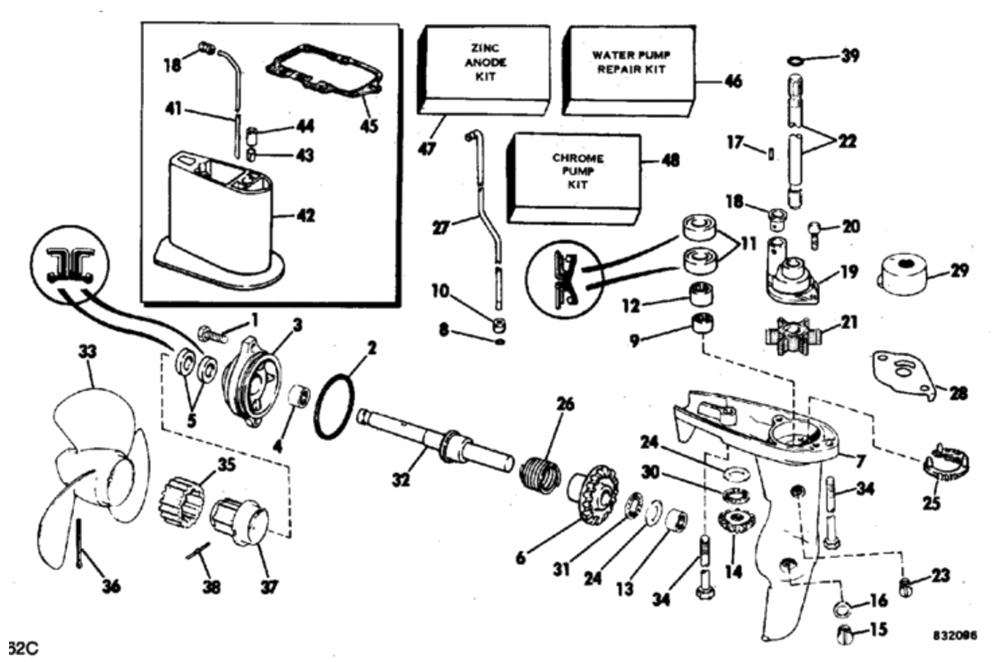

I believe the clutch rod (27) should just slide out of the gear case. . . 😎
April 26, 2018 at 11:41 pm #74836
chinewalker
Participant
US Member
Correct. It just slides out.
April 27, 2018 at 1:41 am #74841
jerryswiss
Participant
Yup, that’s got it, thanks to all.
April 27, 2018 at 6:46 pm #74880
donsmarine
Participant
I find it not the easiest to reinstall sometimes
