22 Evinrude

Home › Forum › Ask A Member › 22 Evinrude

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • August 22, 2017 at 3:12 am #7987
    slim60
    Participant

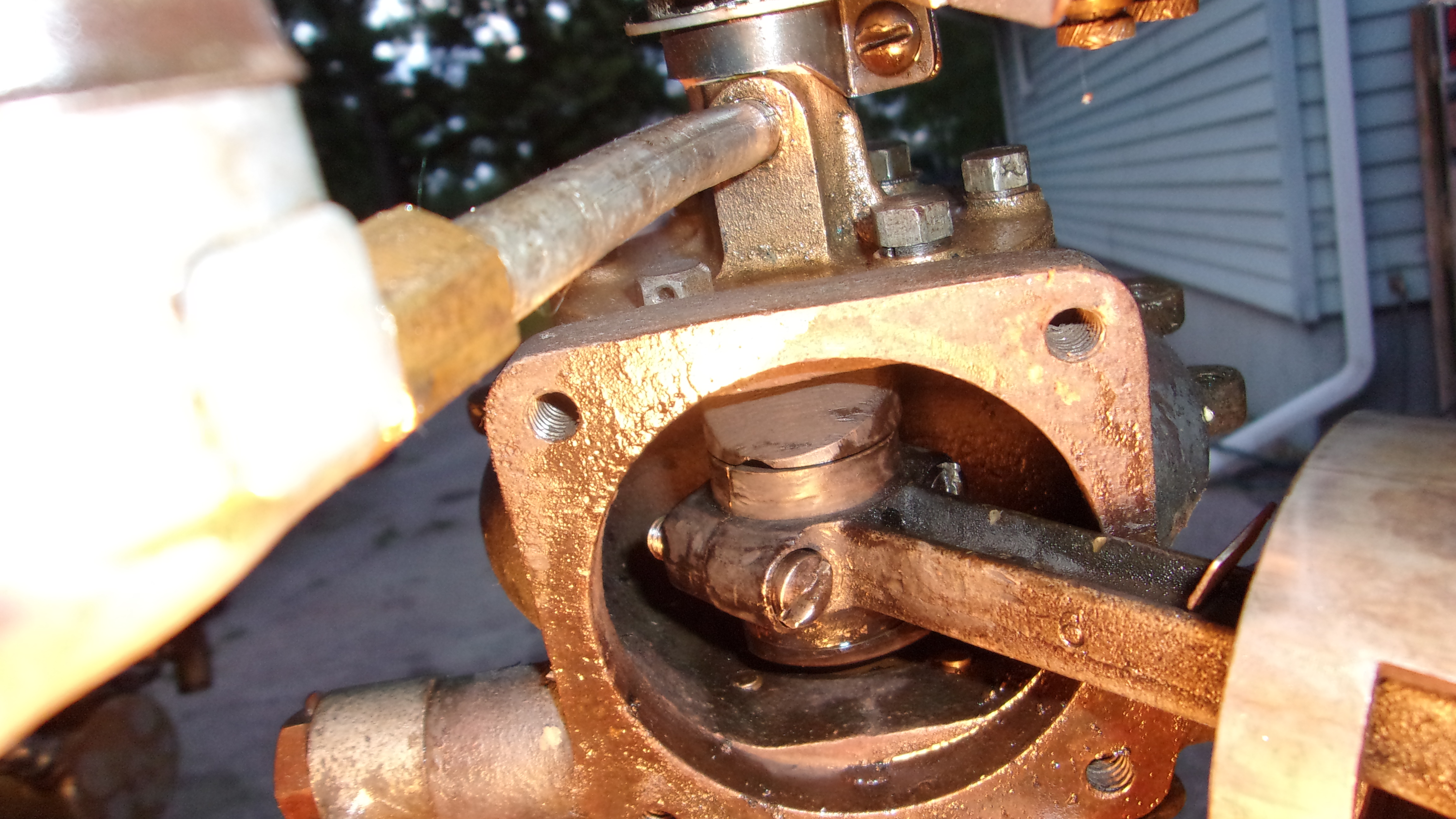

      I Pulled the cylinder looking for something broke. Found steel chips in the crankcase. Rings, cylinder walls, and piston look good to me. Should the con rod cap have nuts opposite the screws?

      Attachments:

      August 22, 2017 at 7:41 am #63624
      kees
      Participant

        International Member

        .
        I think so, and……a wire

        August 22, 2017 at 1:07 pm #63631
        RICK EICHRODT
        Participant

          Lifetime Member

          No nuts, the rod cap is threaded. The rod cap bolt has a hole drilled through the end of each bolt so safety wire can be attached between the ends. That way it cannot back out. I use Loctite red to give it extra locking power.

          August 22, 2017 at 3:16 pm #63640
          Tubs
          Participant

            Take a closer look around the edges
            of the ports in the cylinder.

            A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

            August 22, 2017 at 6:45 pm #63647
            slim60
            Participant

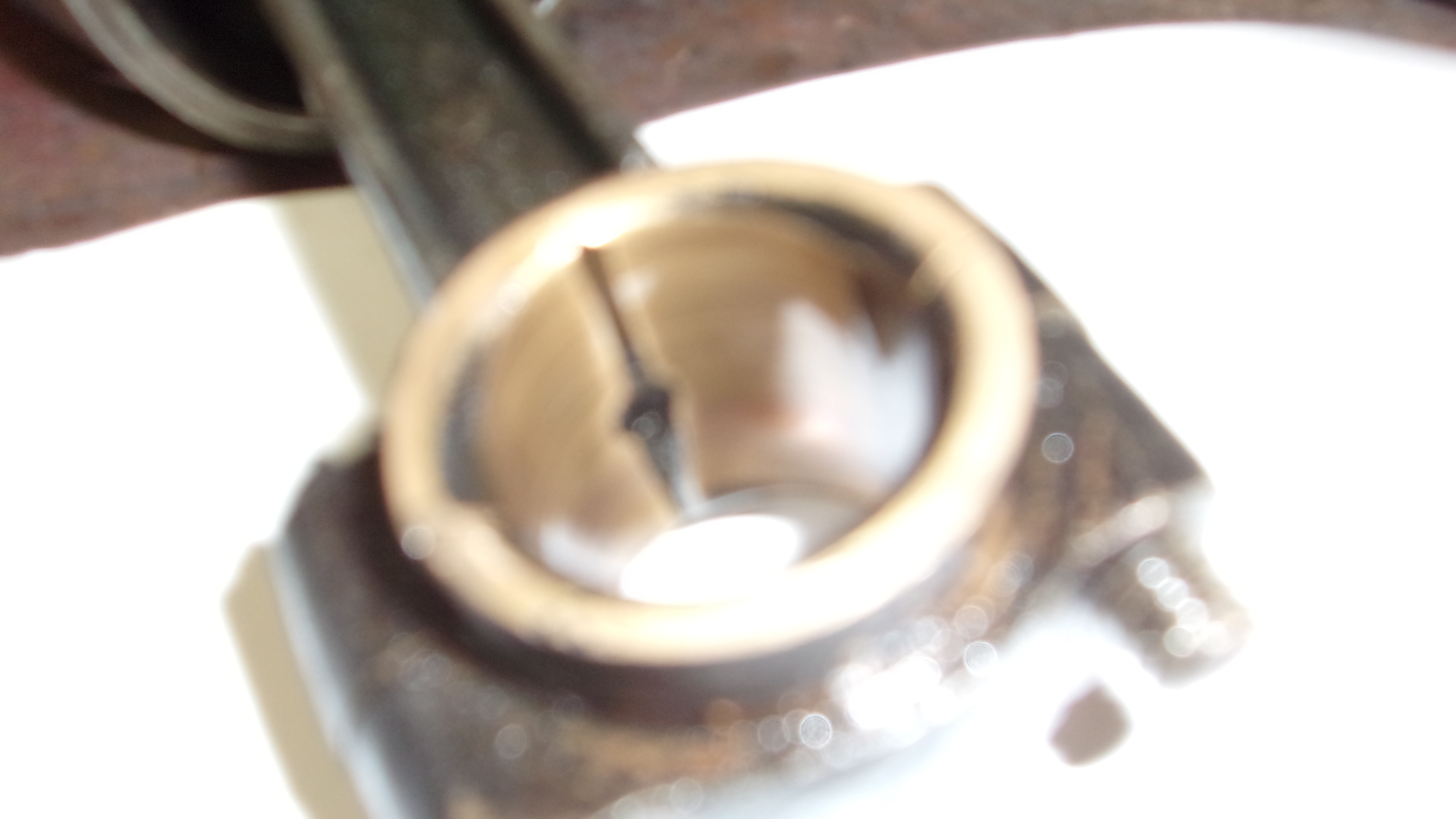

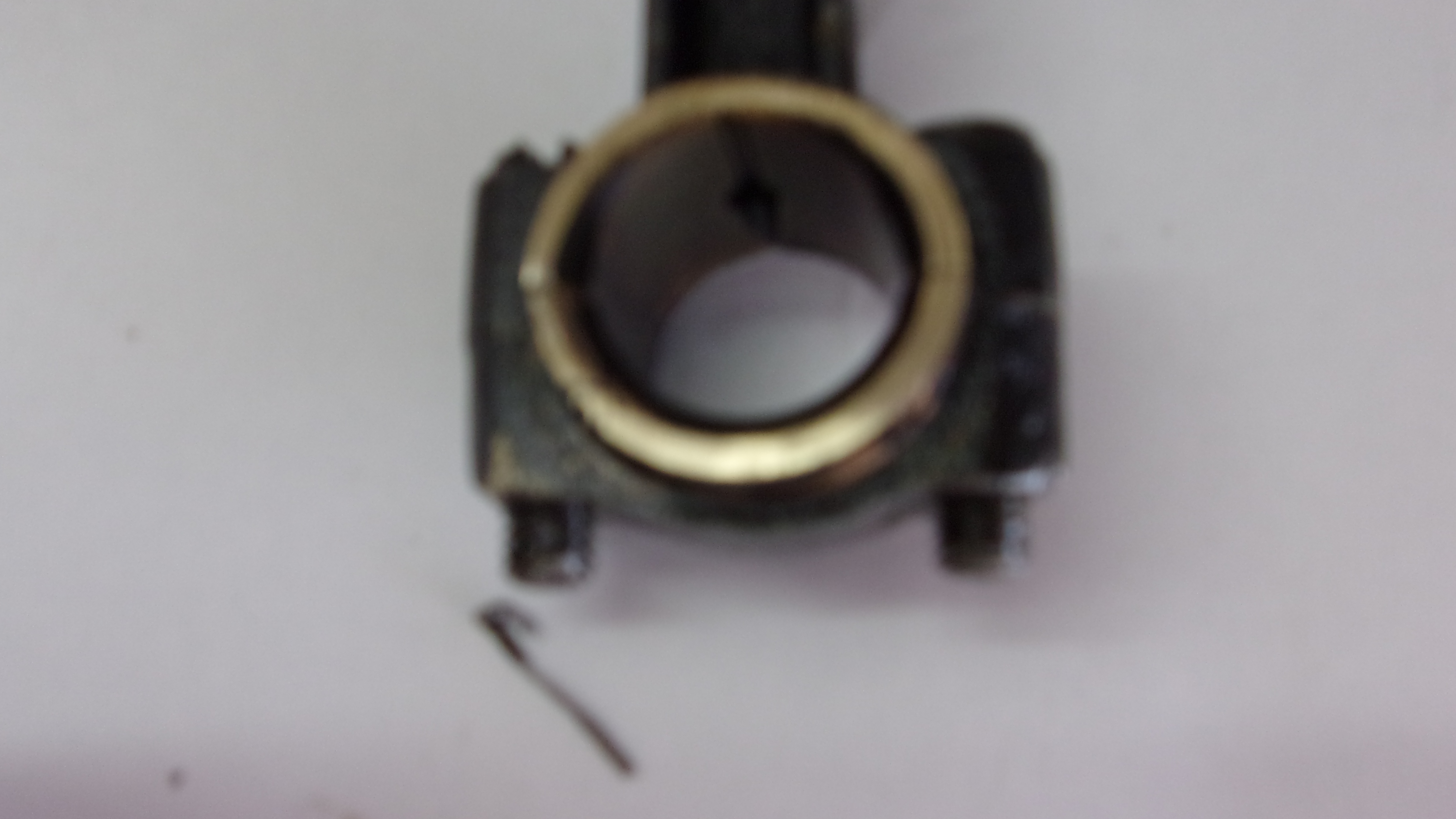

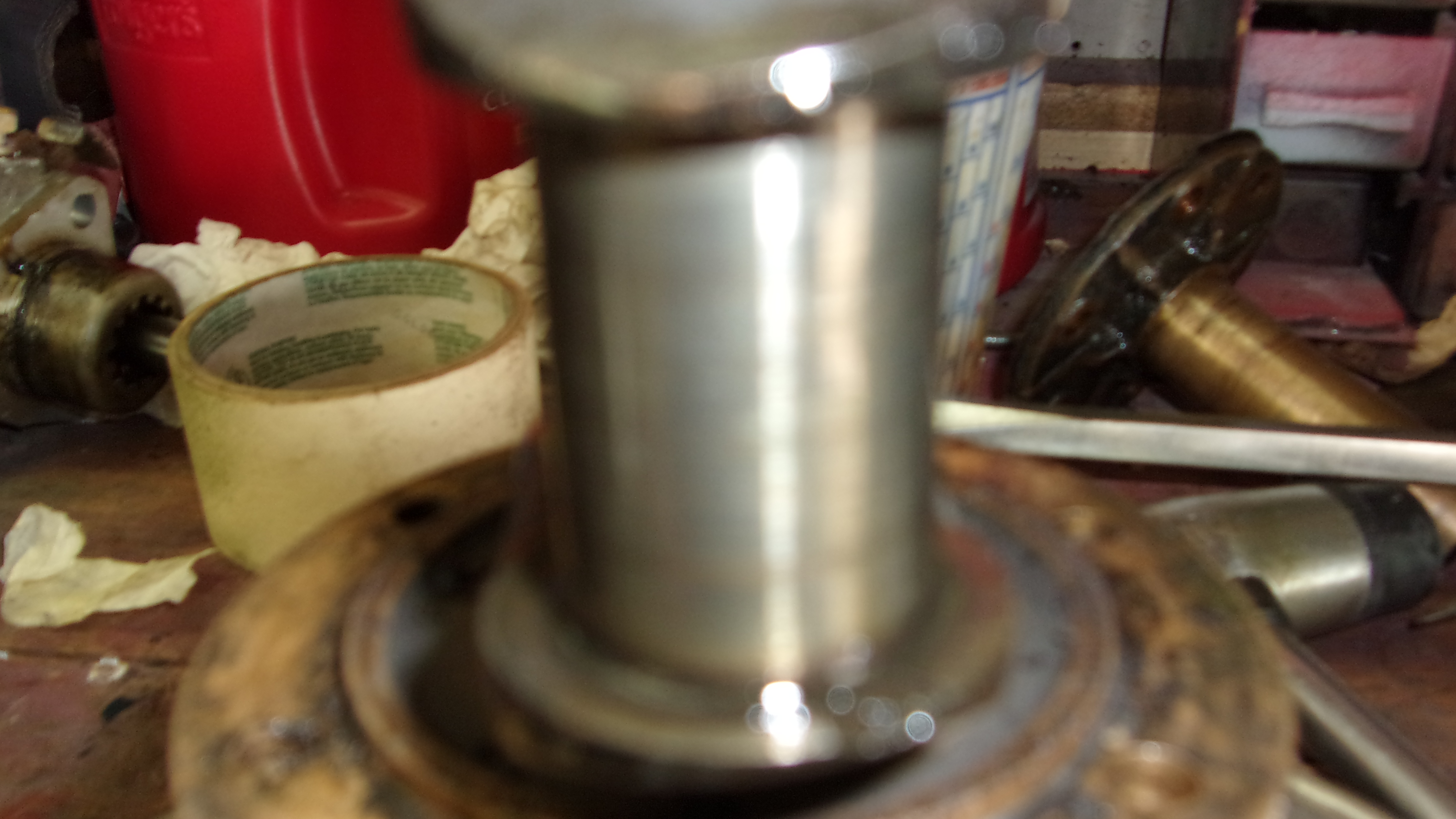

              Thanks all; Ports look OK but I’ll give them a light sanding. Cotter pins were in the con rod cap screws. One fell out and that must be the chips I found. Crank journal and inside con rod looks good. Should I use new cotter pins when I reassemble? I could slip a washer in first for a snug fit. Using wire looks difficult. Sorry, don’t know why pics are blurry.

              Attachments:

              August 22, 2017 at 11:18 pm #63656
              garry-in-michigan
              Participant

                Lifetime Member

                ABSOLUTELY use new cotter pins. I guarantee the one that broke had been reused or re-adjusted after being installed. I would replace all of them with new ones, . . 😉
