February 10, 2017 at 10:59 pm #6319
Mumbles
Participant

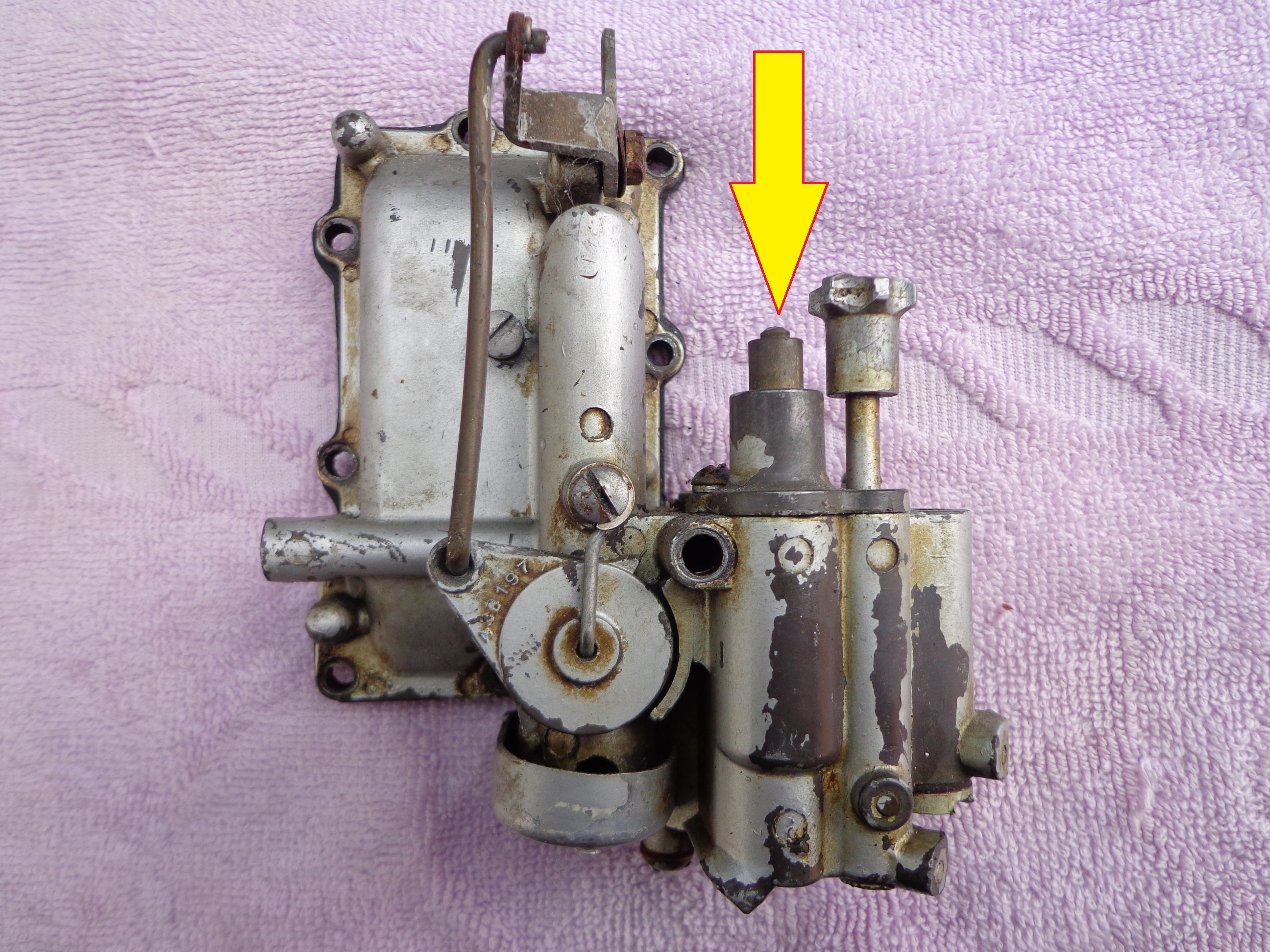

This carb looks like it should have a primer button of some kind where a broken off stud is. Does anyone have a photo of this or a similar carb showing the primer button?

Attachments:
February 11, 2017 at 12:35 am #52801
stanley
Participant
US Member

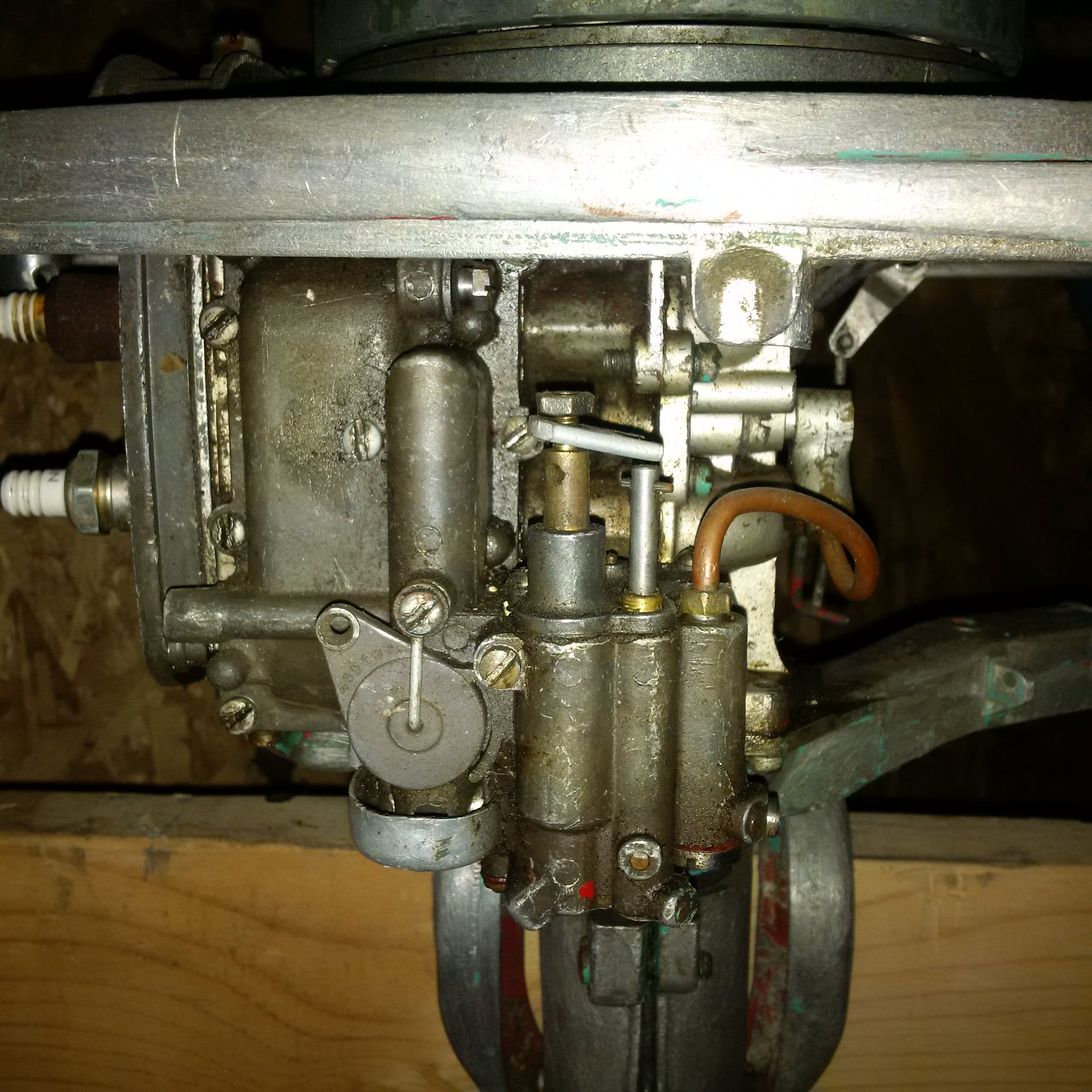

This a HA 39 should be same

Attachments:
February 11, 2017 at 1:30 am #52802
wedgie
Participant
Does this help ?
February 11, 2017 at 2:25 am #52805
Mumbles
Participant
Thanks Stanley, that’s exactly what I needed to see what’s missing!

Yours is the same style Wedgie, but slightly different. Is that an HD by any chance?
February 11, 2017 at 2:27 am #52806
garry-in-michigan
Participant
Lifetime Member

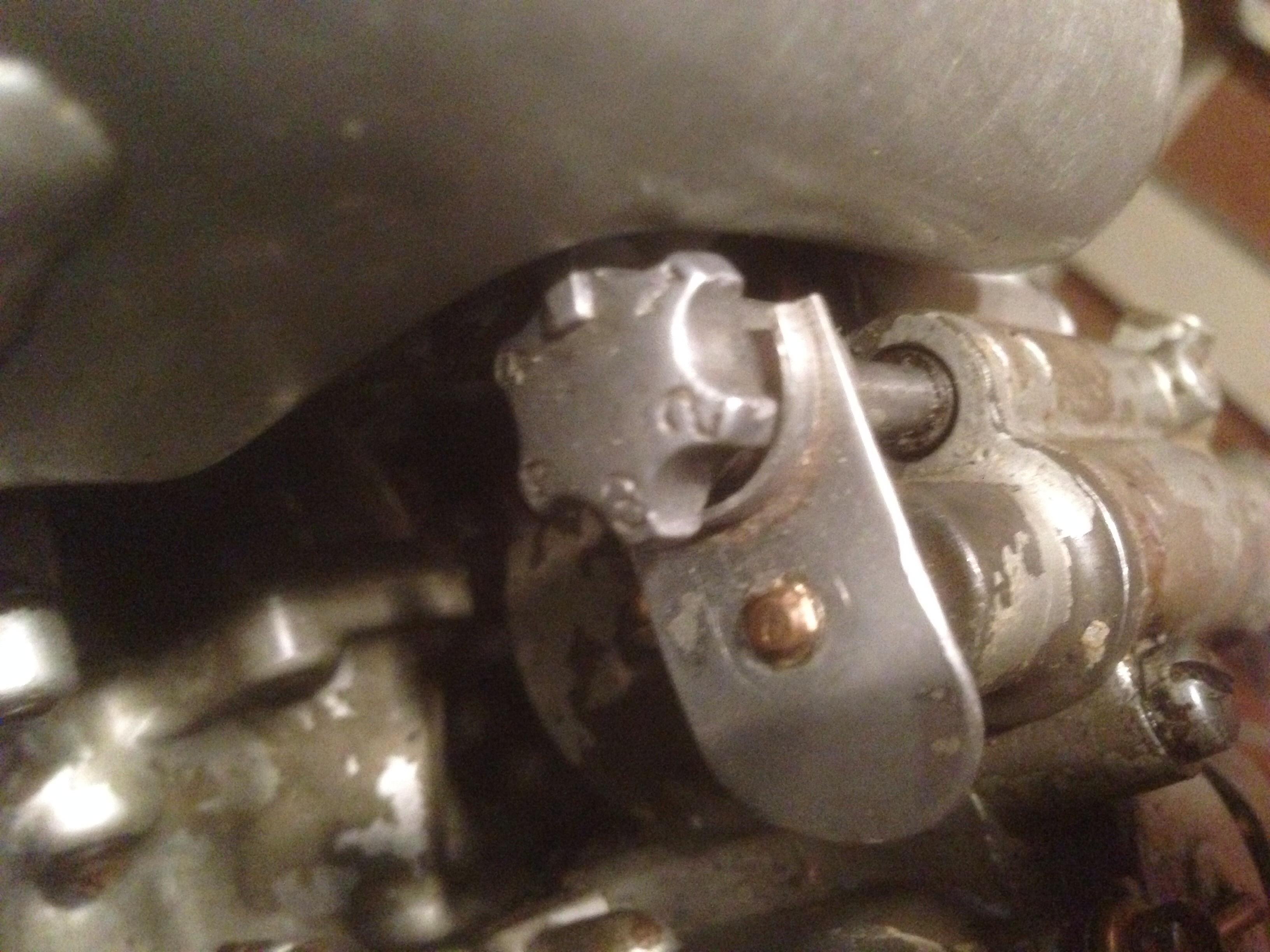

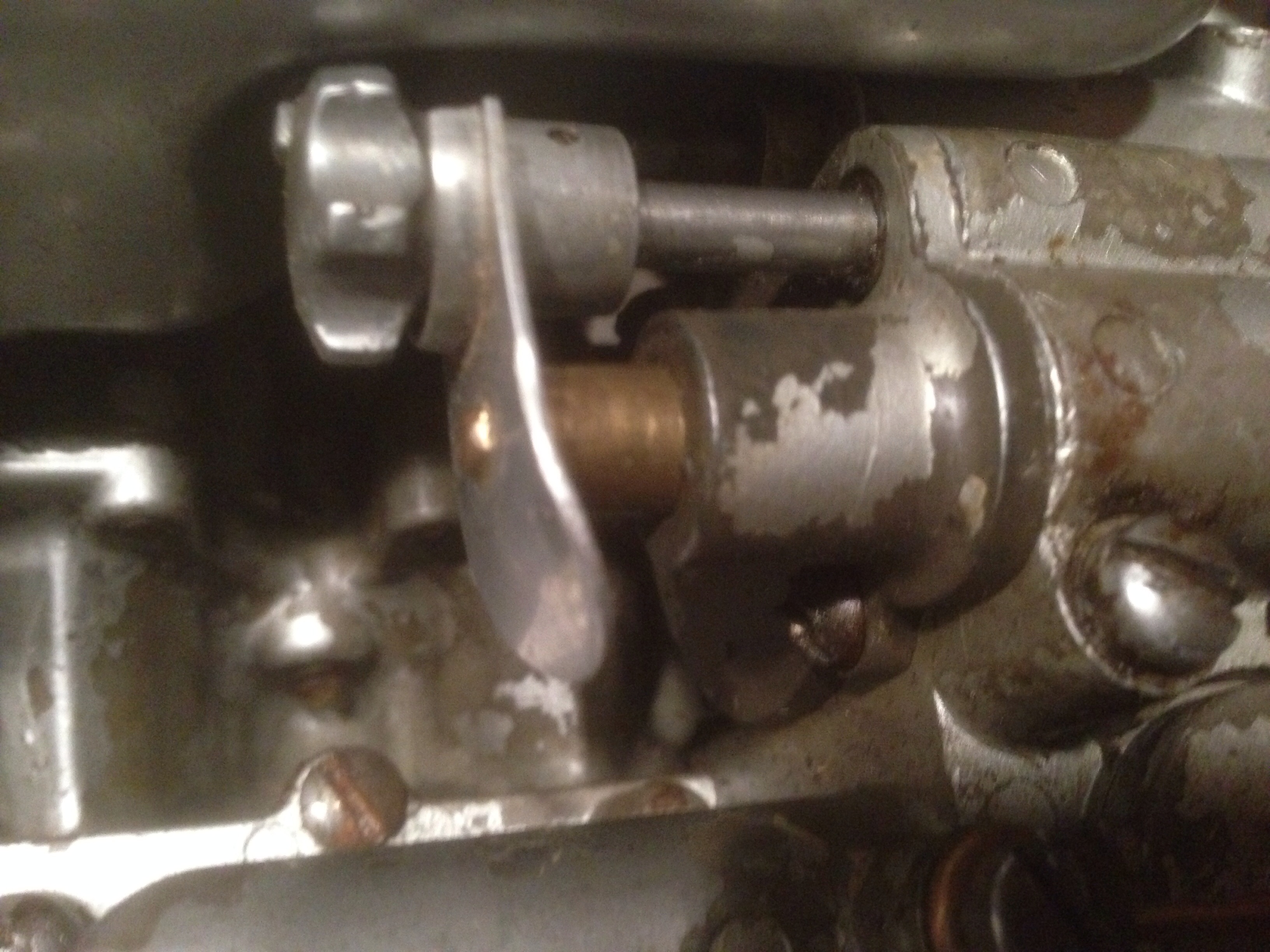

Different model – same carburetor. On the newer models an extension on the high speed adjustment puts the knob above the fuel tank. On those, you prime the motor by pushing down the adjustment knob. The interlocking arm (shown above un-tightened) then does the pushing. . . 🙂
February 11, 2017 at 2:48 am #52809
wedgie
Participant
quote Mumbles:

Thanks Stanley, that’s exactly what I needed to see what’s missing!

Yours is the same style Wedgie, but slightly different. Is that an HD by any chance?

Not sure exactly what it is. If you need it for parts let me know and I’ll bring it over some day.
February 12, 2017 at 3:28 am #52860
Mumbles
Participant
This new push thingie I made should work for now to prime the motor.

It’s sure nice to open up a 77 year old carb and find a very new looking float inside!

The carb’s done so now I can start playing with this new to me style magneto. First, the red wires have to go.

Does anyone have a photo of what this mag plate and its original wiring should look like?
