4366 Evinrude Sportsman Parts Diagram

Home › Forum › Ask A Member › 4366 Evinrude Sportsman Parts Diagram

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • December 27, 2015 at 9:13 pm #3275
    mikele86
    Participant

      Anyone know where I can get a parts diagram for the 2hp sportsman I have? Concerned mainly with the lower end. TIA

      December 28, 2015 at 3:44 am #29293
      garry-in-michigan
      Participant

        Lifetime Member

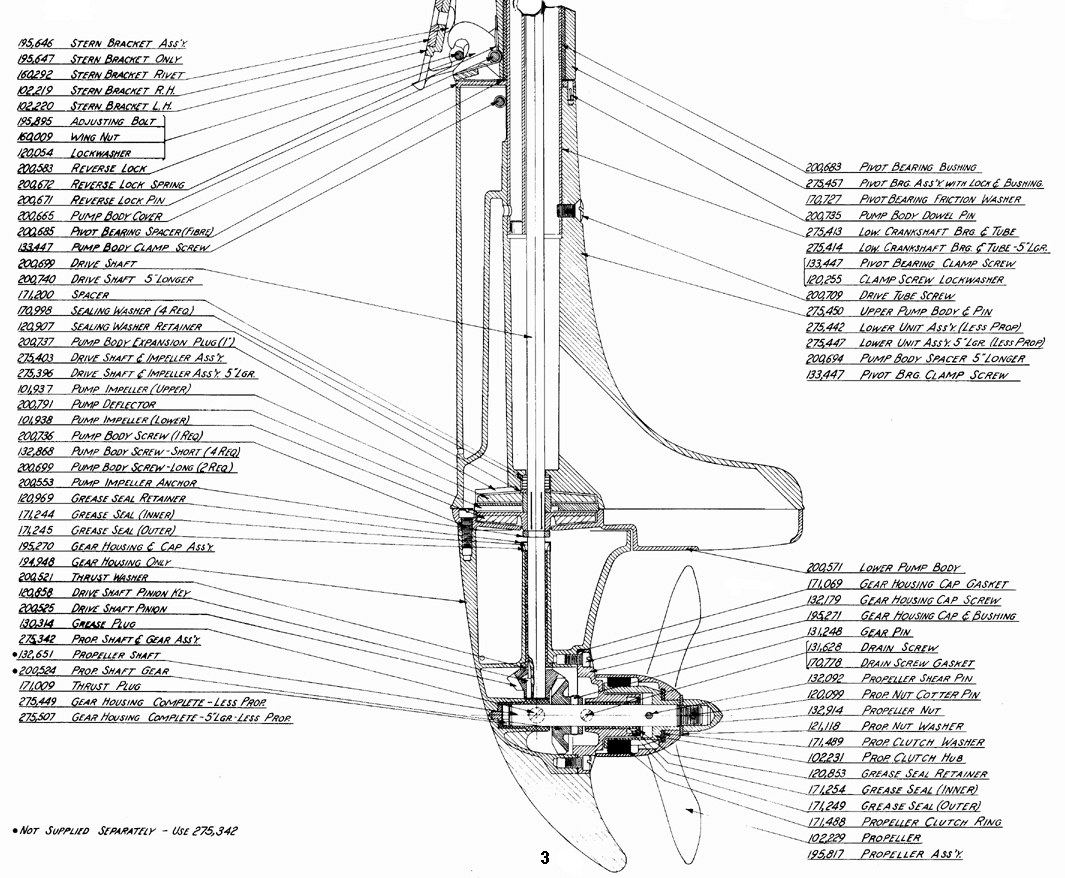

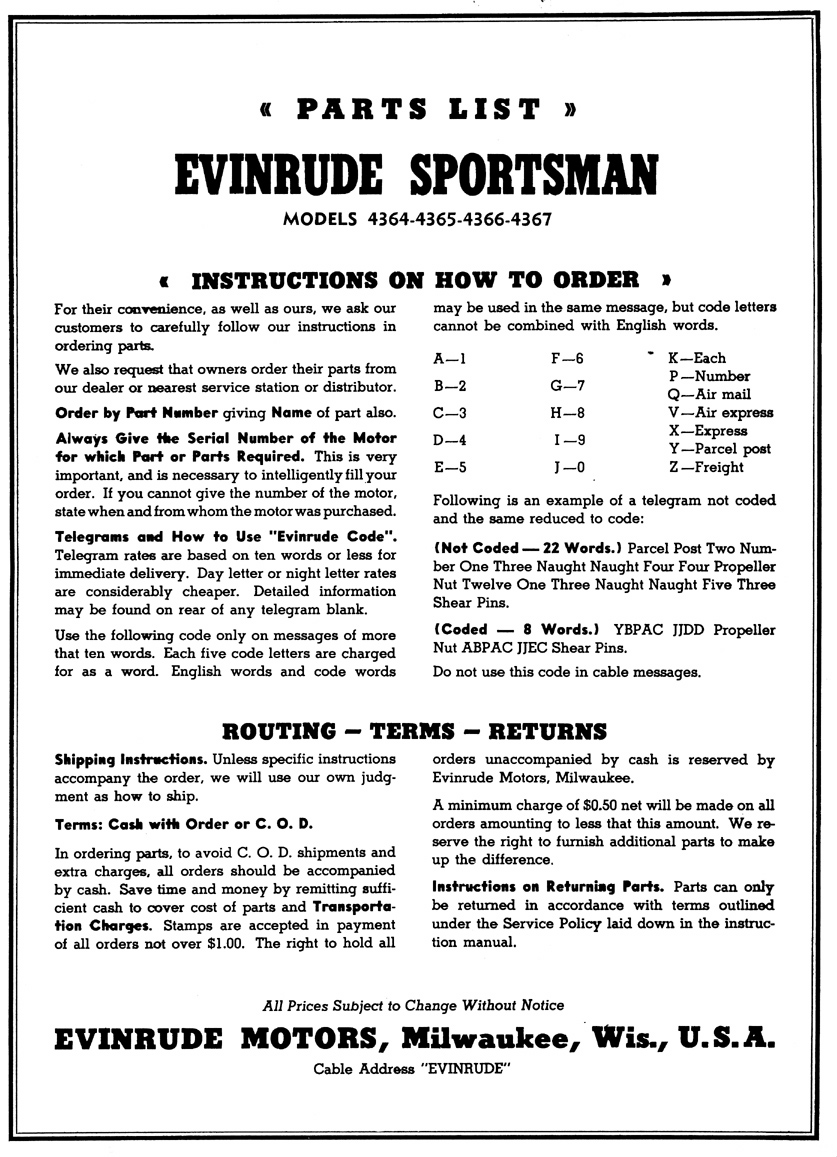

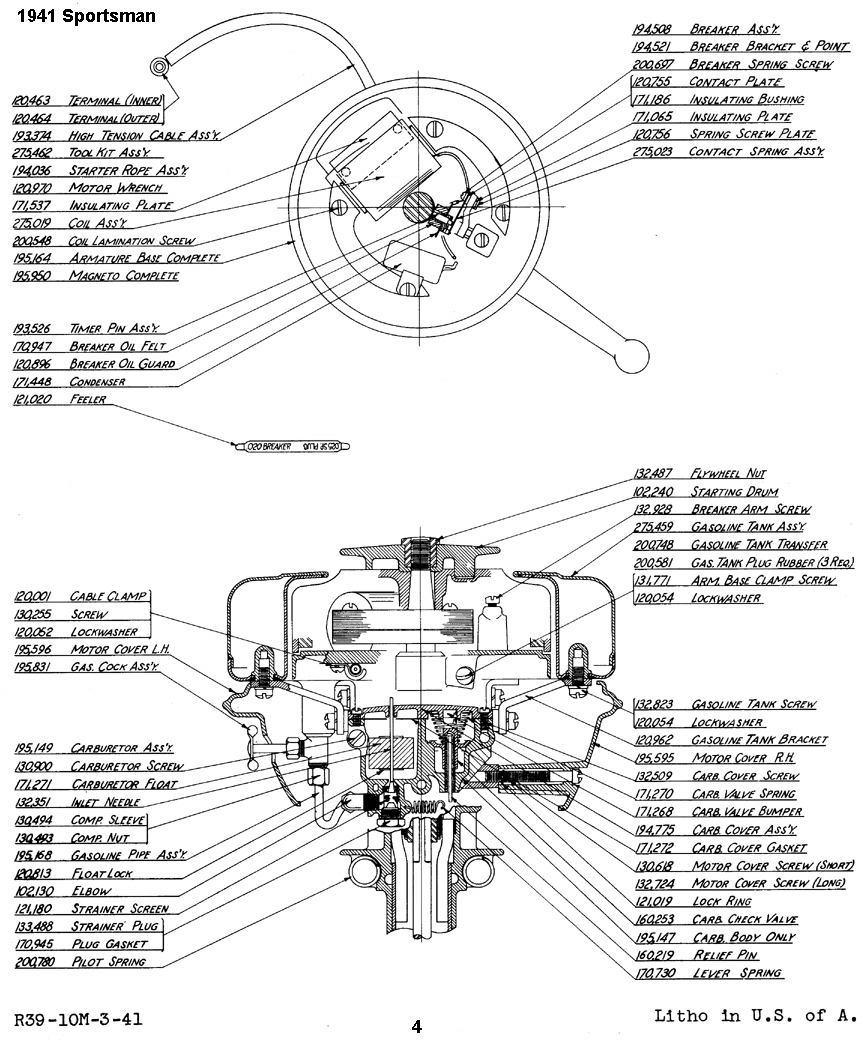

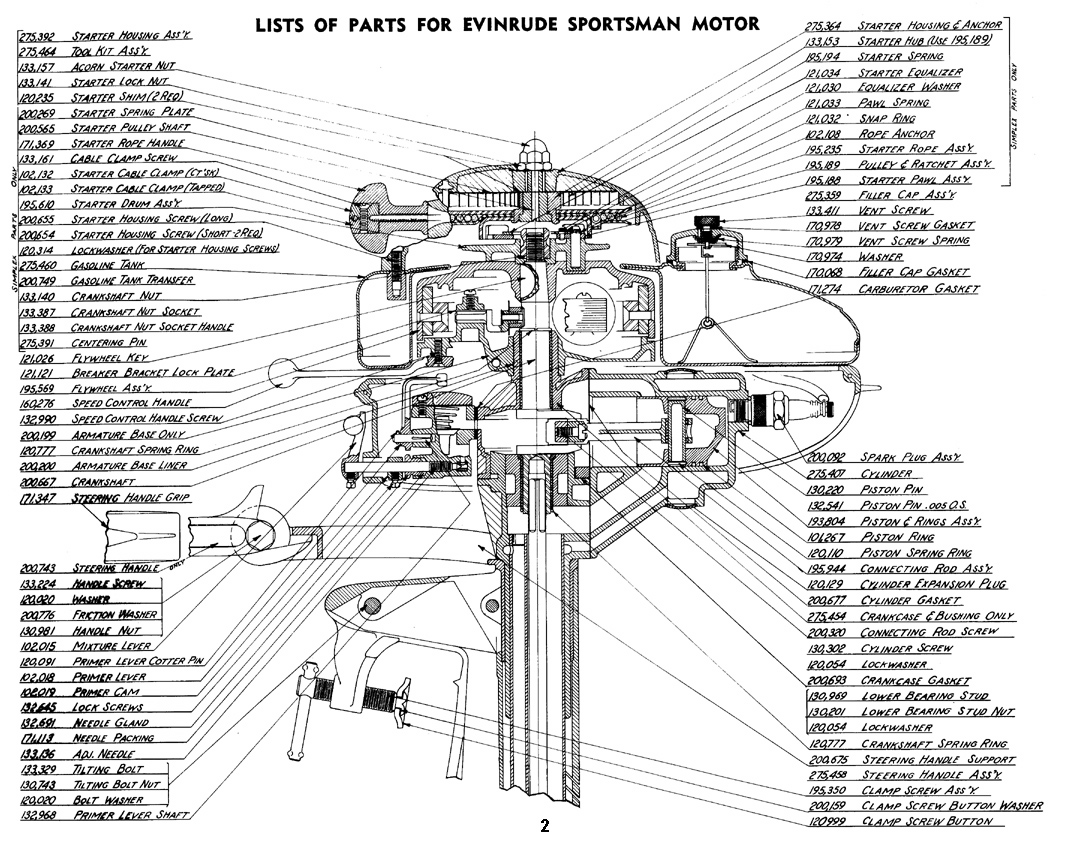

        Here you go …

        December 28, 2015 at 3:07 pm #29296
        mikele86
        Participant
          quote Garry in Tampa:

          Here you go …

          Thanks gary!!
