4404 Evinrude Zephyr leak coming from hole between spark plugs

Home › Forum › Ask A Member › 4404 Evinrude Zephyr leak coming from hole between spark plugs

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • April 11, 2017 at 11:06 pm #6722
    jerryrob1955
    Participant

      I have a leak coming from the hole between the spark plugs where the hood is mounted. That cylinder is getting hot. Any suggestions?

      April 12, 2017 at 2:25 am #55929
      Mumbles
      Participant

        What’s it leaking, water or fuel mix? Those are blind holes for the front cover screws and shouldn’t be leaking anything.

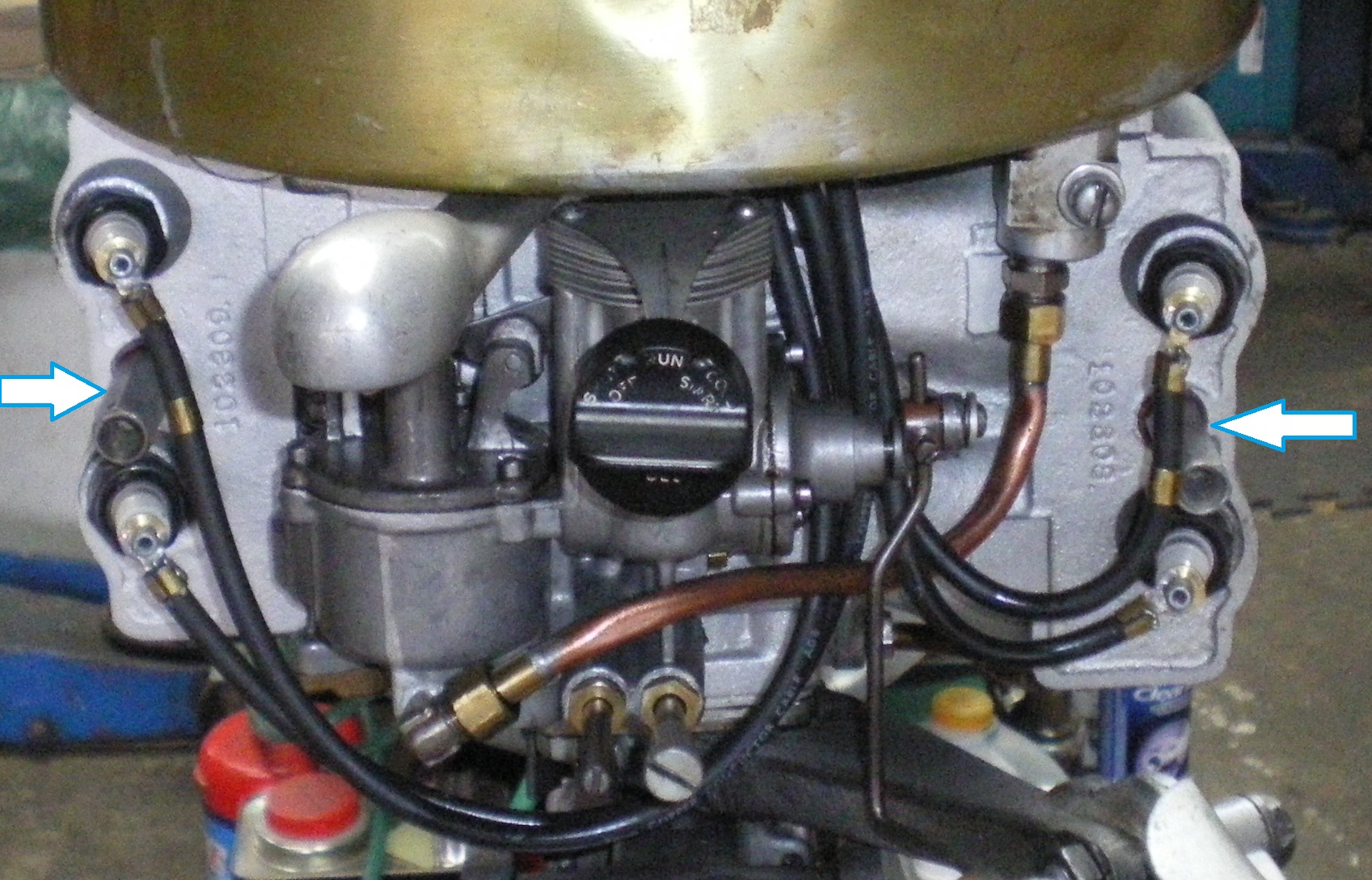

        This is a Light Four but your Zephyr is similar.

        Attachments:

        April 12, 2017 at 3:57 am #55934
        garry-in-michigan
        Participant

          Lifetime Member

          That’s a new one on me . . . 😕




          April 12, 2017 at 11:26 am #55940
          jerryrob1955
          Participant

            Its leaking water. The water pump is working fine but water also comes running out of this hole while the water pump is pumping. Sometimes it will stop for a few seconds but then it starts running out again. The water pump keeps pumping out the back like it should.

            April 12, 2017 at 12:13 pm #55941
            1946zephyr
            Participant

              I would say that it’s a fault in the casting. You may have to replace that side, if it is going to create a problem. As was stated: it shouldn’t be leaking at all.

              April 12, 2017 at 3:09 pm #55950
              Mumbles
              Participant

                The cylinder might be cracked from freezing or taking a fall. How about using a bit of sealer on the cover screws if the motor runs good?

                April 12, 2017 at 11:32 pm #55975
                jerryrob1955
                Participant

                  That side gets hot after about ten minutes of running if you feel the side of the cylinder.

                  April 14, 2017 at 2:17 am #56054
                  jerryrob1955
                  Participant

                    Thanks for posting that manual. Ill try to post the pics that I have from the other one soon. Appreciate it!

                    April 14, 2017 at 6:03 am #56062
                    garry-in-michigan
                    Participant

                      Lifetime Member

                      Here is the 4404 model – It has a push button primer instead of a choke and a cam under the magneto to synchronize the throttle. . . 😉
