  • May 24, 2020 at 2:43 pm #203928
    unsafeatanyspeed
    Participant

      Hello, would anybody know if the float needle washer (#202067)on an Evinrude 4423 3.3 hp carb goes right on top of the float lock, above the float, (#120813) inside the bowl, or does it mount on the needle outside the bowl just above the primer body cover (#202046)??
      The assembly view seems to have it inside the bowl but an ounce of prevention, pound of cure kinda thing.
      Thanks gentlemen,
      Doug.

      Everytime I learn something new, I forget something old.

      May 24, 2020 at 3:14 pm #203936
      Mumbles
      Participant

        It sure looks as if it goes on top of the float, inside the bowl. I haven’t had mine apart for a few years so I can’t say for sure.

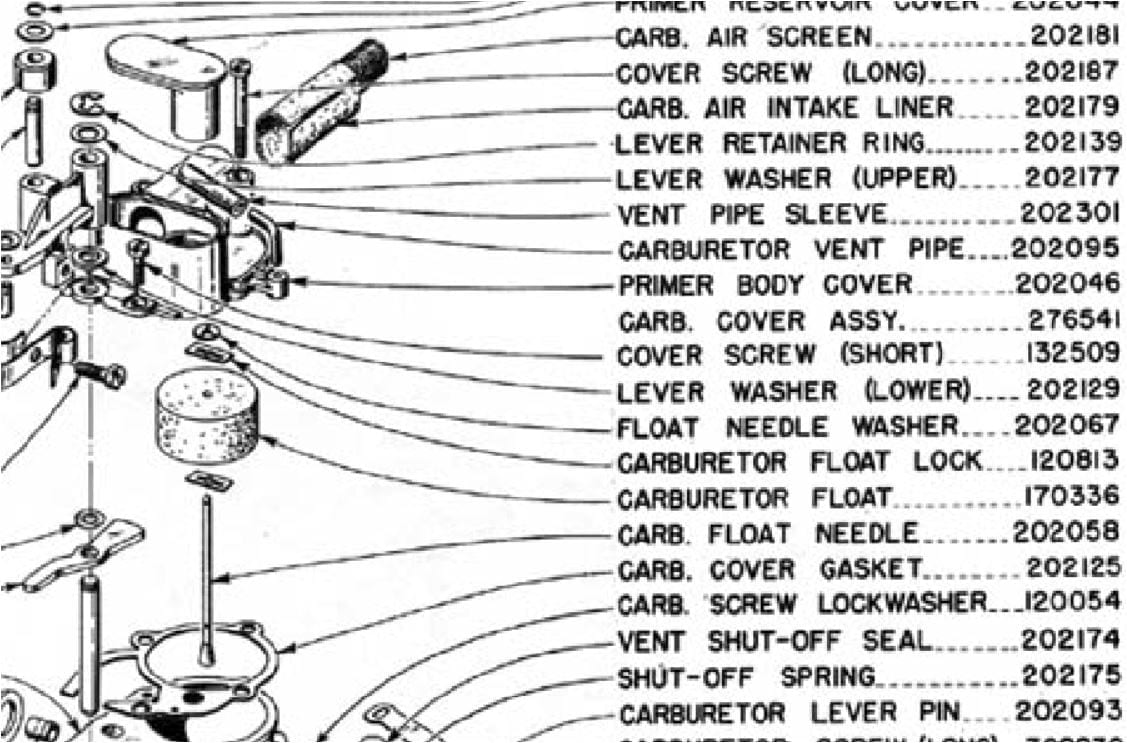

        4423-Carb

        May 24, 2020 at 3:26 pm #203939
        unsafeatanyspeed
        Participant

          I agree. I didn’t know if it was to seal the top hole where the needle passes thru though.
          You wouldn’t know if that carburetor lever (#276591)is supposed to attach to the top of that needle in some way would you? I thought I read something about that in a forum somewhere but I’ve inundated myself with too much info at this point since this is my first time dealing with this carb.
          Thanks Mumbles,
          Doug.

          Everytime I learn something new, I forget something old.
