49 Sea King – Rotor Eccentric Keyway Missing

Home › Forum › Ask A Member › 49 Sea King – Rotor Eccentric Keyway Missing

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • September 3, 2023 at 11:19 pm #280154
    John Gragg
    Participant

      US Member

      So I finally got around to pulling the prop and inspecting the rotor and prop shaft/gears.

      Came apart pretty easily, and I documented every step with a photo of what came off and in what order (and direction). The rotor actually looks/feels good. That will make sense in a minute…

      I get to the rotor eccentric and it slides right off. I took pics front and back so I know what direction it goes back on. I notice there is a keyway in the hub of the eccentric so I look at the prop shaft to remove the keyway. NOPE No keyway. The flat stop for a typical water-pump keyway is there, but no keyway.

      I can’t see how the eccentric would/could do it’s job without the keyway, but I thought I would ask anyway. The parts diagram I got from Frank does not call out the part, unless they are calling it something I can’t think of.

      If it does need one, does anyone have one or a source for one? I can’t search for one since I don’t have the part number.

      I ordered a parts/service manual online last week, but don’t have it yet.

      Thanks in advance.

      John Gragg
      RIverside, CA

      Just starting in the hobby, please be patient.

      48 Sea King 5hp GG9014A. Sold
      49 Sea King 5hp GG9014A
      48 Johnson TD20. Sold
      49 Johnson TD20. Sold
      54 Johnson QD15. Sold
      55 Johnson CD12. Sold
      57 Johnson RJE-19M
      57 Johnson RDE-19

      September 4, 2023 at 12:07 am #280155
      Mumbles
      Participant

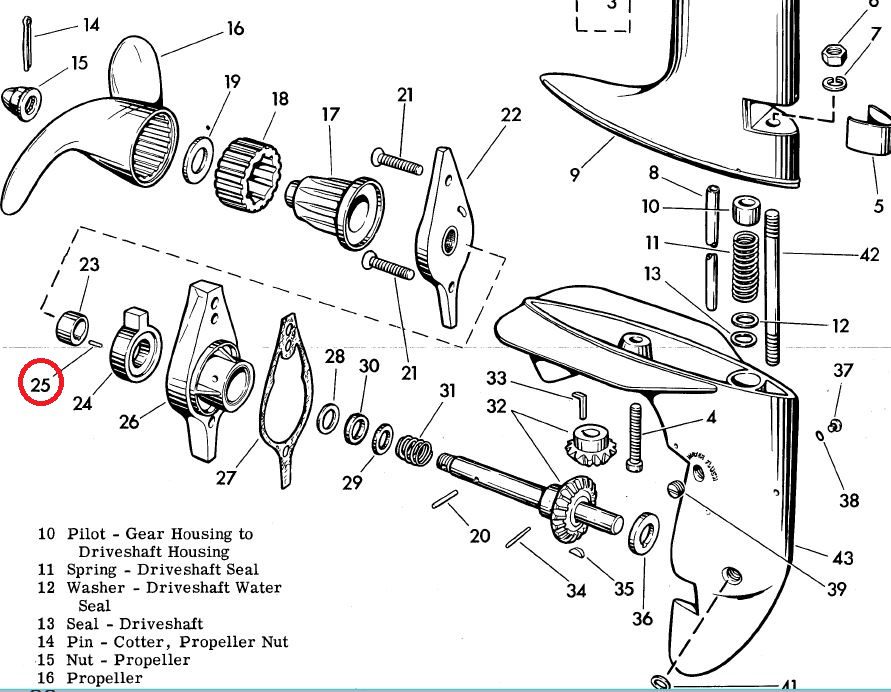

        Is this the style unit you are working on?

        If so, the missing key isn’t exactly a key, but a round pin, #25.  It’s quite small so may have gotten lost on disassembly or may have rusted away.  It fits into the square keyway machined in the eccentric  and is a bit proud so it will jam up on the flat area on the prop shaft.

        A piece of small stainless rod or a piece of drill bit will work just fine. Only problem is the piece of drill bit will rust away over time.Gale-Water-Pump

        September 4, 2023 at 12:33 am #280160
        John Gragg
        Participant

          US Member

          Yes, that is it. I actually have the part number and didn’t know it. I found one very easily on ebay, but when I saw the picture of a round cylindrical piece I didn’t think that was it.

          I really appreciate the quick reply.

          I LOVE THIS GROUP AND THIS SITE!

          Ok, I’ll be quiet for the rest of the night, promise…LOL

          Best Regards

          John Gragg
          RIverside, CA

          Just starting in the hobby, please be patient.

          48 Sea King 5hp GG9014A. Sold
          49 Sea King 5hp GG9014A
          48 Johnson TD20. Sold
          49 Johnson TD20. Sold
          54 Johnson QD15. Sold
          55 Johnson CD12. Sold
          57 Johnson RJE-19M
          57 Johnson RDE-19

          September 4, 2023 at 12:35 am #280161
          John Gragg
          Participant

            US Member

            P.S. – Is there a site where I can go to see this type of illustration for the entire motor? Great exploded view for troubleshooting, etc.

            Thx.

            I know, I lied. Now it’s quiet time.

            John Gragg
            RIverside, CA

            Just starting in the hobby, please be patient.

            48 Sea King 5hp GG9014A. Sold
            49 Sea King 5hp GG9014A
            48 Johnson TD20. Sold
            49 Johnson TD20. Sold
            54 Johnson QD15. Sold
            55 Johnson CD12. Sold
            57 Johnson RJE-19M
            57 Johnson RDE-19

            September 4, 2023 at 10:45 am #280166
            frankr
            Participant

              US MEMBER PAY BY CHECK

              Gale didn’t publish exploded parts views till 1951. Here is the 1951 model 5S10.  Expect evolutionary differences.



              Pg-7-Carburetor

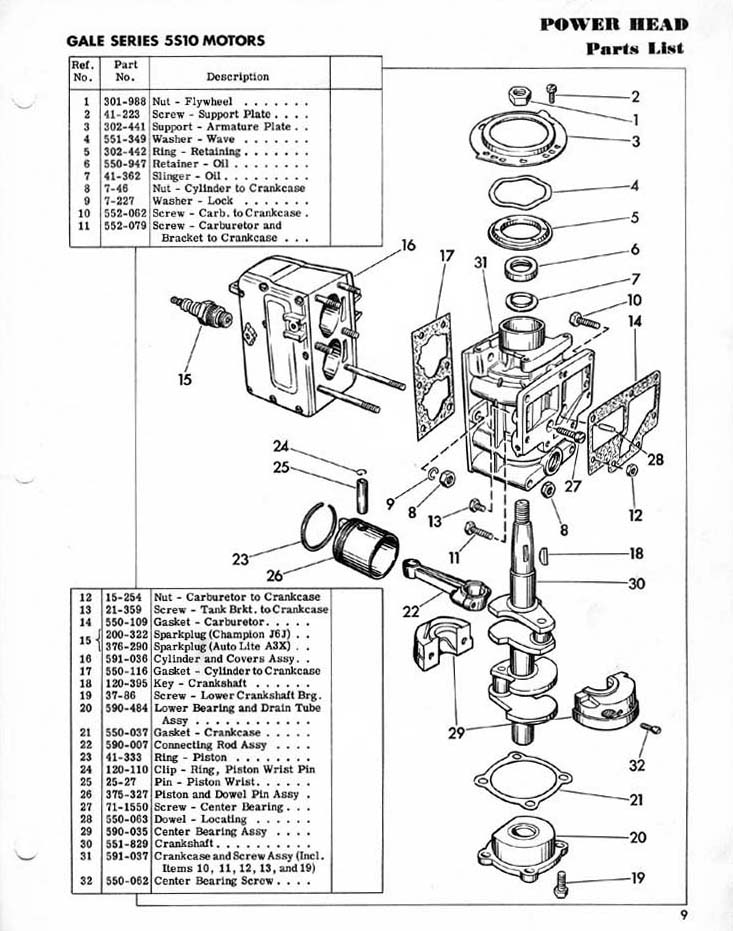

              Pg-9-Powerhead

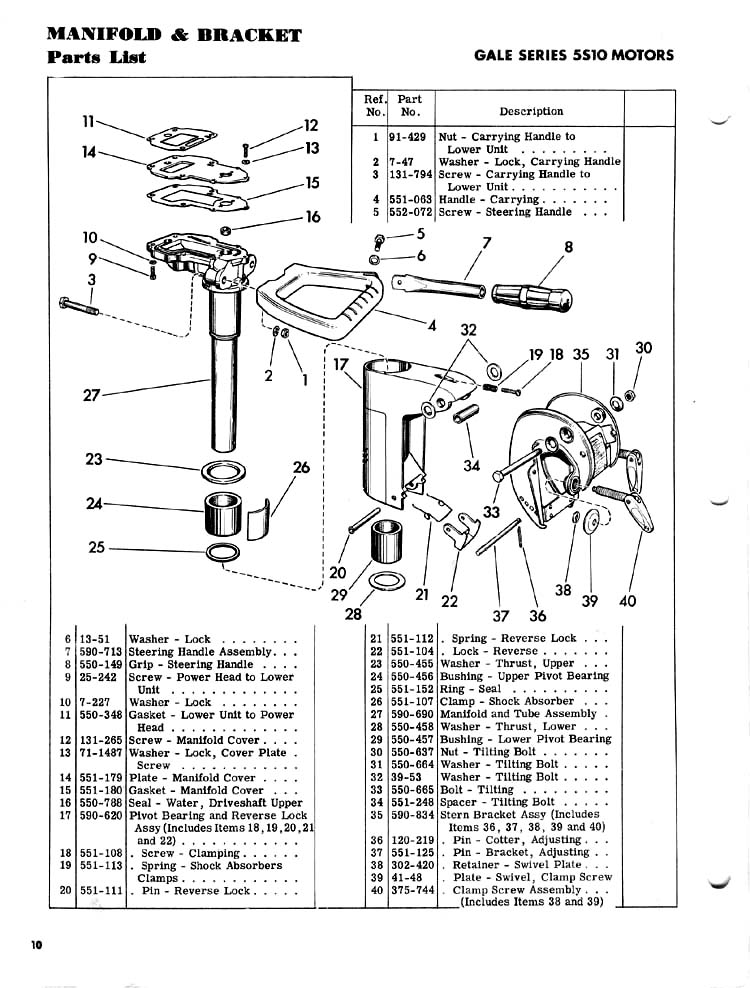

              Pg-10-Manifold-and-Bracket

              Pg-12-Trim-Group

              September 4, 2023 at 10:58 am #280171
              Bob Wight
              Participant

                US Member

                John – here’s a pic of a new wobbler pump I recently installed on a Sea King.   You can see the new drive pin that fits in the keyway on the cam.   When I tore this motor down, the old drive pin had rusted away to the point there was little of it left.

                Bob

                1937 Champion D2C Deluxe Lite Twin
                1954 Johnson CD-11
                1955 Johnson QD-16
                1957 Evinrude Fastwin 18
                1957 Evinrude 3022
                1958 Johnson QD-19
                1958 Johnson FD-12
                1959 Johnson QD-20

                “Every 20 minute job is only a broken bolt away from a 3-day project.”
                "Every time you remove a broken or seized bolt an angel gets his wings."

                September 4, 2023 at 1:38 pm #280180
                John Gragg
                Participant

                  US Member

                  Thank you for that pic Bob. Since my lower housing was semi-full of water I’m going to agree the pin was probably rusted away. My only exposure to outboards is my sterndrive leg I recently overhauled. (Merc Alpha Ong Gen 2). In those motors the pump impeller is held in place by a stainless keyway. (Pic below)

                  That is what i thought I was looking for. LOL

                  John Gragg
                  RIverside, CA

                  Just starting in the hobby, please be patient.

                  48 Sea King 5hp GG9014A. Sold
                  49 Sea King 5hp GG9014A
                  48 Johnson TD20. Sold
                  49 Johnson TD20. Sold
                  54 Johnson QD15. Sold
                  55 Johnson CD12. Sold
                  57 Johnson RJE-19M
                  57 Johnson RDE-19

                  September 4, 2023 at 1:39 pm #280181
                  John Gragg
                  Participant

                    US Member

                    Oops. Here it is

                    John Gragg
                    RIverside, CA

                    Just starting in the hobby, please be patient.

                    48 Sea King 5hp GG9014A. Sold
                    49 Sea King 5hp GG9014A
                    48 Johnson TD20. Sold
                    49 Johnson TD20. Sold
                    54 Johnson QD15. Sold
                    55 Johnson CD12. Sold
                    57 Johnson RJE-19M
                    57 Johnson RDE-19

                    September 4, 2023 at 1:48 pm #280183
                    John Gragg
                    Participant

                      US Member

                      I appreciate the clarification Frank.

                      Two questions. Do you also have the full pic for the lower?

                      Also, do I remember correctly you are the person to contact regarding packings for these motors?

                      If so, can you provide for everywhere they came originally?

                      Also, as an example, I removed my prop and prop shaft last night. It appears that the very 1st piece behind the prop is a dense (fabric maybe) washer. The diagram I am working from calls it a clutch washer.

                      Do you also provide any replacements for these types of seals?

                      For starters, if you are able, may I ask which packing parts you can provide for the 94GG9014A carburetor?

                      Best Regards

                      John Gragg
                      RIverside, CA

                      Just starting in the hobby, please be patient.

                      48 Sea King 5hp GG9014A. Sold
                      49 Sea King 5hp GG9014A
                      48 Johnson TD20. Sold
                      49 Johnson TD20. Sold
                      54 Johnson QD15. Sold
                      55 Johnson CD12. Sold
                      57 Johnson RJE-19M
                      57 Johnson RDE-19
