’57 Lark Magneto "Cut-out" wire routing?

Home › Forum › Ask A Member › ’57 Lark Magneto "Cut-out" wire routing?

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • December 30, 2016 at 5:58 pm #5990
    mas
    Participant

      US Member

      Been a while since I took it apart…now cannot remember how the wire is routed. Anybody have a picture ?

      Thank you!

      Happy Motoring,

      MAS

      December 30, 2016 at 11:42 pm #49965
      garry-in-michigan
      Participant

        Lifetime Member

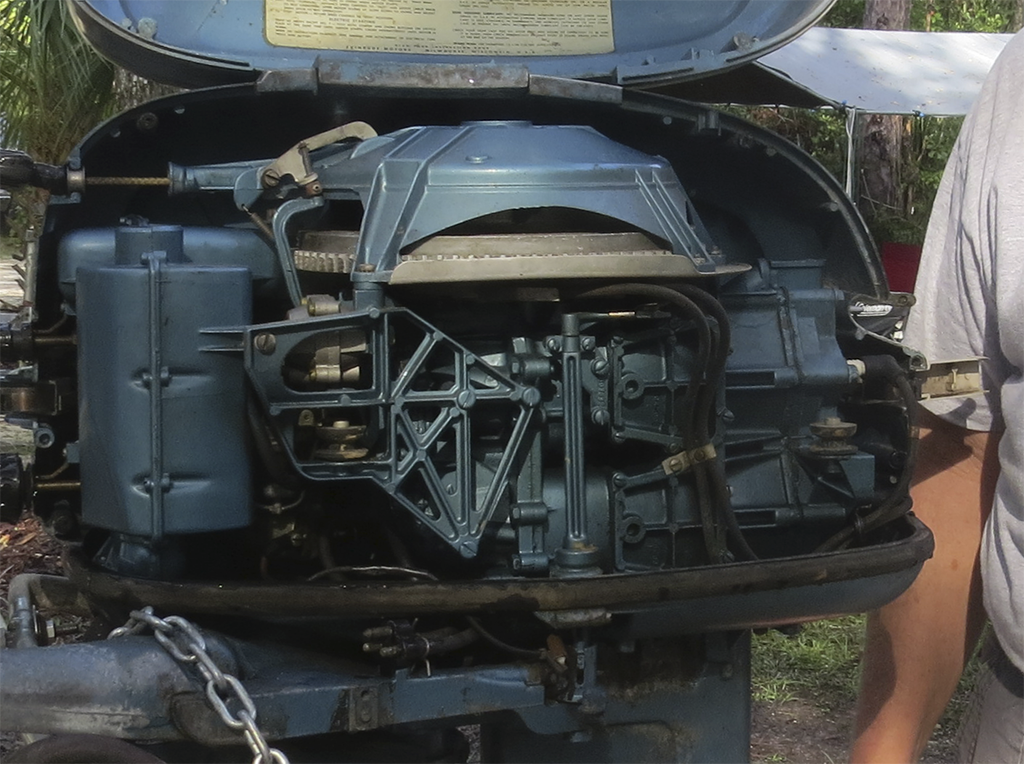

        This is all I could find so far – still looking. . . 🙄

        December 31, 2016 at 12:25 am #49972
        chris-p
        Participant

          Nothing real special to it. NO one cay say you ran it wrong!

          It comes out the starboard side. Down behind the starter bracket, under the carb, then up to the cutout switch.

          December 31, 2016 at 3:06 am #49987
          mas
          Participant

            US Member

            I saw in one of my parts diagram a wire clamp on the upper starboard side of the intake manifold. I know I forgot to install this clamp (maybe I did not have one originally), but I think it may have something to do with the wire??

            Weird though, part number 29 does not show up in Marine Engines diagrams but does in my references.

            December 31, 2016 at 3:08 am #49988
            mas
            Participant

              US Member

              Nice ’56 Garry! Looks like the cut-out is placed differently…yours is facing forward, while mine is facing port ward .

              December 31, 2016 at 3:09 am #49989
              chris-p
              Participant

                Yes it did originally run through that clamp if you still have it.

                December 31, 2016 at 3:20 am #49991
                mas
                Participant

                  US Member

                  Thanks Chris, I do not think the wire is long enough to go under the carb…but I’ll try. If I do not have the wire clamp, I think I could easily make one.

                  Mas

                  December 31, 2016 at 5:20 pm #50015
                  garry-in-michigan
                  Participant

                    Lifetime Member

                    My ’57 parts book does not show it. . . ❓


                    – and the wiring diagram is no help. . . 🙄
