57 Sportwin Fuel pump adapter

Home › Forum › Ask A Member › 57 Sportwin Fuel pump adapter

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • September 15, 2015 at 3:32 pm #2545
    tom-c
    Participant

      I have a 57 Sportwin that has a fuel pump conversion. It was not pumping and I found that the mounting screw holes were stripped. Seems that a previous owner used the pressure cover and filled it with JB weld then tapped the holes to screw on the fuel pump. Is there another "real" adapter available? I need to get this fixed fast!

      September 15, 2015 at 4:30 pm #23928
      cajuncook1
      Participant

        Tom, I believe you should be able to get a mountable bypass cover from a 1960 to 1963 Johnson/Evinrude 10hp that was meant to use a fuel pump.

        bypass cover with fuel pump mount part number 0305751

        bypass cover gasket part number 0301847

        http://www.marineengine.com/parts/evinr … -GROUP.gif

        September 15, 2015 at 5:54 pm #23932
        1957evinrude
        Participant

          US Member

          I have one from a 60s 18 might be the same would need to check. It is designed for the fuel pump.

          September 15, 2015 at 6:39 pm #23933
          Mumbles
          Participant

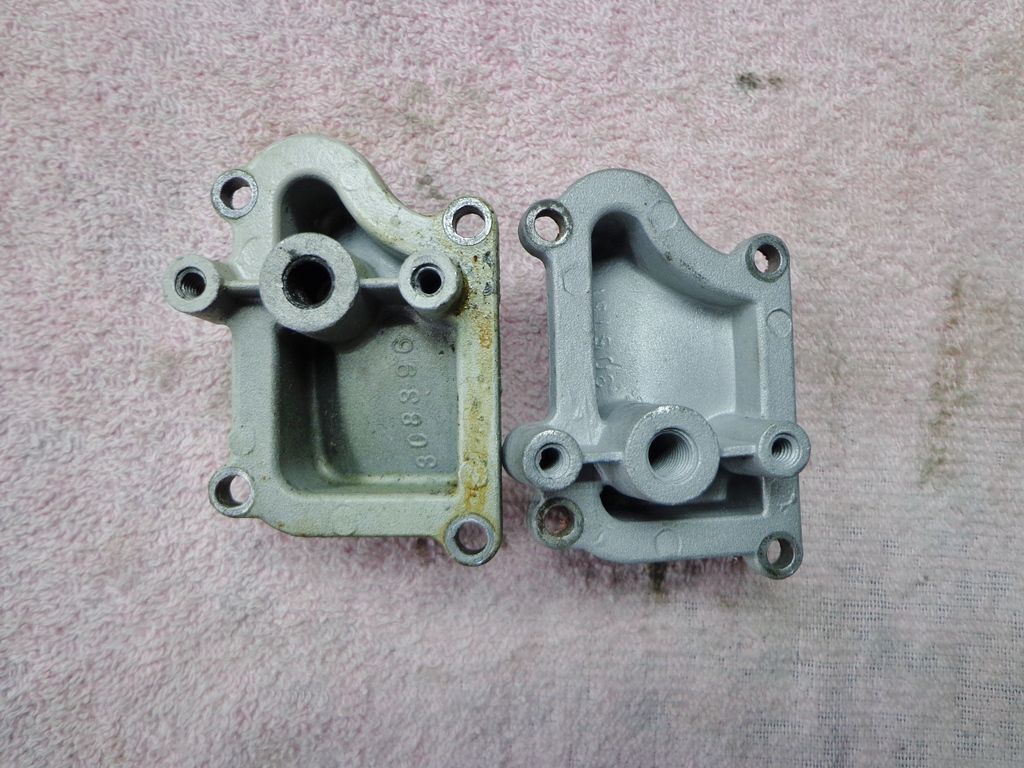

            There’s two different styles of bypass covers for the ten horse motor and either will work. Eighteen horse covers are different altogether and won’t fit.

            Instead of searching for a new cover, wouldn’t it be easier to install some 10/24 Heli Coils to repair the threads?
