Bendix Scintilla coil

[Ronald Smith]

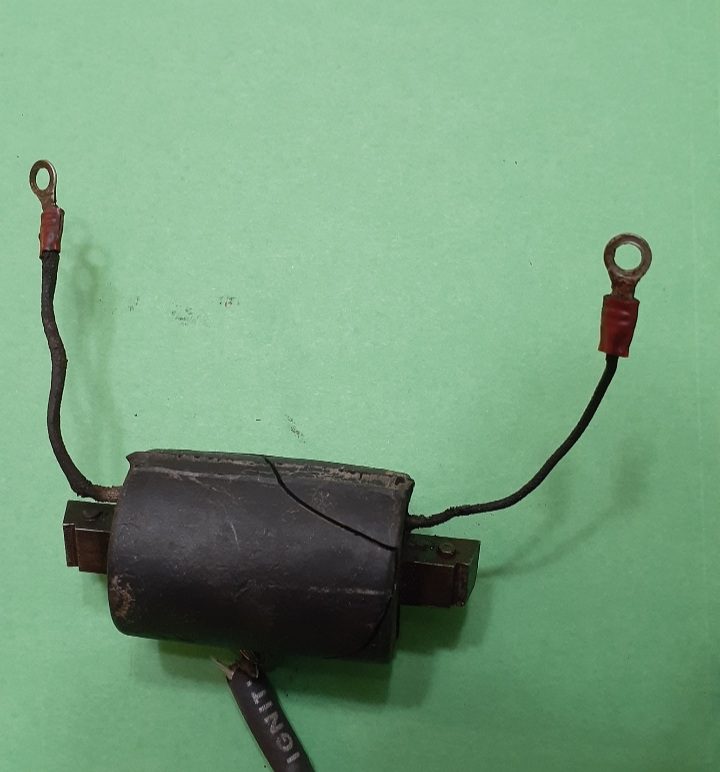

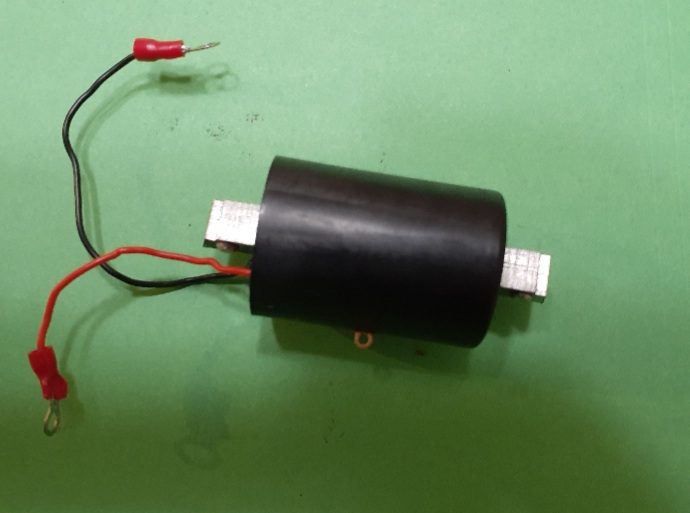

Was able to obtain a replacement coil for my Champion Blue Ribbon 1J project. Of course the replacement coil is configured differently than the original. Original had a wire out each end and the replacement has both wires out one end.

Being new to all this, my working theory is that the 2 wires, one black and one red, constitute the primary; and the sparkplug connection ring is one side of the secondary.

My question is how to test it. I have two meters both only have a 2K ohm setting, no 1K.  I get that I connect black to black and red to red across the primary to test it. How do I connect to test the secondary? Also, I can find no reference for expected values for this Bendix Scintilla coil.

I get numbers on the primary, bit nothing on the secondary.

Sorry, picture files are too large to send







[Ronald Smith]

Took screenshots to compress pictures.

• This reply was modified 3 years, 7 months ago by Mumbles.

[Tom]

To test the secondary, meter across the high tension terminal and either of the primary wires.  But if your meter only goes up to 2K ohms, you may not get a reading.  Never heard of one like that.

T

[Ronald Smith]

Tom,

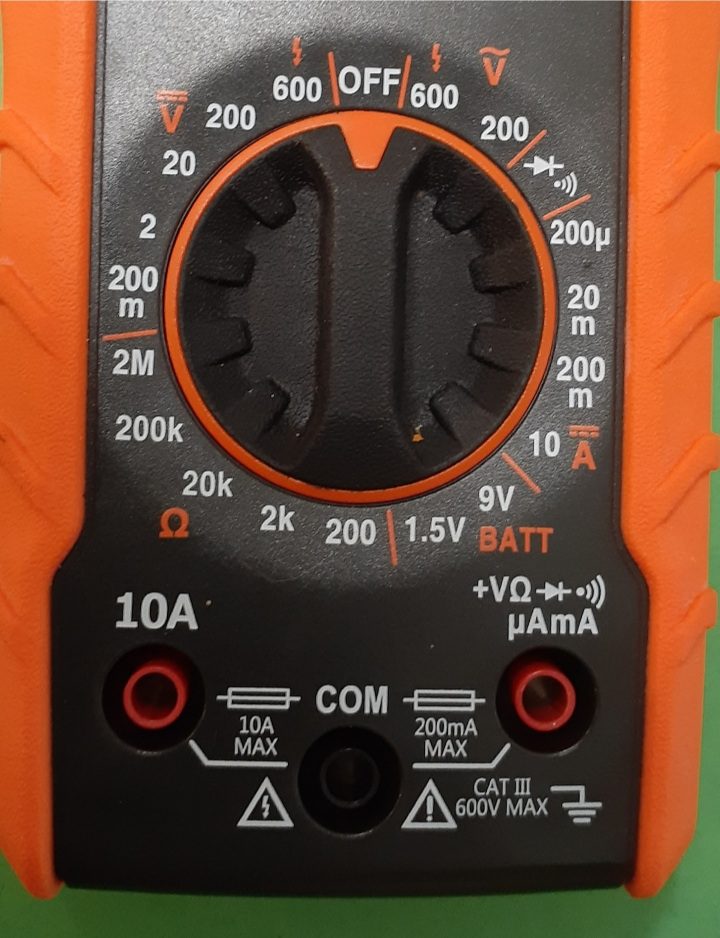

Sorry for the confusion.  My meter has a full range of settings.  It just doesn’t have a 1K setting. See picture.

[Ronald Smith]

Meter picture.

• This reply was modified 3 years, 7 months ago by Mumbles.

[Ronald Smith]

Tom,

Set for 20K and got a reading of 3.8 on the secondary.

Thanks for stearing me in the right direction. Onward to getting spark. Thanks again. AOMCI is awesome.

Ron

[Mumbles]

Black is probably a common ground for both circuits and red to the points.

[Ronald Smith]

Mumbles. Thanks. Sounds right.
