Evinrude Fire Pump

[Buccaneer]

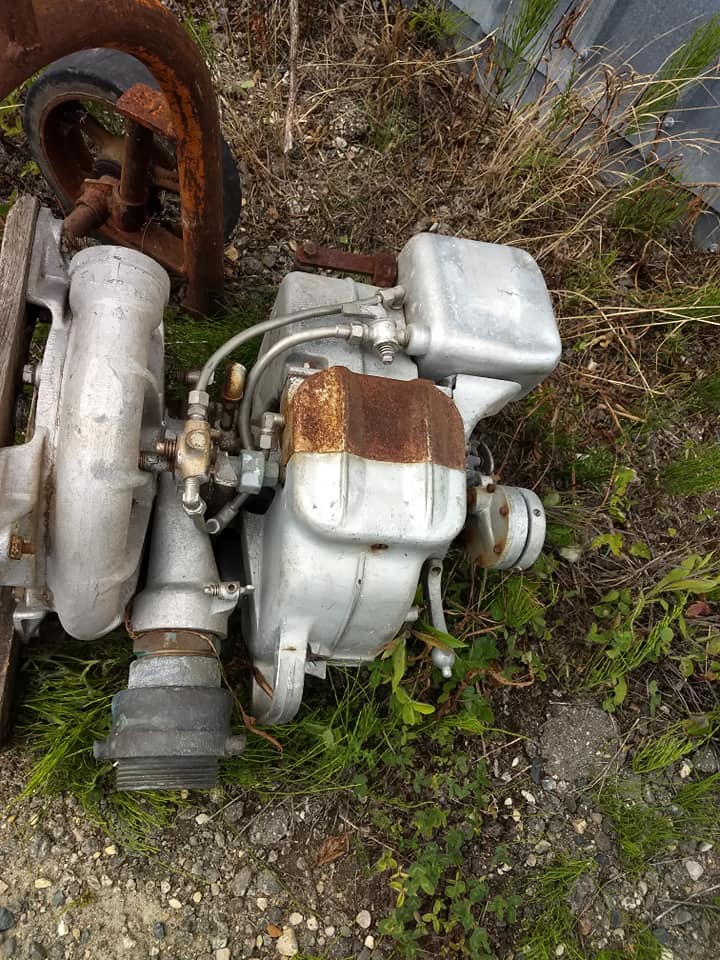

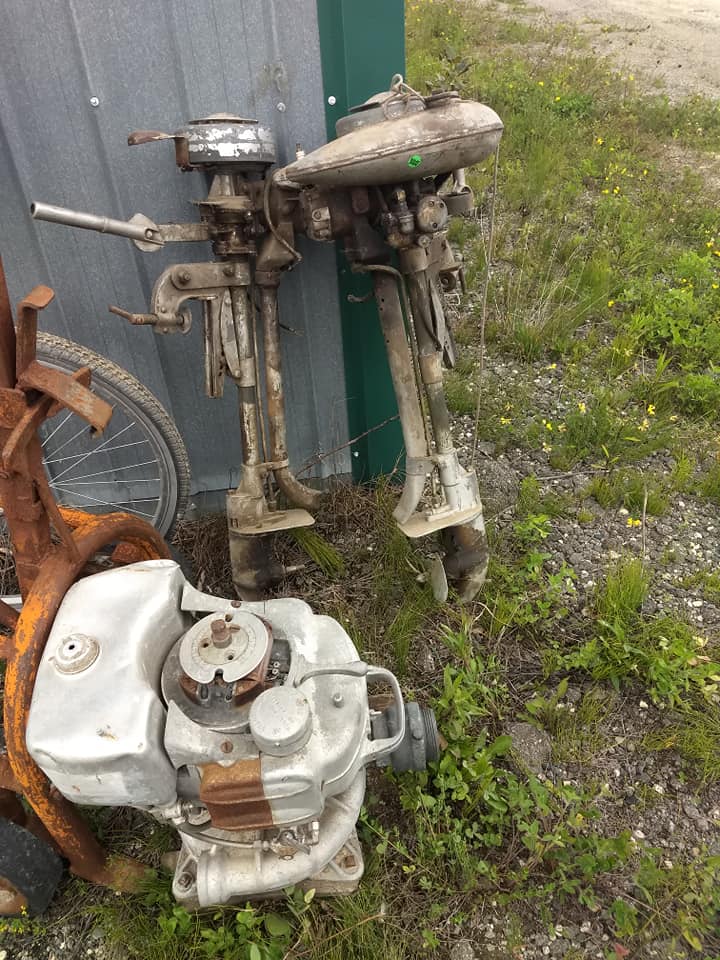

Seen this for sale. It’s froze up. Seller said he thought it was 1 or 2 cylinder
motor. Looks like a “Lightfour” motor to me? It’s froze up, and I have
some Lightfour parts. Am I Correct?
Any “history” on these fire pumps “out there?
Thanks?

Prepare to be boarded!

[garry-in-michigan]

Yes – an Imperial Fire Pump. Some years the Lightfour was offered in 16 different models. It could be bought for 15″‘, 20″ and 30″ transoms, with or without the auto rewind (Simplex) starter. Standard gear case or Heavy Duty (three to one reduction) standard or 360 degree steering. In later years a pump kit was offered that took the place of the propeller on the standard outboard. When they had their anniversary meet in 2002 or 03 at Tomahawk there were three Lightfour Imperial fire pumps auctioned off. Get the model number.

[Buccaneer]

Thanks Gary for the information. Sounds like a person could get just about any Lightfour
package the heart desired. I inquired with the seller about “numbers”, but no
reply yet.

Prepare to be boarded!

[Buccaneer]

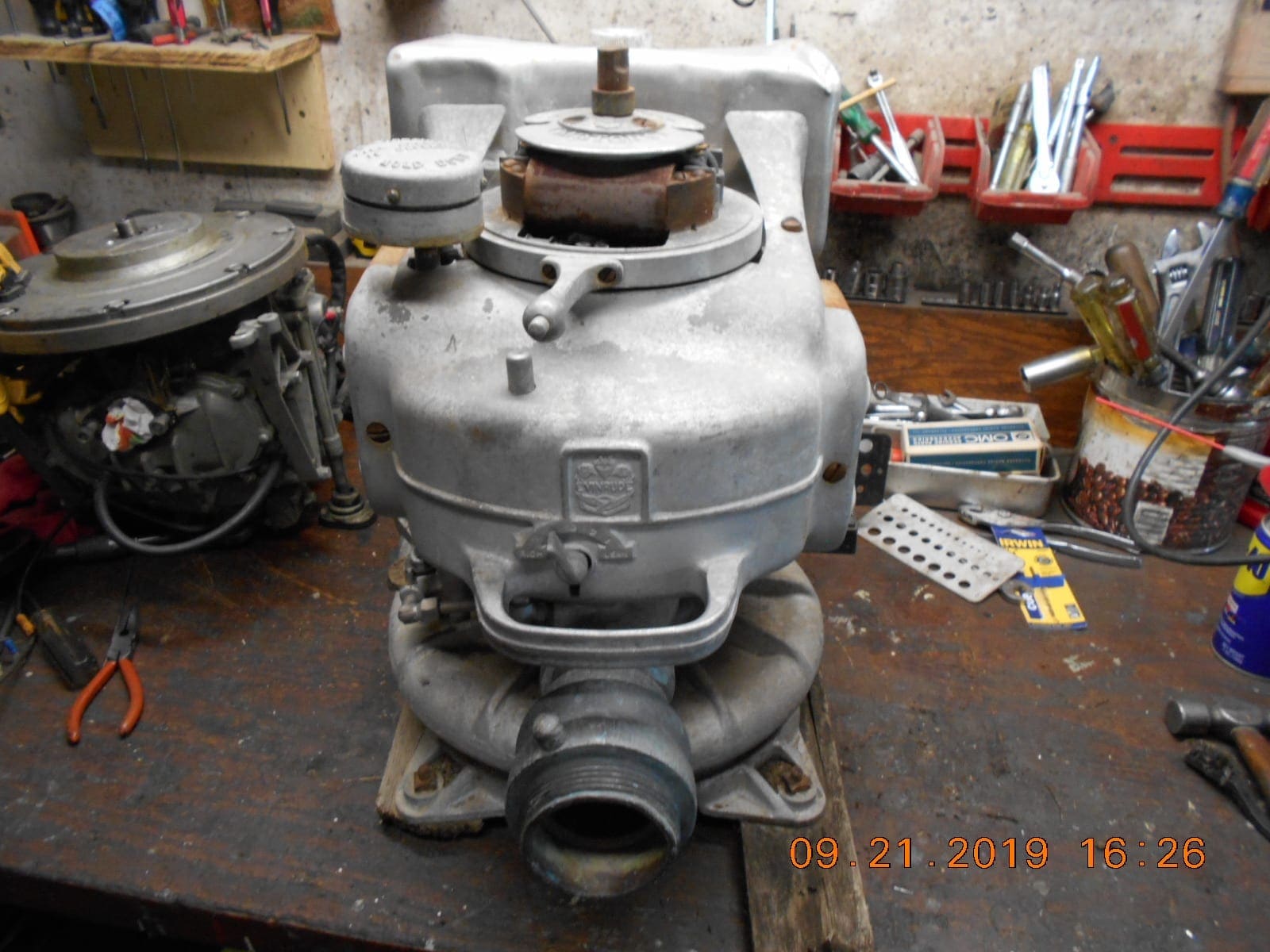

The said Lightfour Fire pump and two Champion S1F’s came home with me today.

The model number on the power head’s brass core plug is 932, serial number 00635.

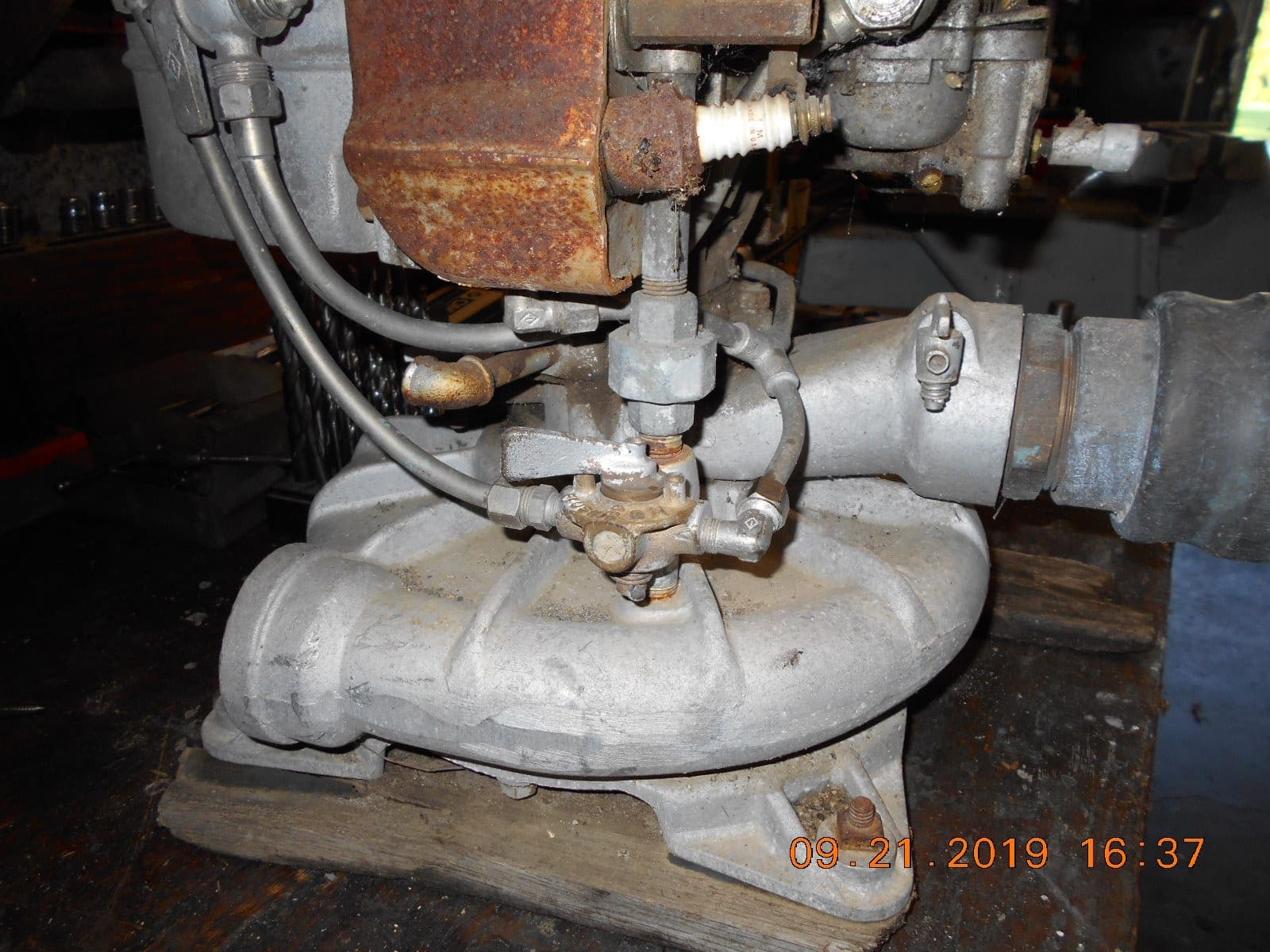

There’s a matching number stamped in the aluminum pump flange, as you can see
in the one photo.
I can “not” find this model number on either online Evinrude model list I had bookmarked.
They both had models listed up to 927 (1933) and no higher in the 900 series.
What year is mine?
Would the later Lightfour motors use the same internal parts, ie., pistons, crank, etc?

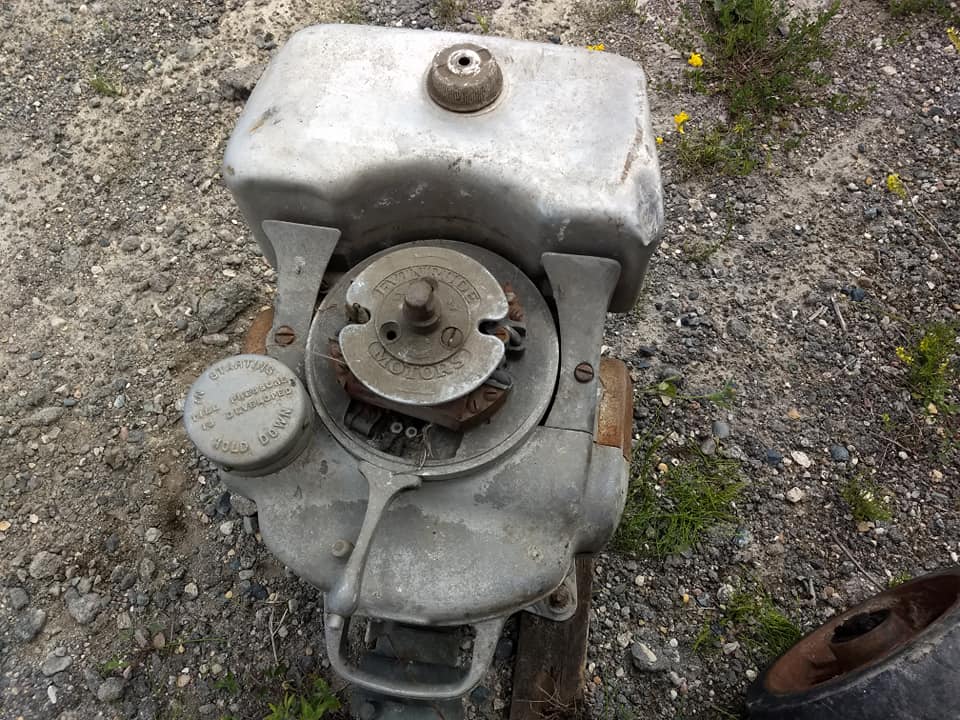

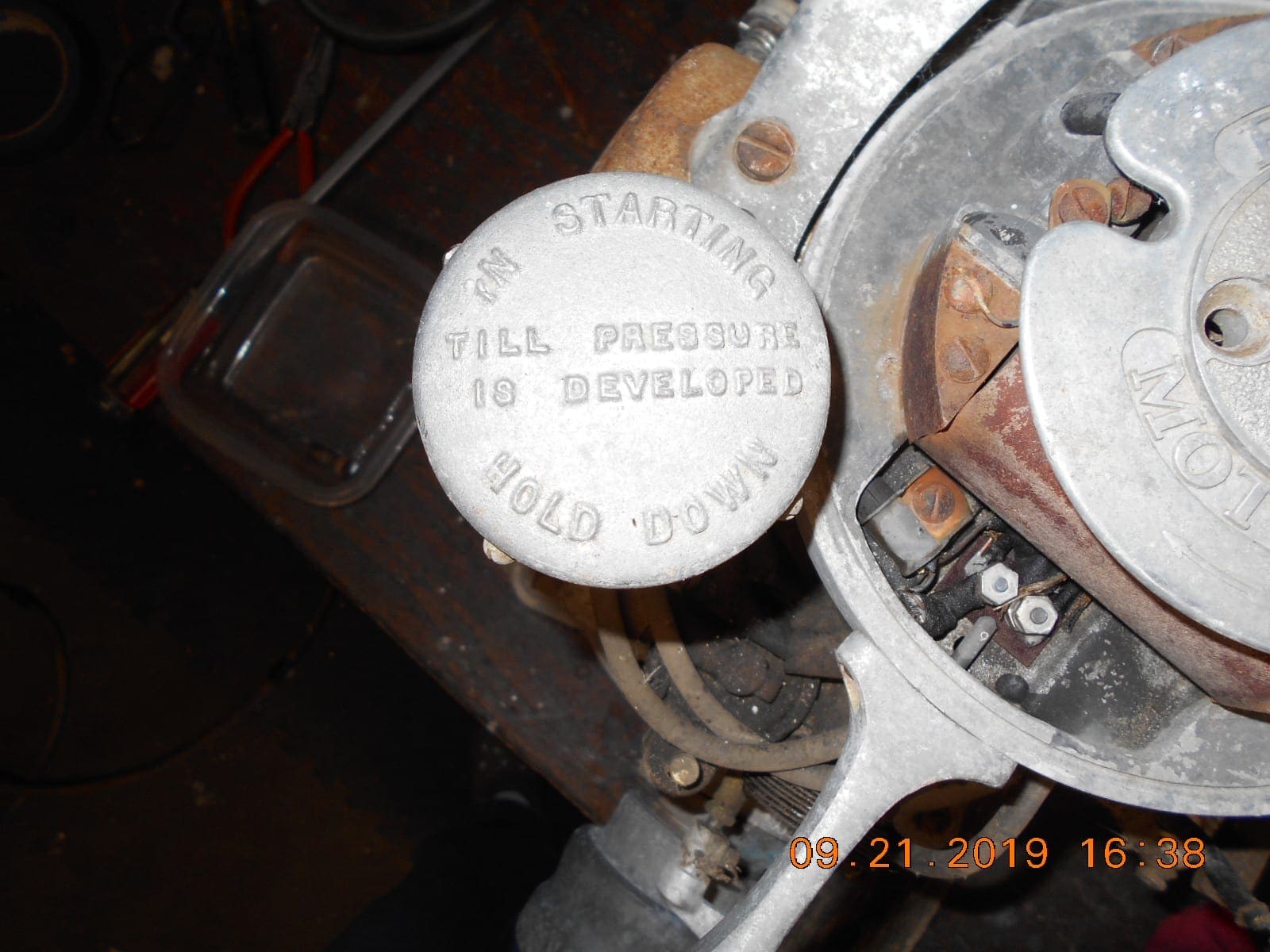

Is the round cover the “choking” mechanism? It says “In Starting Hold Down”
“Till Pressure is Developed”

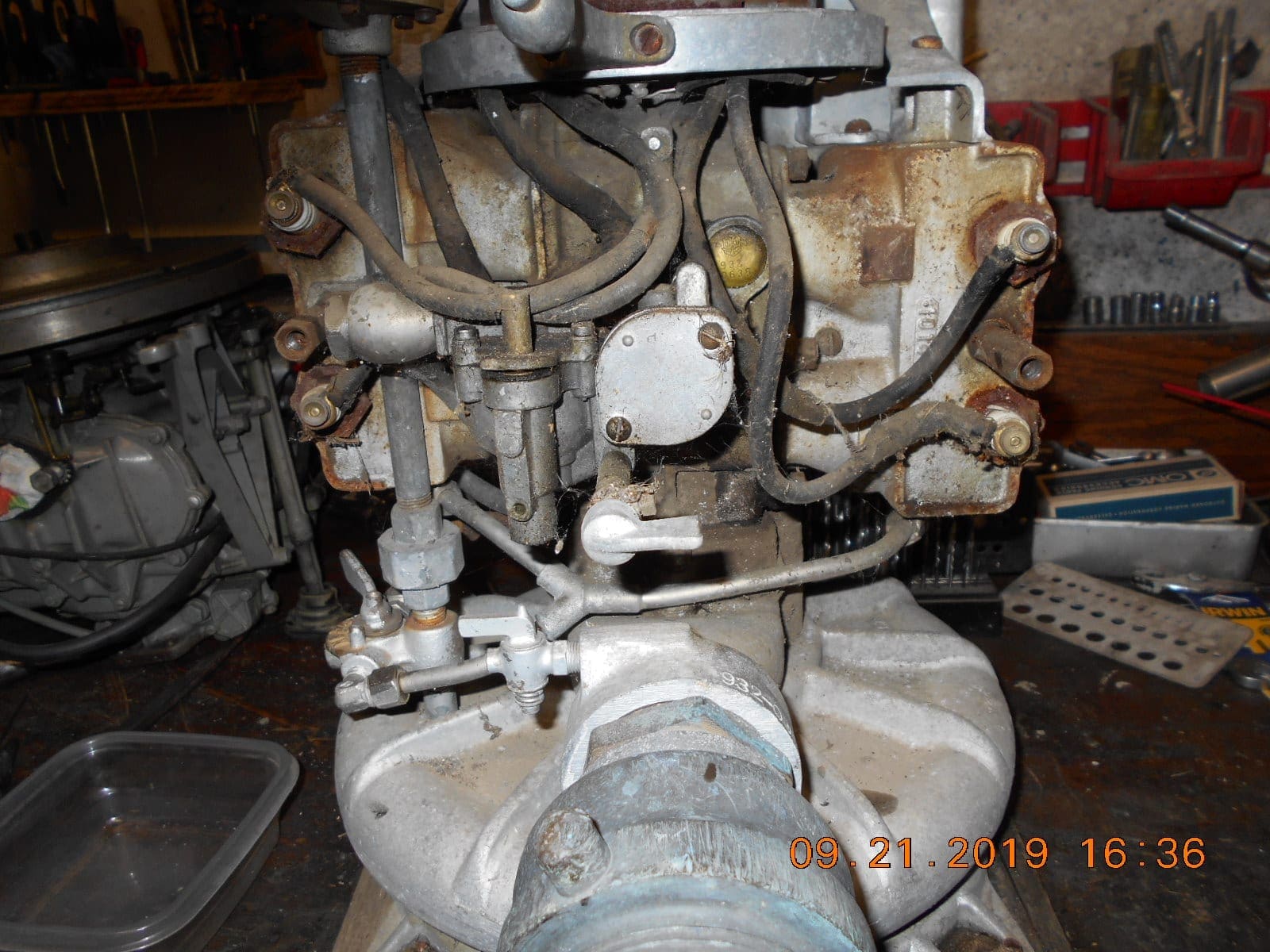

Not sure how the fuel system is all plumbed, but it looks like a strange set up!

Thanks!

Prepare to be boarded!

• This reply was modified 5 years, 7 months ago by Buccaneer.
• This reply was modified 5 years, 7 months ago by Buccaneer.
